Pontiac
>>
2009
>>
Solstice L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Tank Unit
Fuel Tank Unit

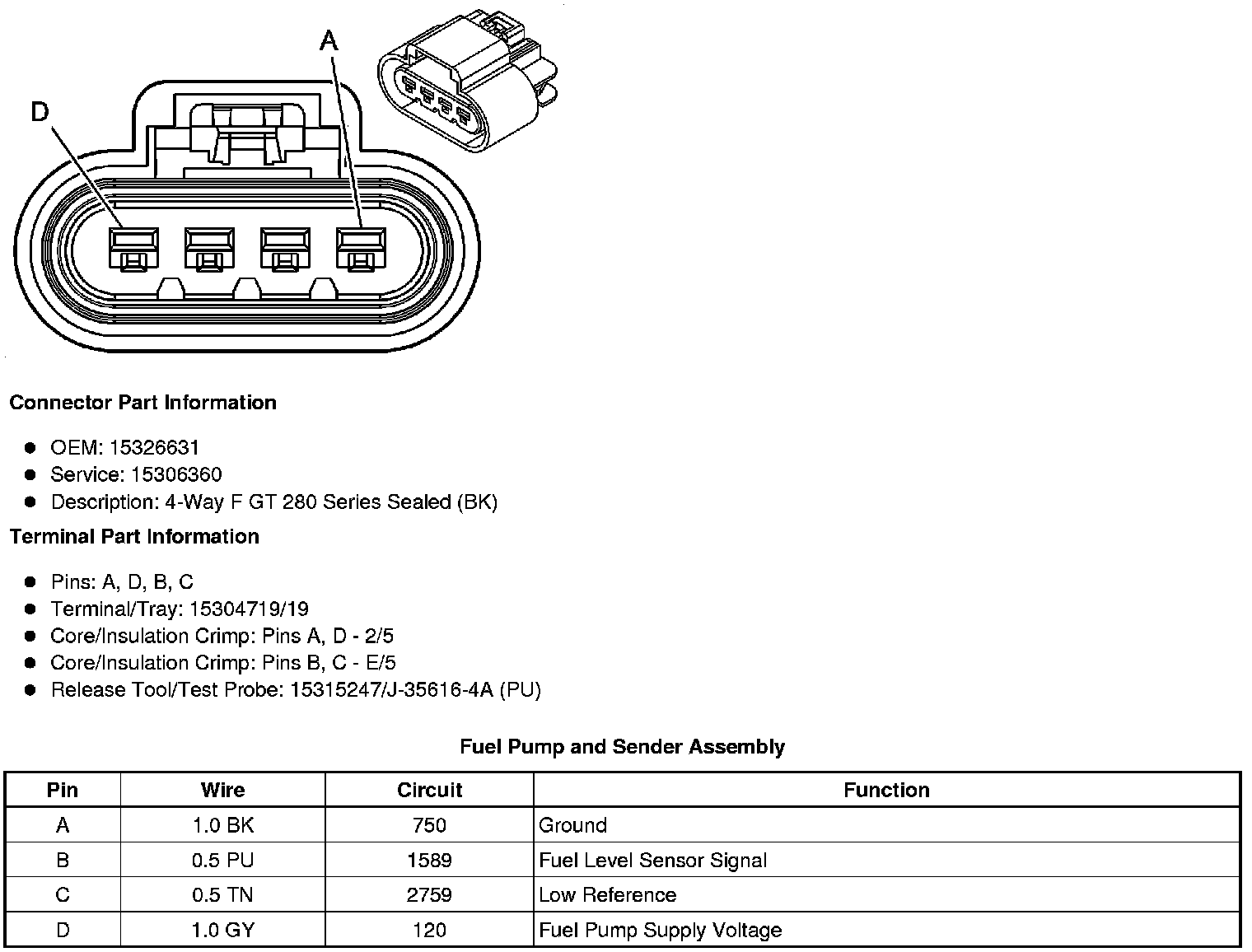

Component Connector End Views
Fuel Pump and Sender Assembly
