Home
>>
Pontiac
>>
2009
>>
Solstice L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>
Turn Signal/Multifunction Switch X1
Turn Signal/Multifunction Switch X1
Component Connector End Views

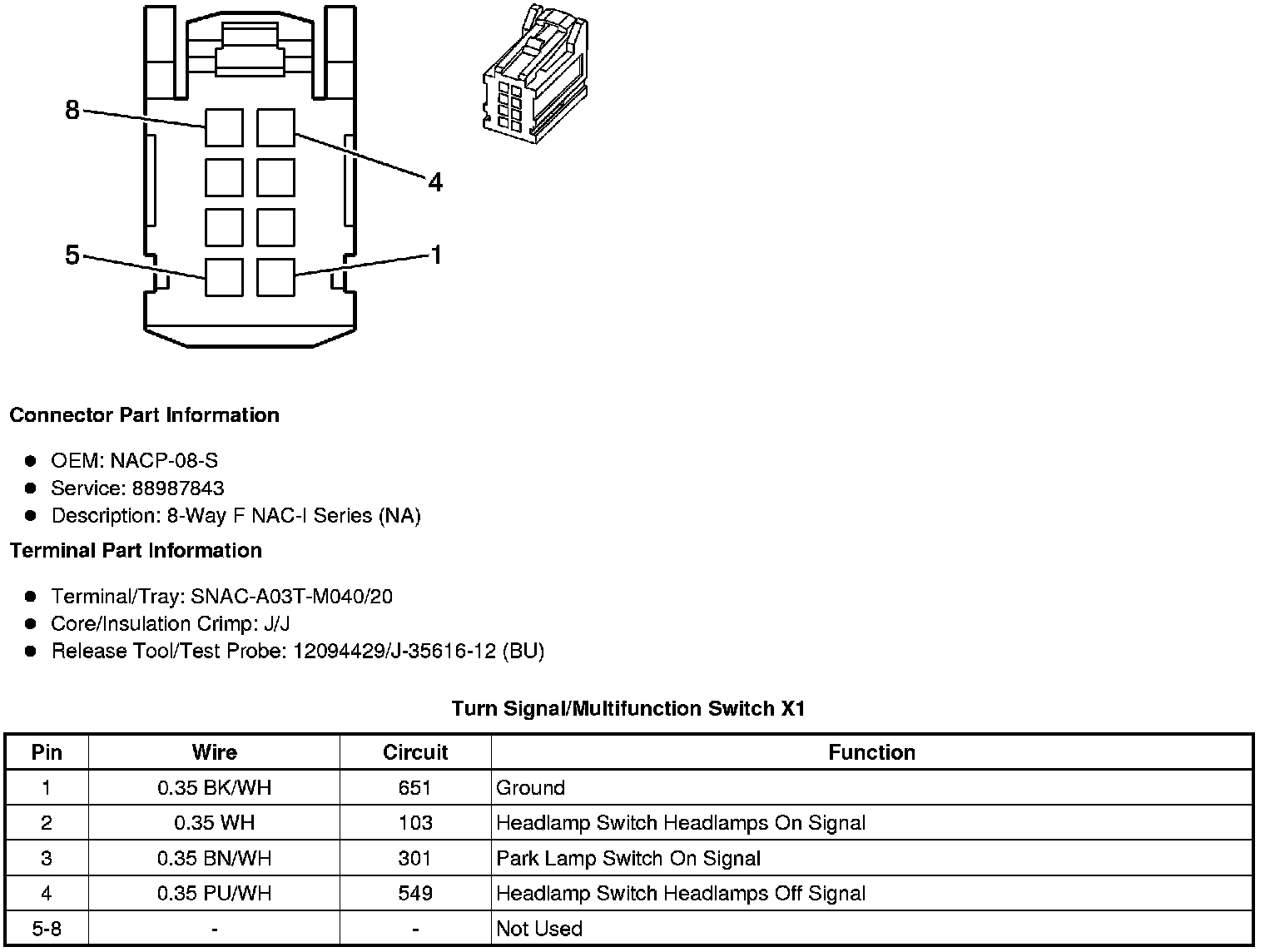

Turn Signal/Multifunction Switch X1
