Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch
Component Connector End Views

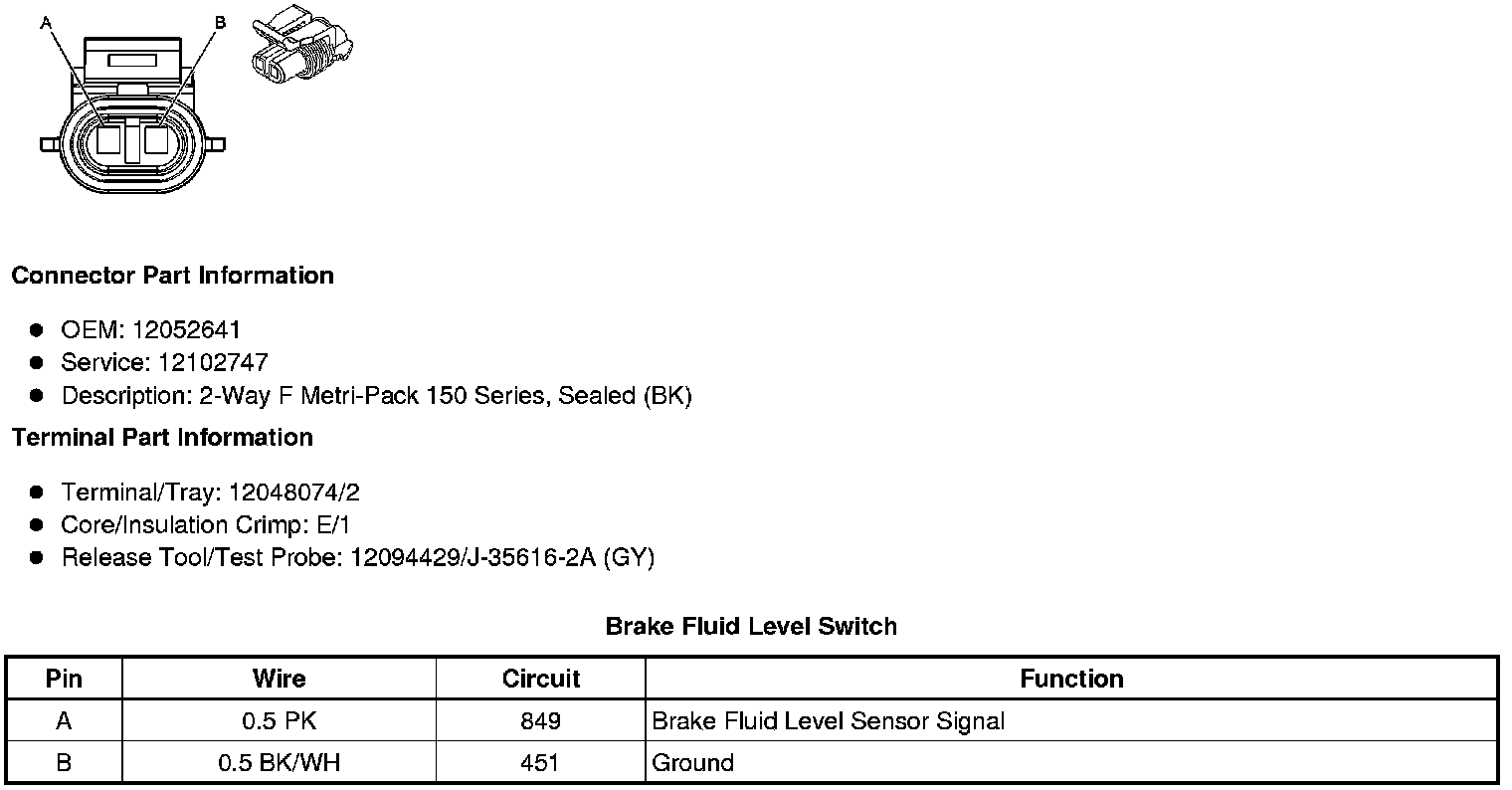

Brake Fluid Level Switch
