Thread Repair Specifications
Thread Repair Specifications

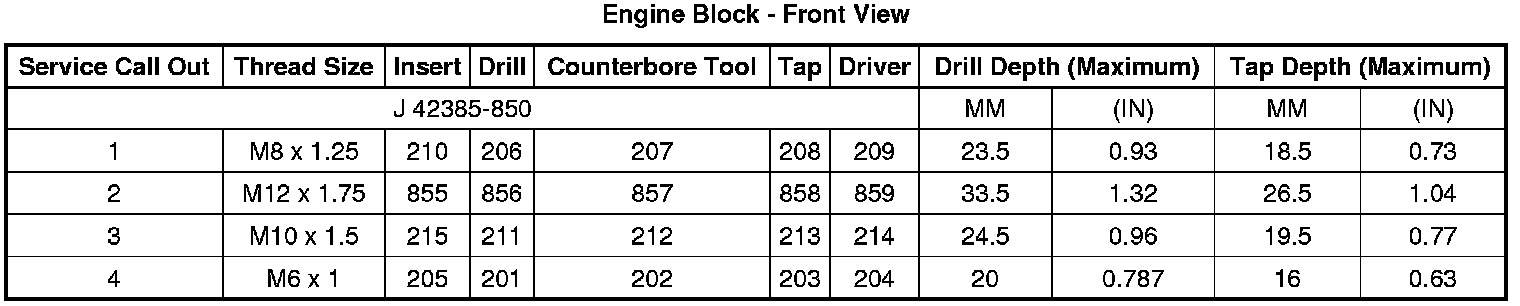

Engine Block - Front View

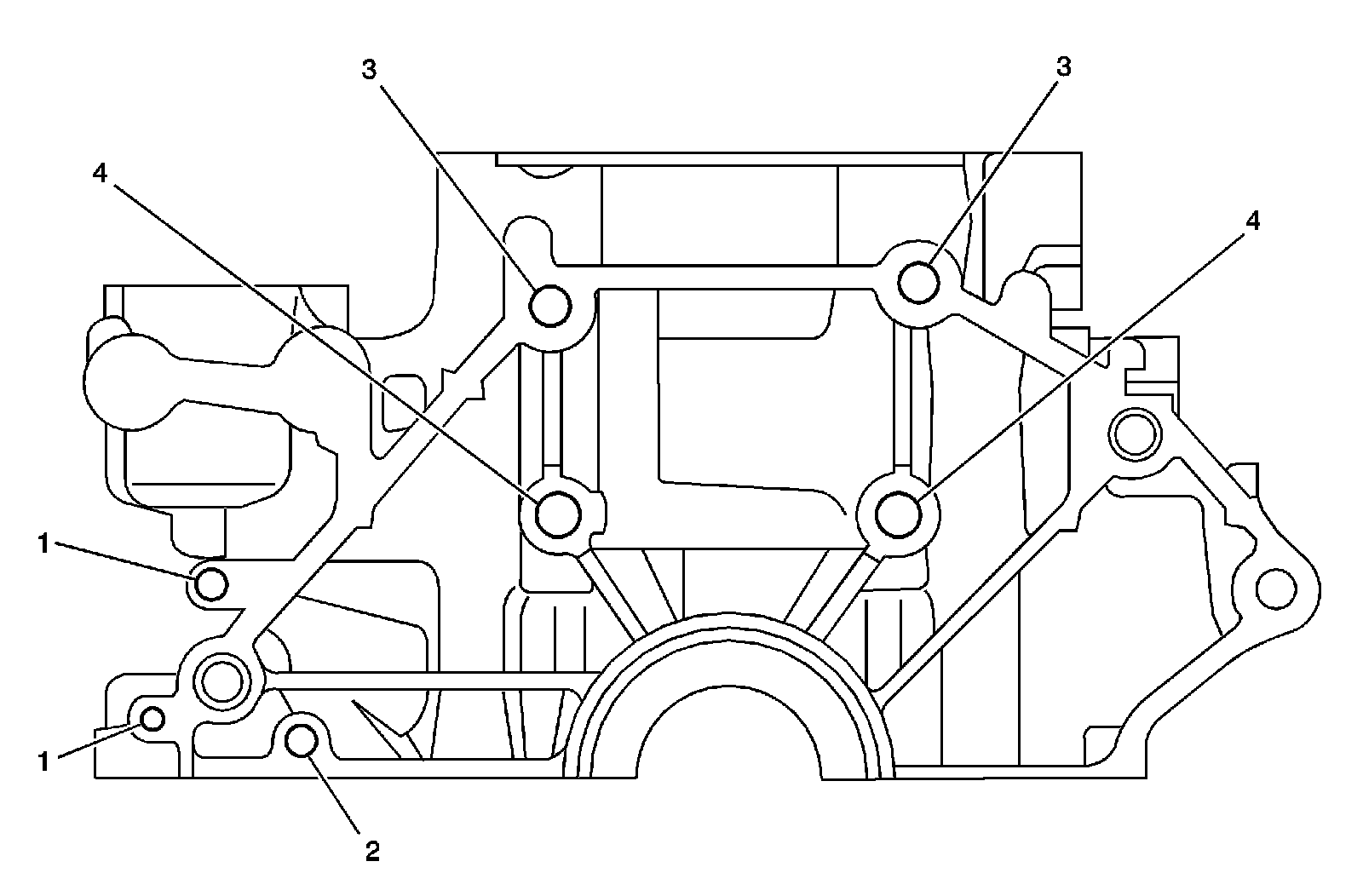

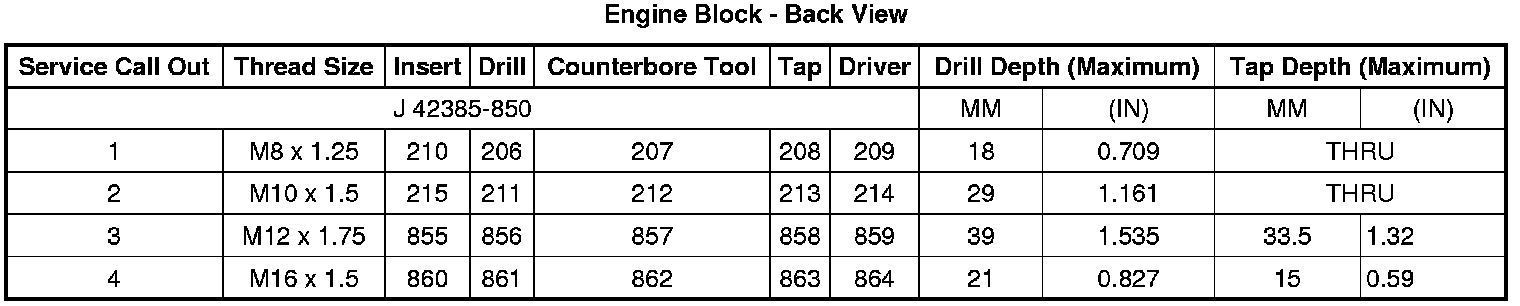

Engine Block - Back View
Engine Block - Left Side View

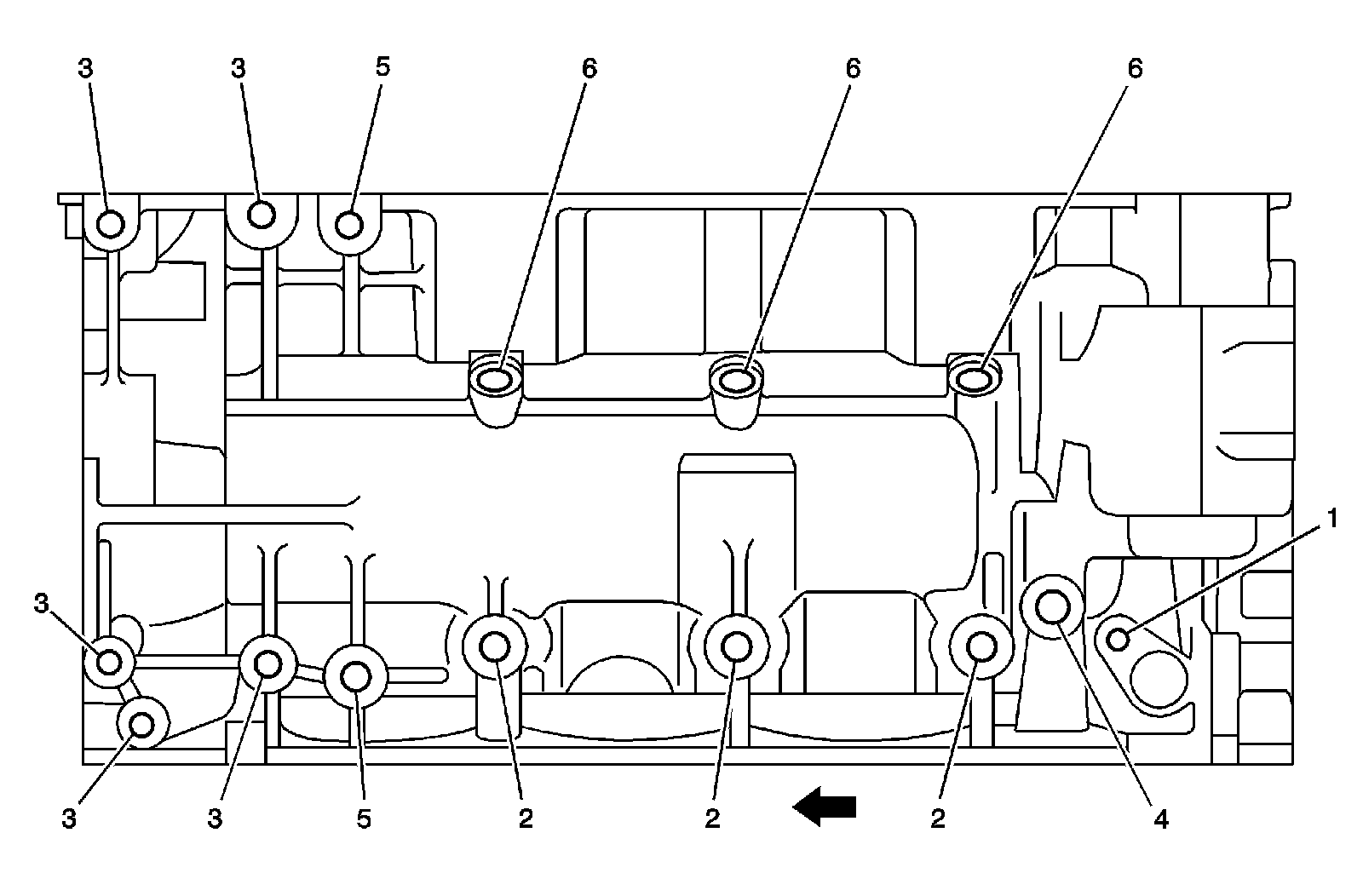

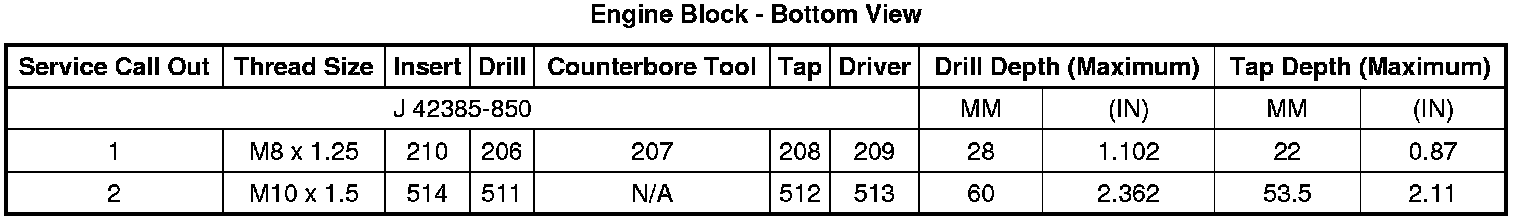

Engine Block - Bottom View

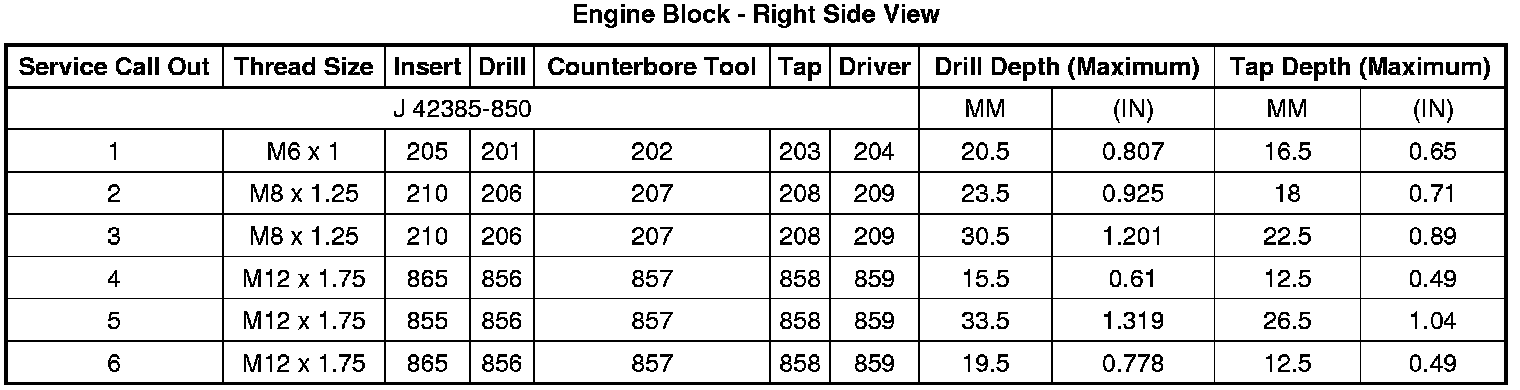

Engine Block - Right Side View

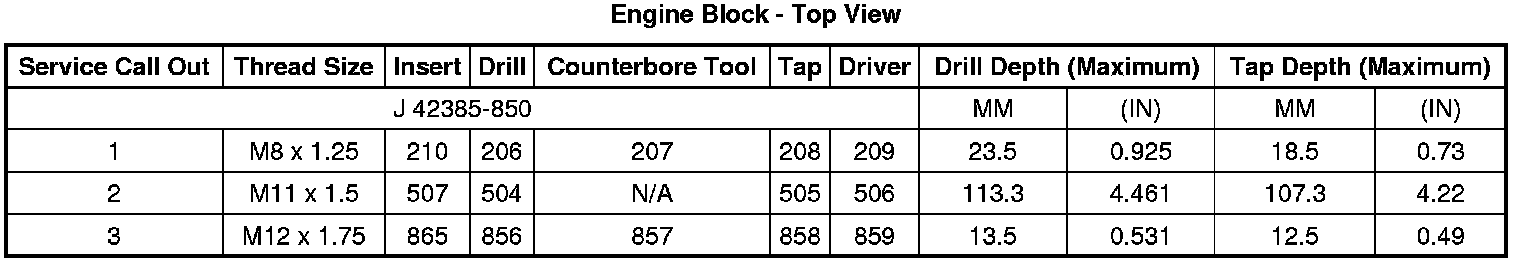

Engine Block - Top View

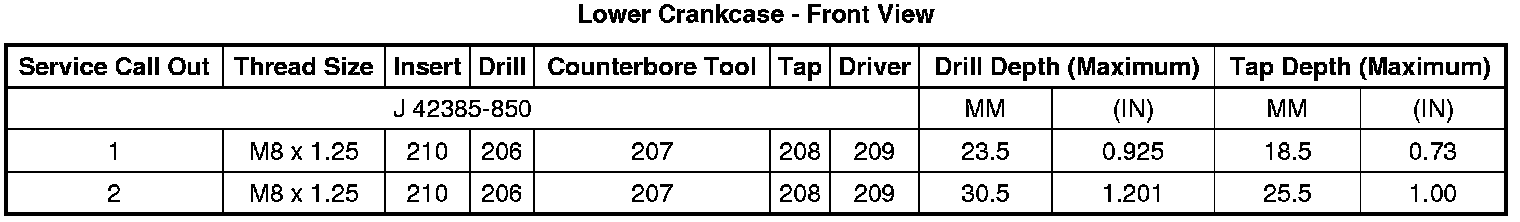

Lower Crankcase - Front View

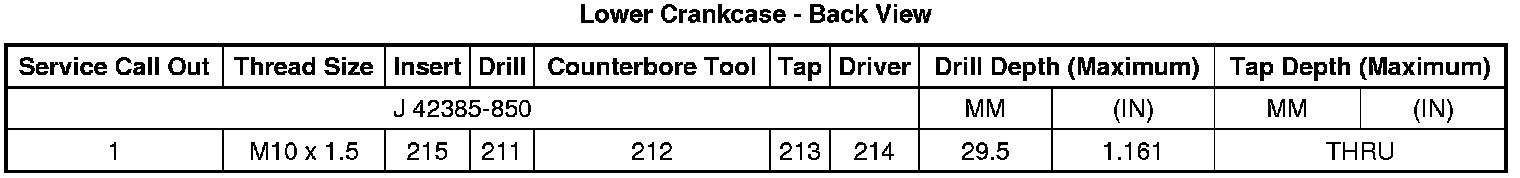

Lower Crankcase - Back View

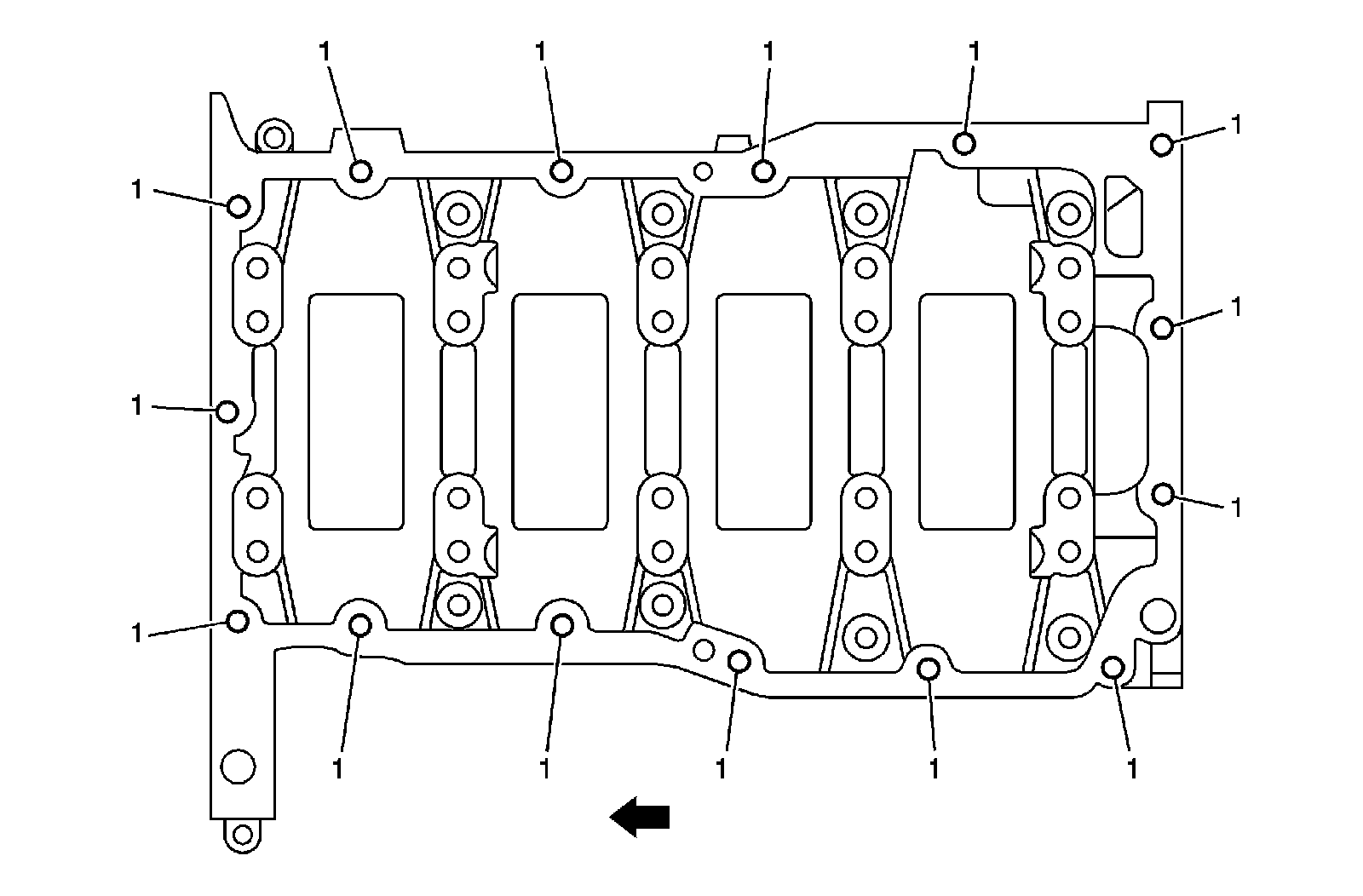

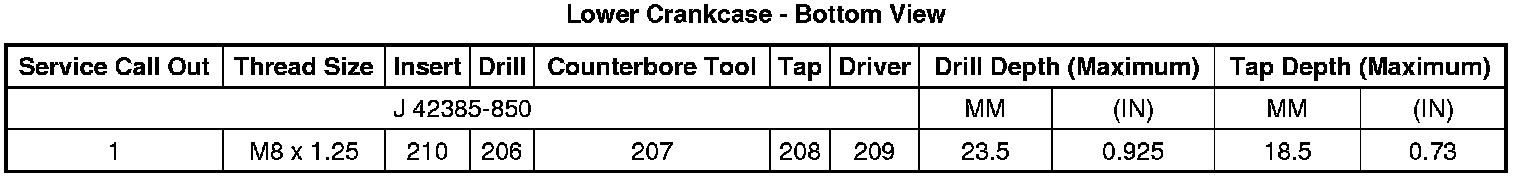

Lower Crankcase - Bottom View

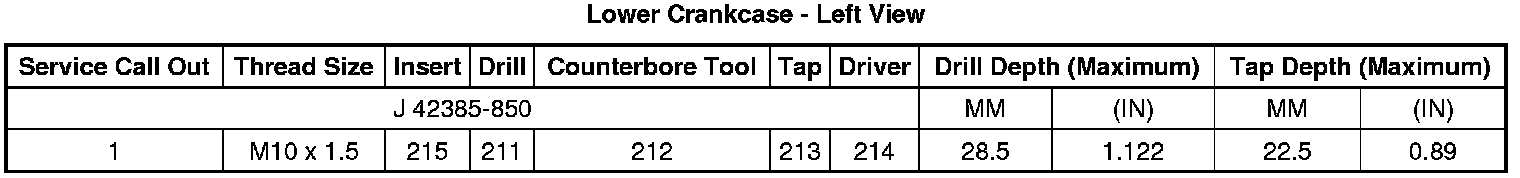

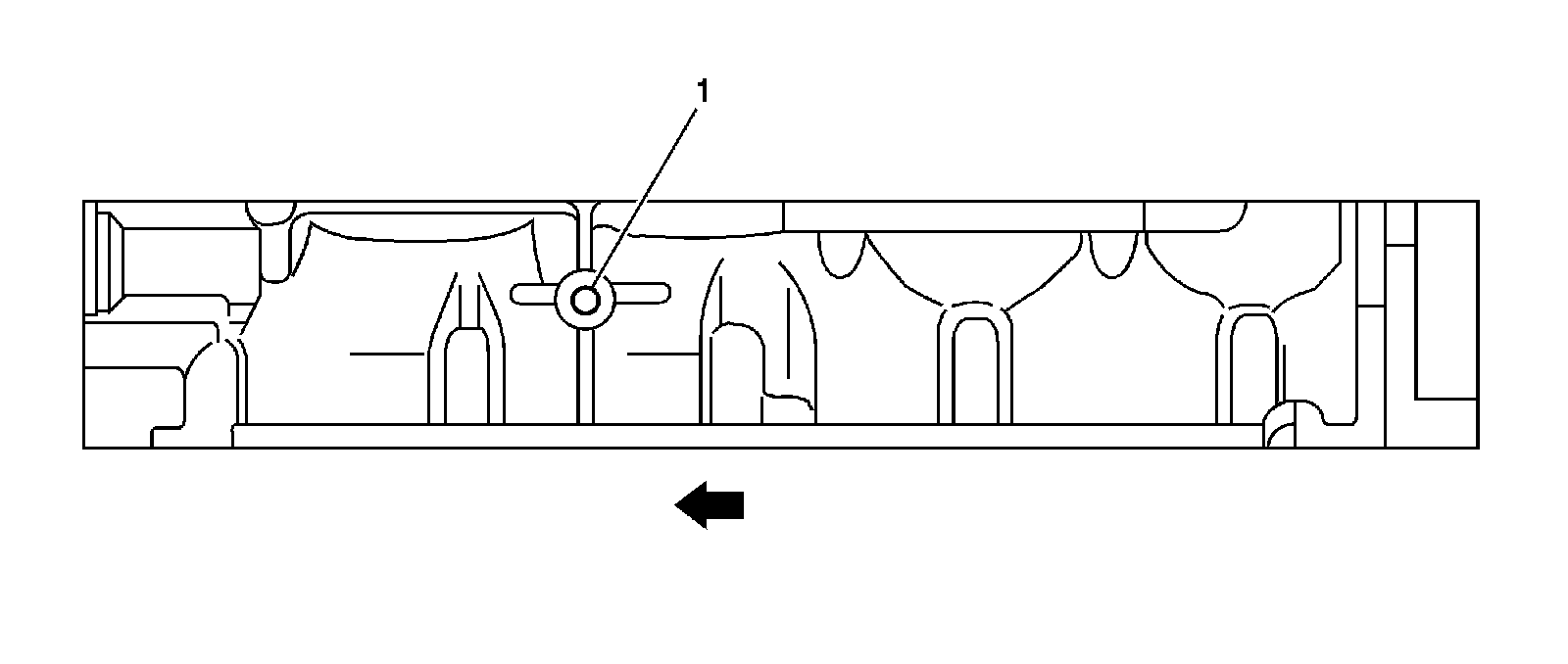

Lower Crankcase - Left View
Lower Crankcase - Right View

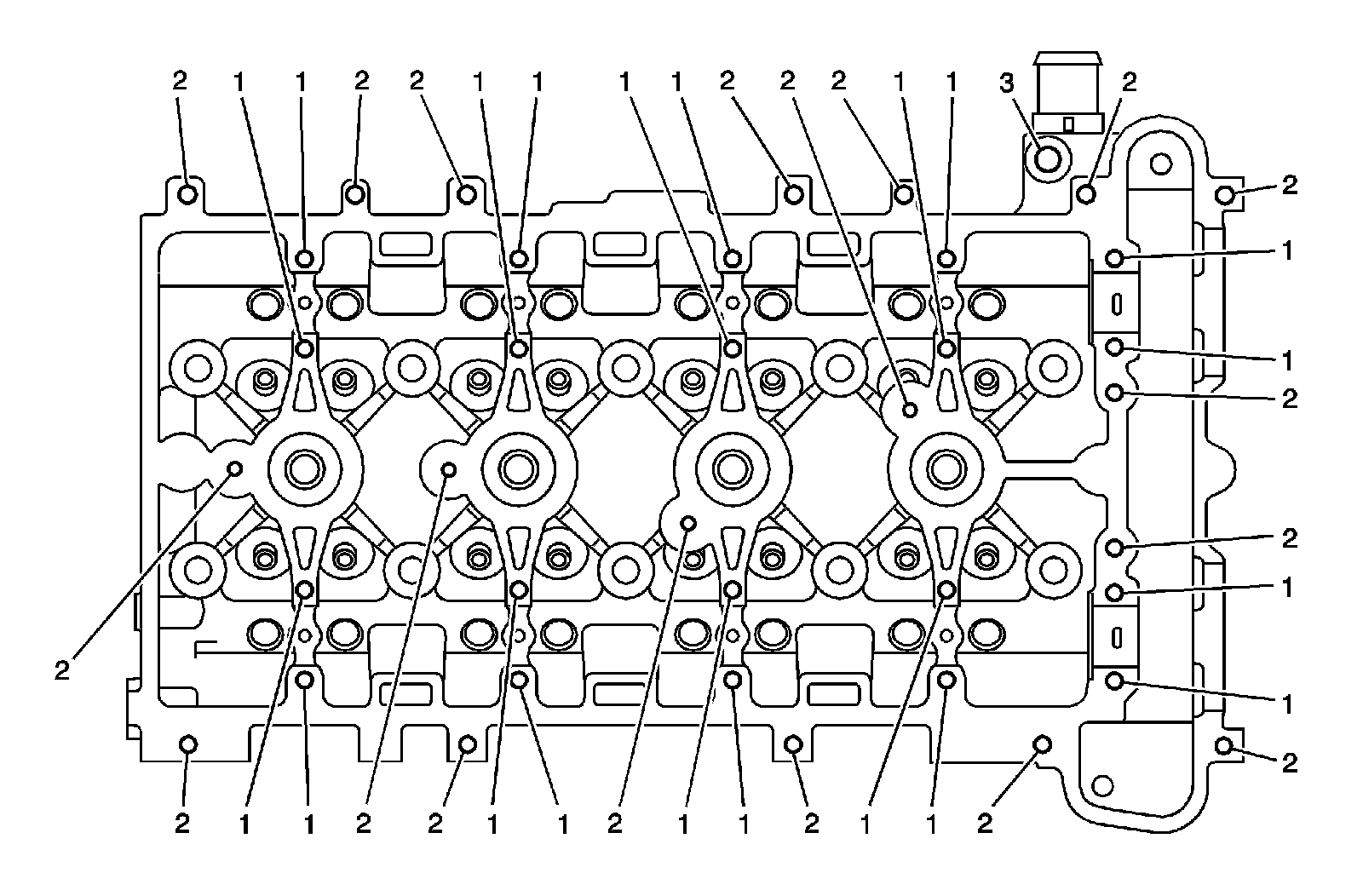

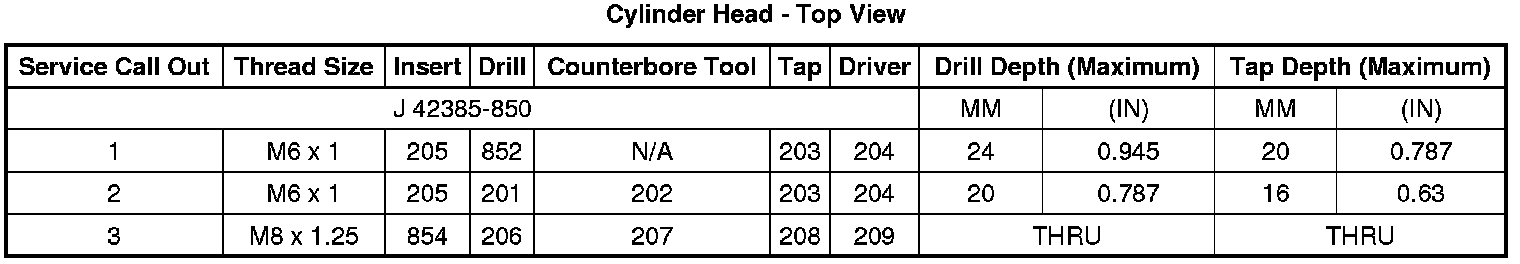

Cylinder Head - Top View

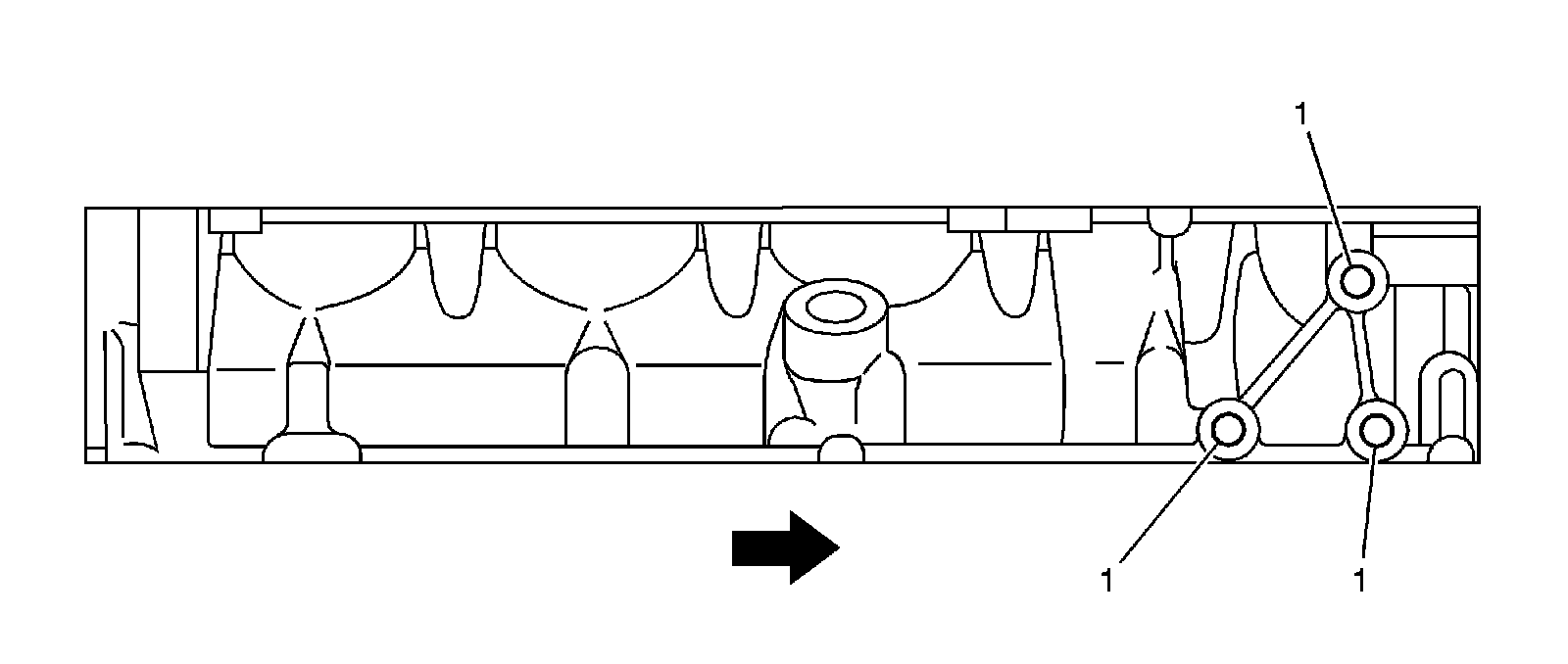

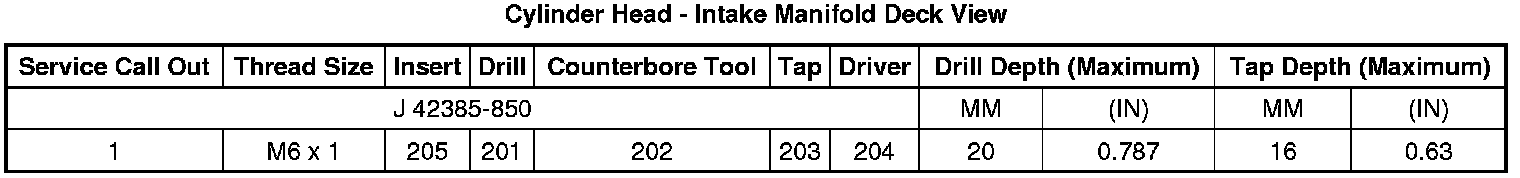

Cylinder Head - Intake Manifold Deck View

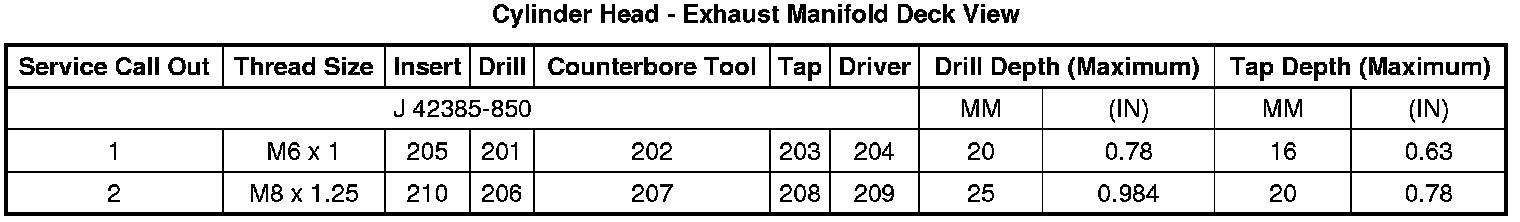

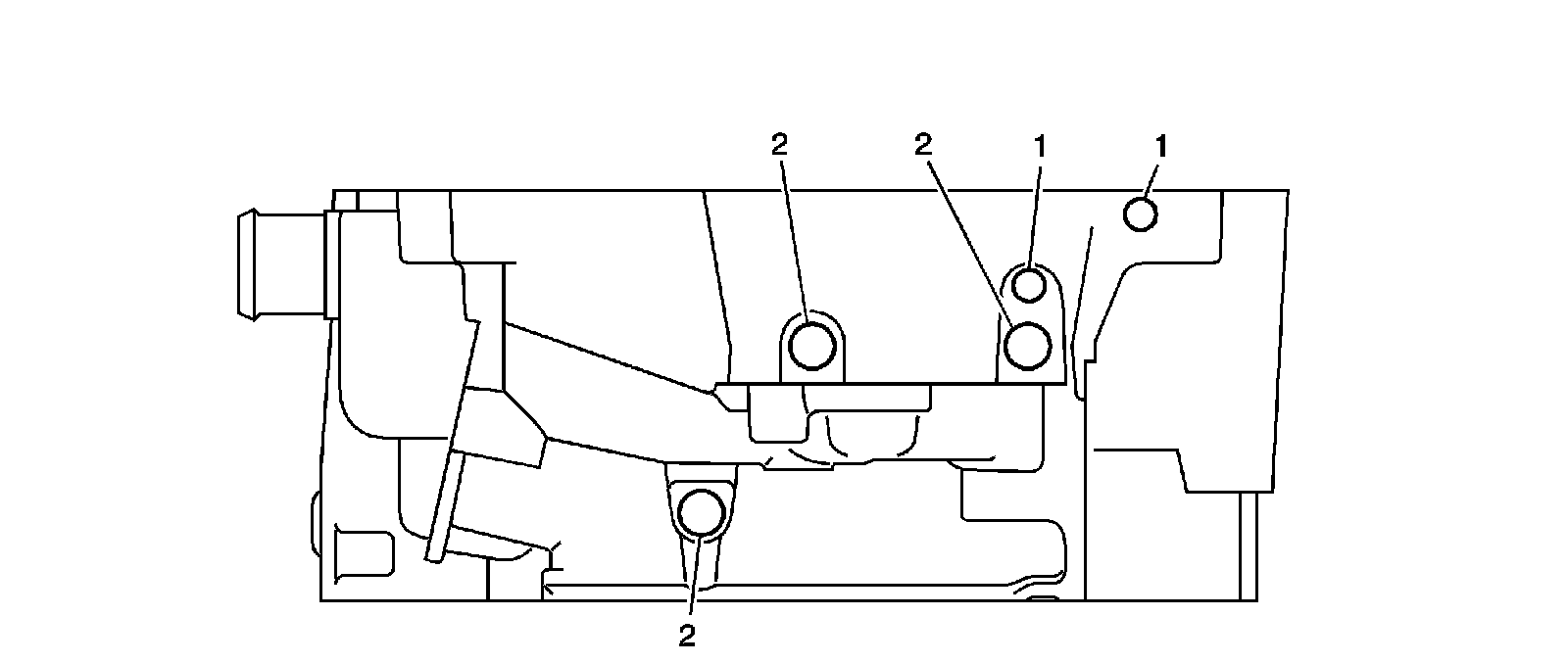

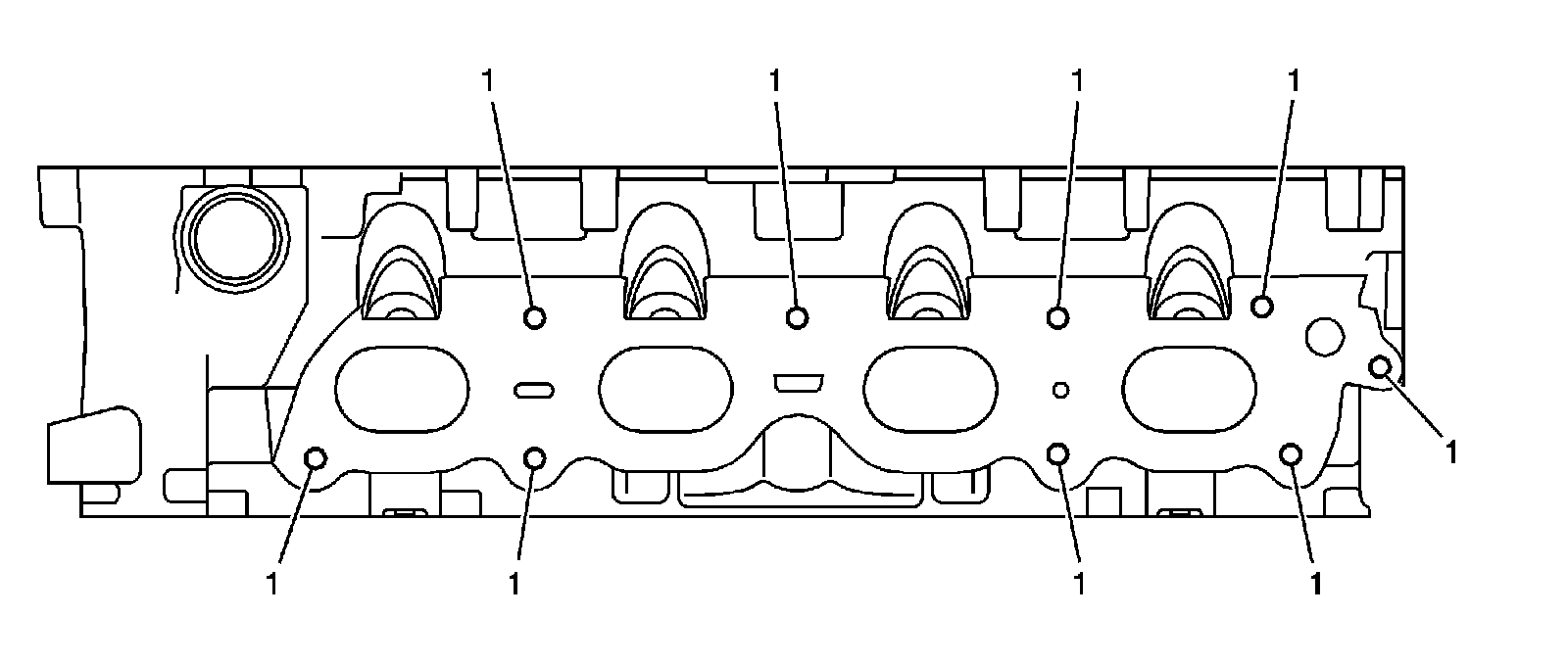

Cylinder Head - Exhaust Manifold Deck View

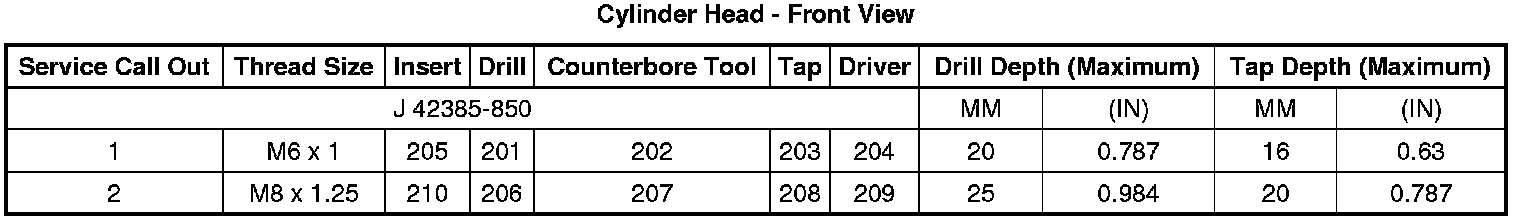

Cylinder Head - Front View

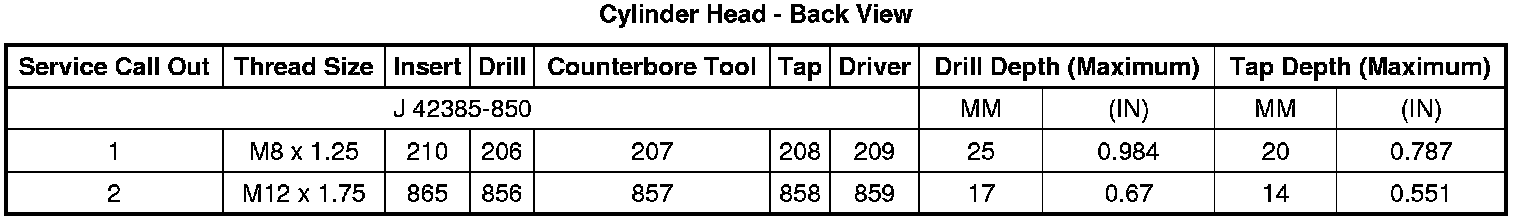

Cylinder Head - Back View
