Seat Temperature Control Module
Seat Temperature Control Module
Component Connector End Views

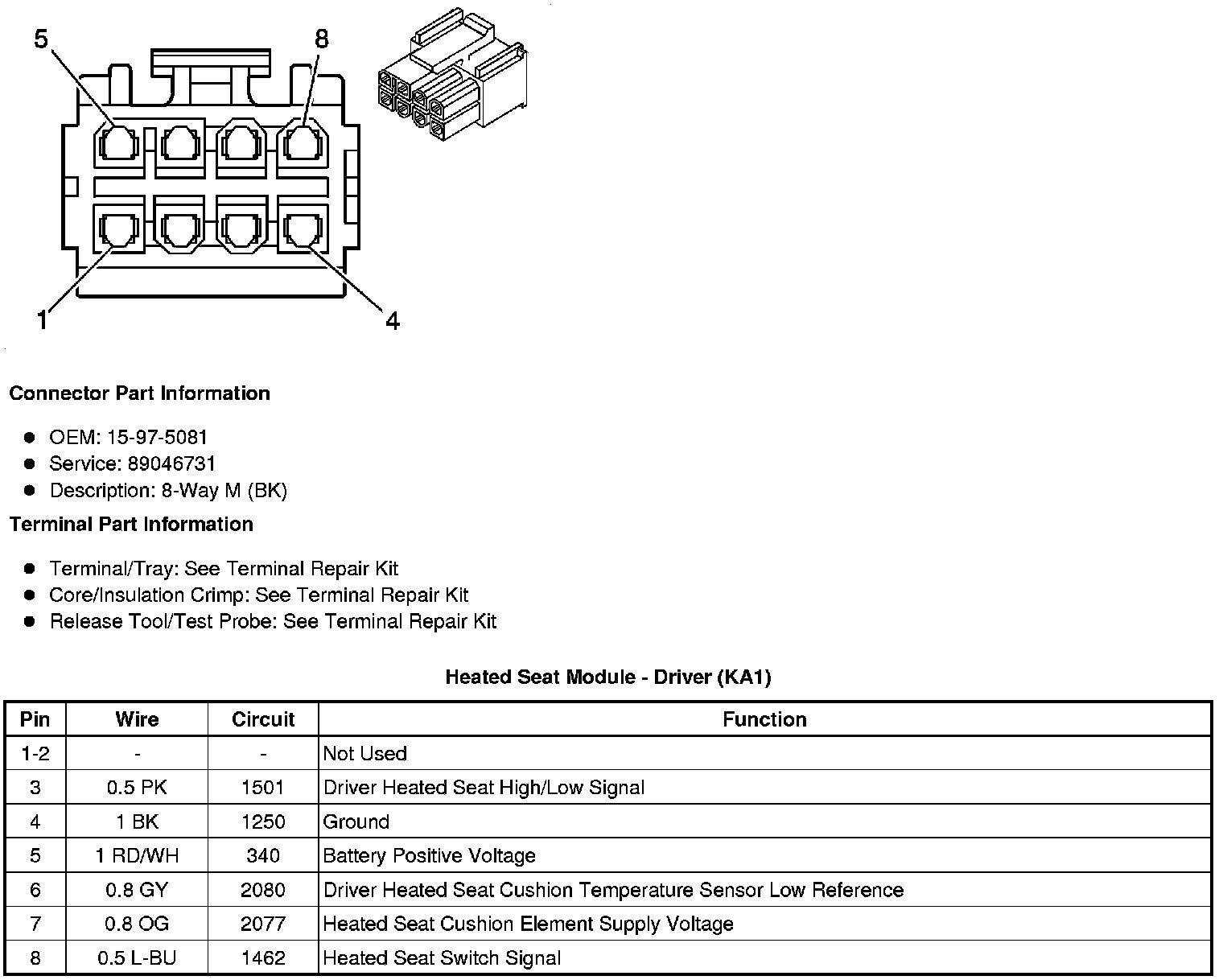

Heated Seat Module - Driver (KA1)

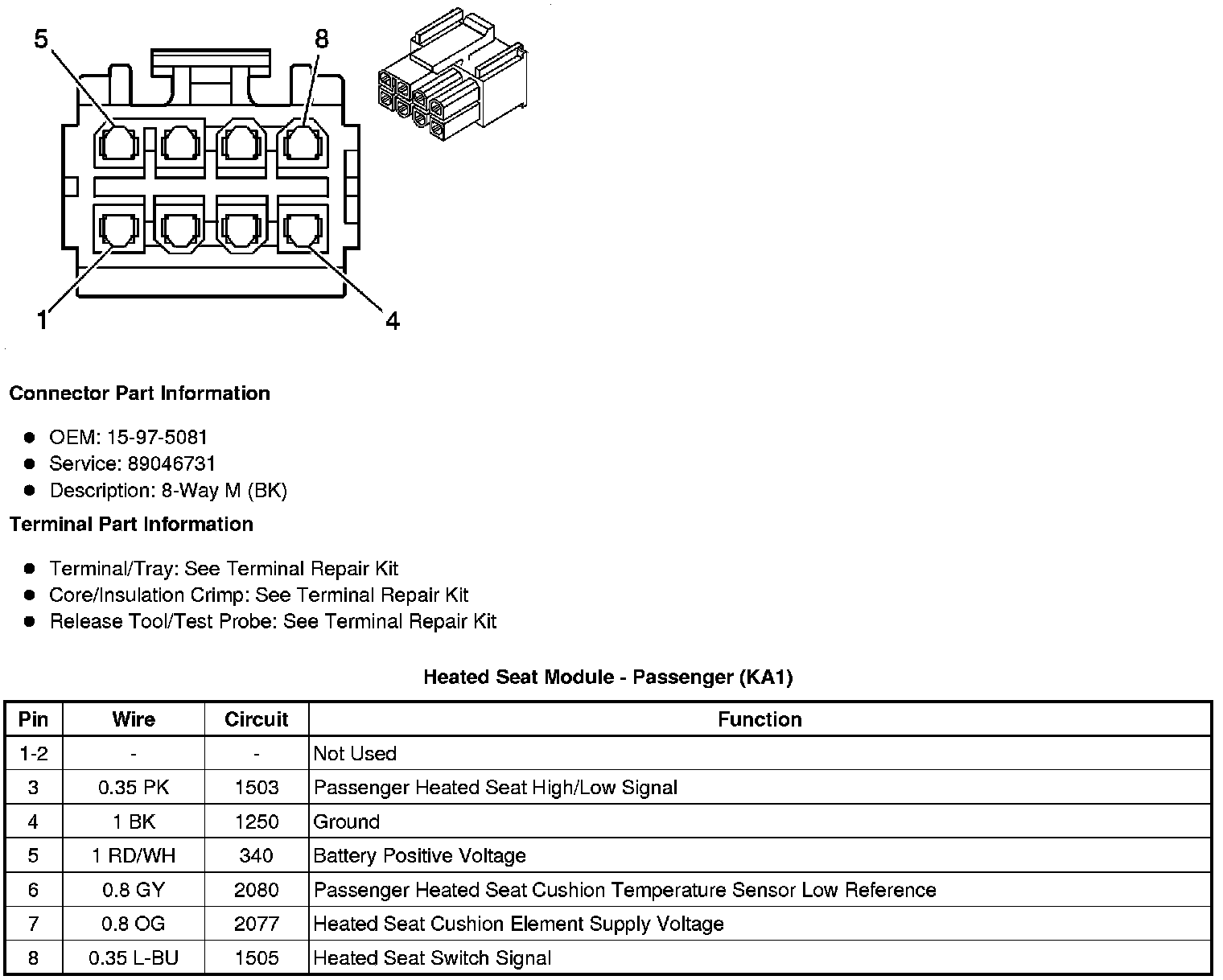

Heated Seat Module - Passenger (KA1)
