Power Window Switch




Component Connector End Views

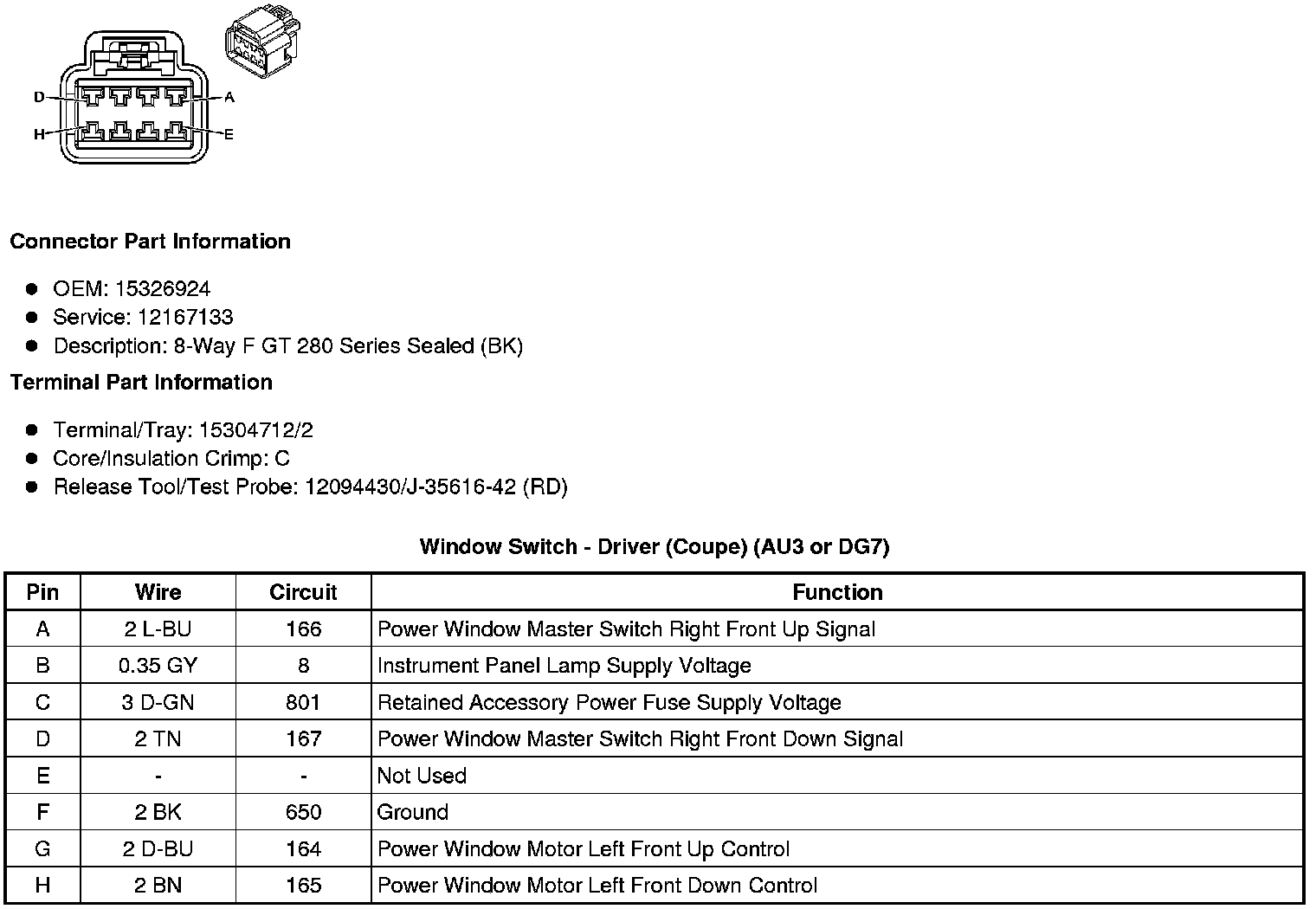

Window Switch - Driver (Coupe) (AU3 or DG7)

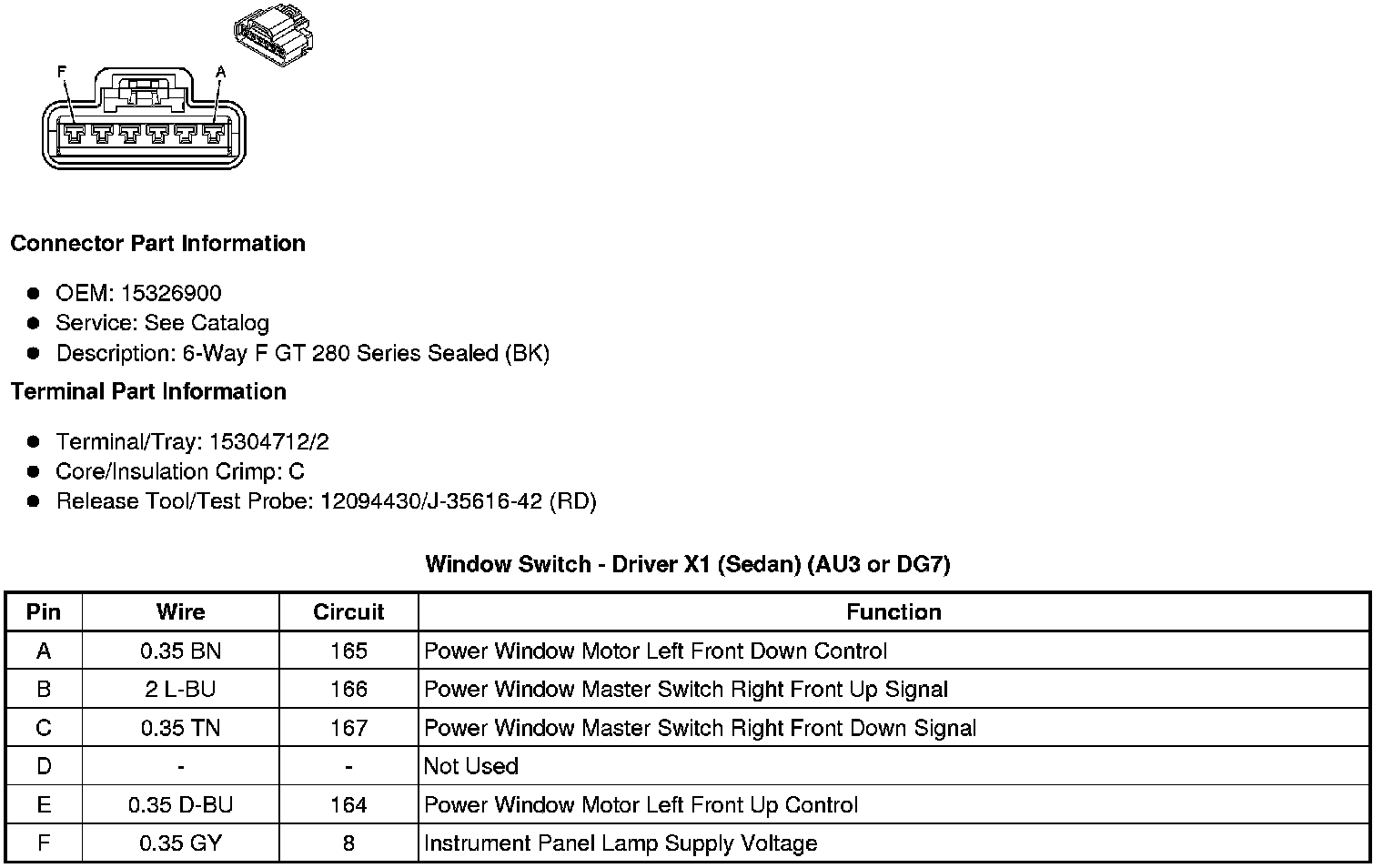

Window Switch - Driver X1 (Sedan) (AU3 or DG7)

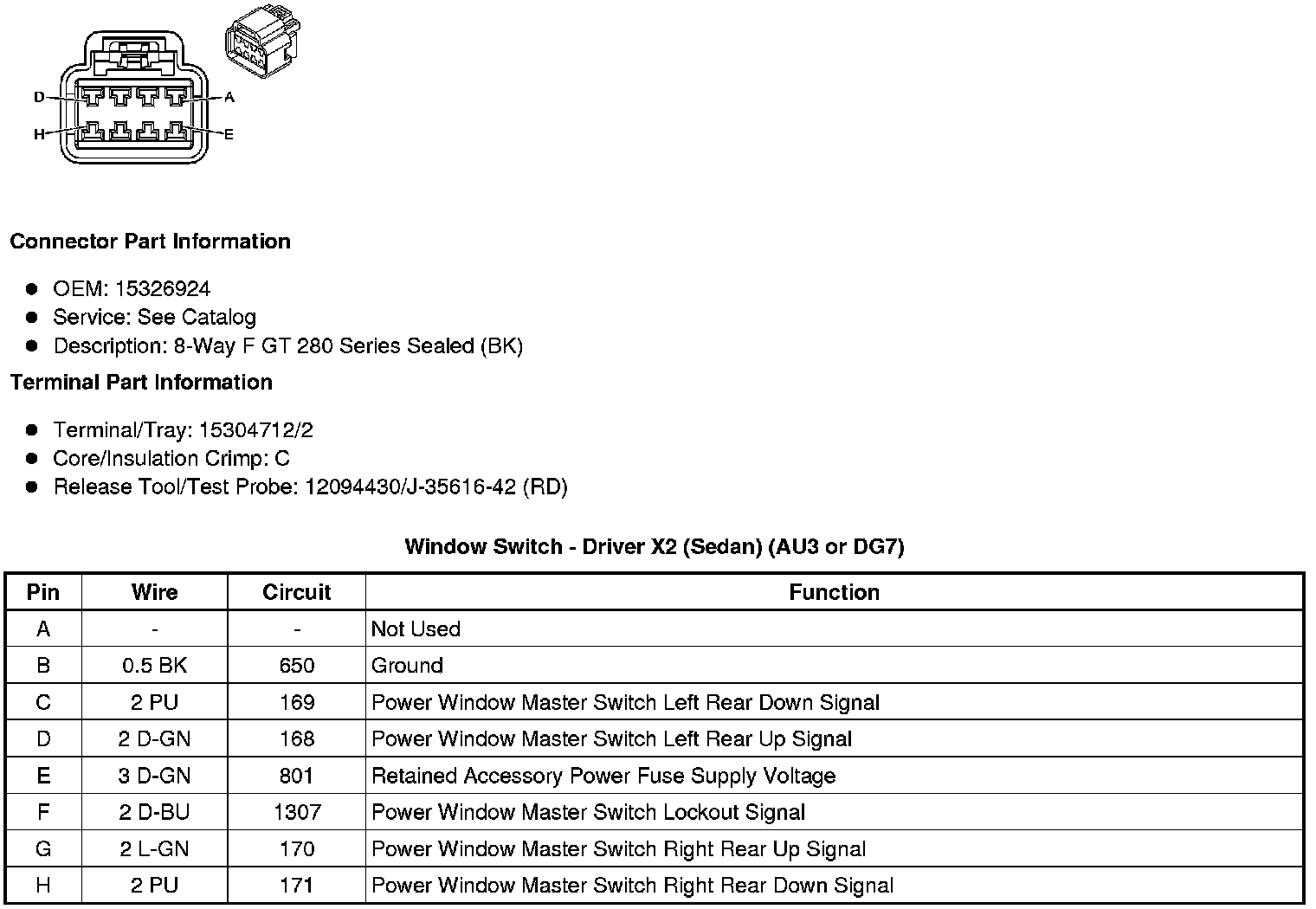

Window Switch - Driver X2 (Sedan) (AU3 or DG7)

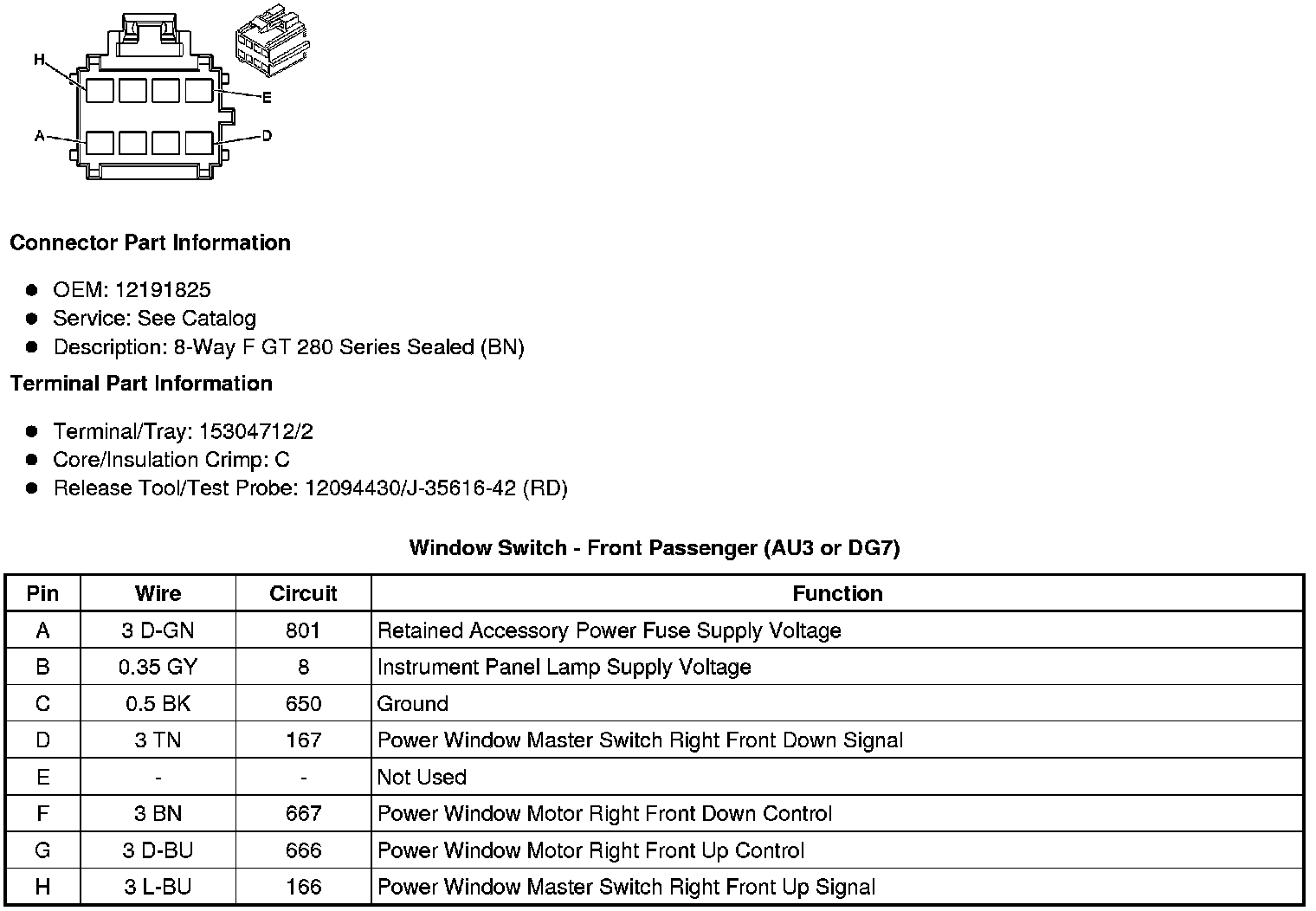

Window Switch - Front Passenger (AU3 or DG7)

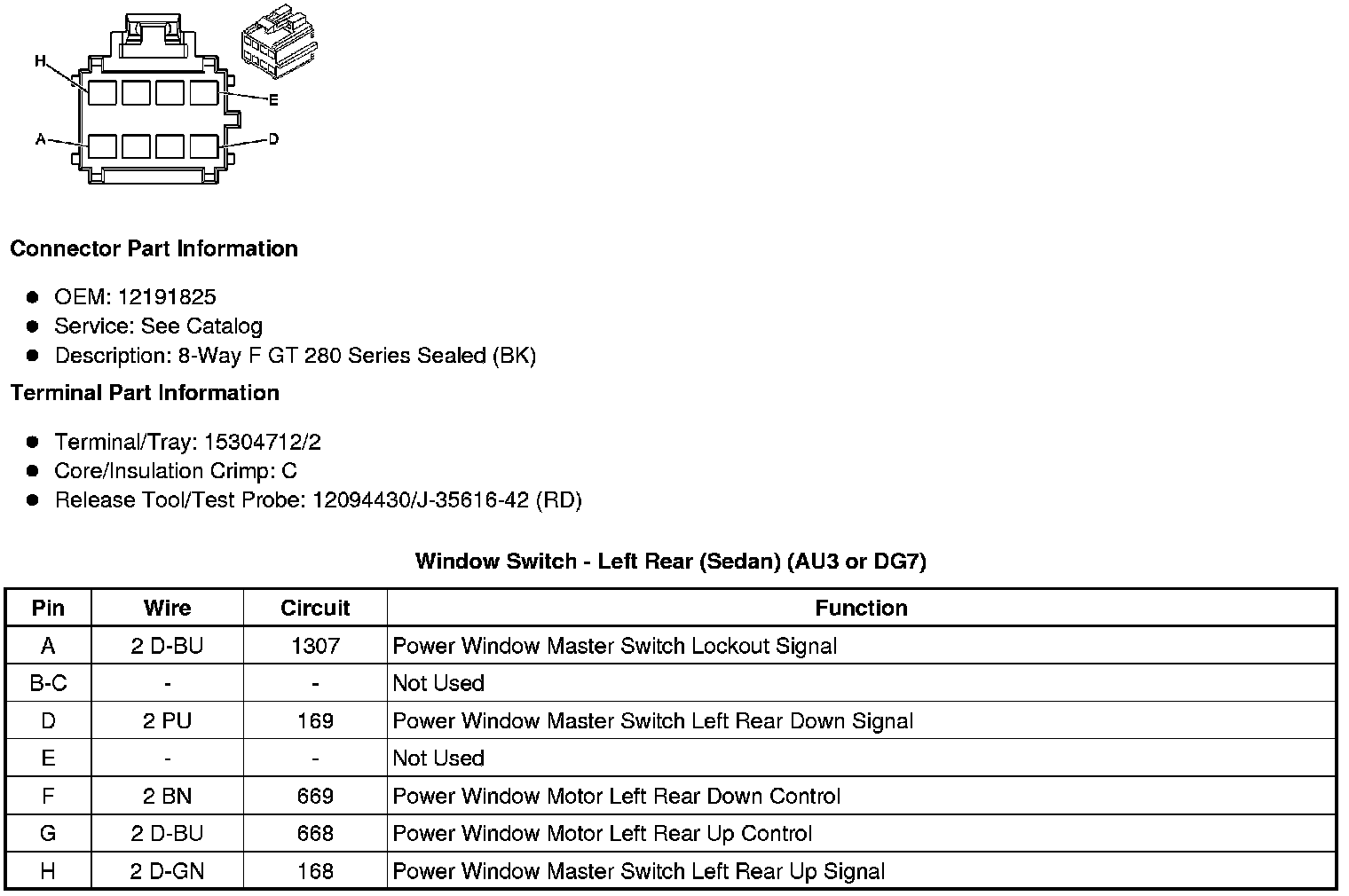

Window Switch - Left Rear (Sedan) (AU3 or DG7)





Window Switch - Right Rear (Sedan) (AU3 or DG7)
