Home >> Pontiac >> 2009 >> G5 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module




Component Connector End Views

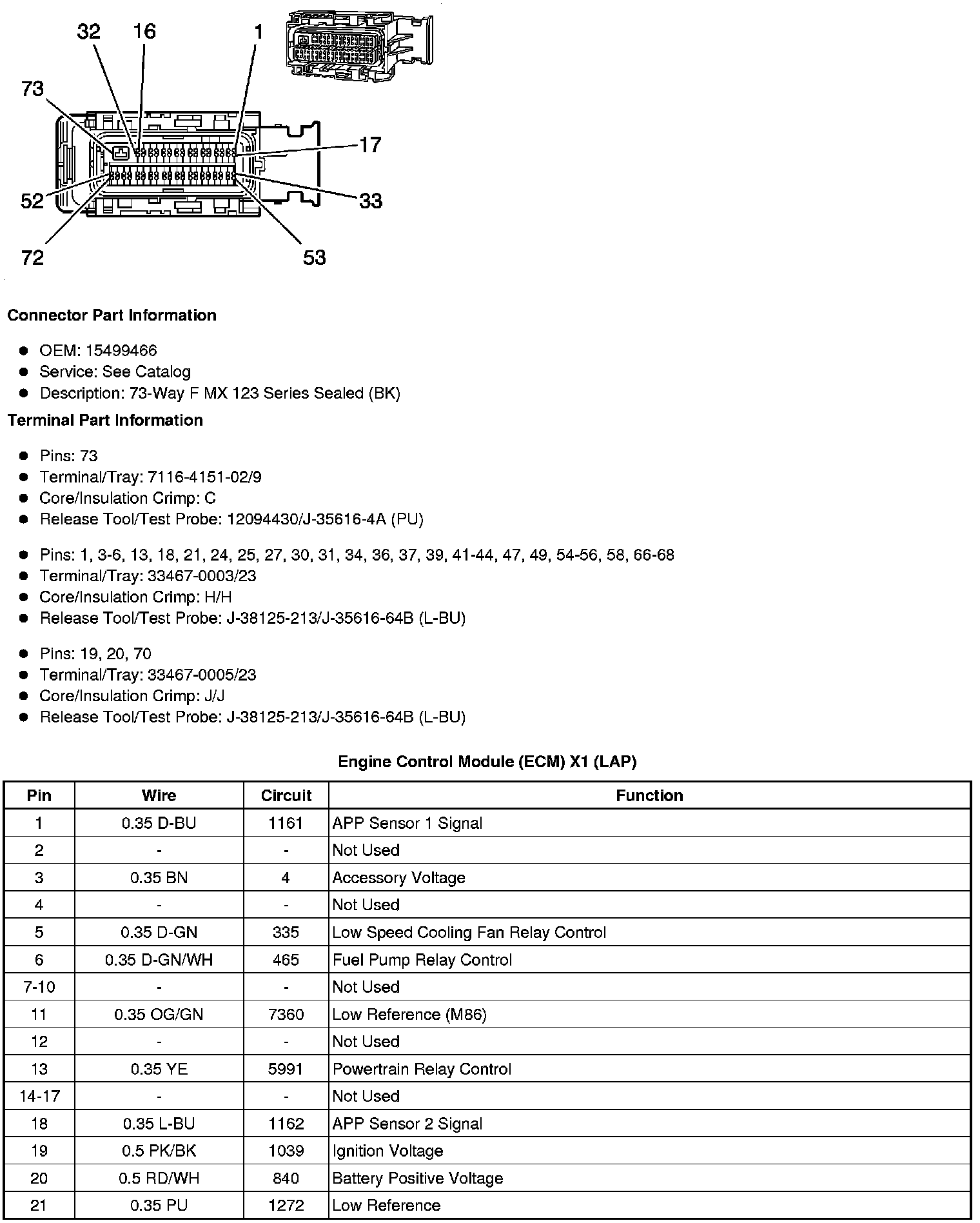

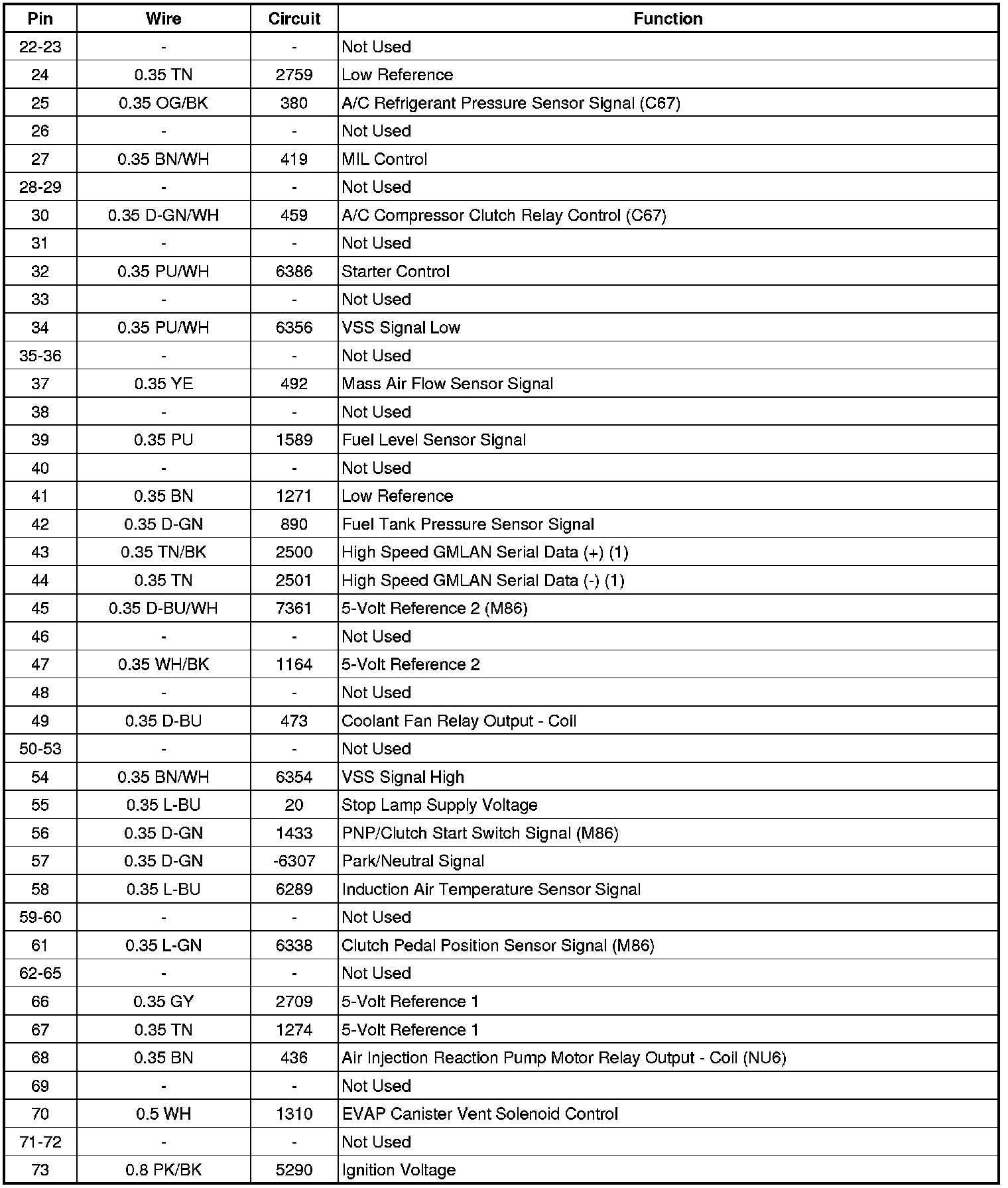

Engine Control Module (ECM) X1 (LAP)

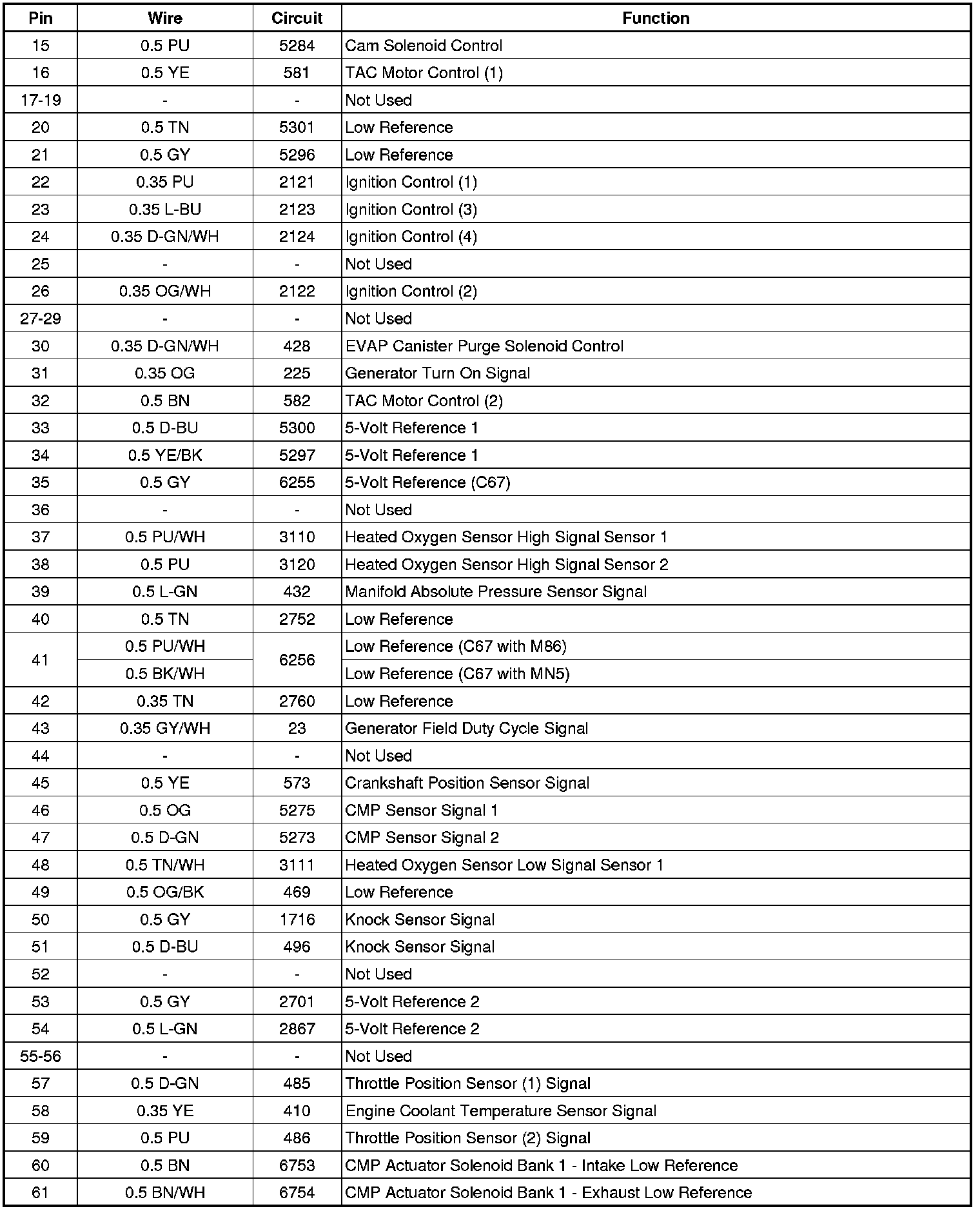

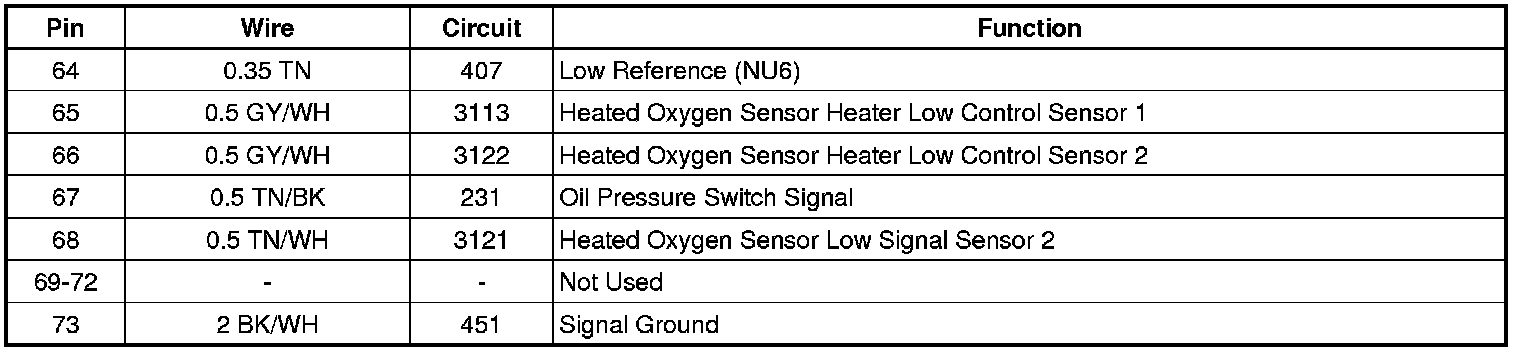

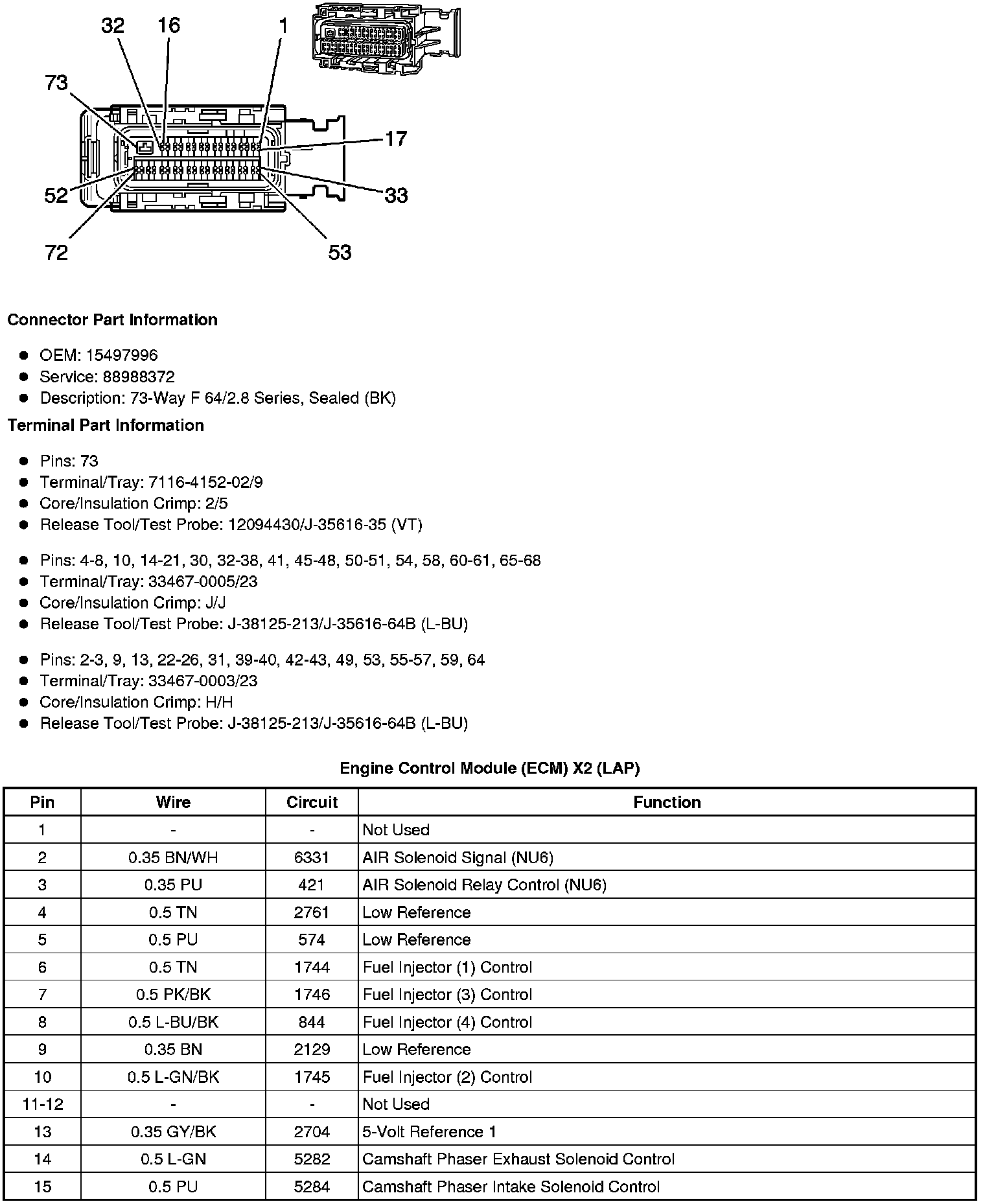

Engine Control Module (ECM) X2 (LAP)

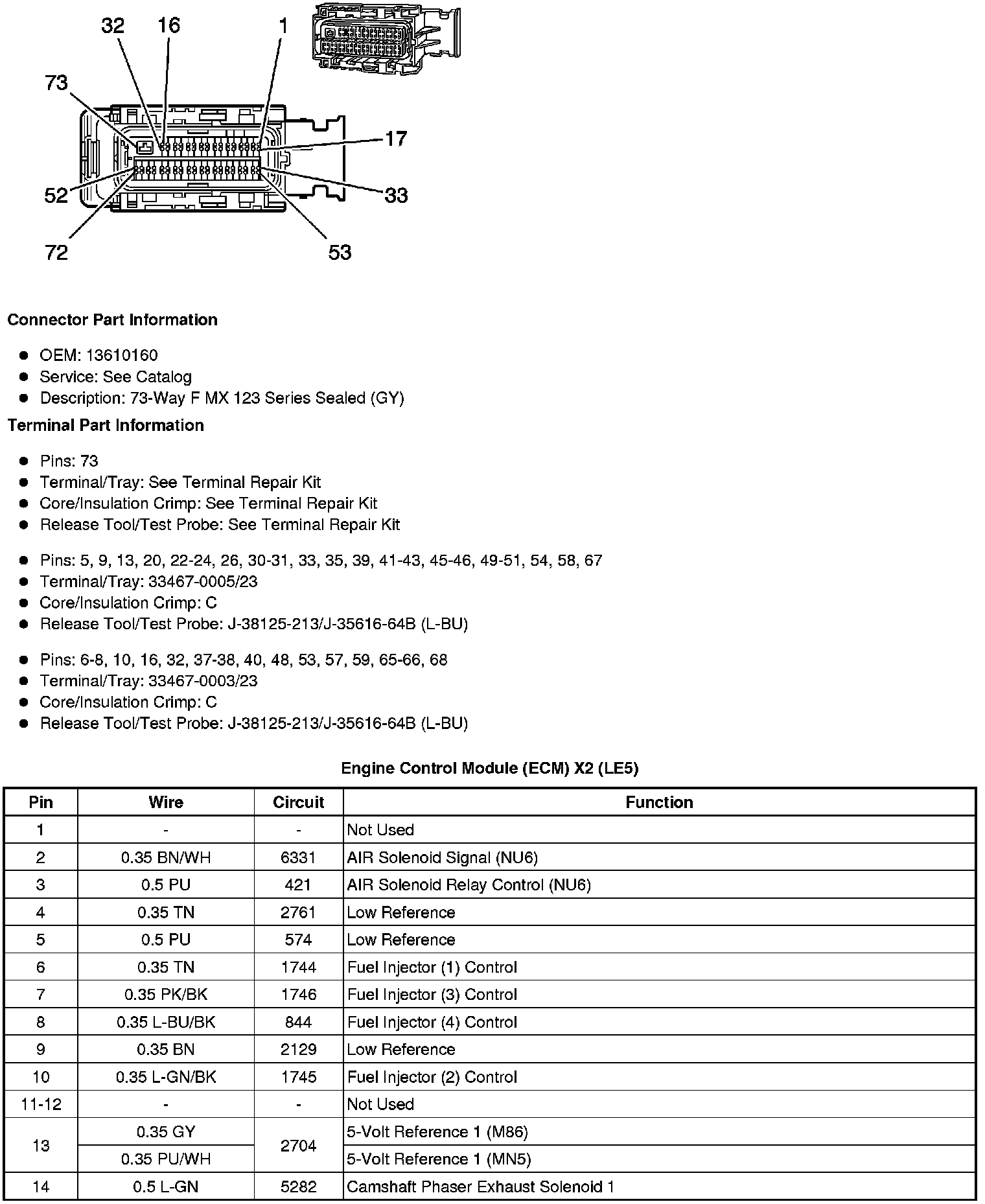

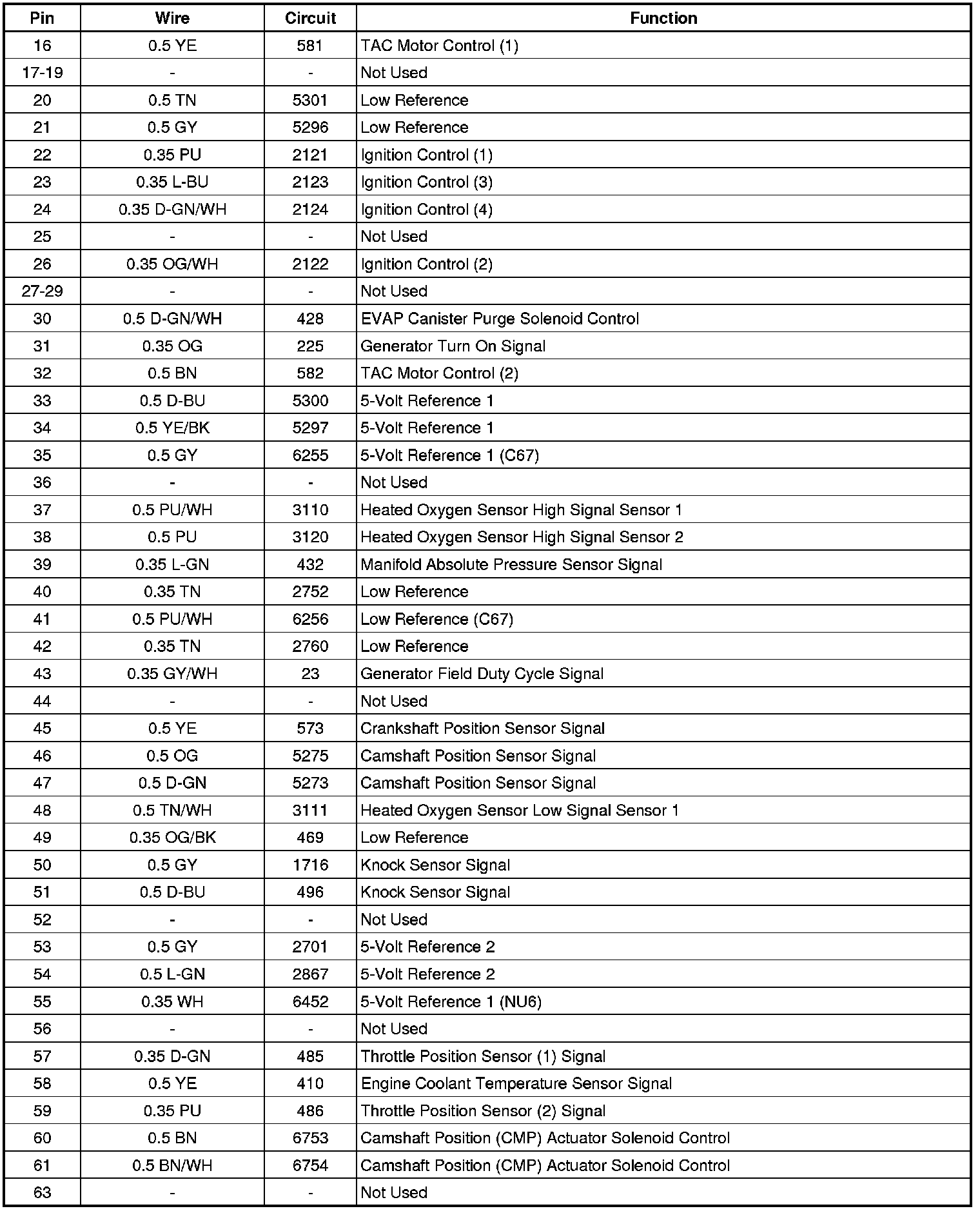

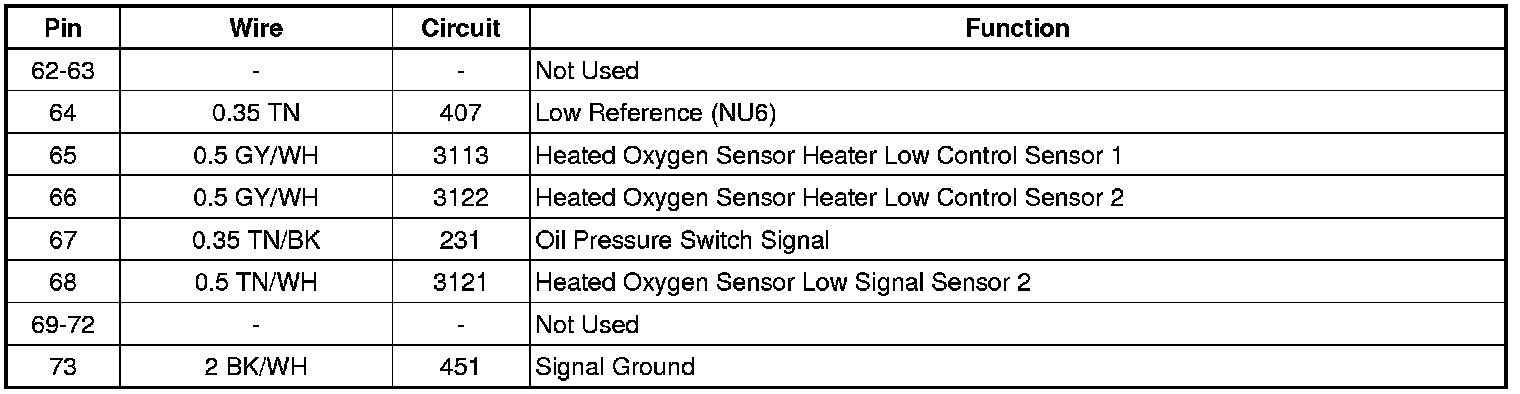

Engine Control Module (ECM) X2 (LE5)
