Electronic Brake Control Module




Component Connector End Views

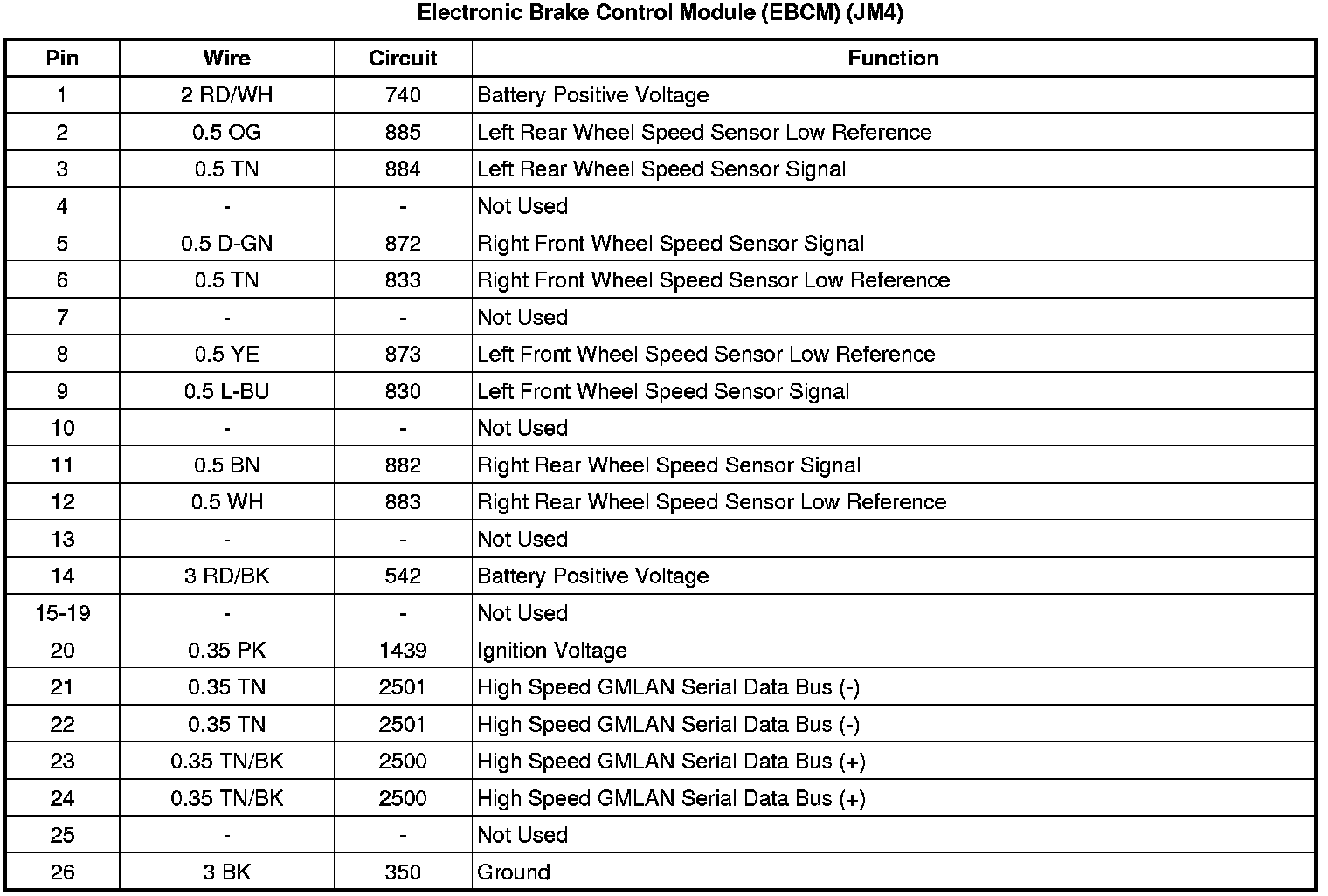

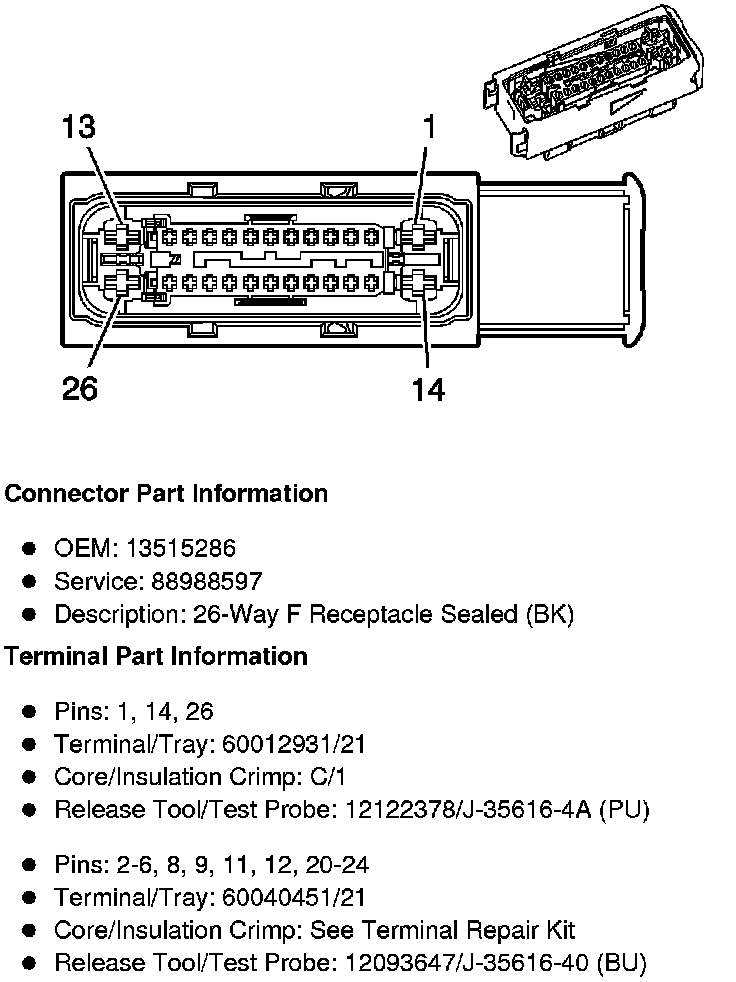

Electronic Brake Control Module (EBCM) (JM4)

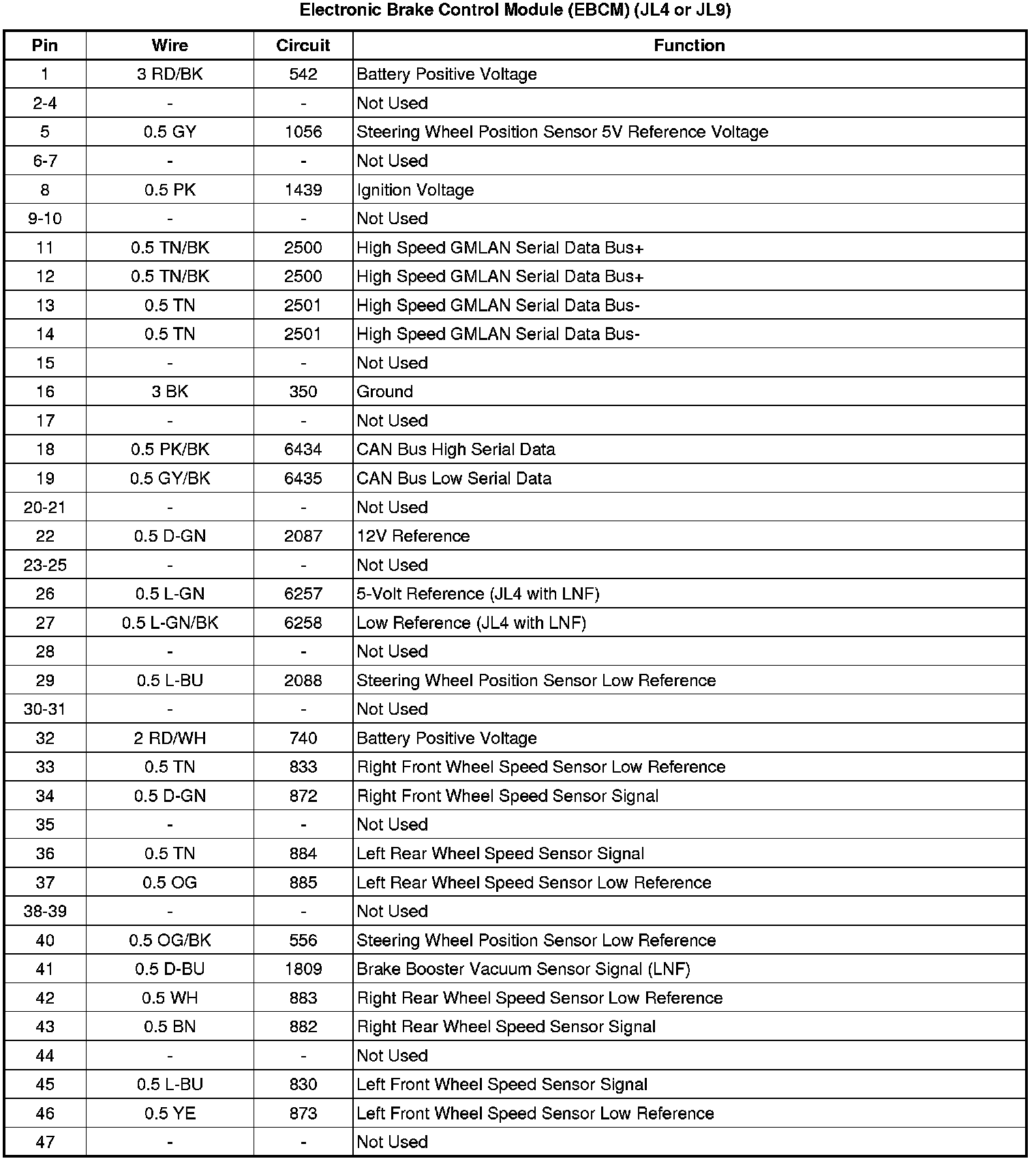

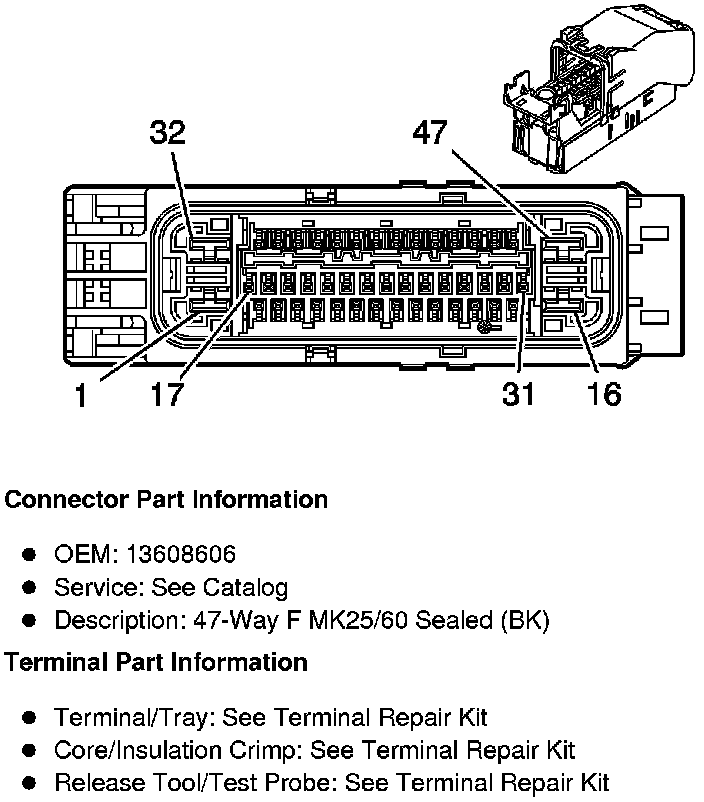

Electronic Brake Control Module (EBCM) (JL4 or JL9)
