Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

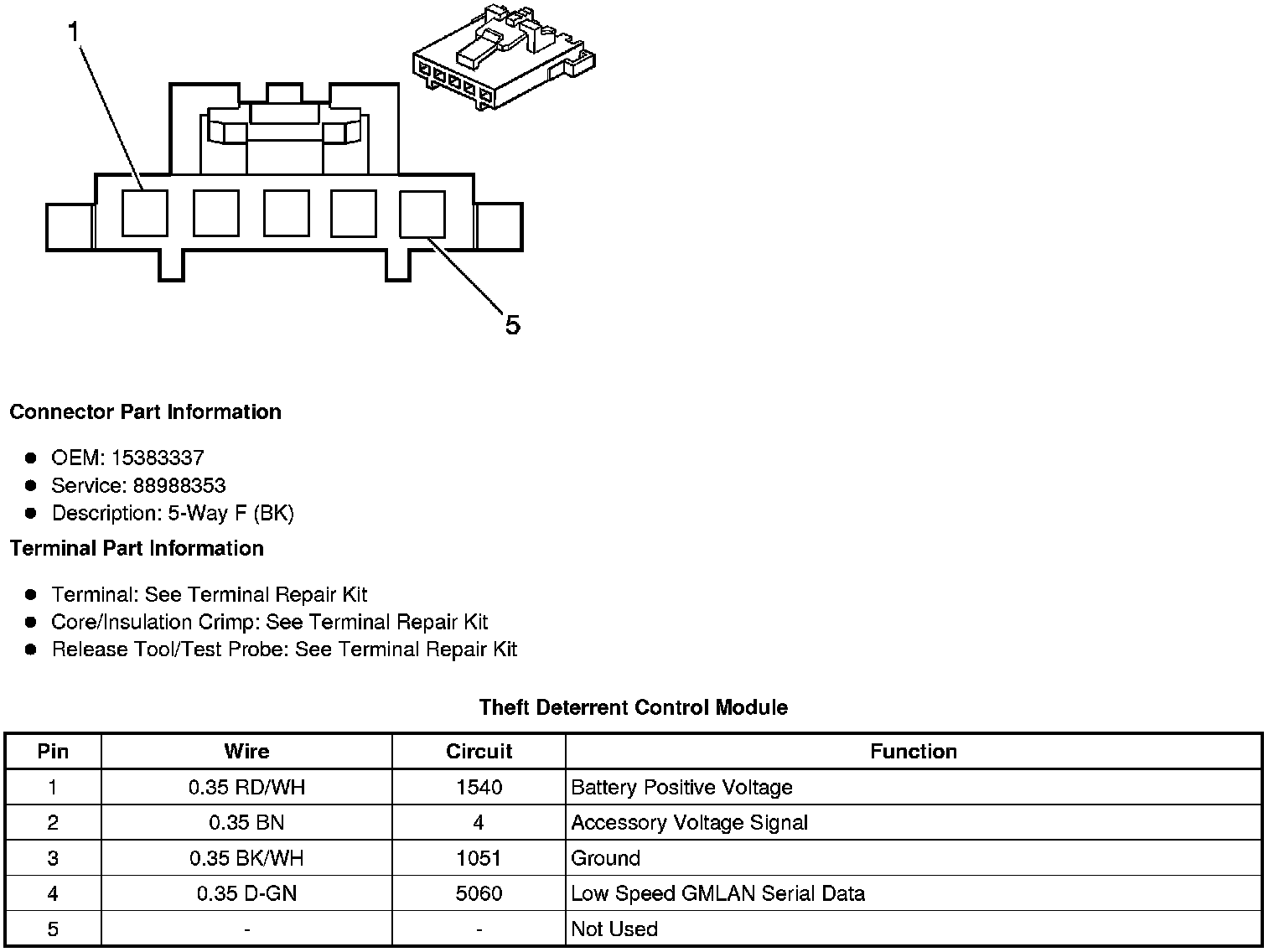

Component Connector End Views
Theft Deterrent Control Module
