Air Bag Control Module

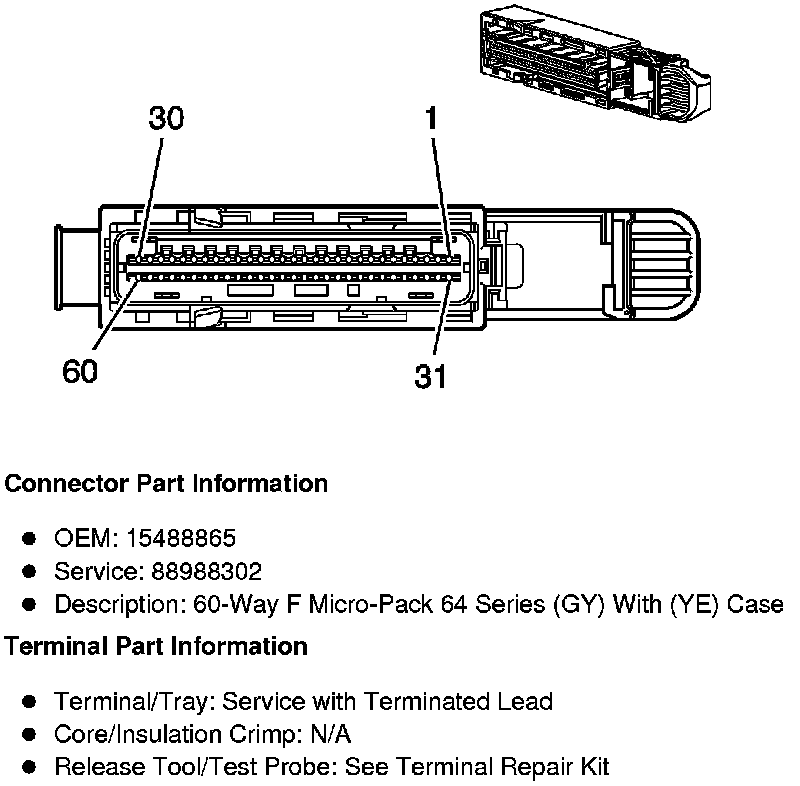

Component Connector End Views

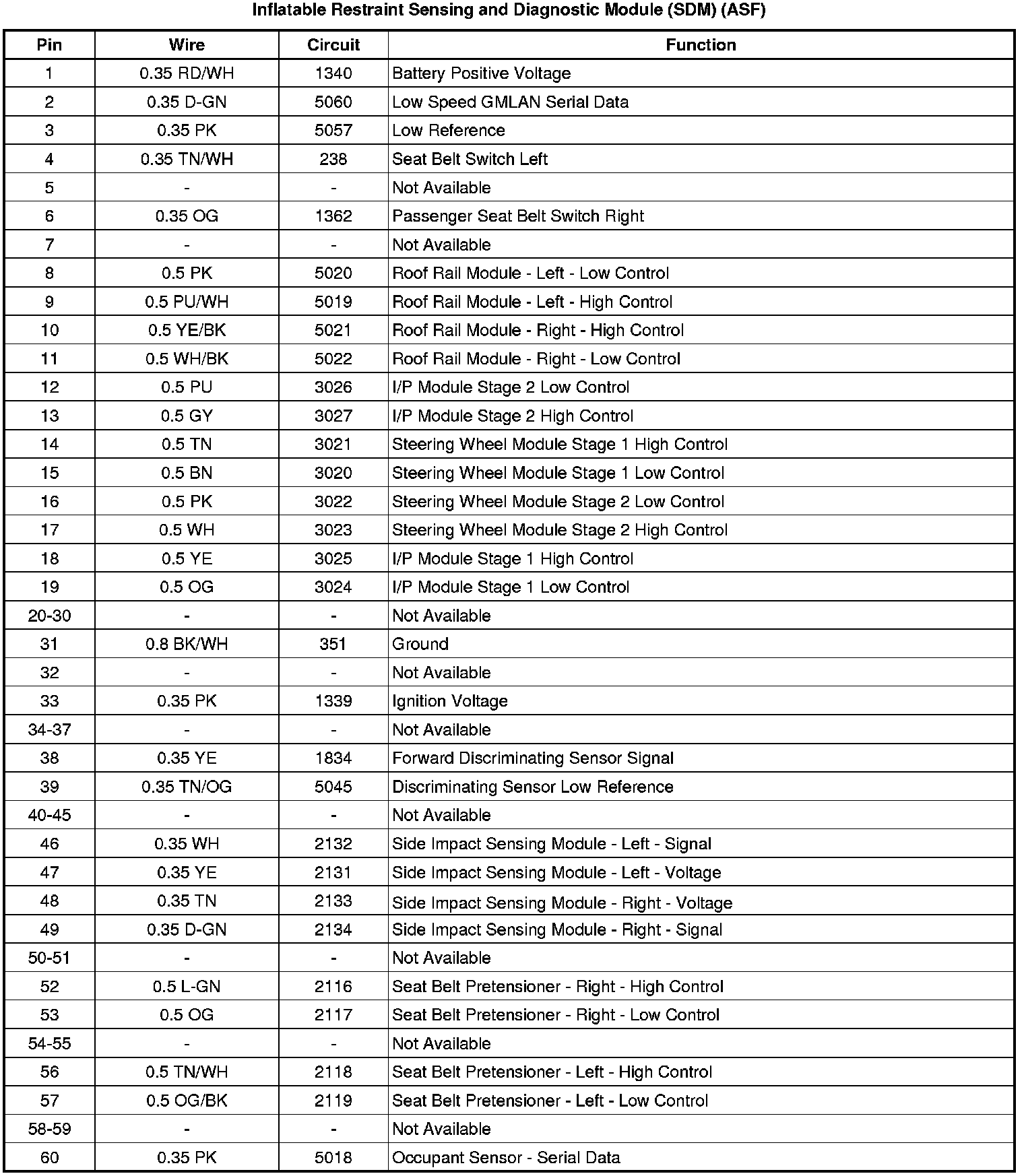

Inflatable Restraint Sensing and Diagnostic Module (SDM) (ASF)

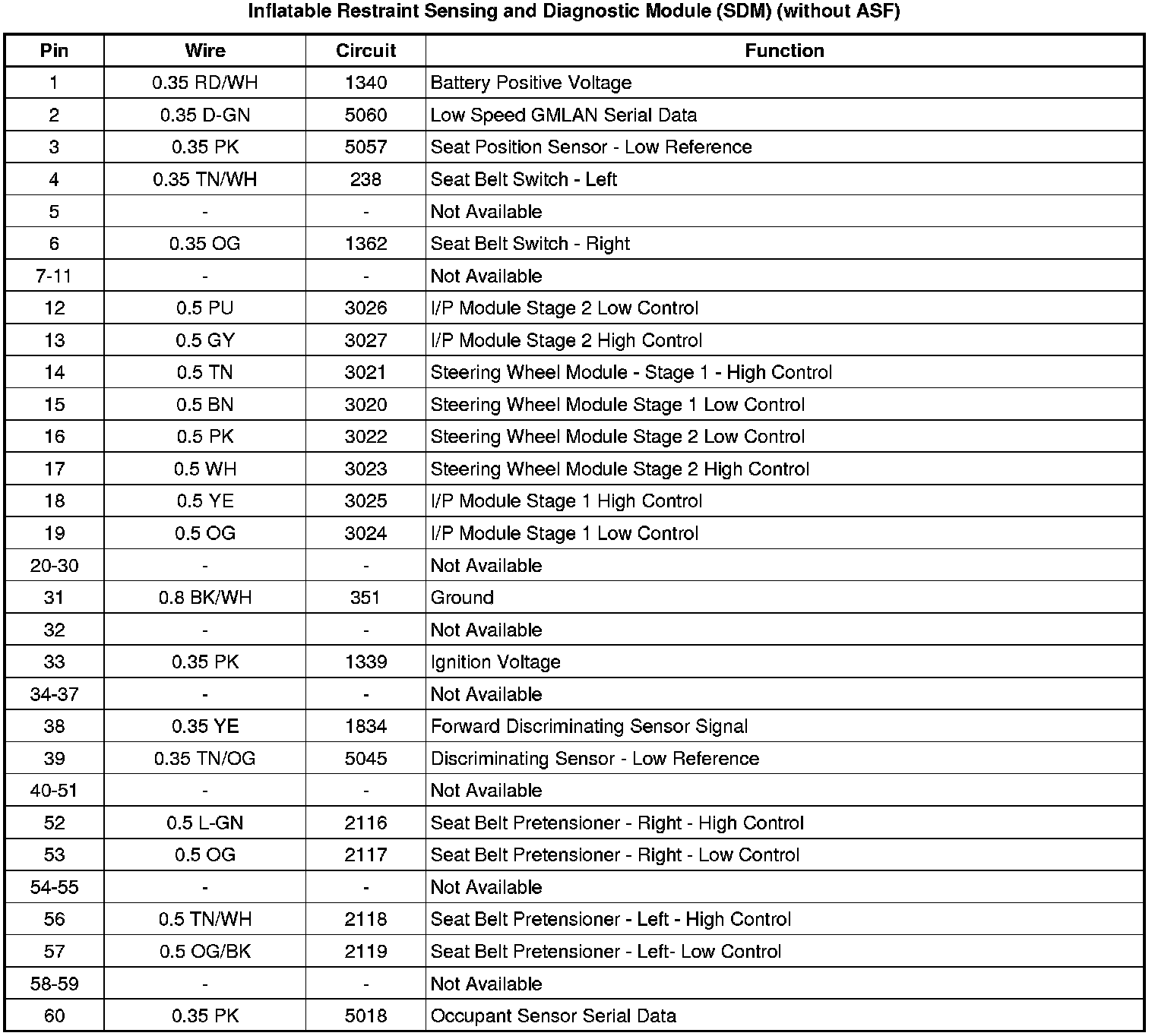

Inflatable Restraint Sensing and Diagnostic Module (SDM) (without ASF)
