Connector Views



Component Connector End Views

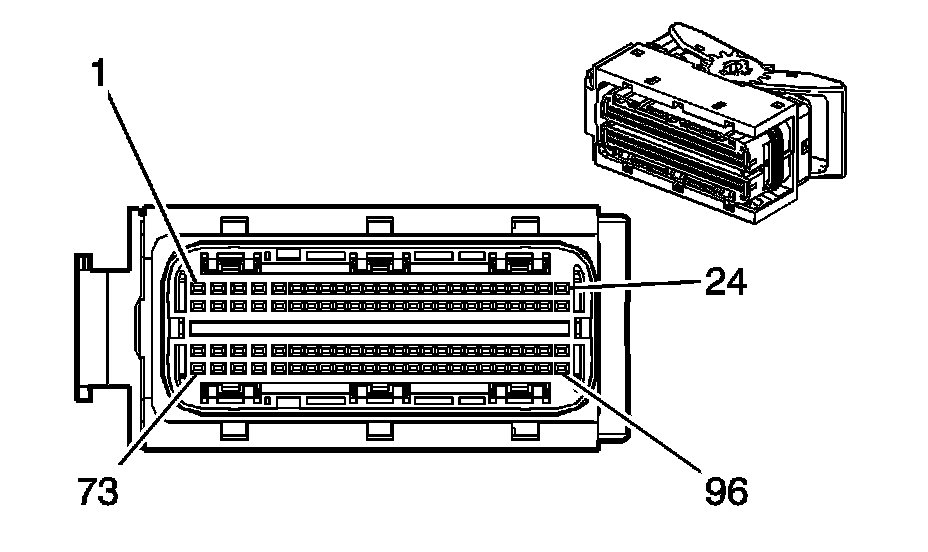

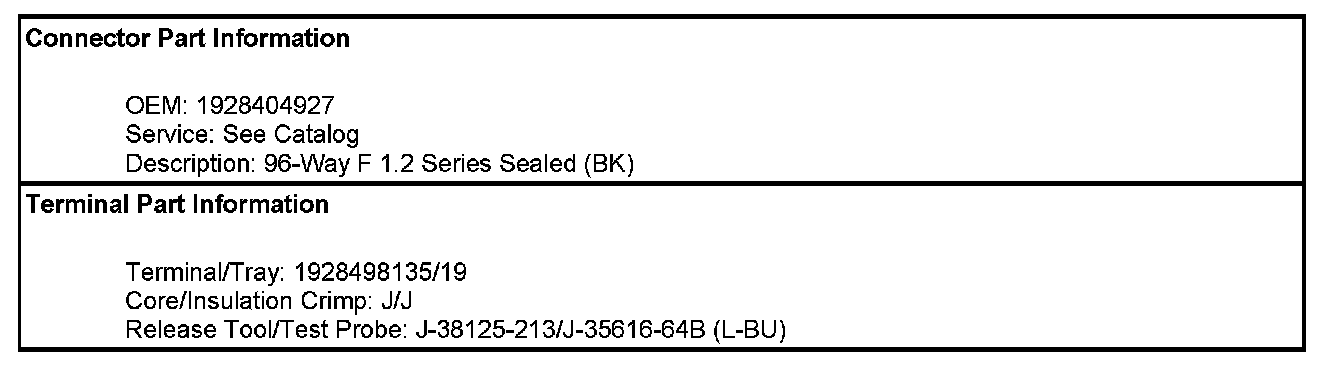

Engine Control Module (ECM) X1 (LY7)

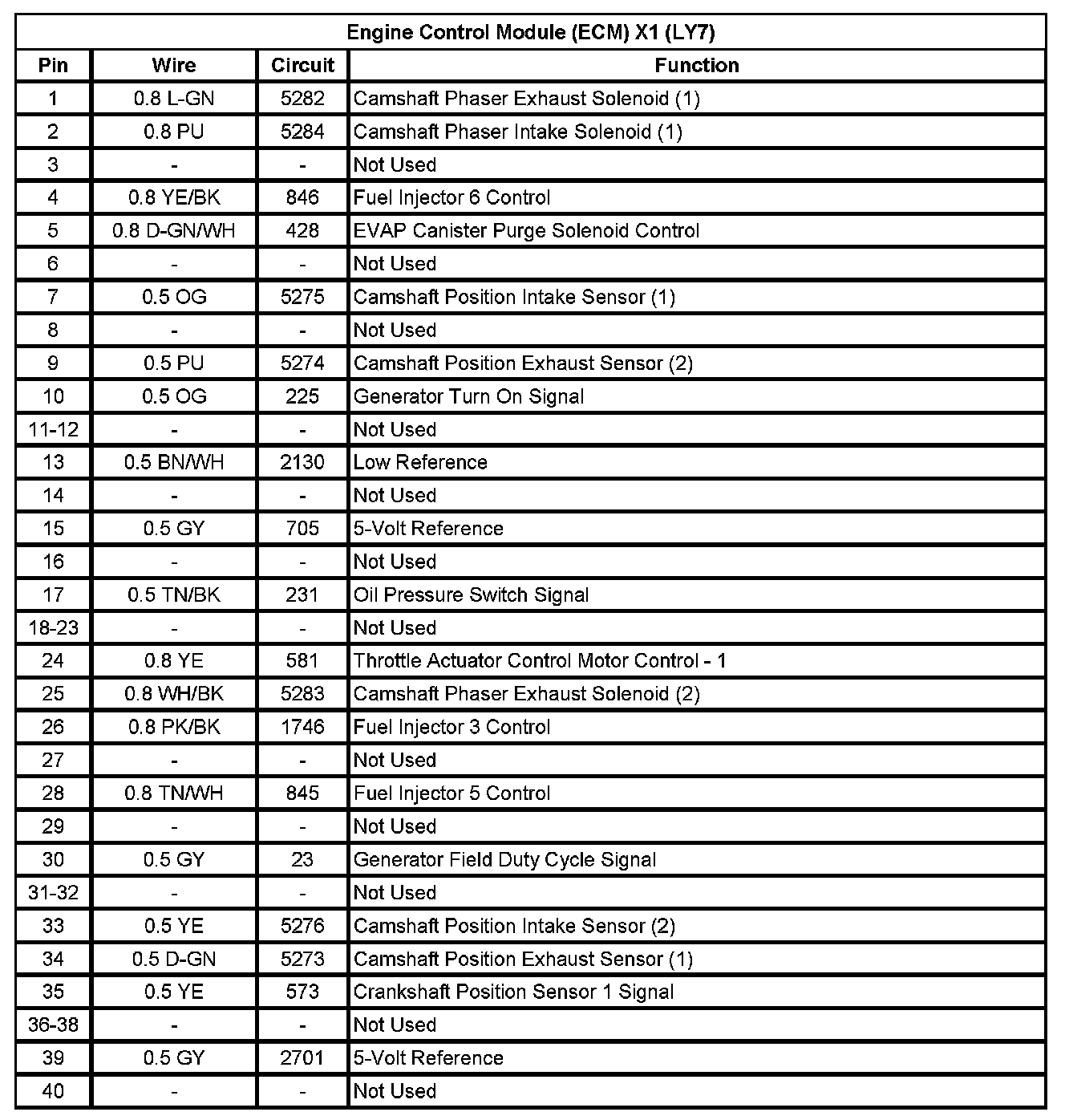

Engine Control Module (ECM) X1 (LY7) (Pin 1 To 40):

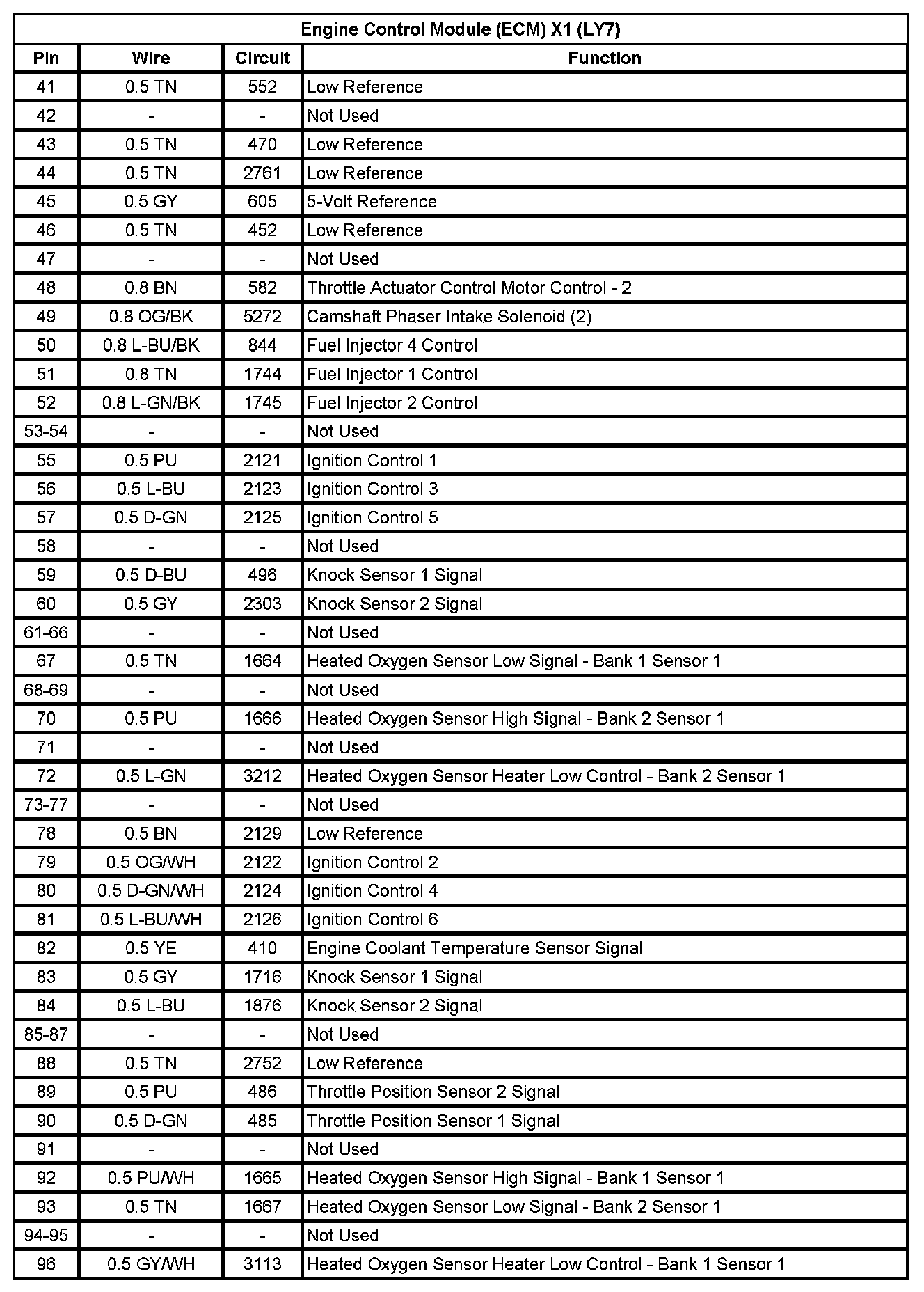

Engine Control Module (ECM) X1 (LY7) (Pin 41 To 96):

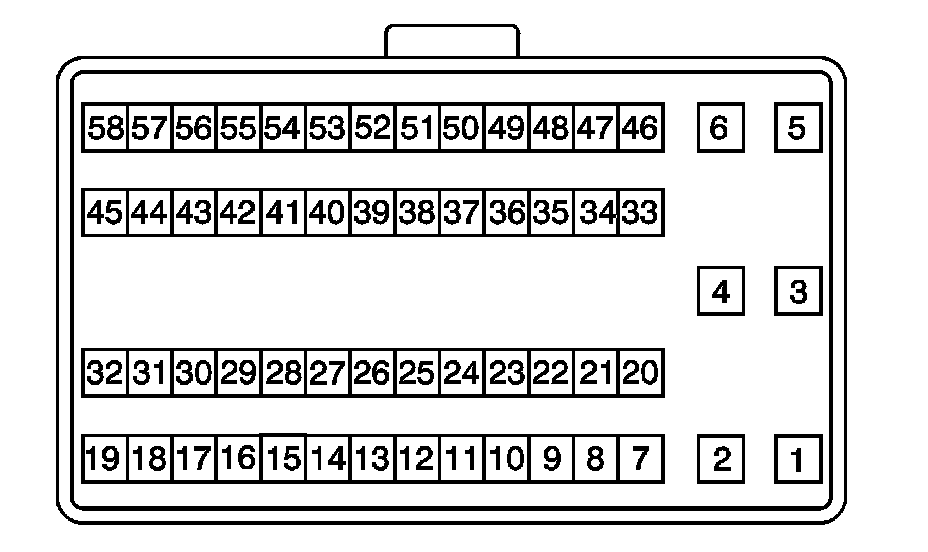

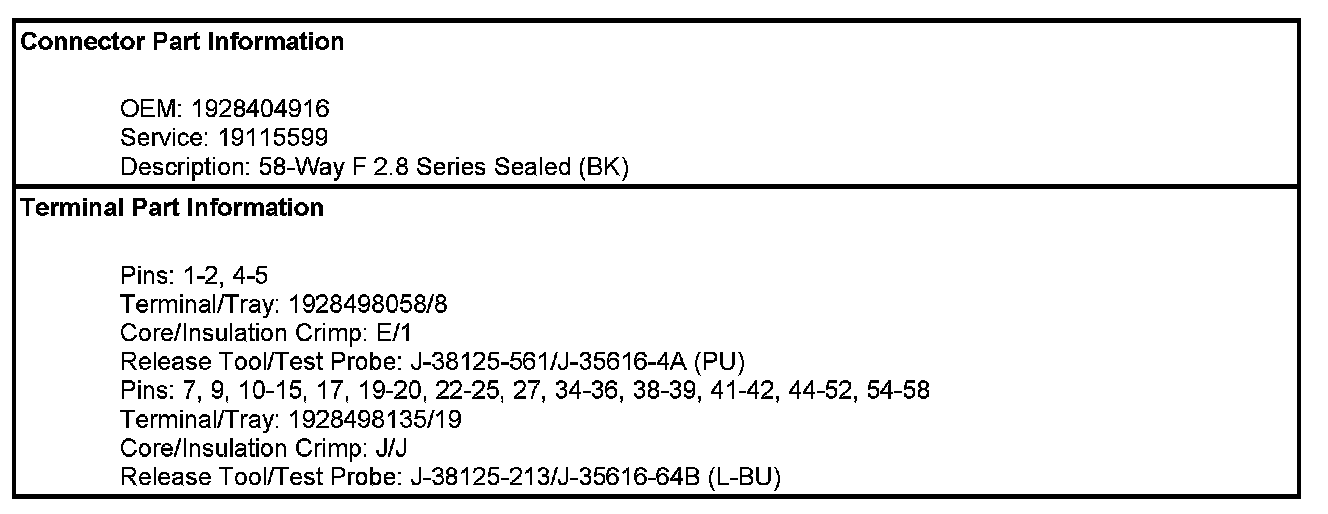

Engine Control Module (ECM) X2 (LY7)

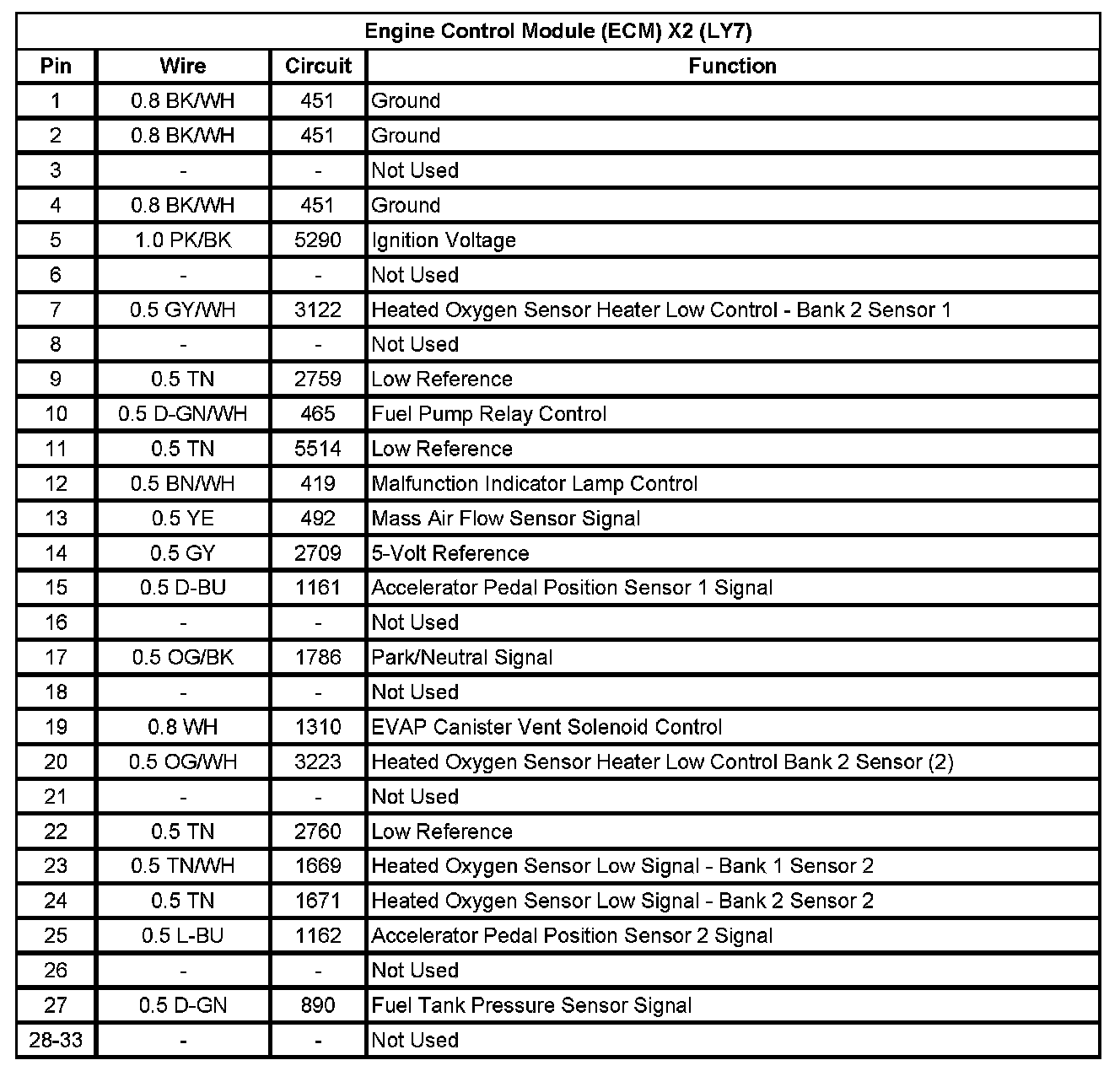

Engine Control Module (ECM) X2 (LY7) (Pin 1 To 33):

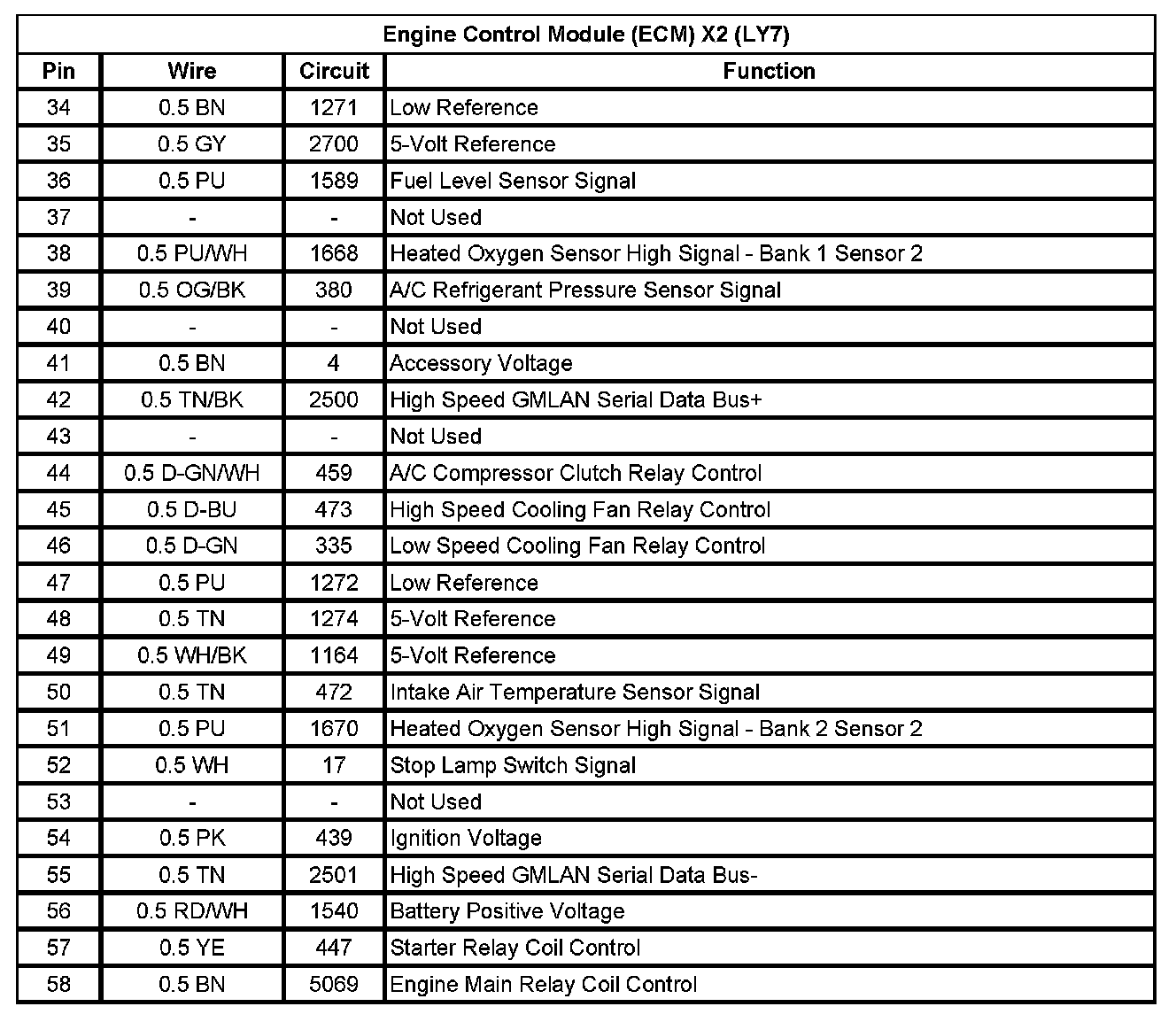

Engine Control Module (ECM) X2 (LY7) (Pin 34 To 58):
