Steering Control Module
Component Connector End Views - Continued

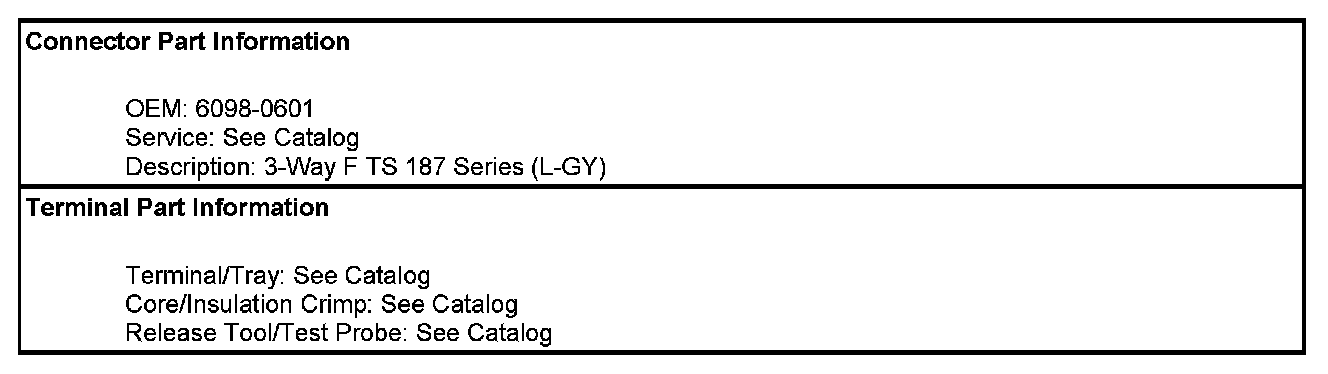

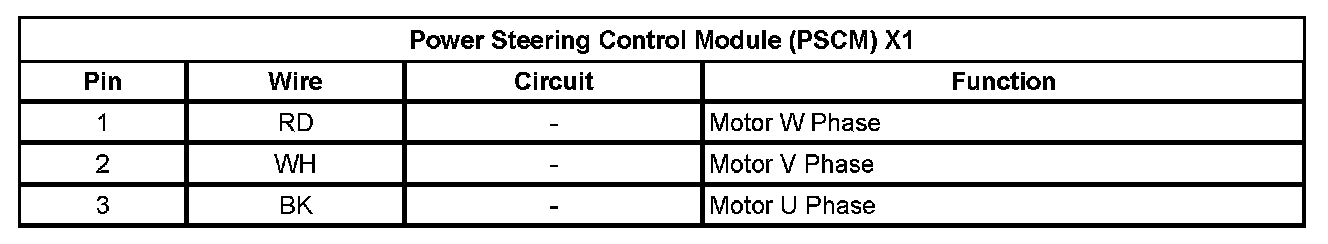

Power Steering Control Module (PSCM) X1

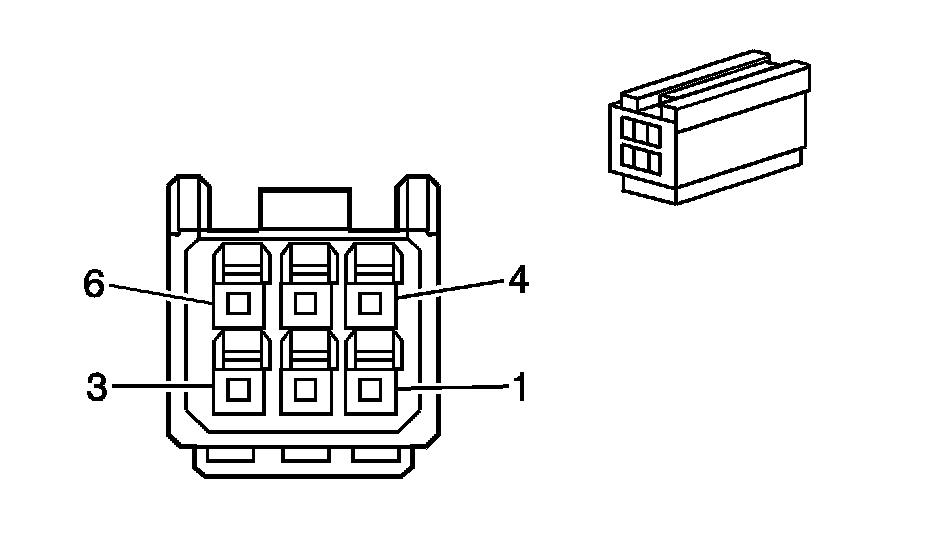

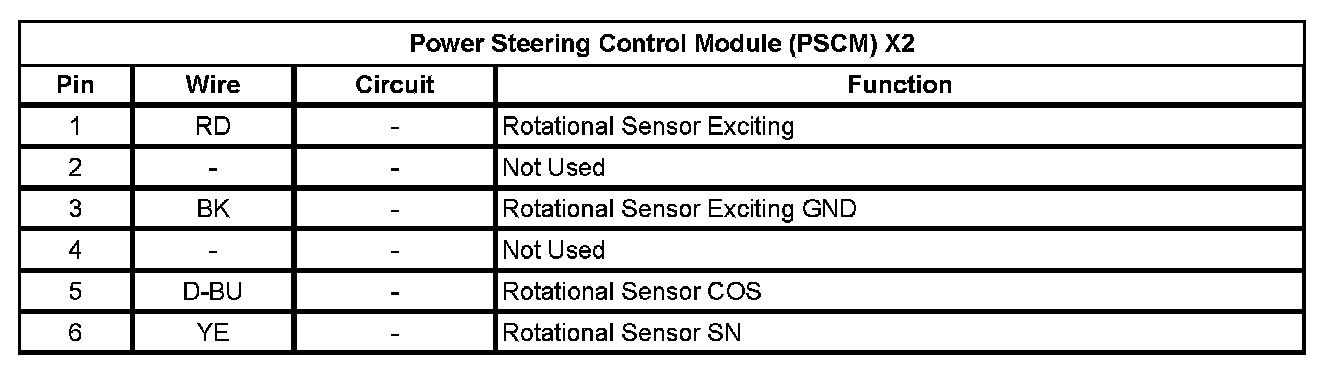

Power Steering Control Module (PSCM) X2

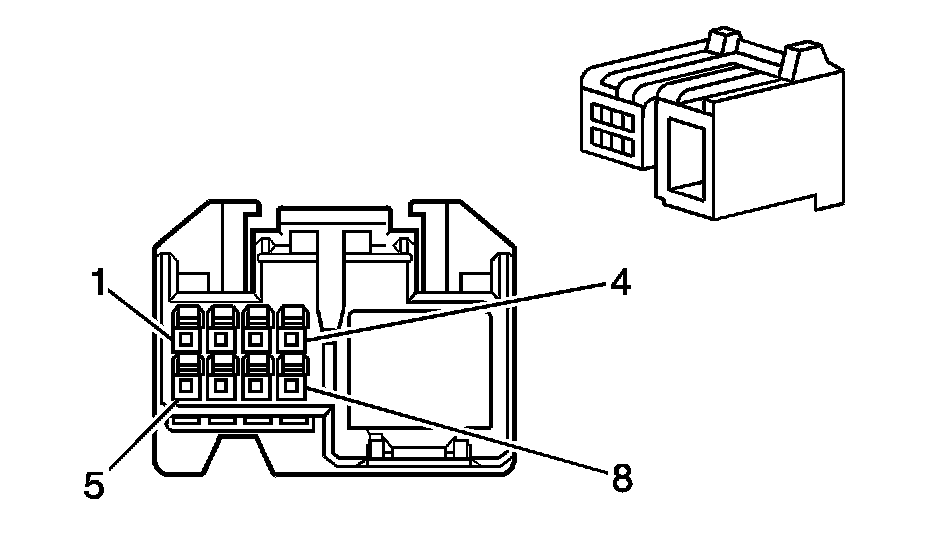

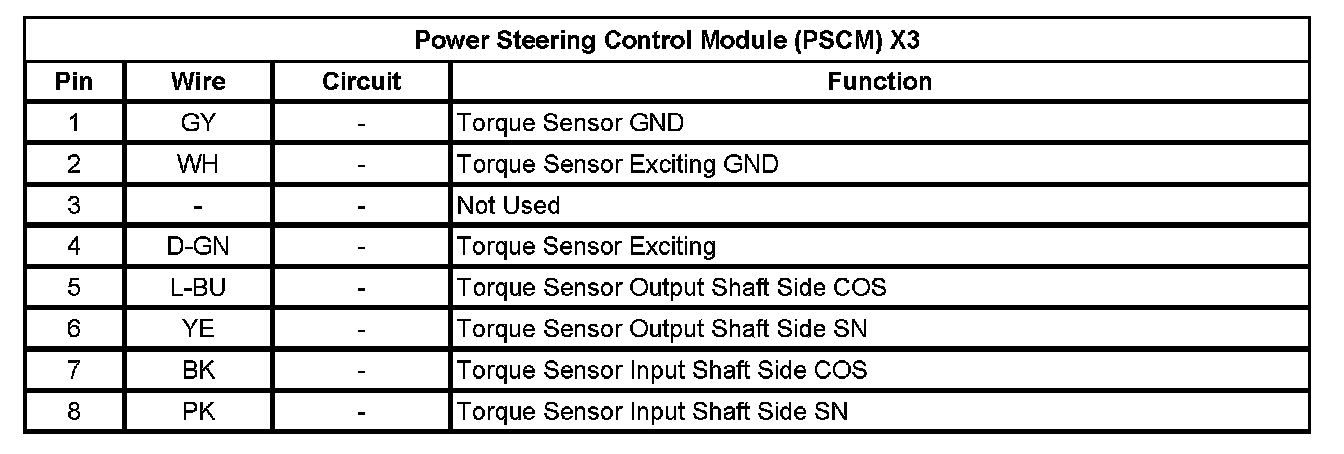

Power Steering Control Module (PSCM) X3

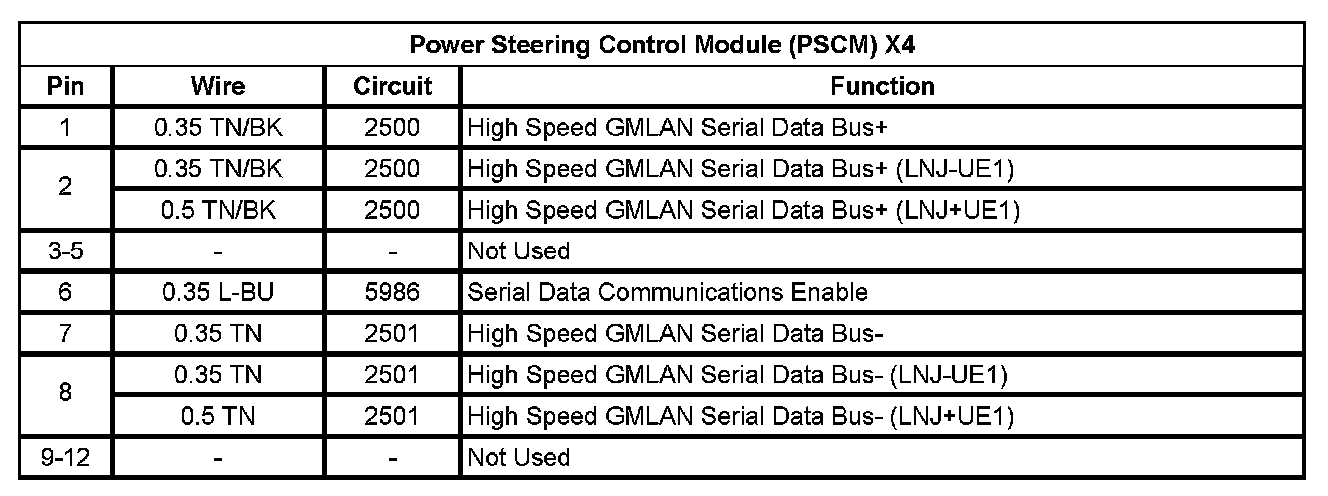

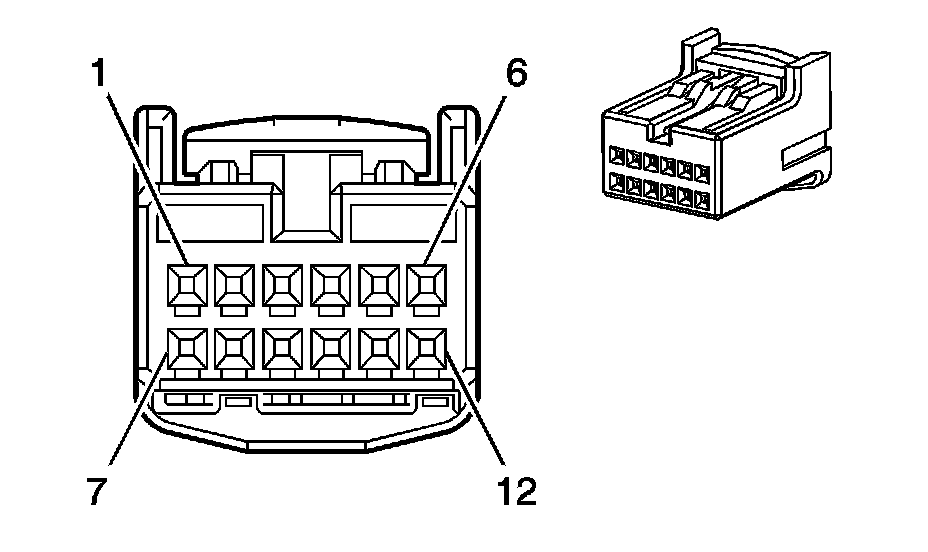

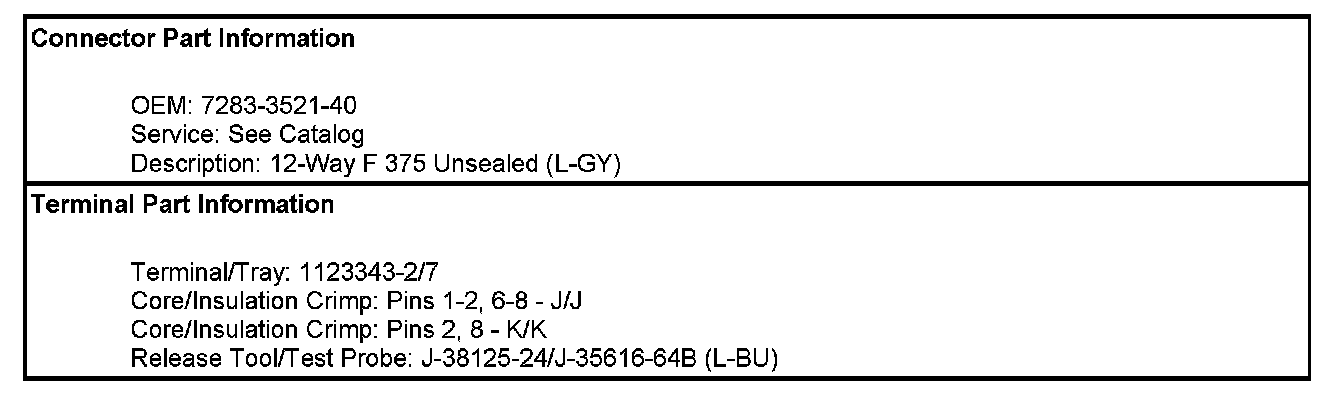

Power Steering Control Module (PSCM) X4

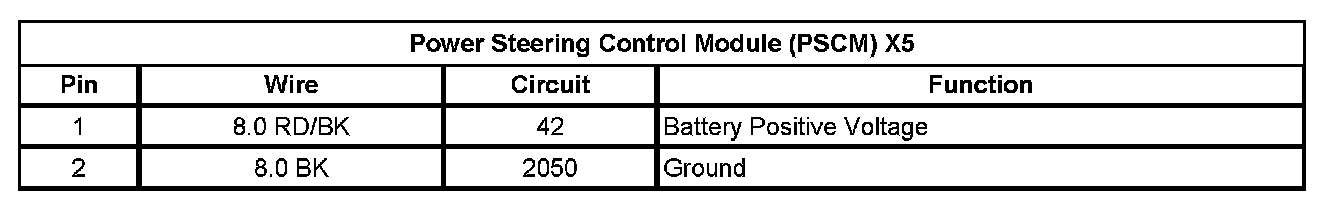

Power Steering Control Module (PSCM) X5
