Combination Switch
Combination Switch

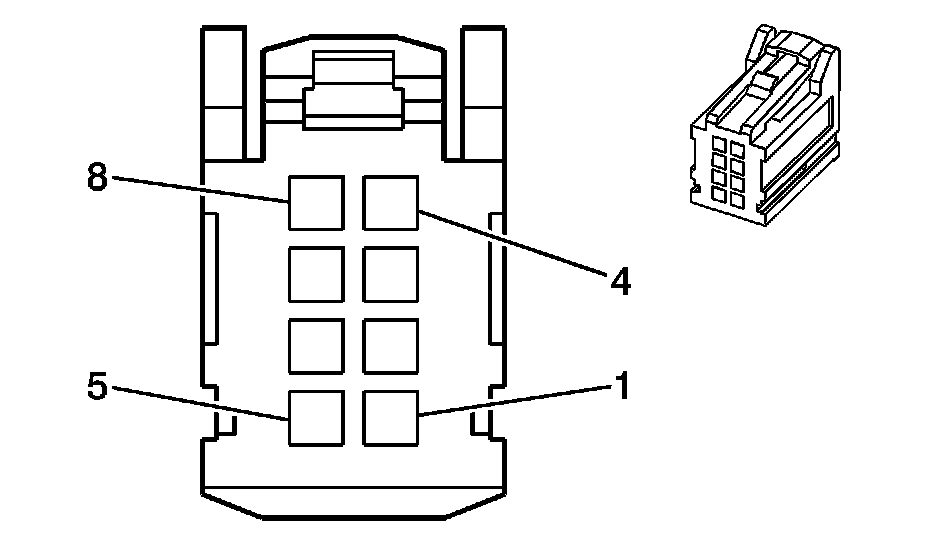

Component Connector End Views - Continued

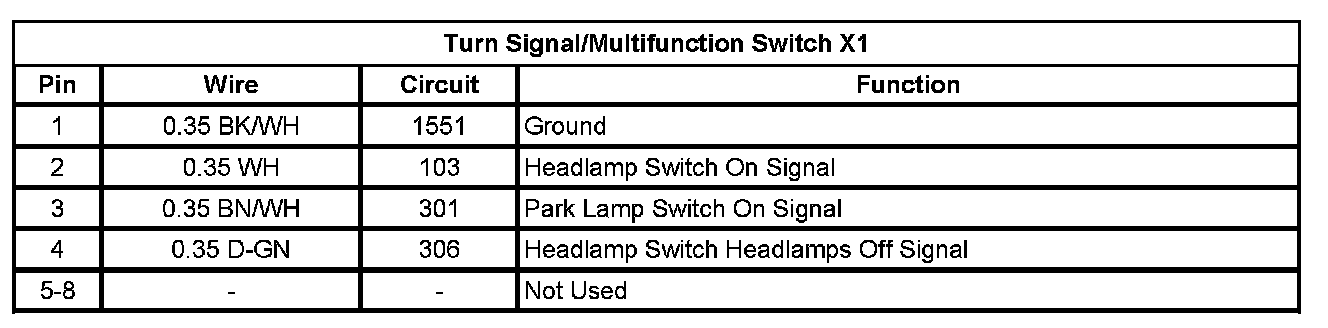

Turn Signal/Multifunction Switch X1

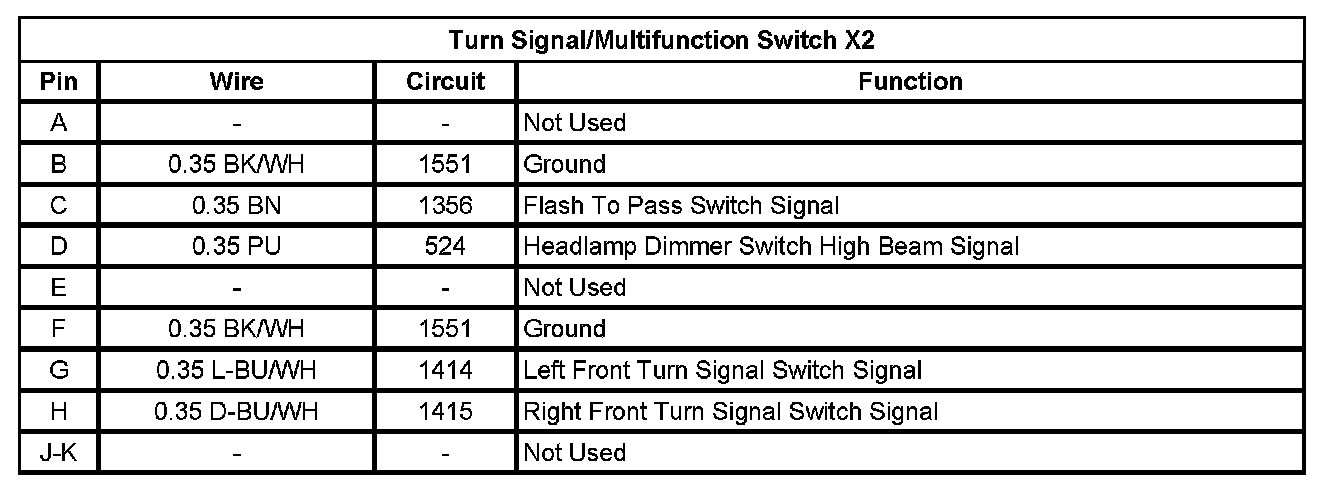

Turn Signal/Multifunction Switch X2
