Central Control Module



Component Connector End Views - Continued

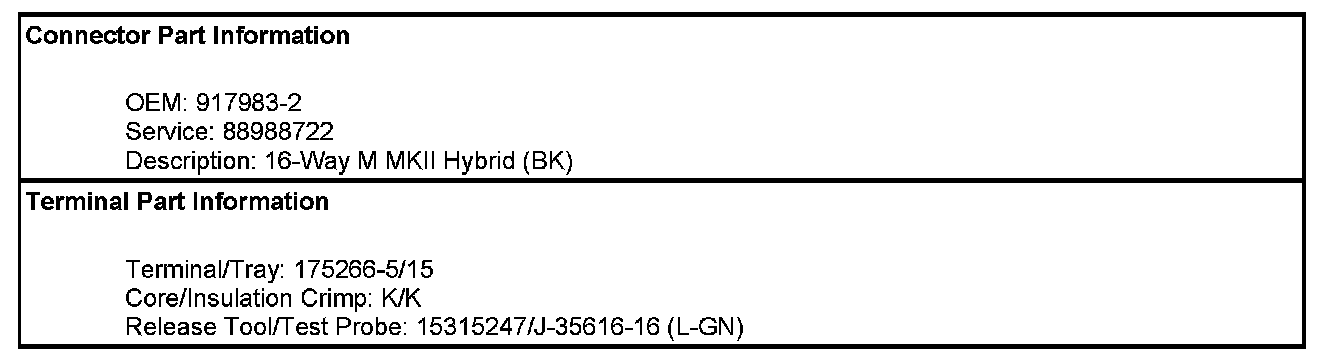

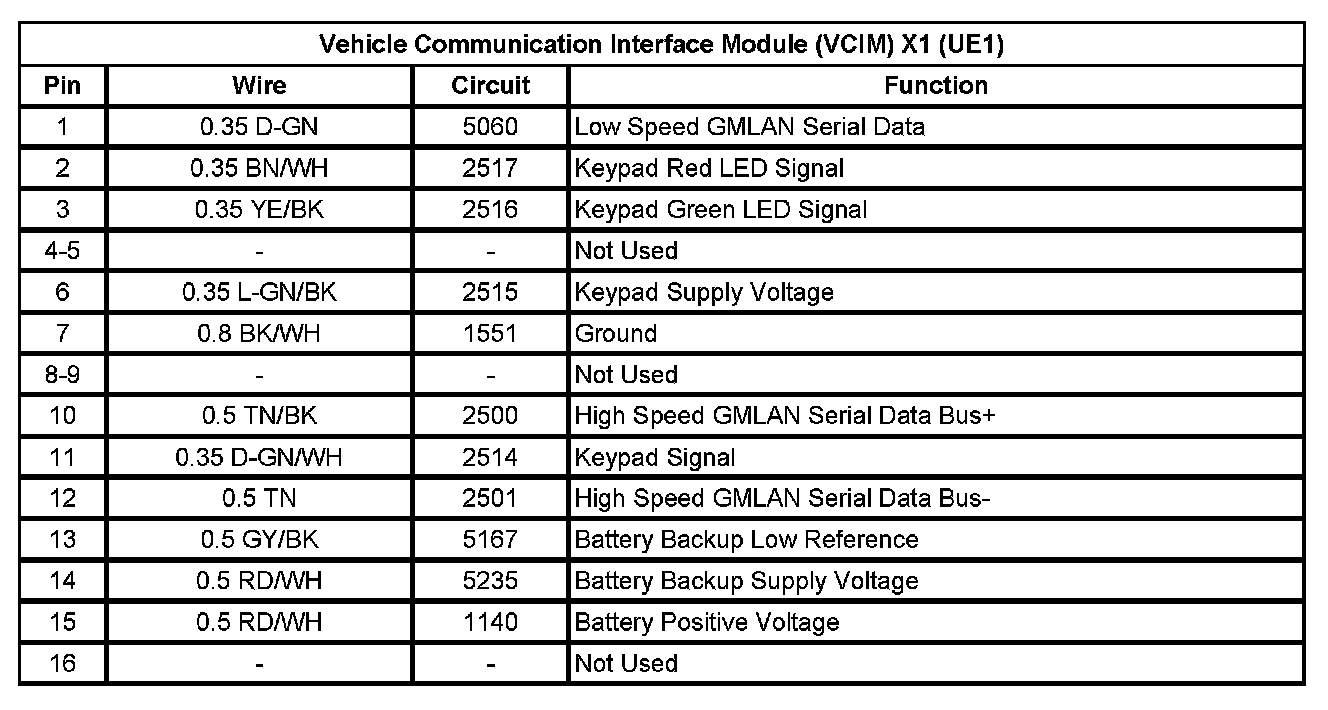

Vehicle Communication Interface Module (VCIM) X1 (UE1)

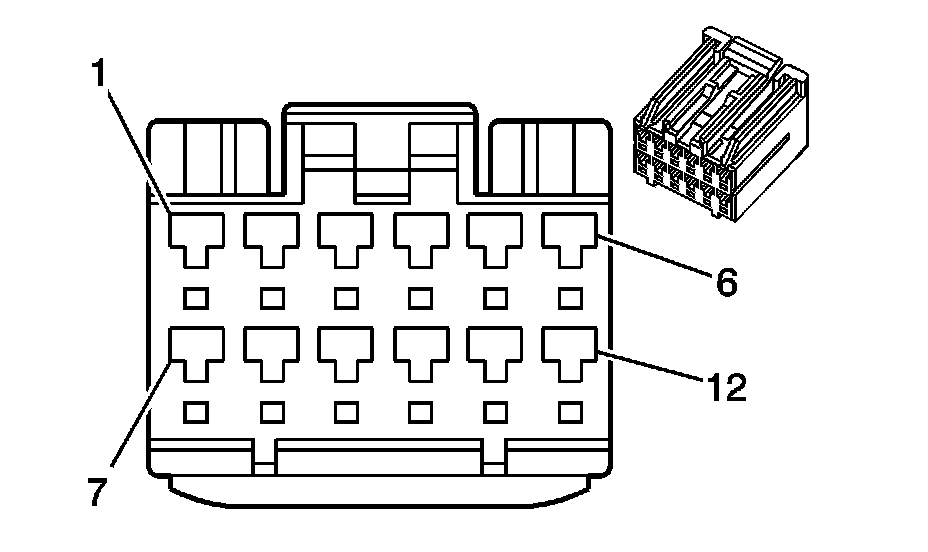

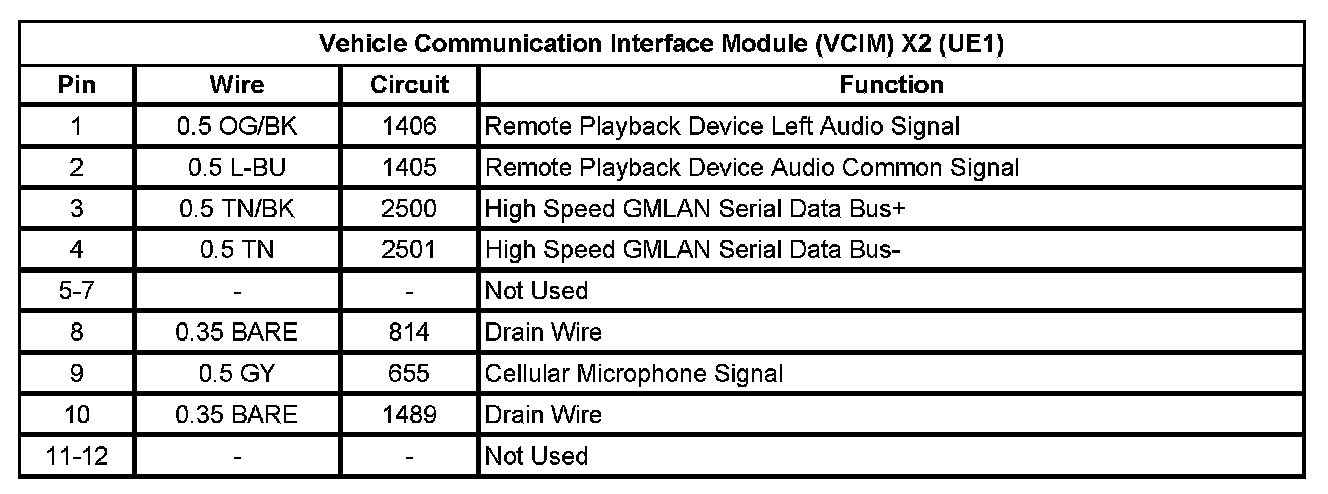

Vehicle Communication Interface Module (VCIM) X2 (UE1)

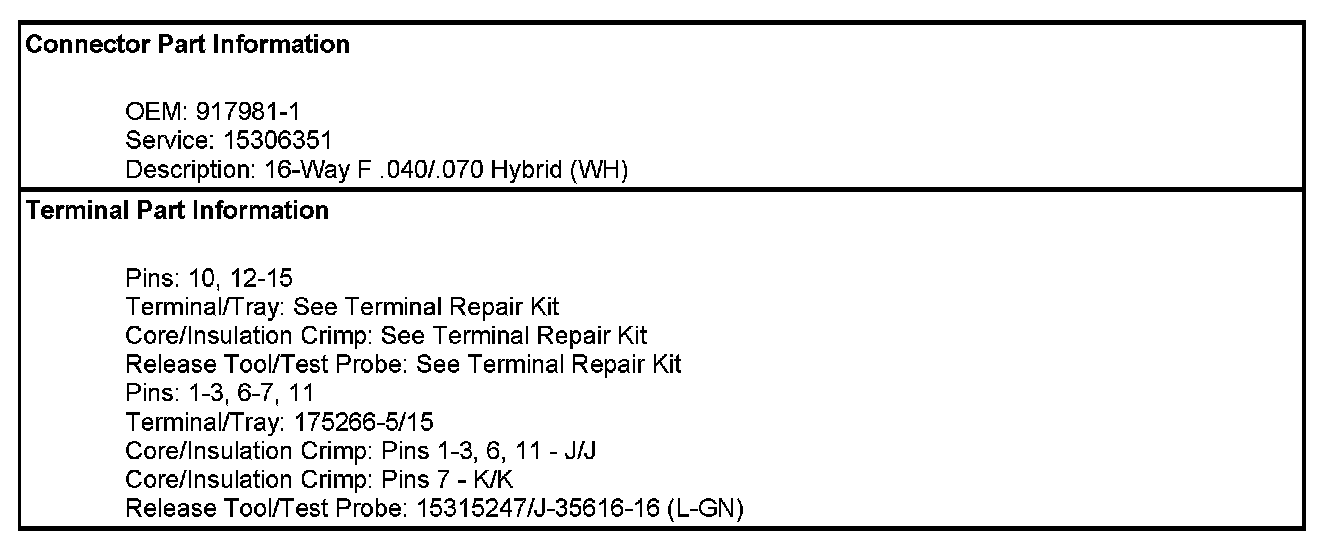

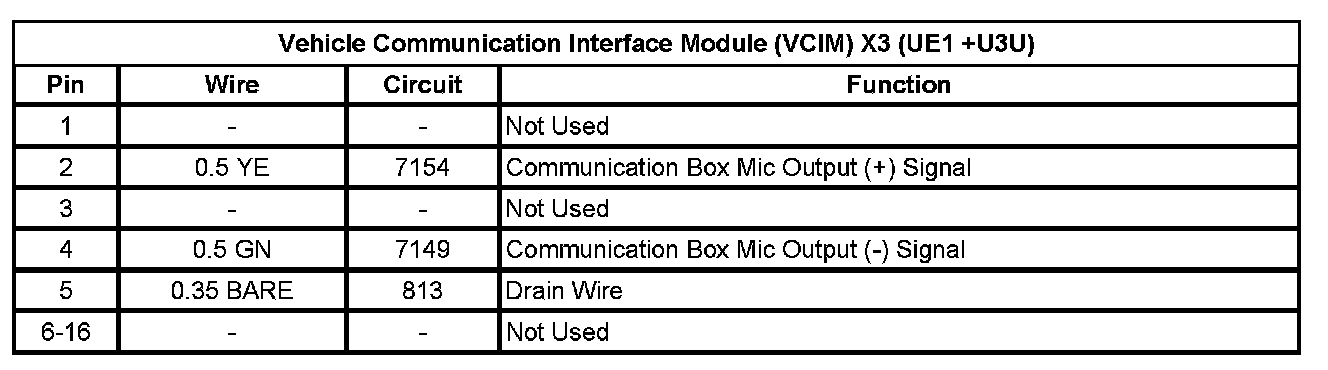

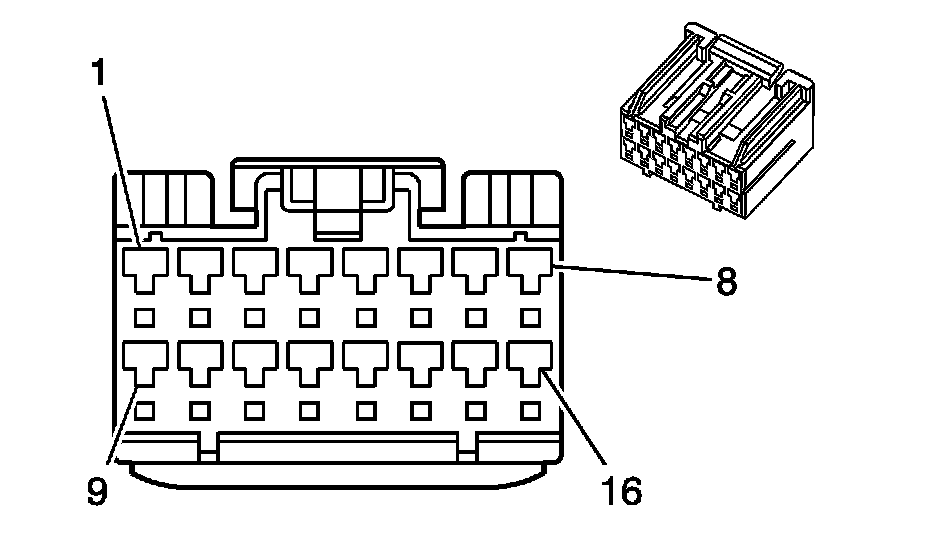

Vehicle Communication Interface Module (VCIM) X3 (UE1 +U3U)

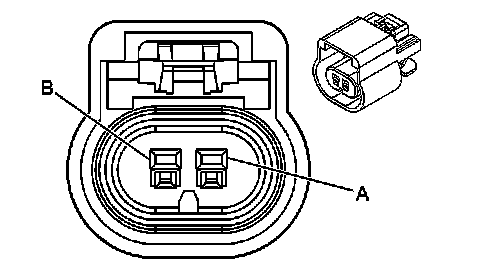

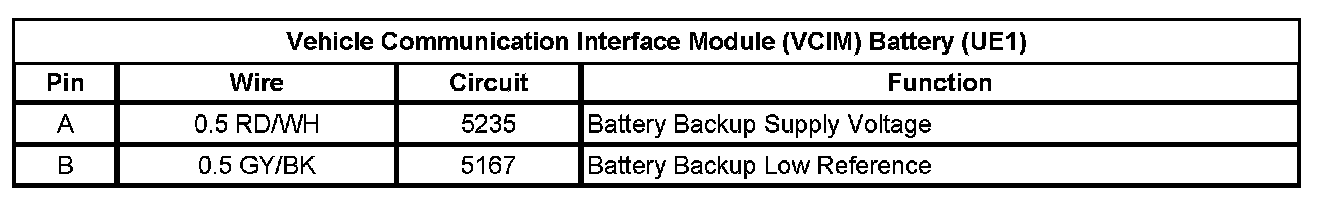

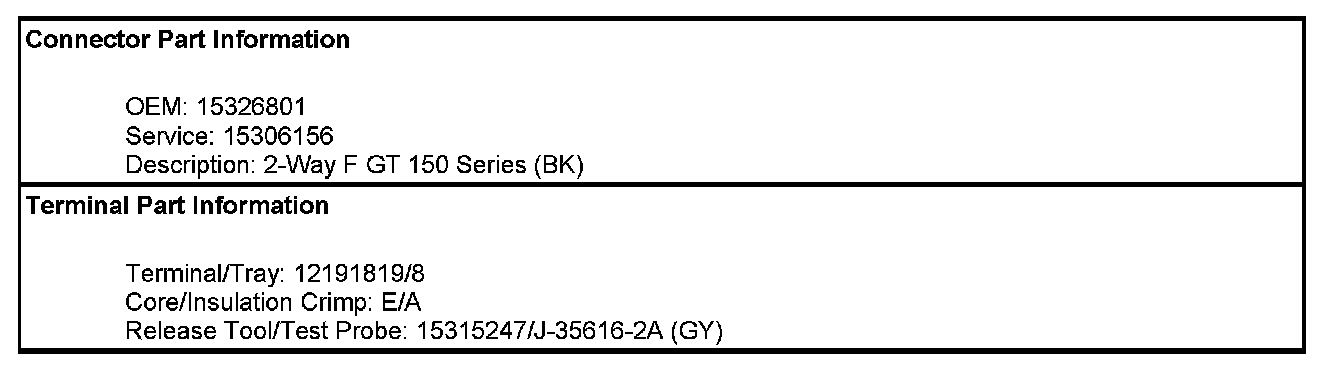

Vehicle Communication Interface Module (VCIM) Battery (UE1)
