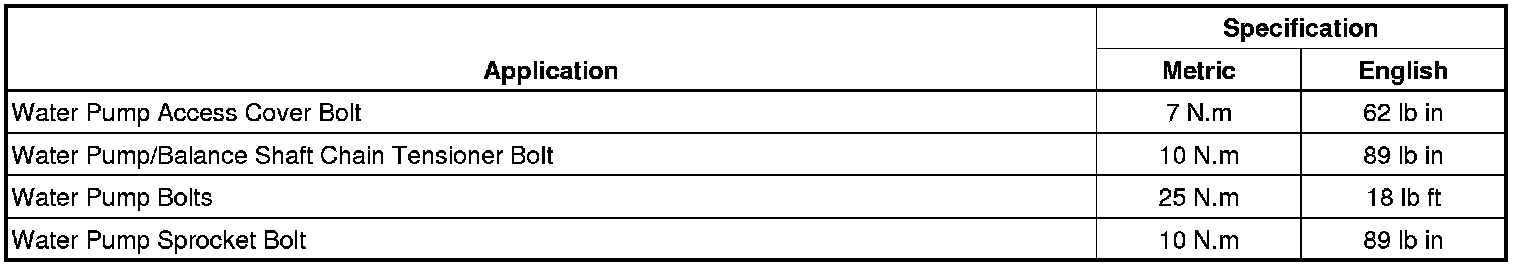

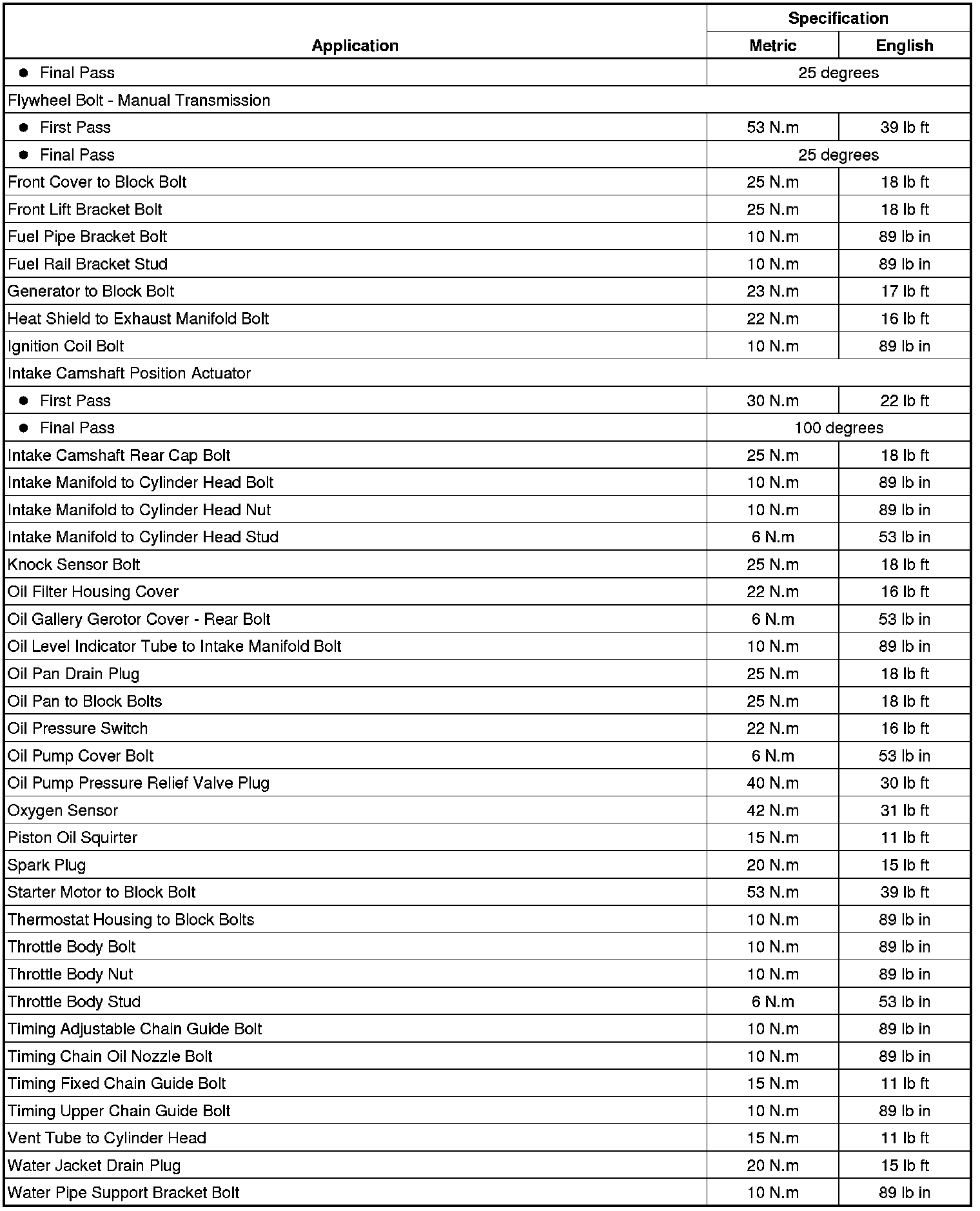

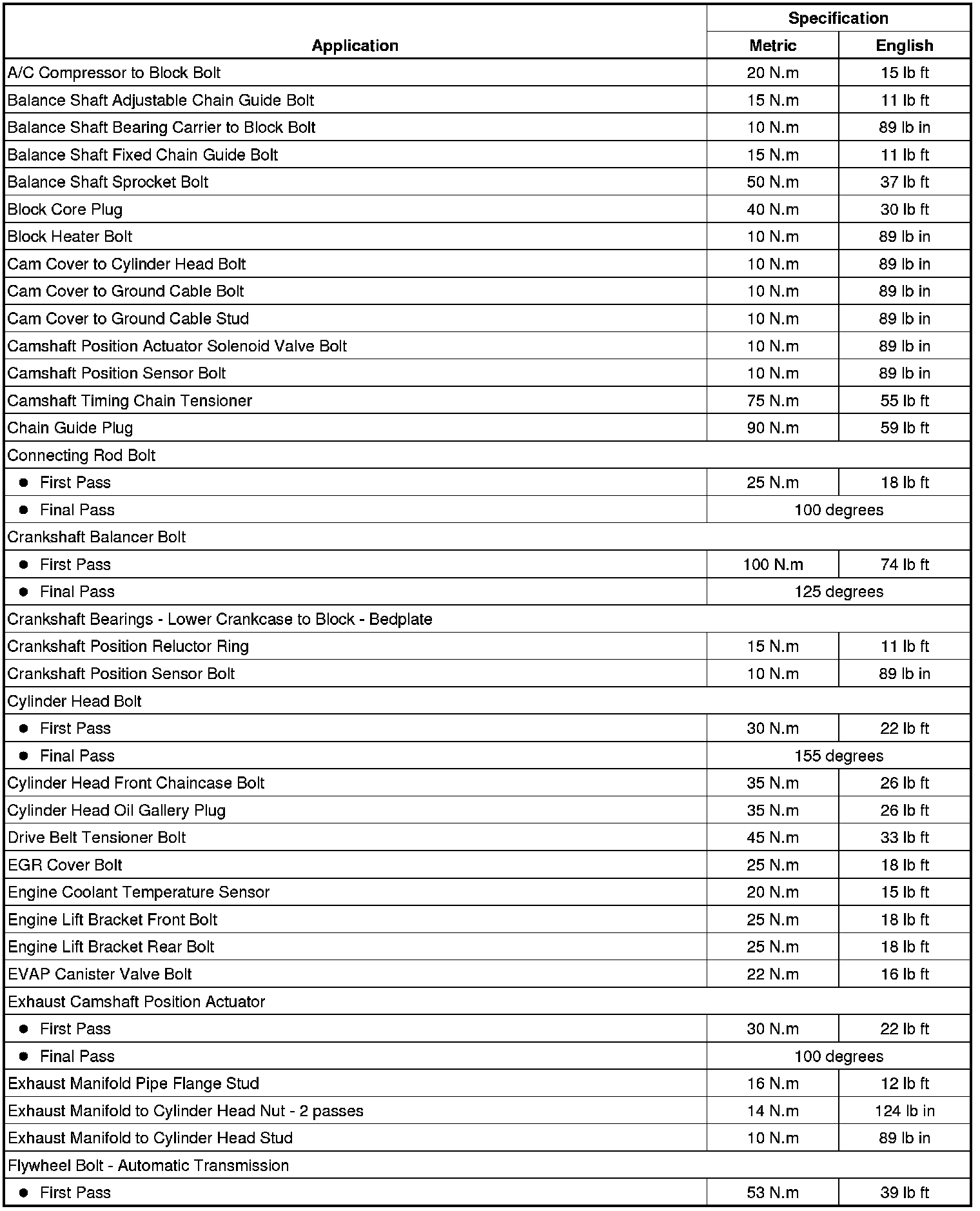

Fastener Tightening Specifications

Fastener Tightening Specifications











Camshaft Bearing Cap Bolts
Tighten the bearing cap bolts in increments of 3 turns until they are seated.
Tighten the bolts to 10 N.m (89 lb in).
