Home >> Pontiac >> 2008 >> G5 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Switch

Wiper Switch



Component Connector End Views - Continued

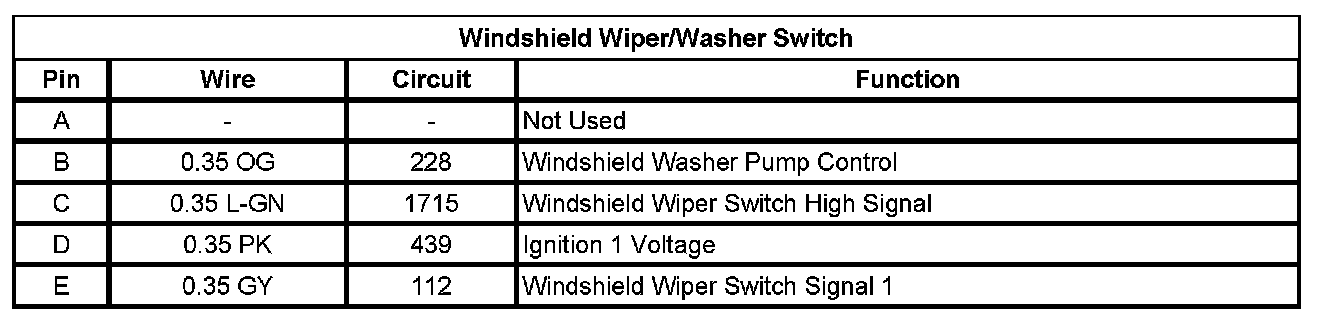

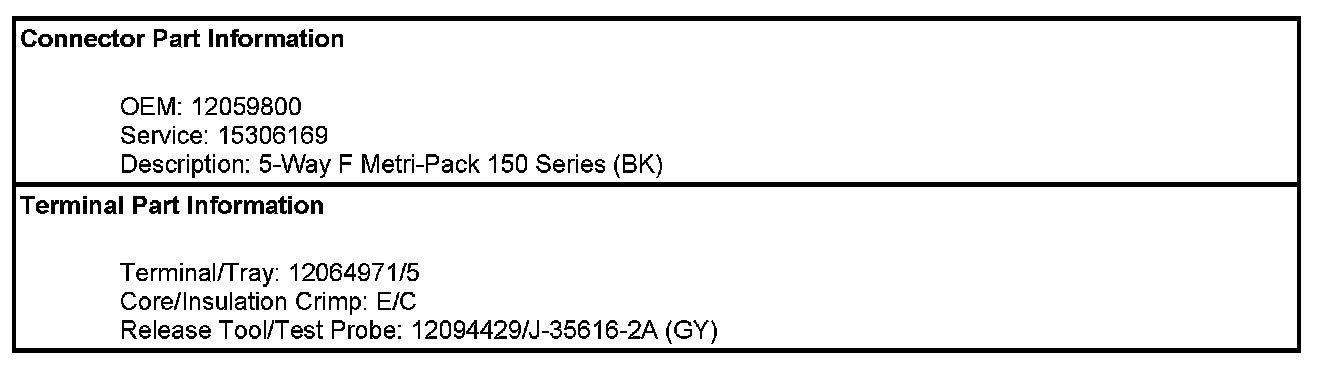

Windshield Wiper/Washer Switch
