Home >> Pontiac >> 2008 >> G5 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor

Wheel Speed Sensor

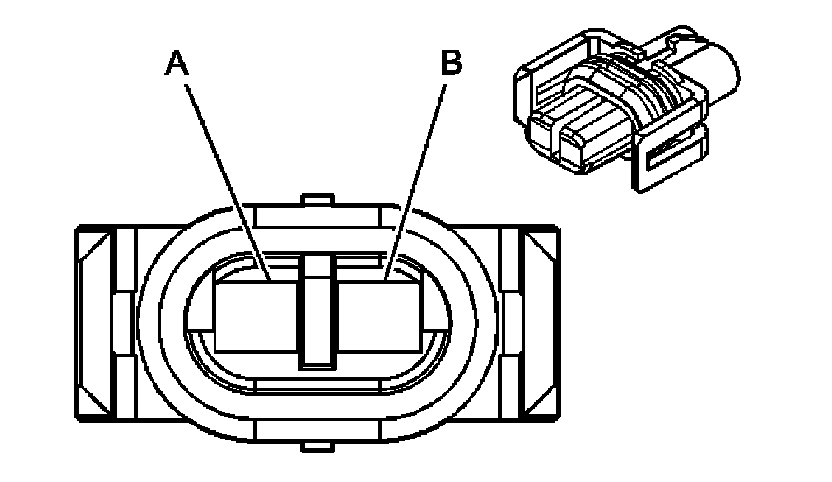

Component Connector End Views - Continued

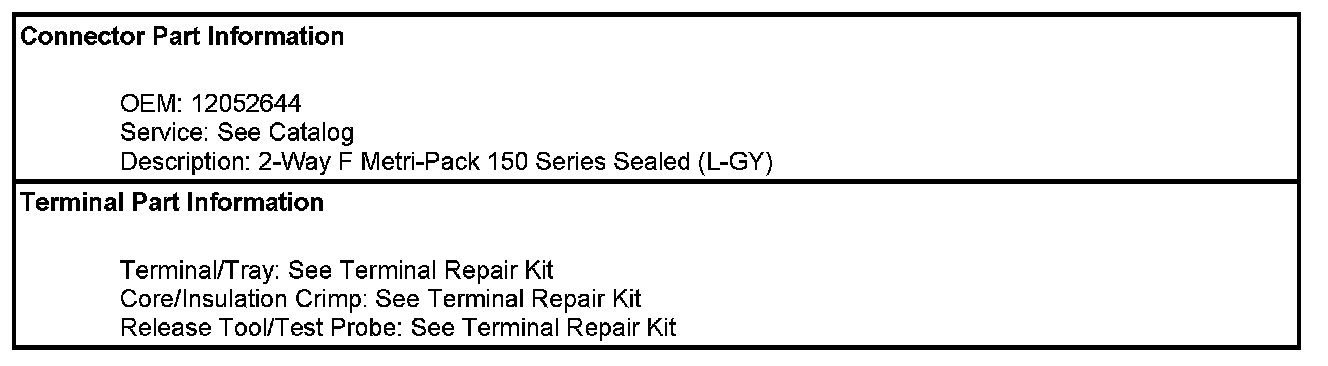

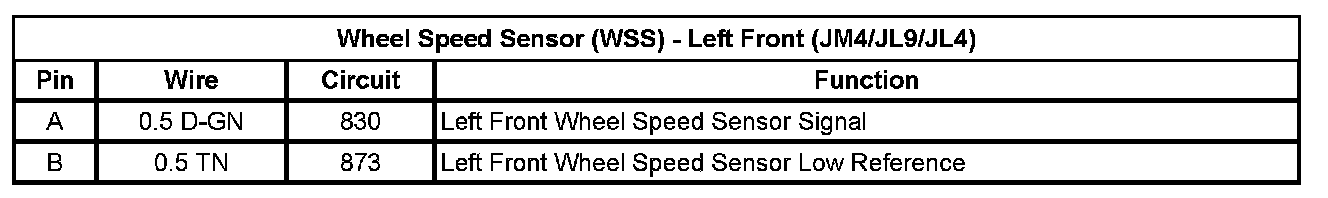

Wheel Speed Sensor (WSS) - Left Front (JM4/JL9/JL4)

Reverse Lockout Solenoid:

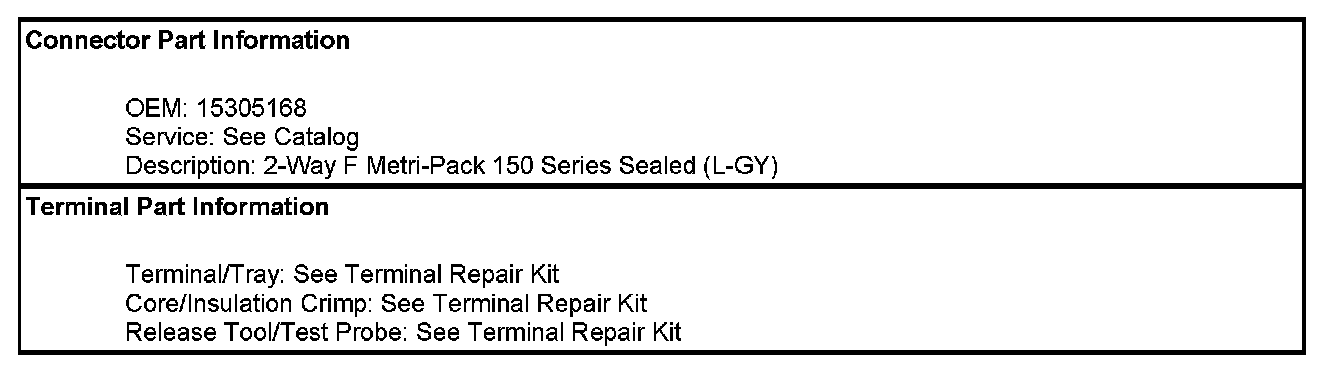

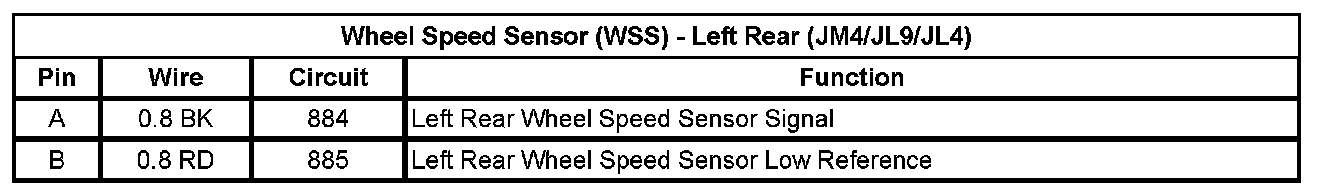

Wheel Speed Sensor (WSS) - Left Rear (JM4/JL9/JL4)

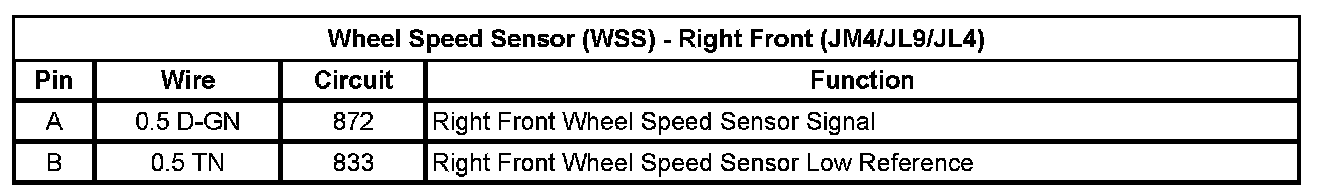

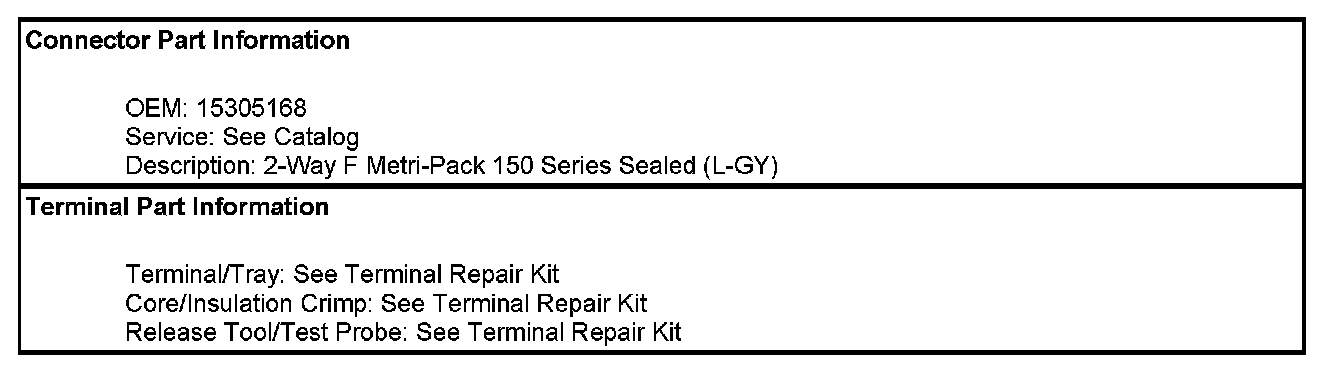

Wheel Speed Sensor (WSS) - Right Front (JM4/JL9/JL4)

Reverse Lockout Solenoid:

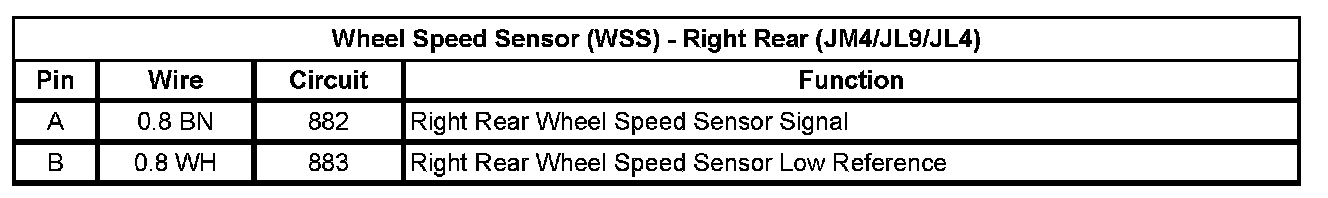

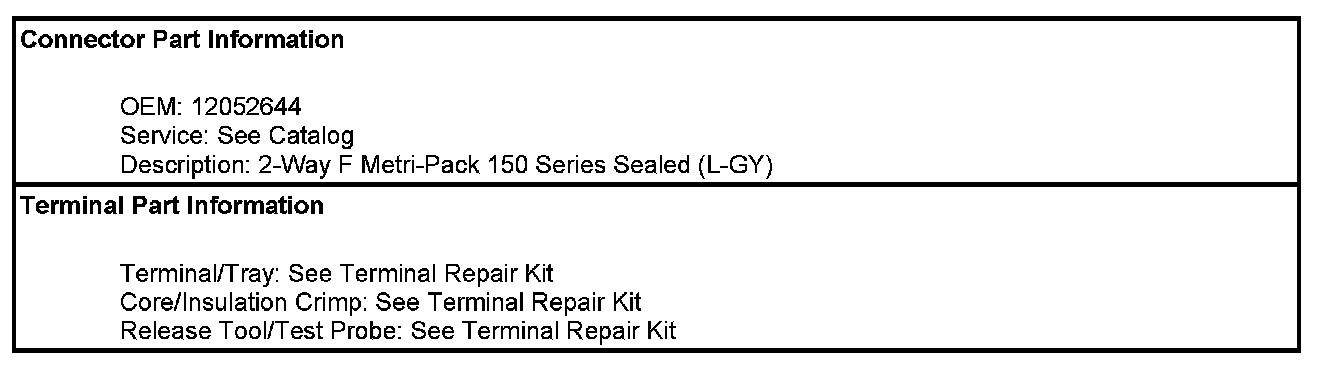

Wheel Speed Sensor (WSS) - Right Rear (JM4/JL9/JL4)
