Pontiac
>>
2008
>>
G5 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
Seat Temperature Control Module

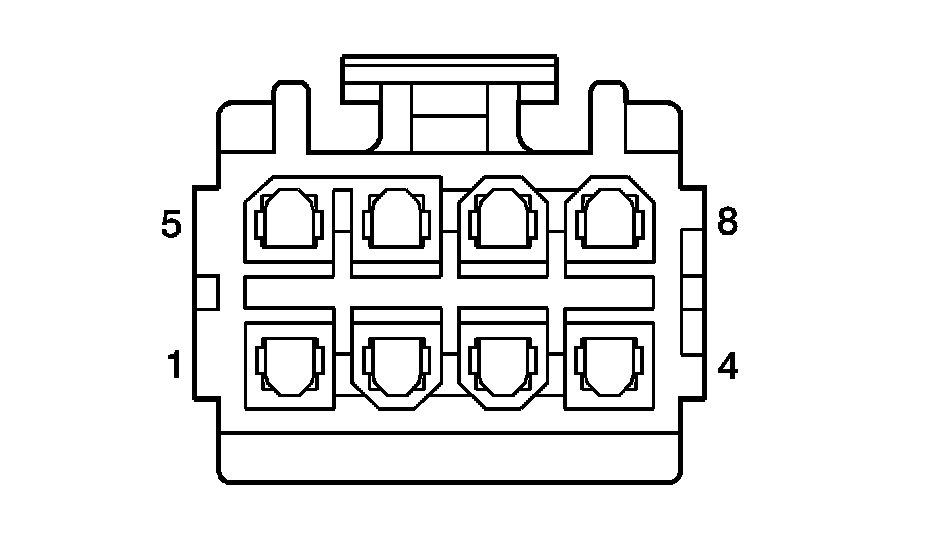

Component Connector End Views

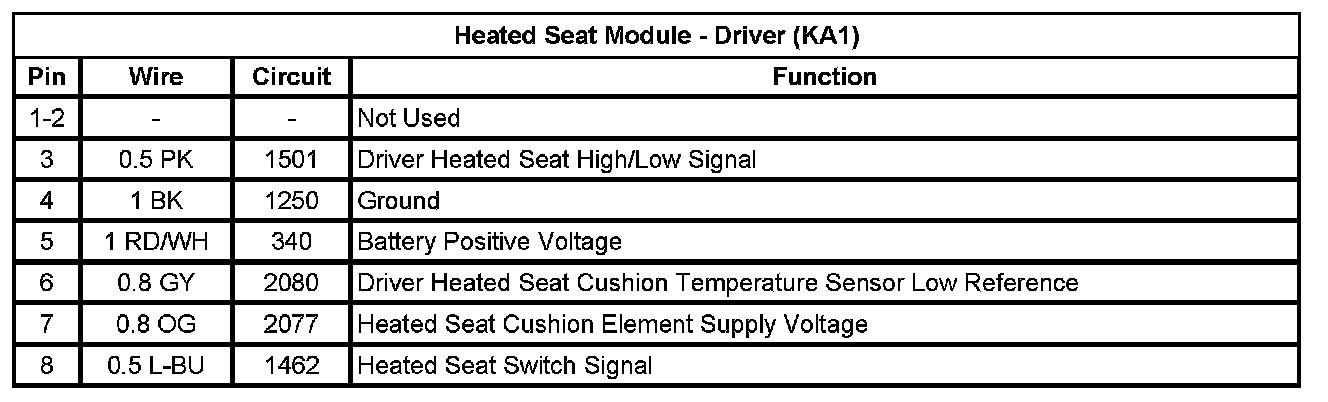

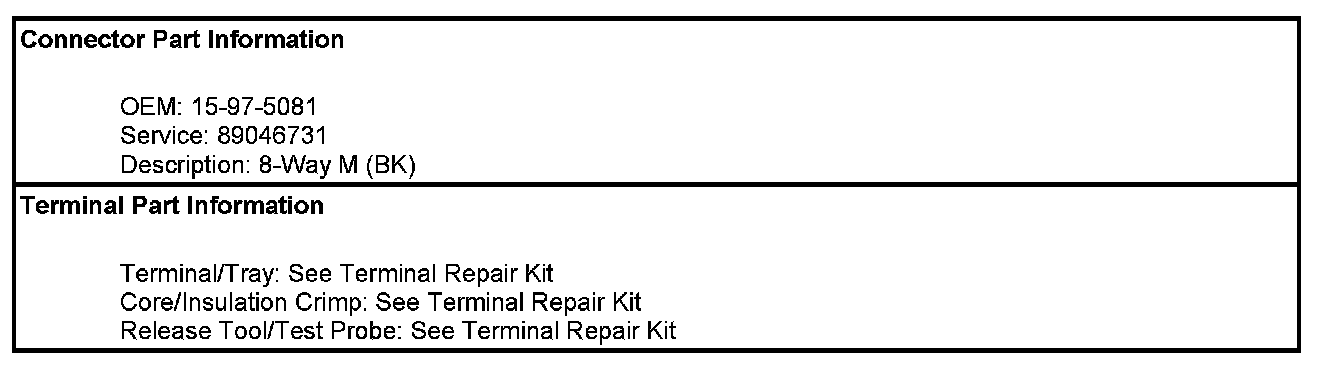

Heated Seat Module - Driver (KA1)

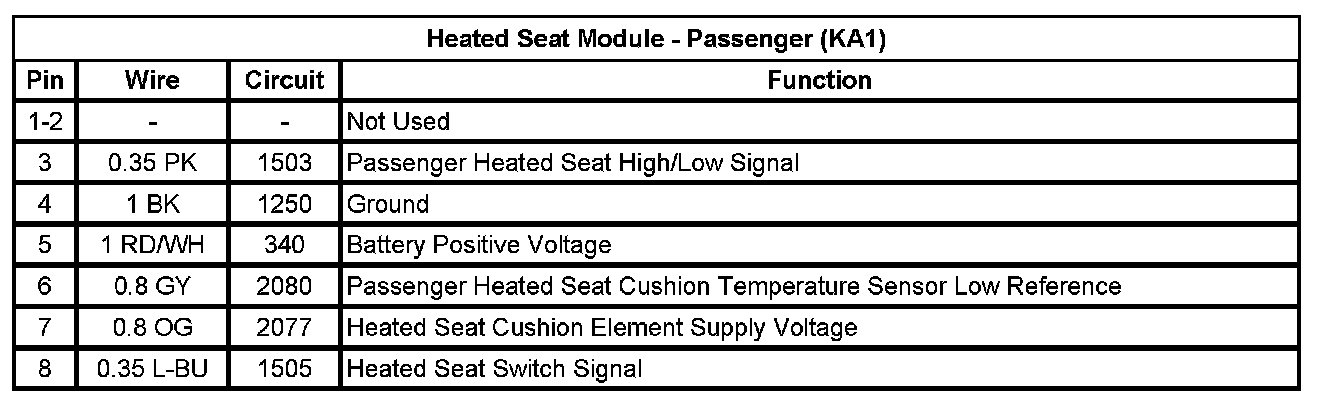

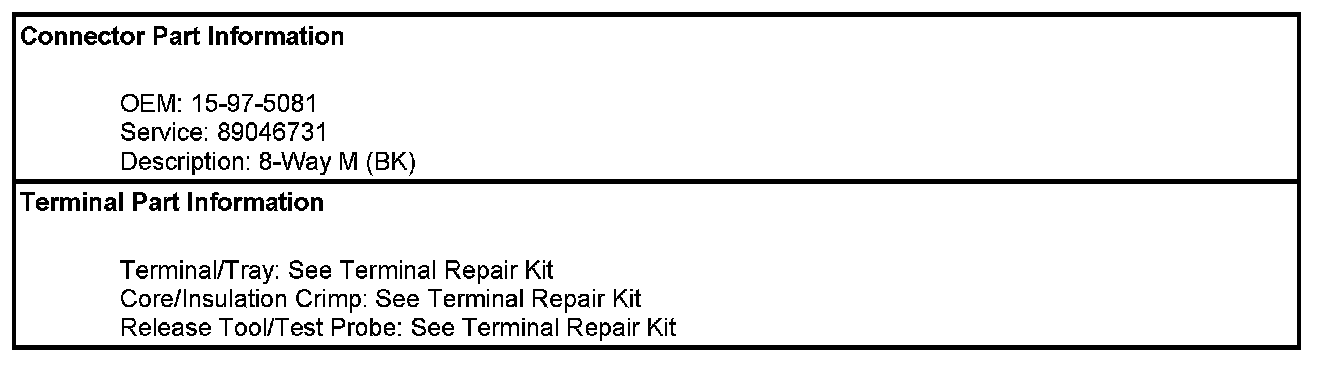

Heated Seat Module - Passenger (KA1)
