Keyless Entry Receiver
Keyless Entry Receiver

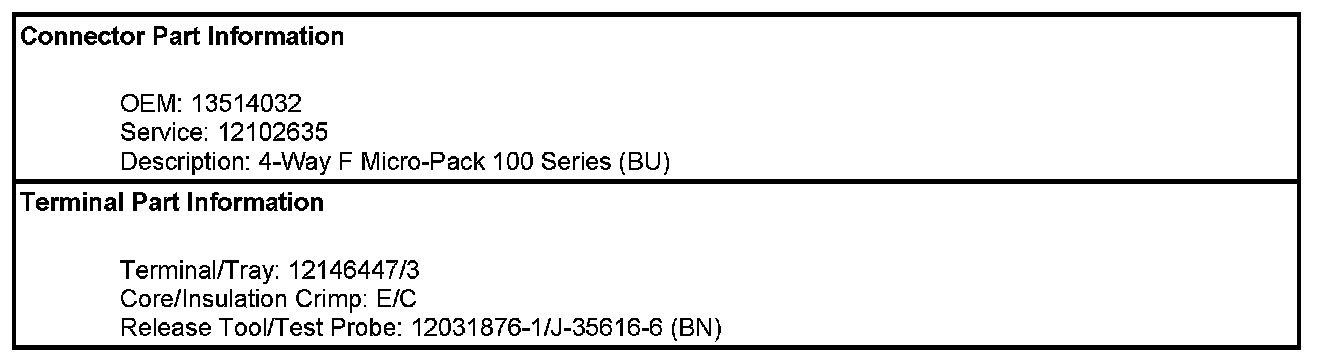

Component Connector End Views - Continued

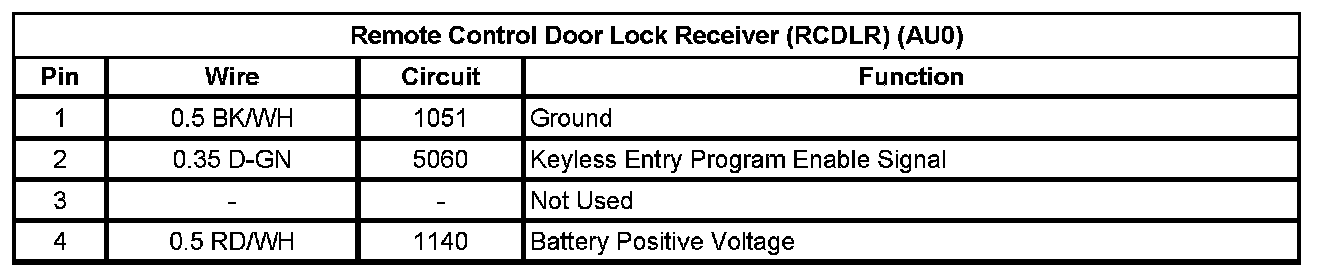

Remote Control
Door Lock Receiver (RCDLR) (AU0)
