Component Connector End Views - Continued

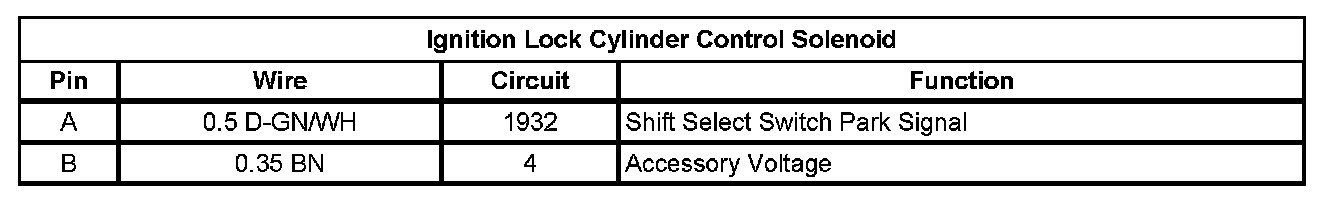

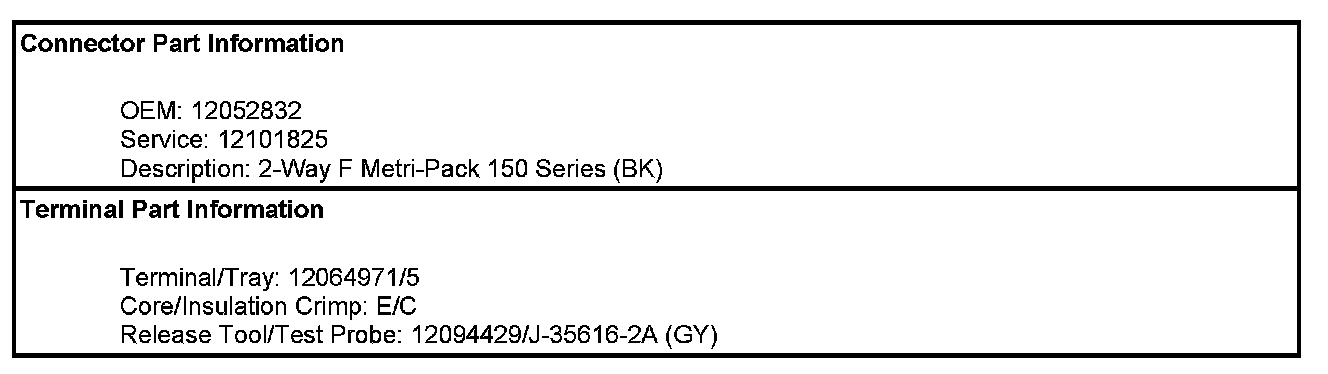

Ignition Lock Cylinder Control Solenoid
A/T Shift Lock Control Solenoid:
