Home >> Pontiac >> 2008 >> G5 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dimmer Switch

Dimmer Switch

Component Connector End Views - Continued

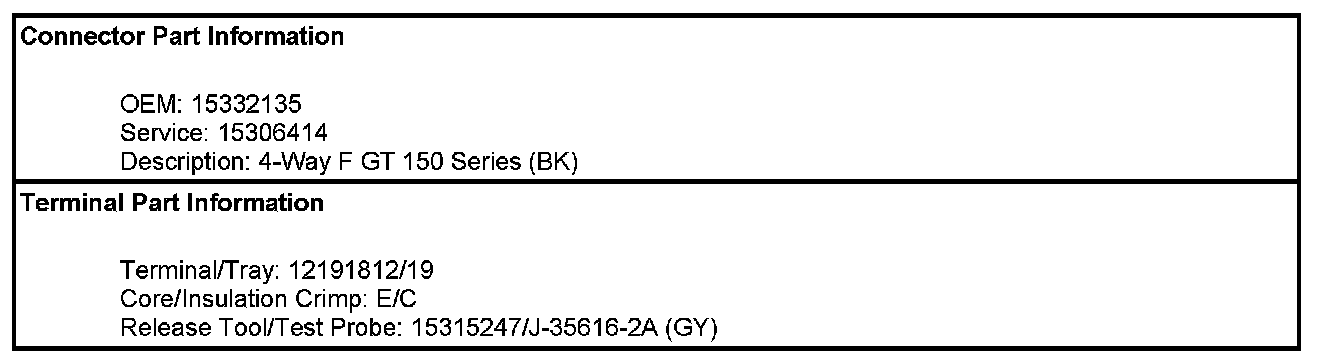

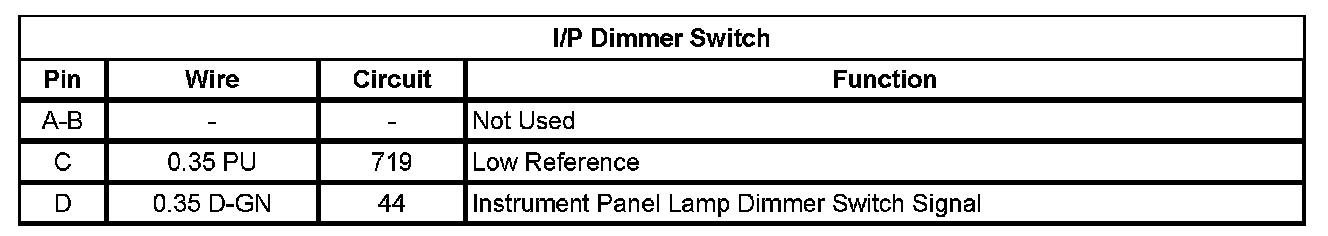

I/P Dimmer Switch
