Pontiac
>>
2008
>>
G5 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)
Component Connector End Views - Continued

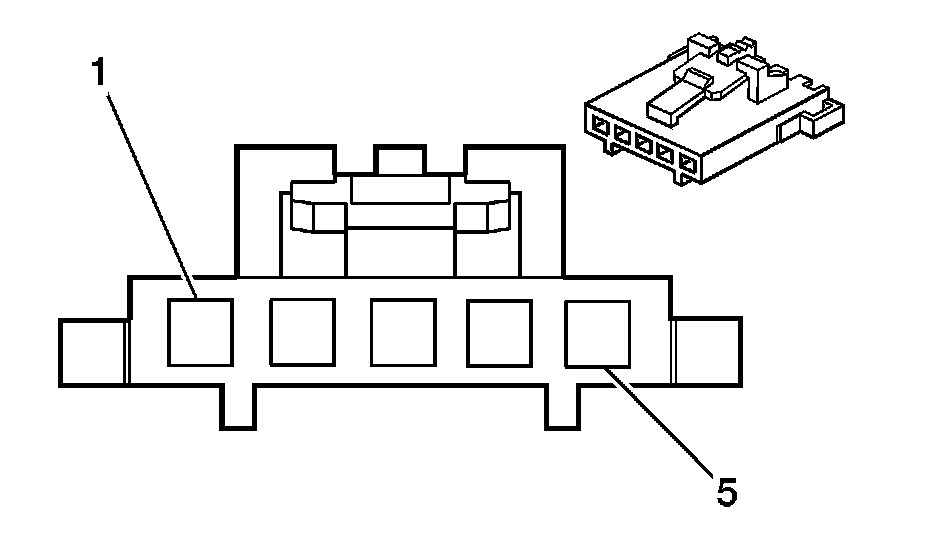

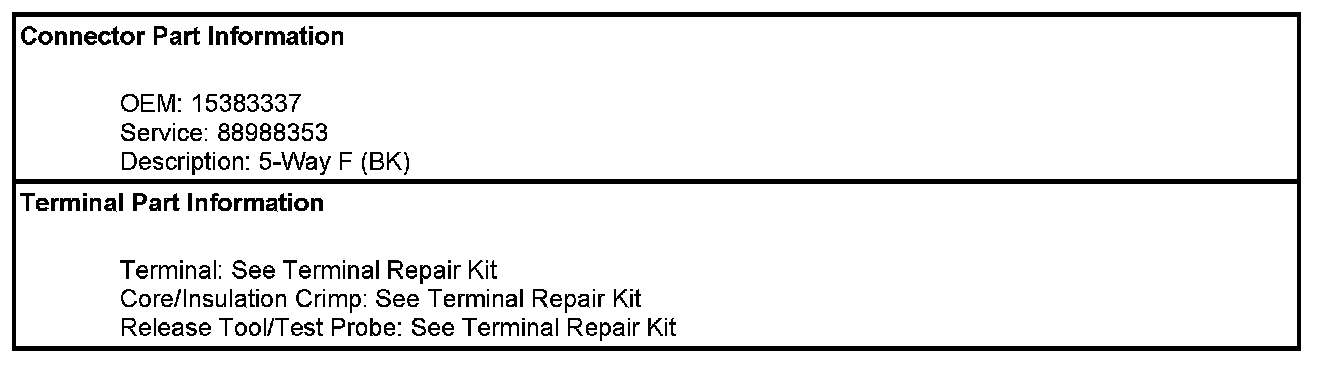

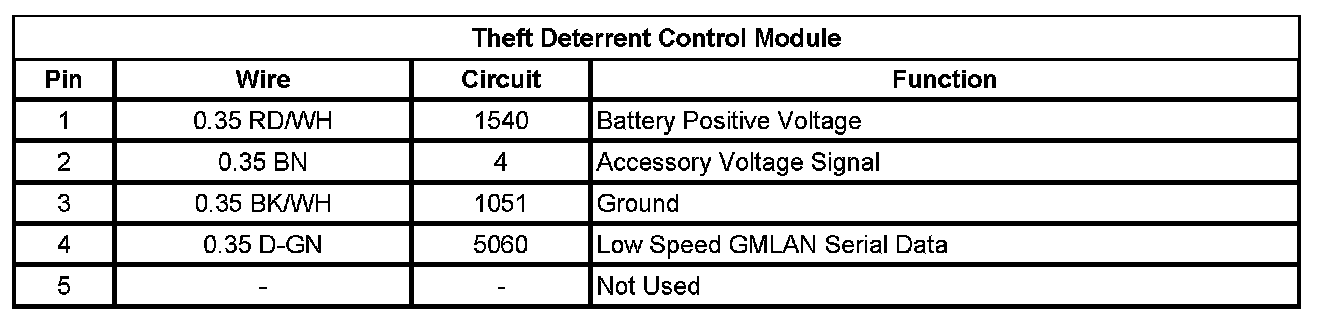

Theft Deterrent Control Module
