Connector Views



Engine Control Module Connector End Views

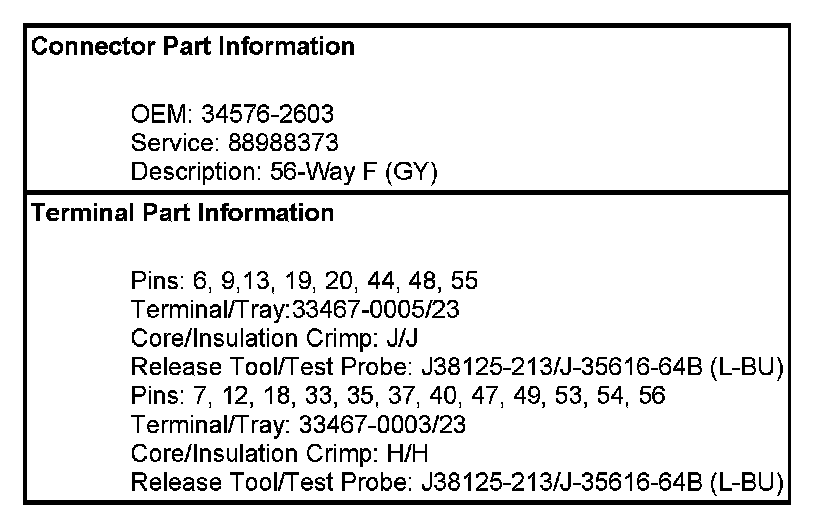

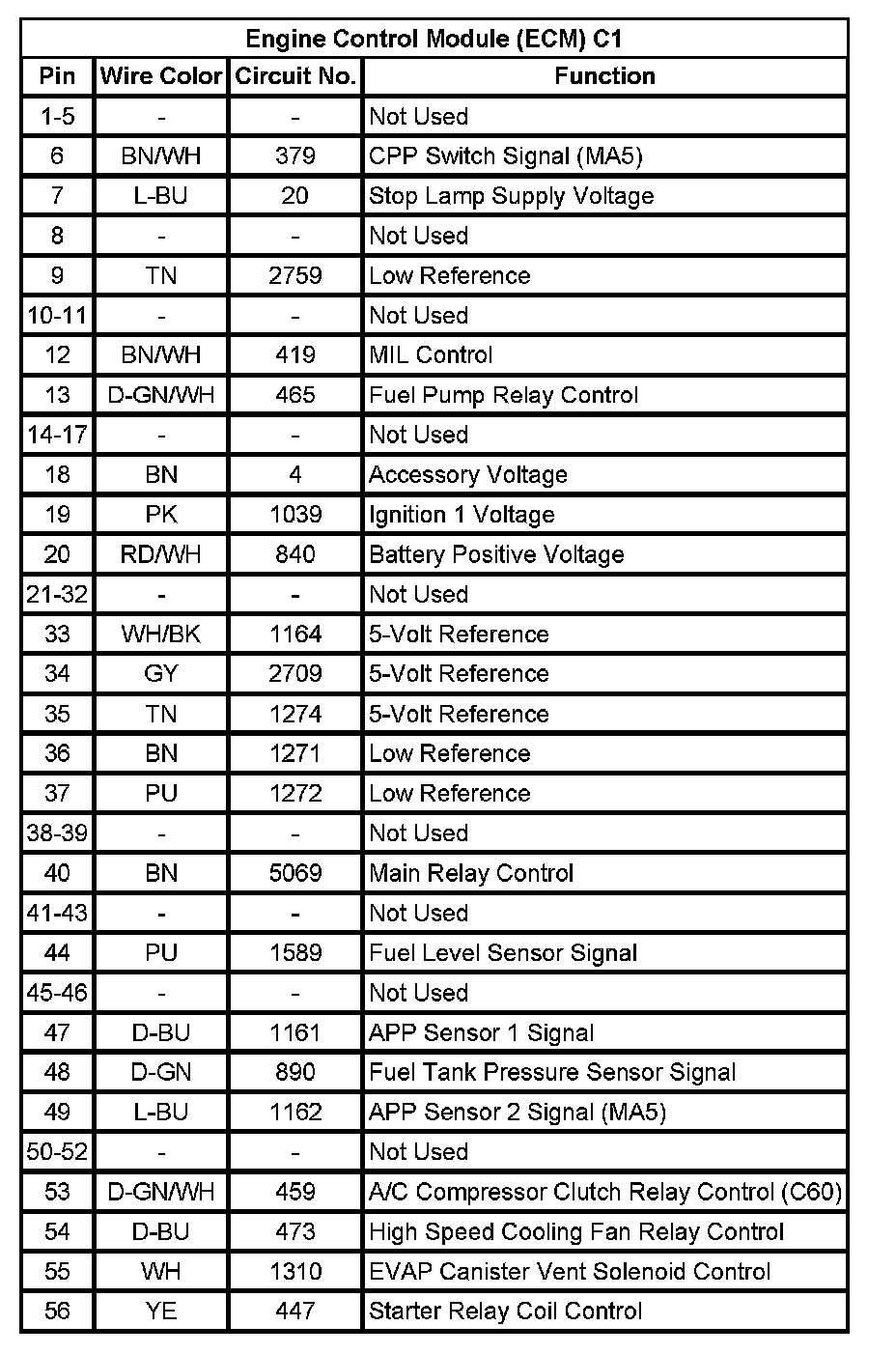

Engine Control Module (ECM) C1

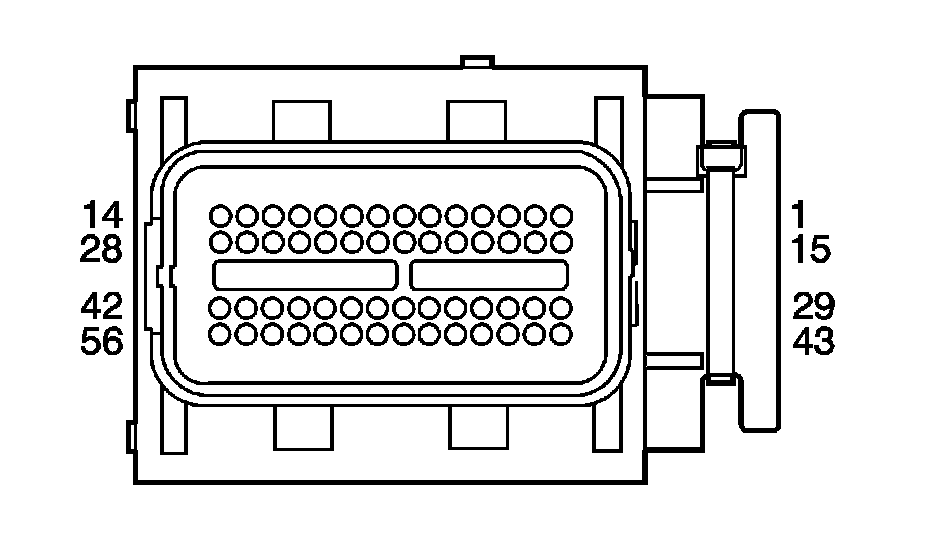

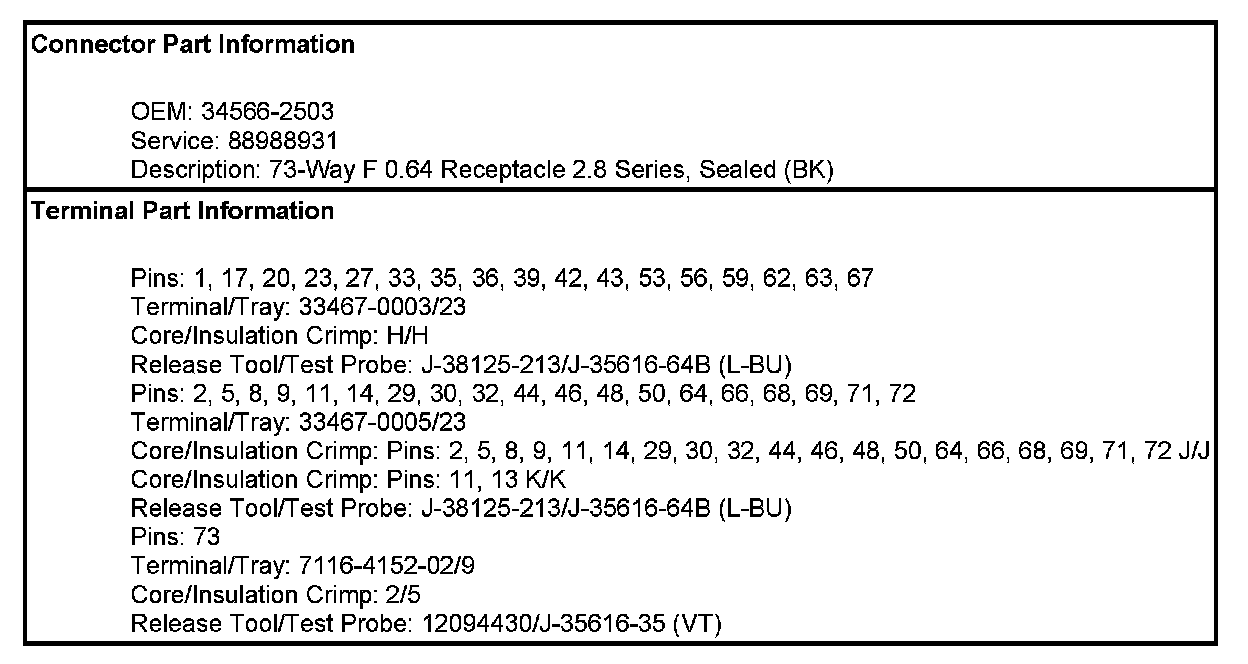

Engine Control Module (ECM) C2

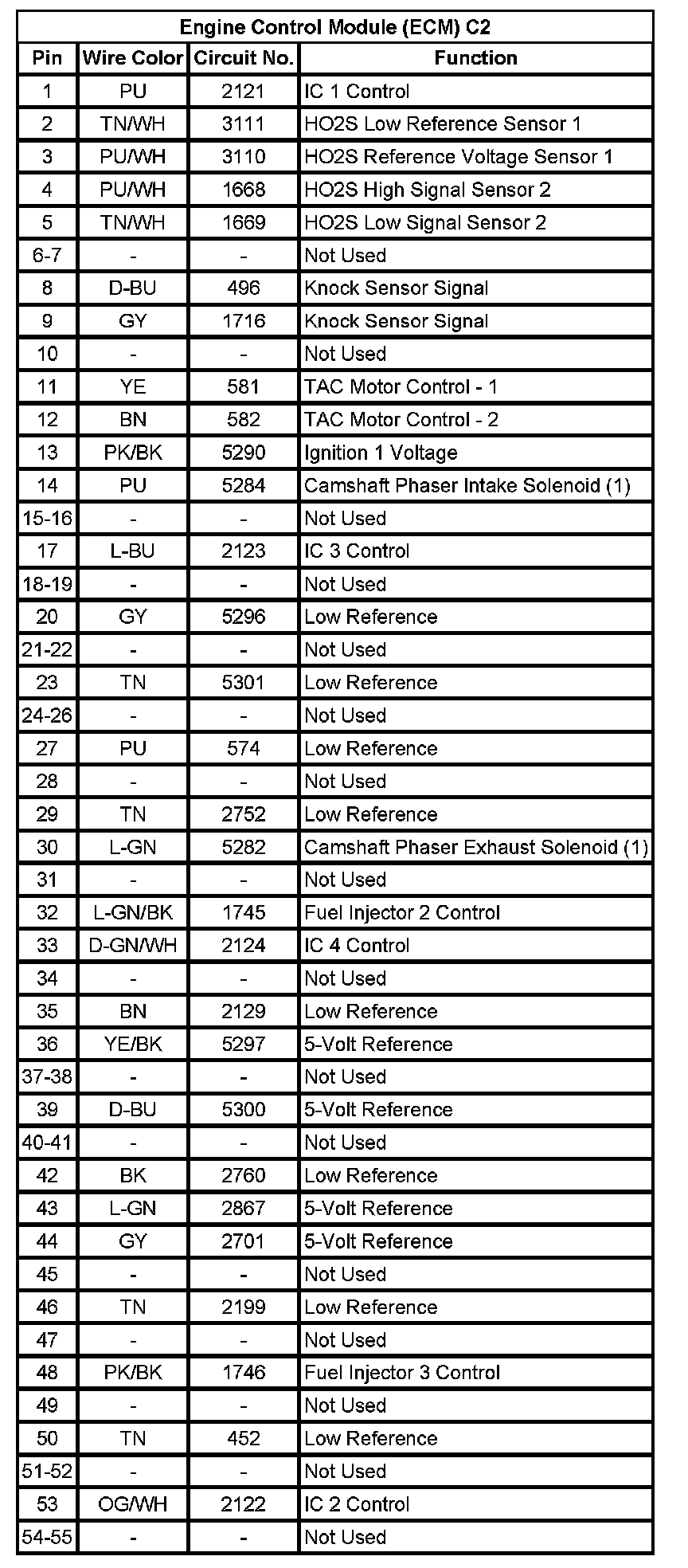

Engine Control Module (ECM) C2 (Pin 1 To 55):

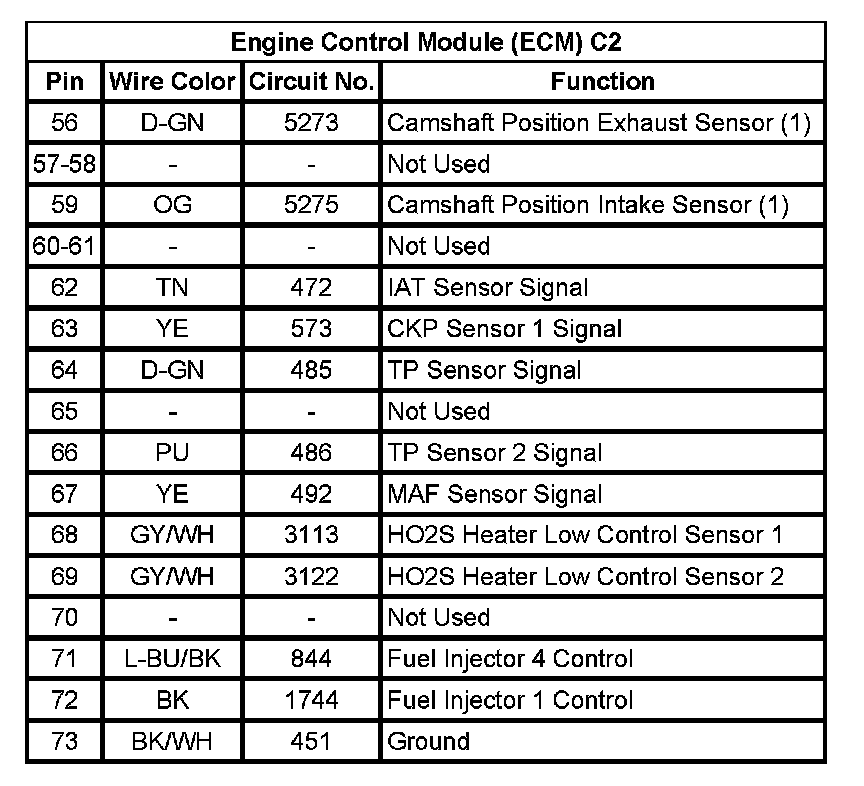

Engine Control Module (ECM) C2 (Pin 56 To 73):

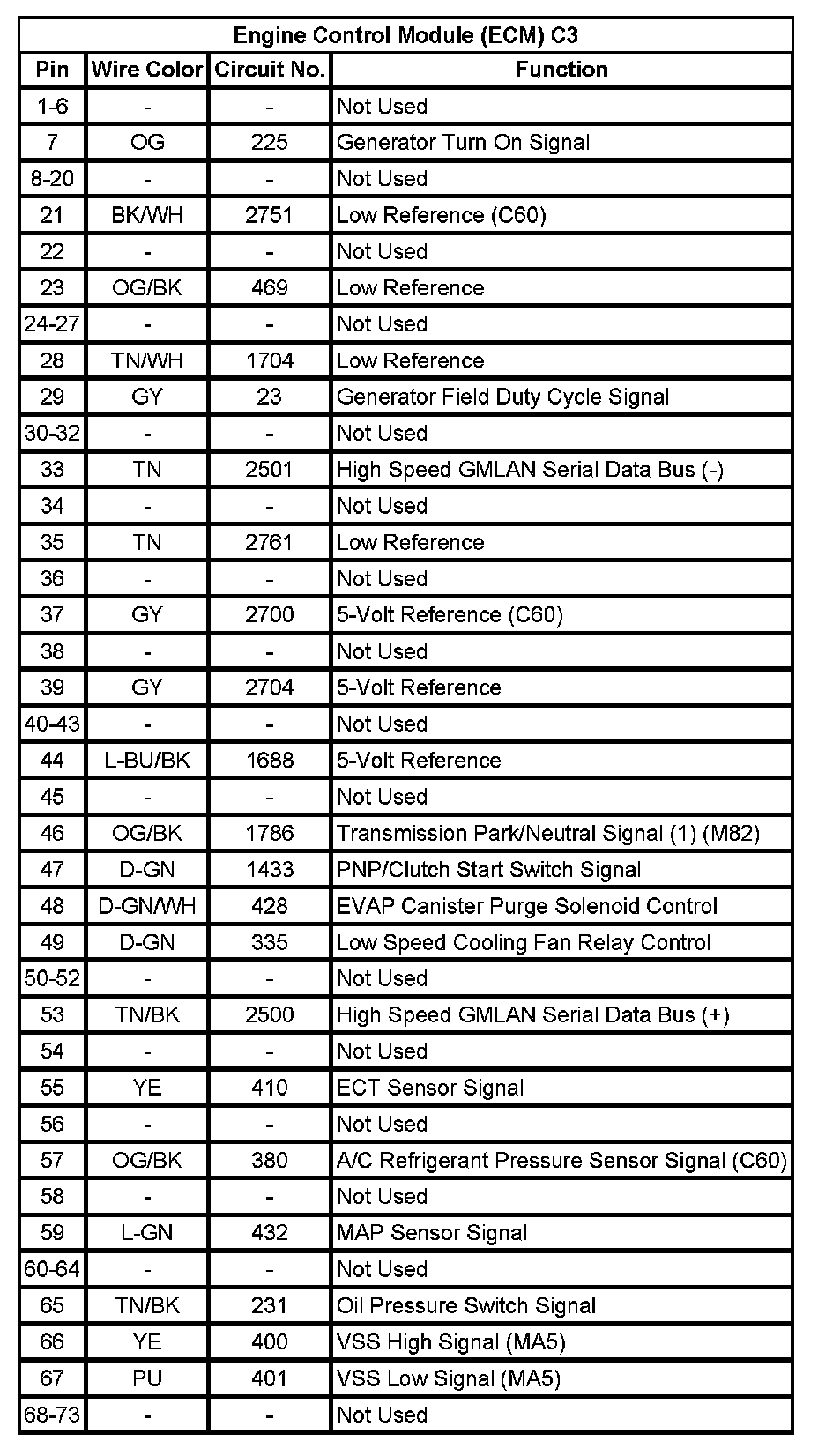

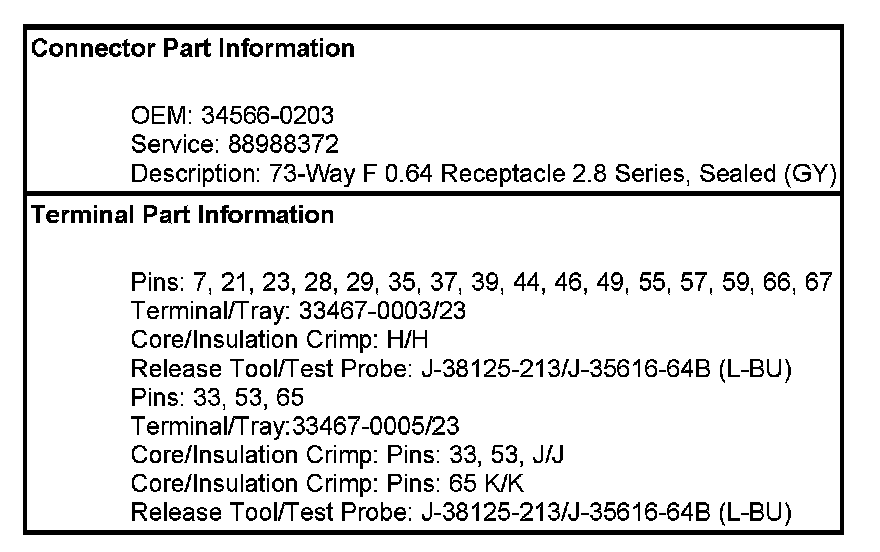

Engine Control Module (ECM) C3
