Secondary/Configurable Control Connector End Views



Secondary/Configurable Control Connector End Views

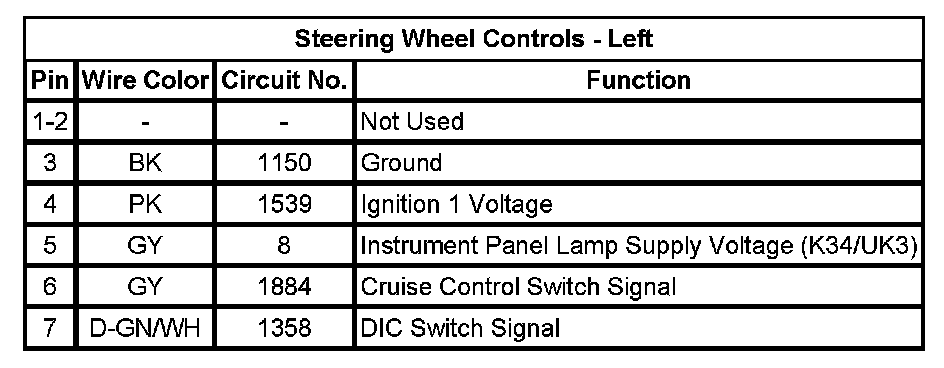

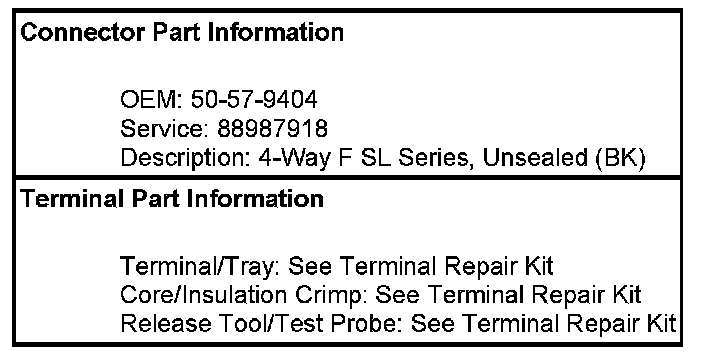

Steering Wheel Controls - Left

Steering Wheel Controls - Left:

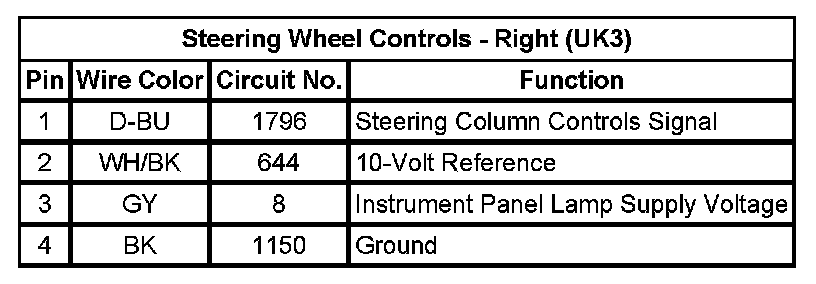

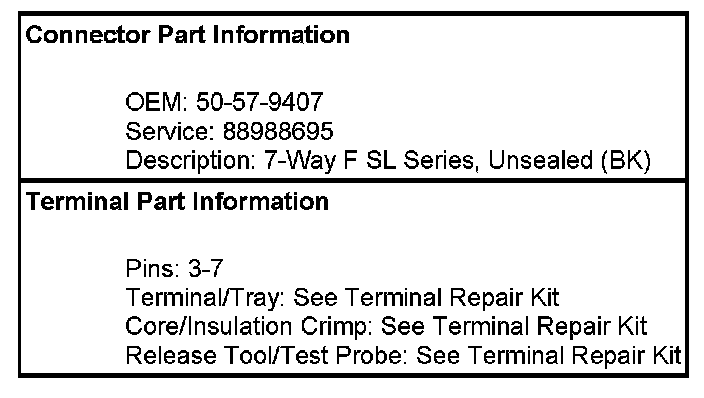

Steering Wheel Controls - Right (UK3)

Steering Wheel Controls - Right (UK3):
