Home >> Pontiac >> 2007 >> Solstice L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch



Window Systems Connector End Views

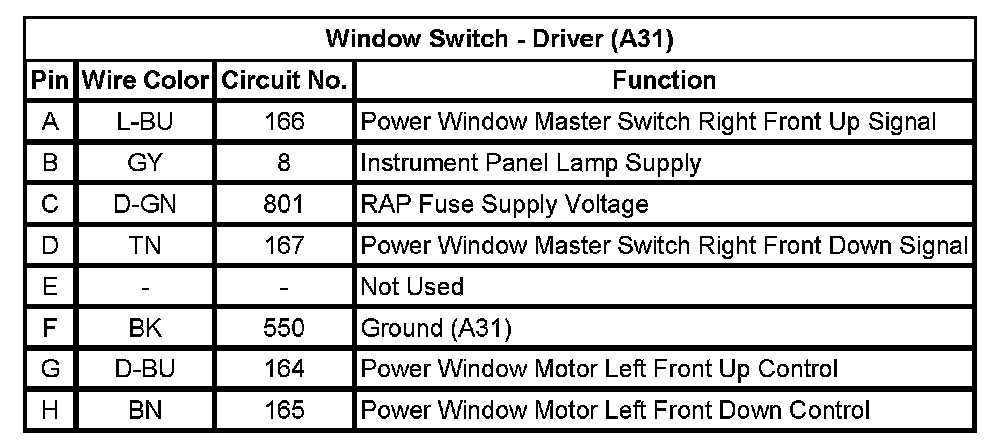

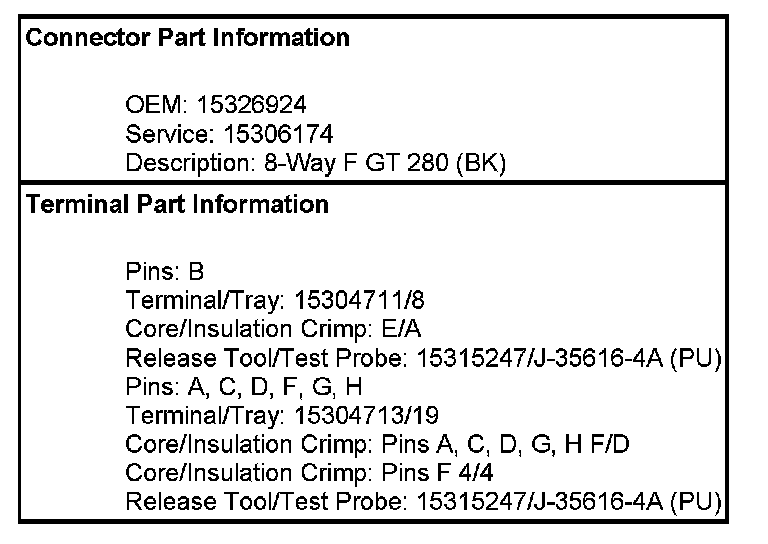

Window Switch - Driver (With RPO Code A31)

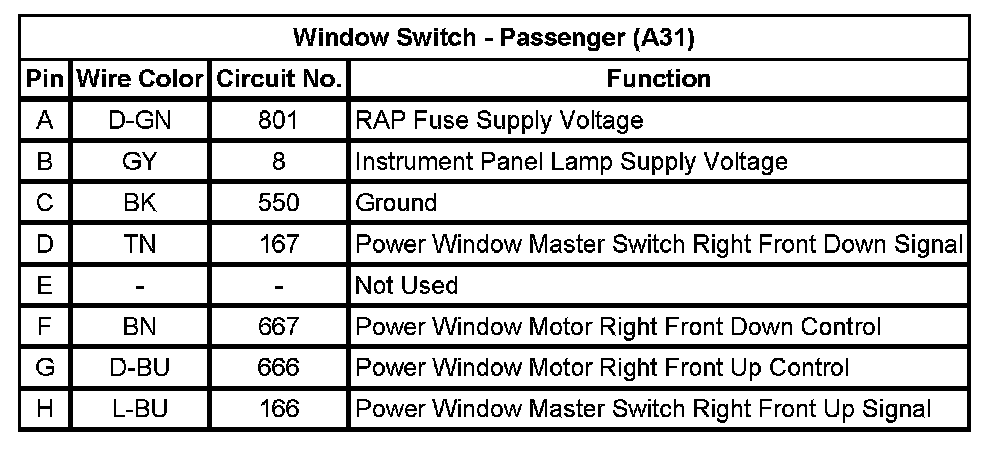

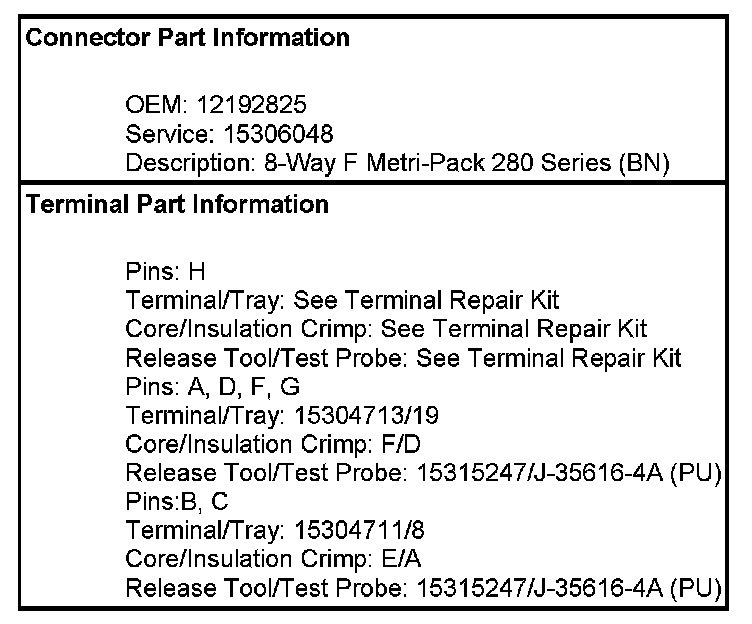

Window Switch - Passenger (With RPO Code A31)
