Home >> Pontiac >> 2007 >> Solstice L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor

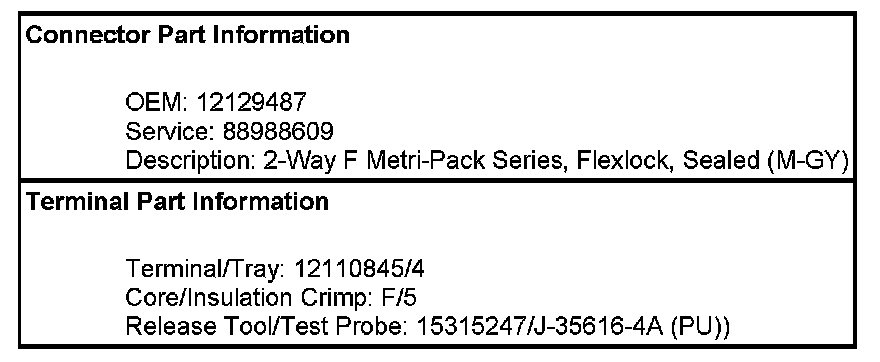

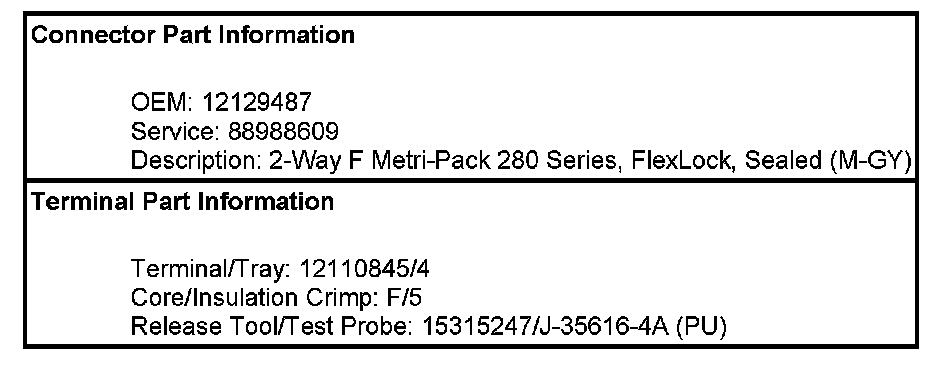

Window Systems Connector End Views

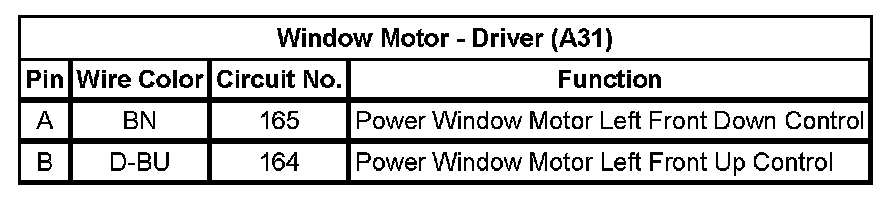

Window Motor - Driver (With RPO Code A31)

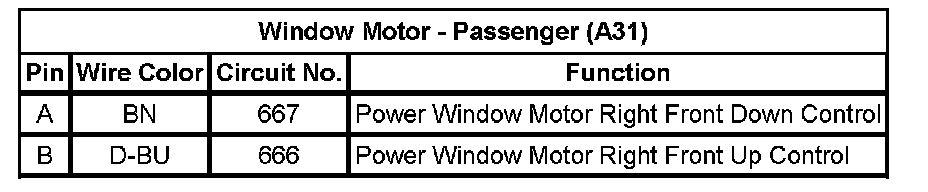

Window Motor - Passenger (With RPO Code A31)
