Home >> Pontiac >> 2007 >> Solstice L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram



Mirror Connector End Views

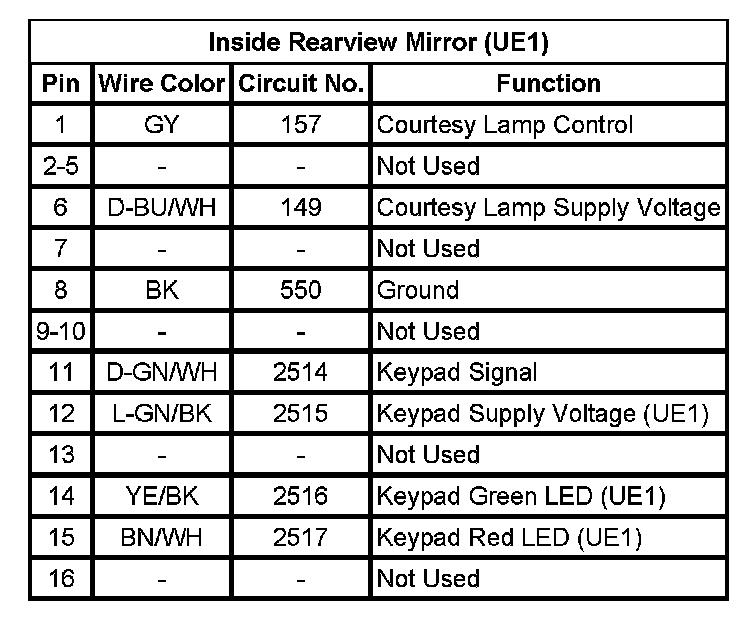

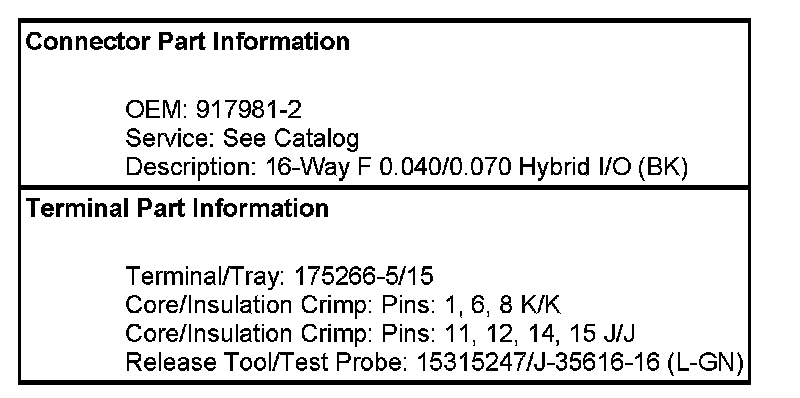

Inside Rearview Mirror (With RPO Code UE1)

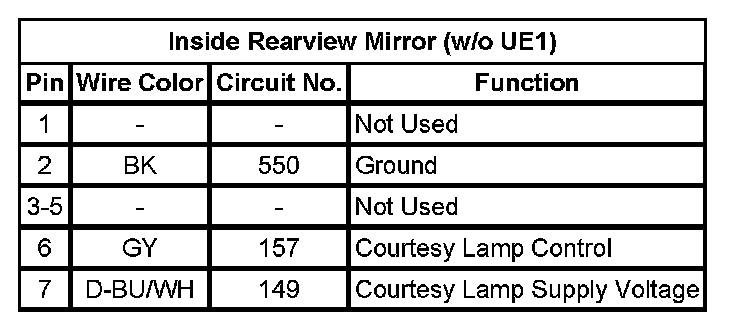

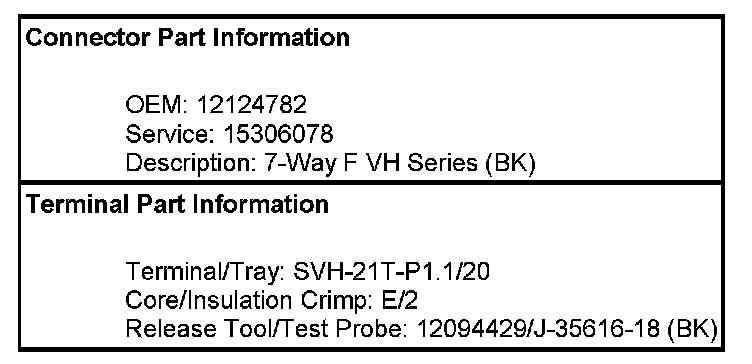

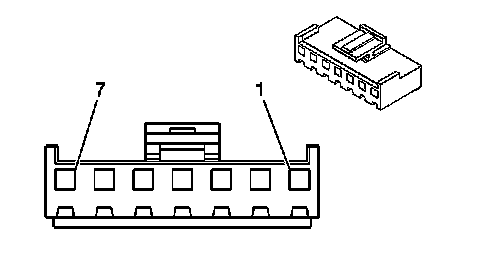

Inside Rearview Mirror (Without RPO Code UE1)

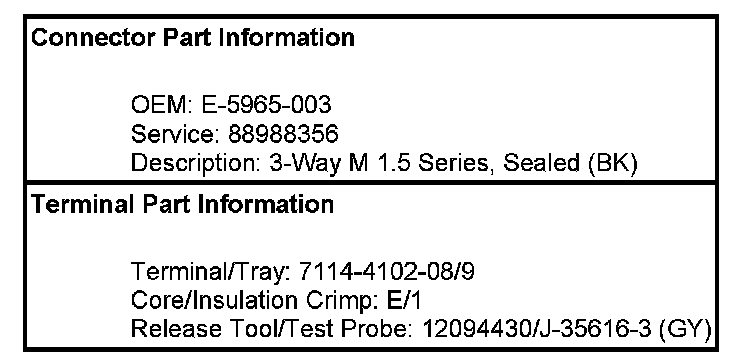

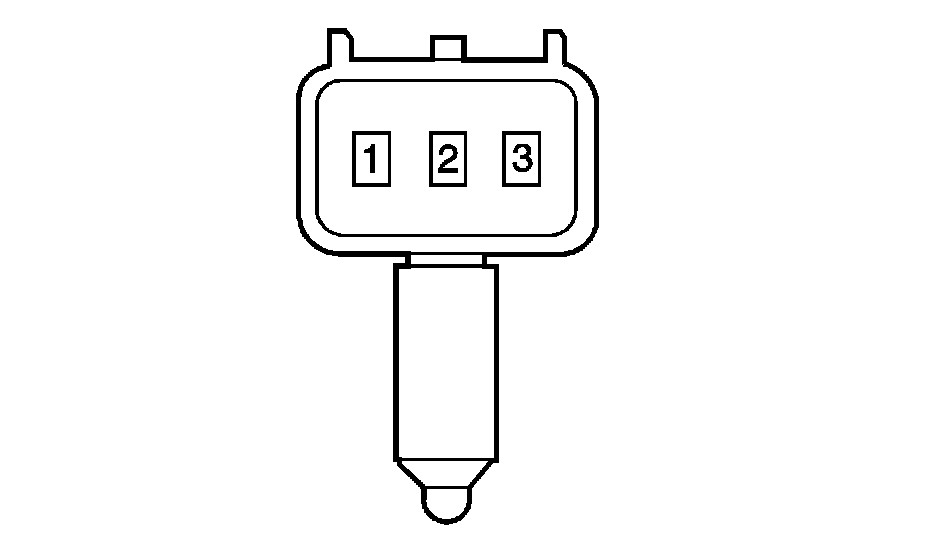

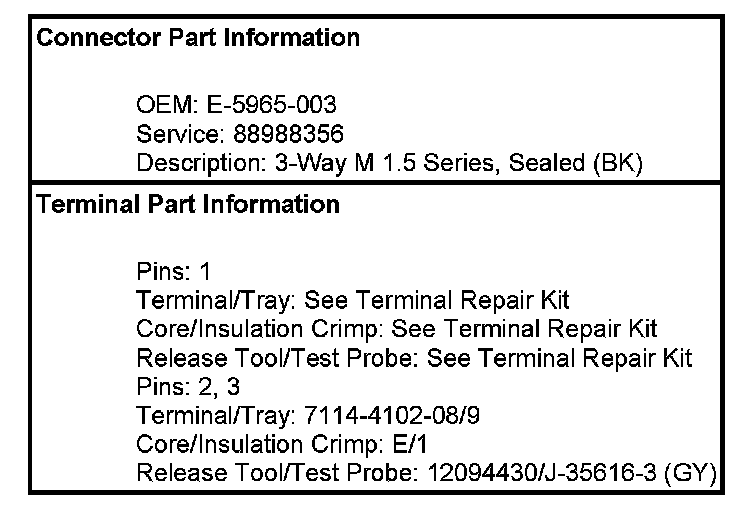

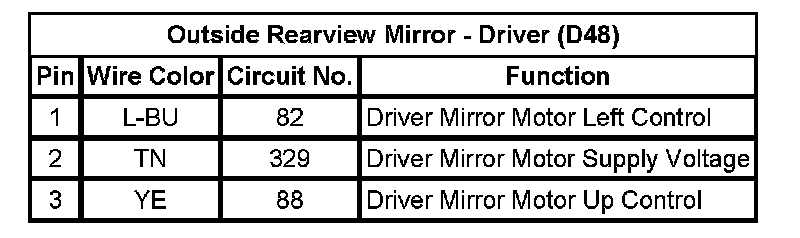

Outside Rearview Mirror - Driver (With RPO Code D48)

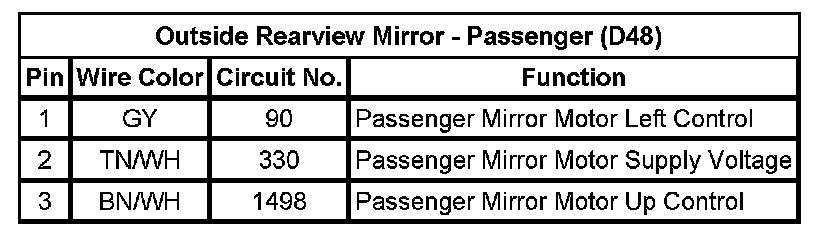

Outside Rearview Mirror - Passenger (With RPO Code D48)
