Home >> Pontiac >> 2007 >> Solstice L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

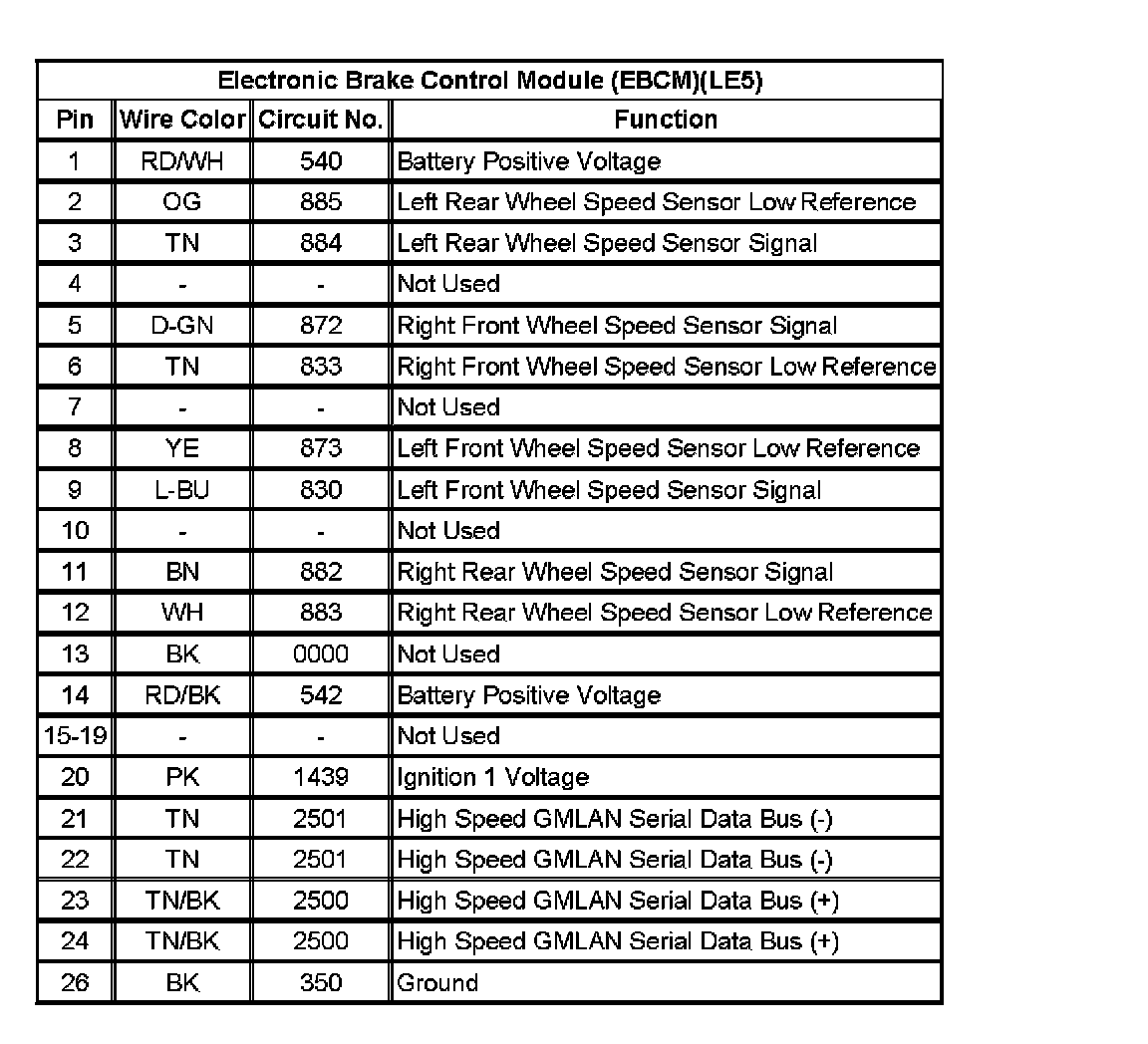

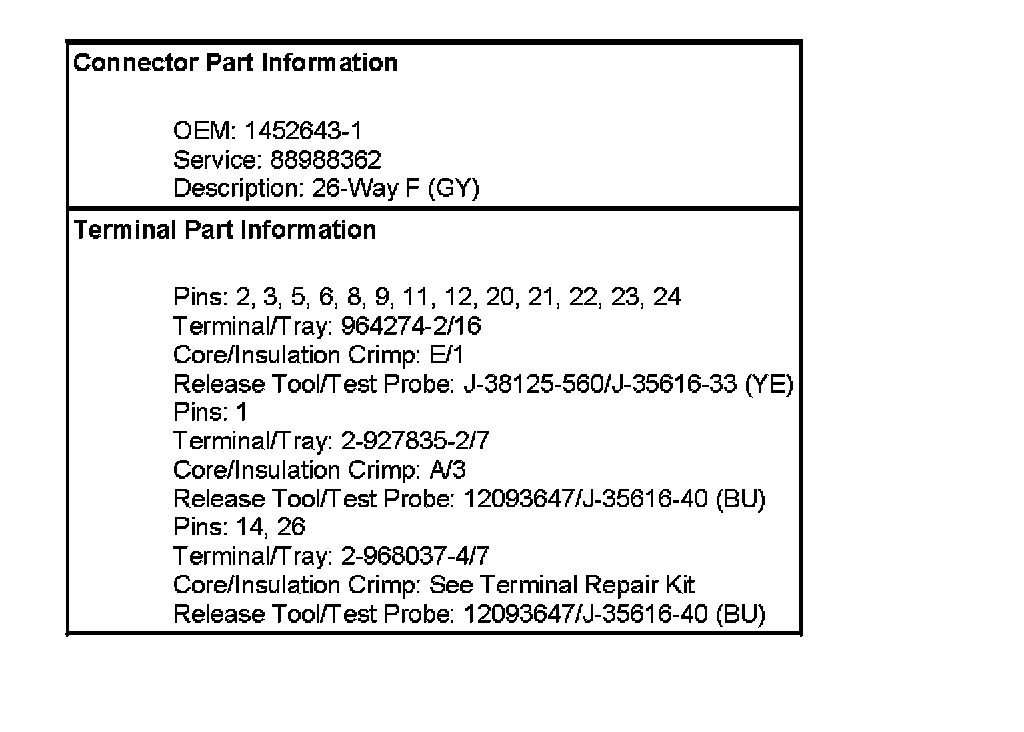

Electronic Brake Control Module (EBCM)(LE5)







Electronic Brake Control Module (EBCM)(LE5):
