Compressor Clutch
Compressor Clutch
HVAC Connector End Views

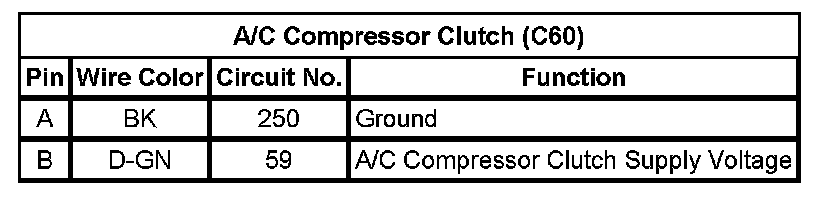

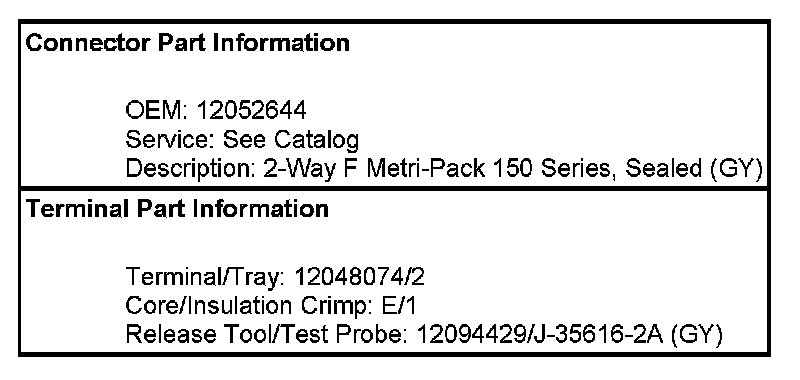

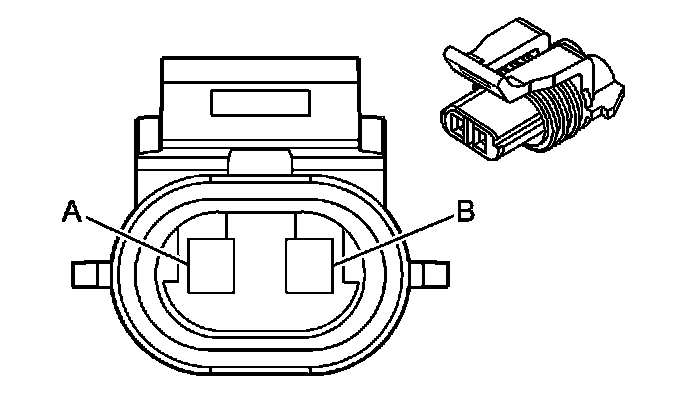

A/C Compressor Clutch (C60)
Reverse Lockout Solenoid:
