Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

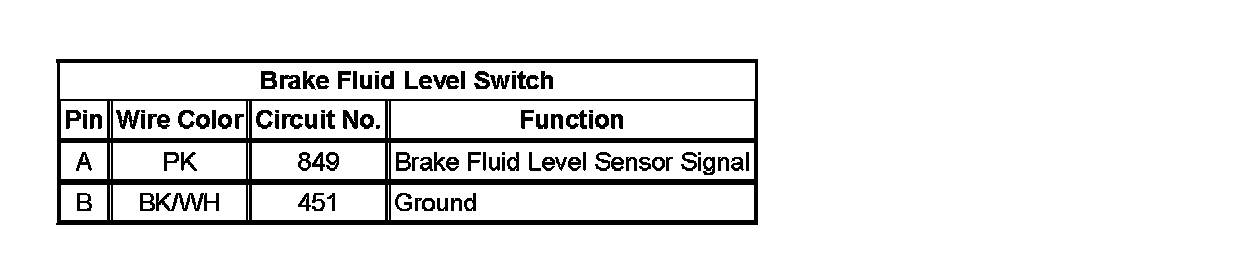

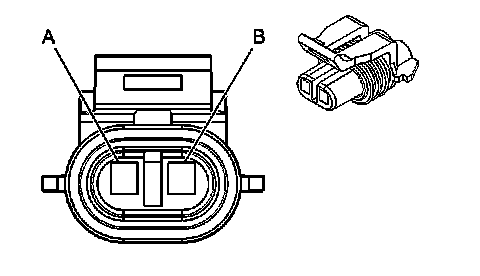

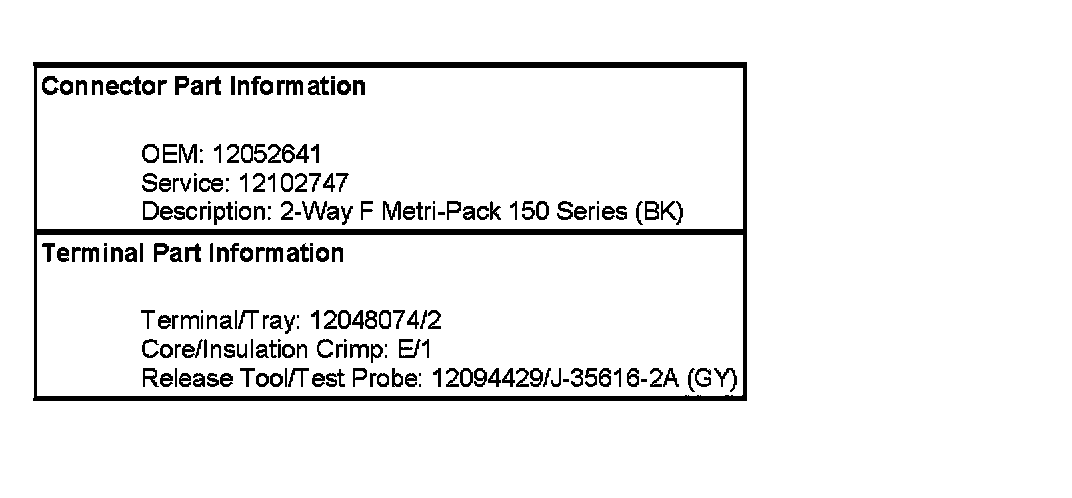

Brake Fluid Level Switch
Brake Fluid Level Switch:
