Home >> Pontiac >> 2007 >> Solstice L4-2.4L >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Connector Views

Connector Views



Cruise Control Connector End Views

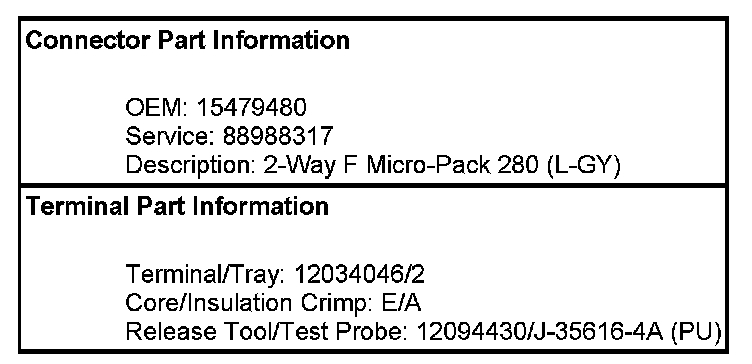

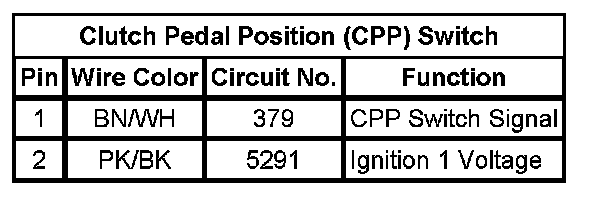

Clutch Pedal Position (CPP) Switch

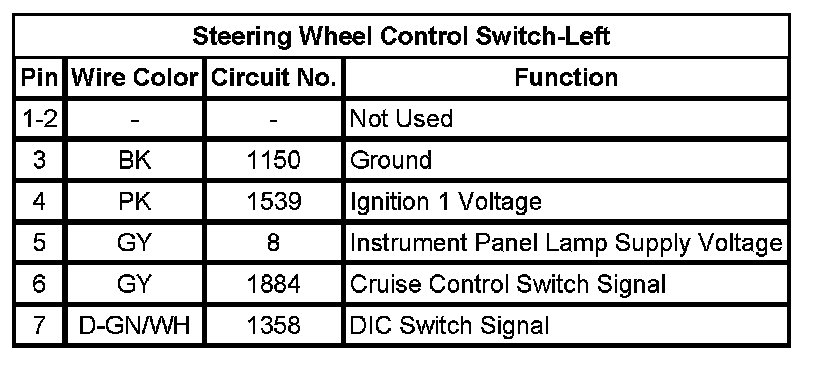

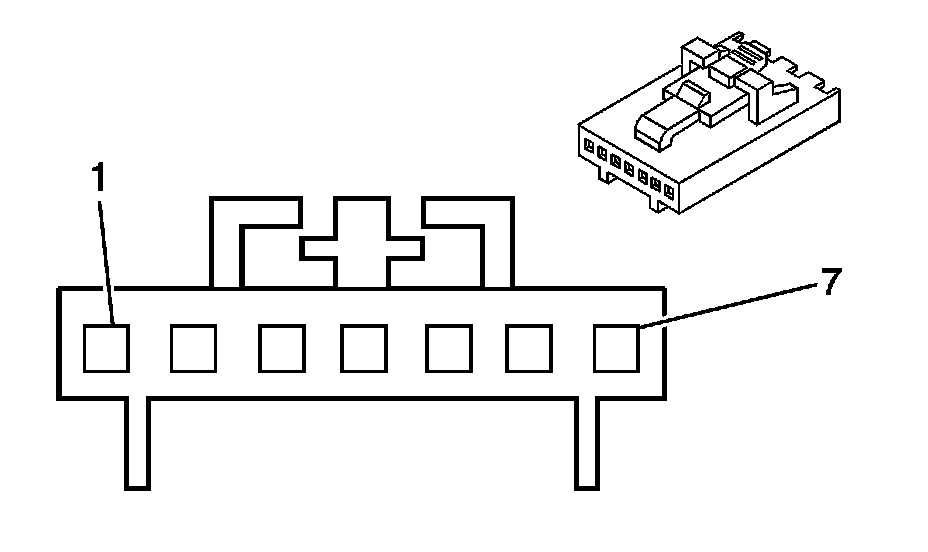

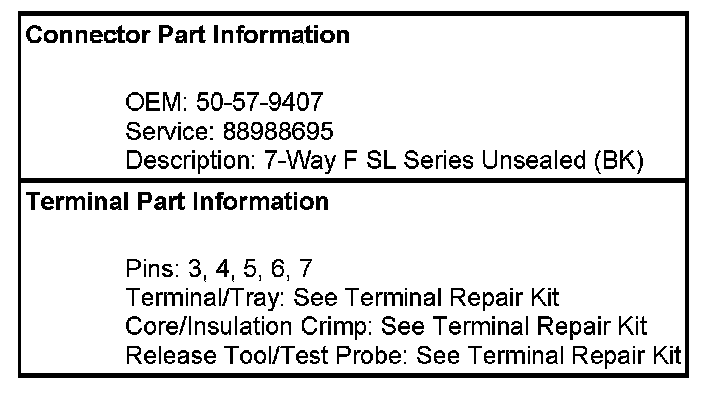

Steering Wheel Control Switch-Left

Steering Wheel Controls - Left:
