lemon-mirror
:
Home
>>
Mercury
>>
1994
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Diagrams
>>
California
California

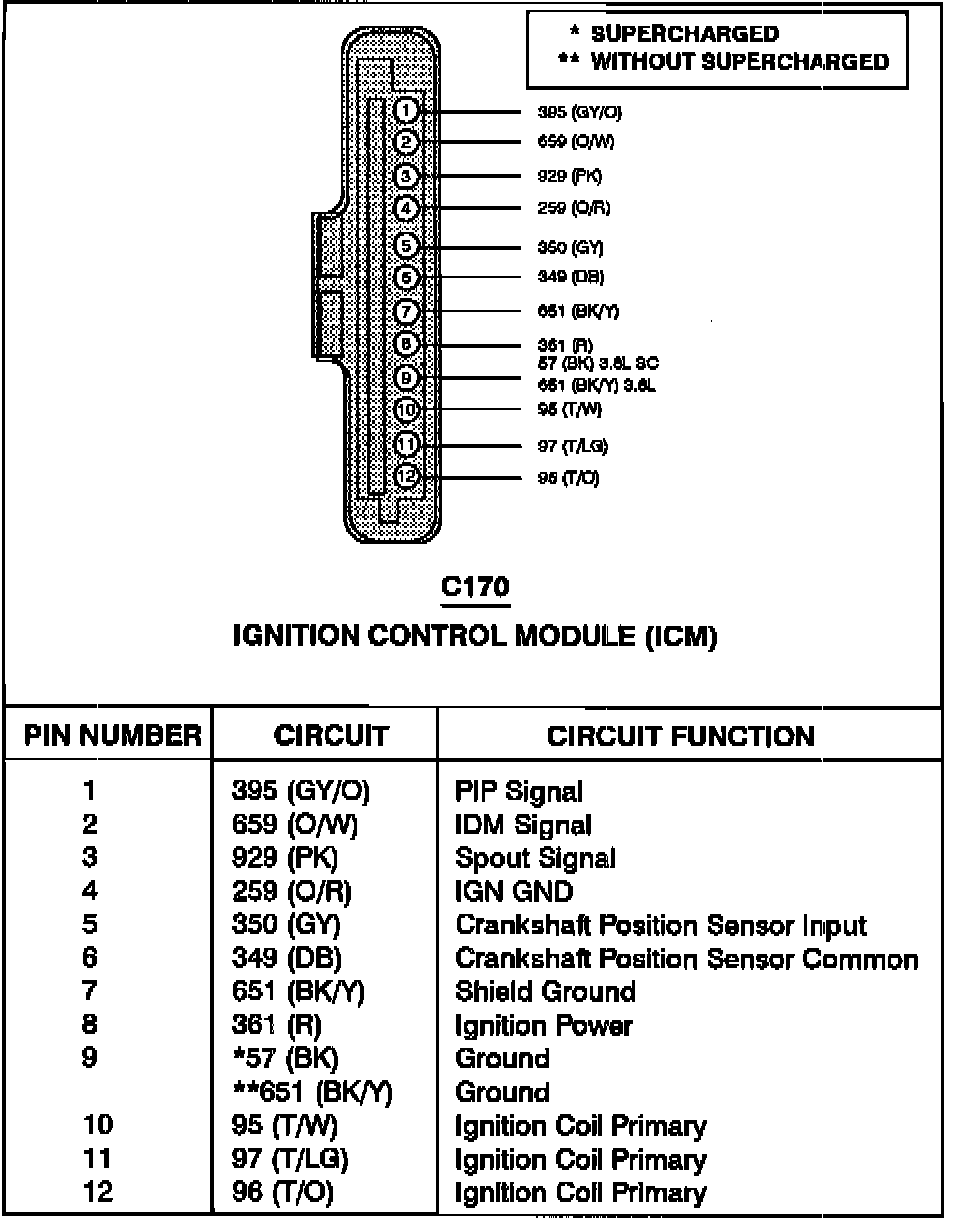

Ignition Control Module (ICM):
