Engine Control Module: Diagrams

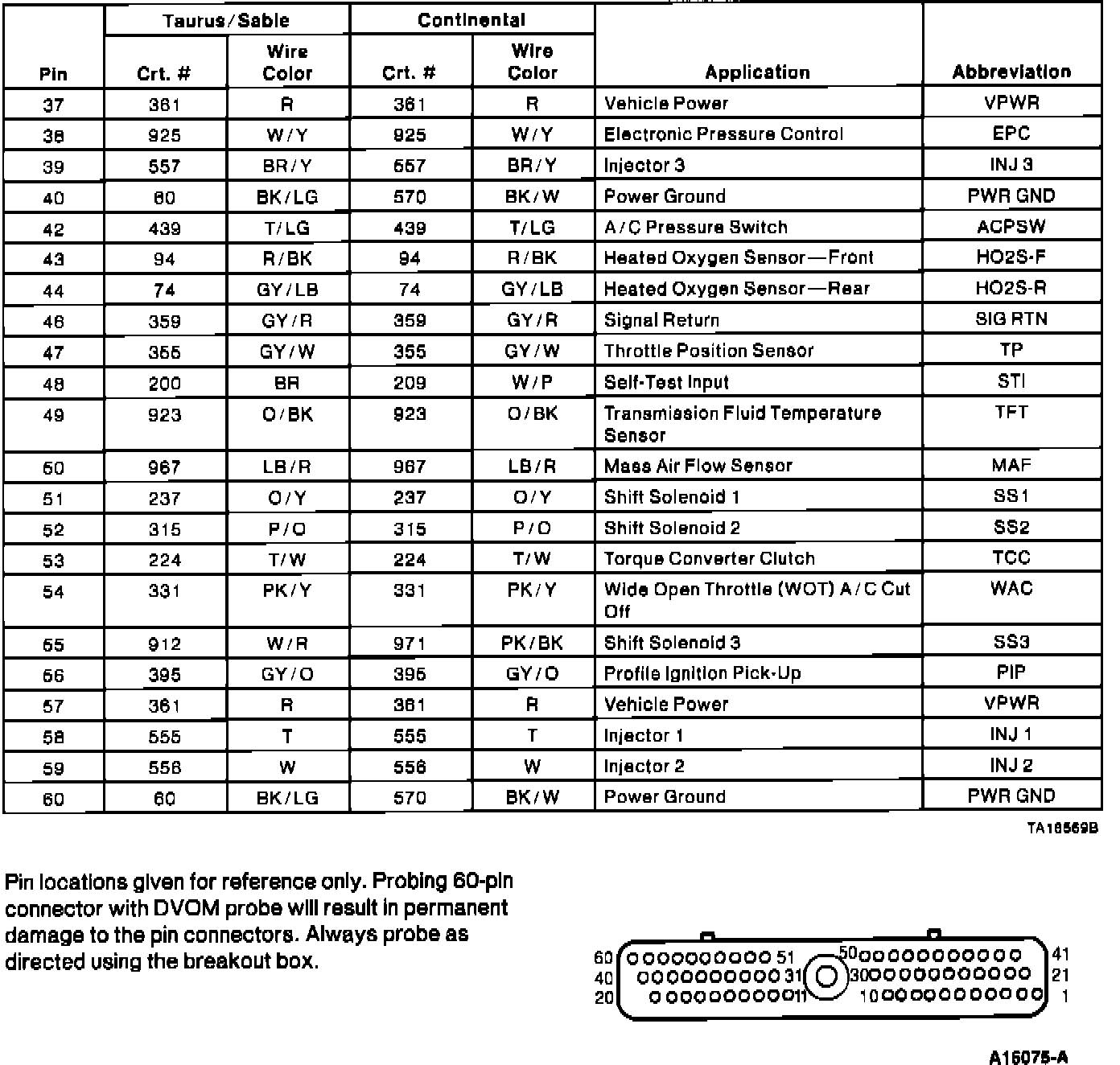

Powertrain Control Module (PCM) Connector Pin Usage:






PINOUT IDENTIFICATION

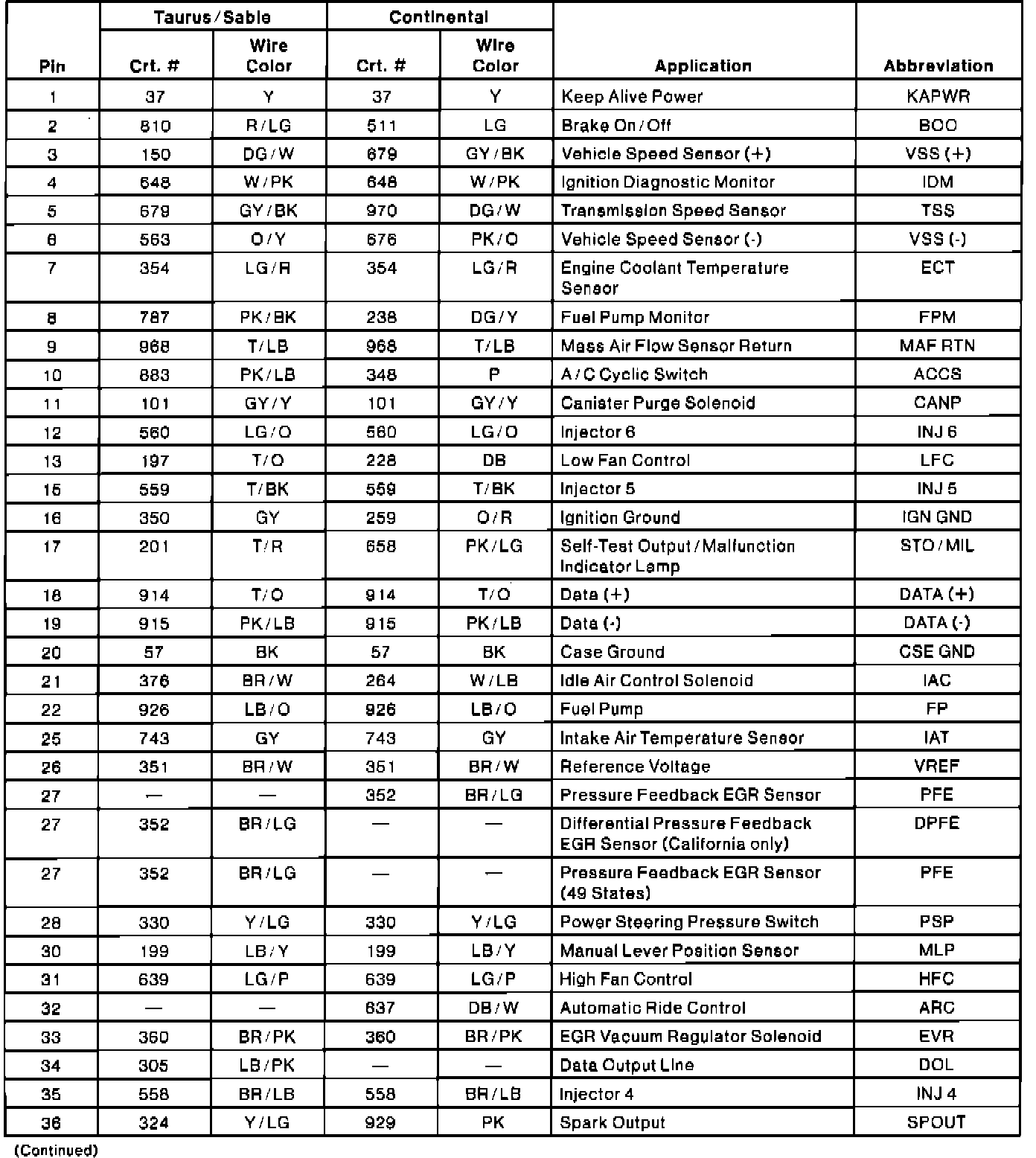

Powertrain Control Module (PCM) Connector Pin Usage:






CONNECTOR VIEW
