Home >> Mercury >> 1994 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

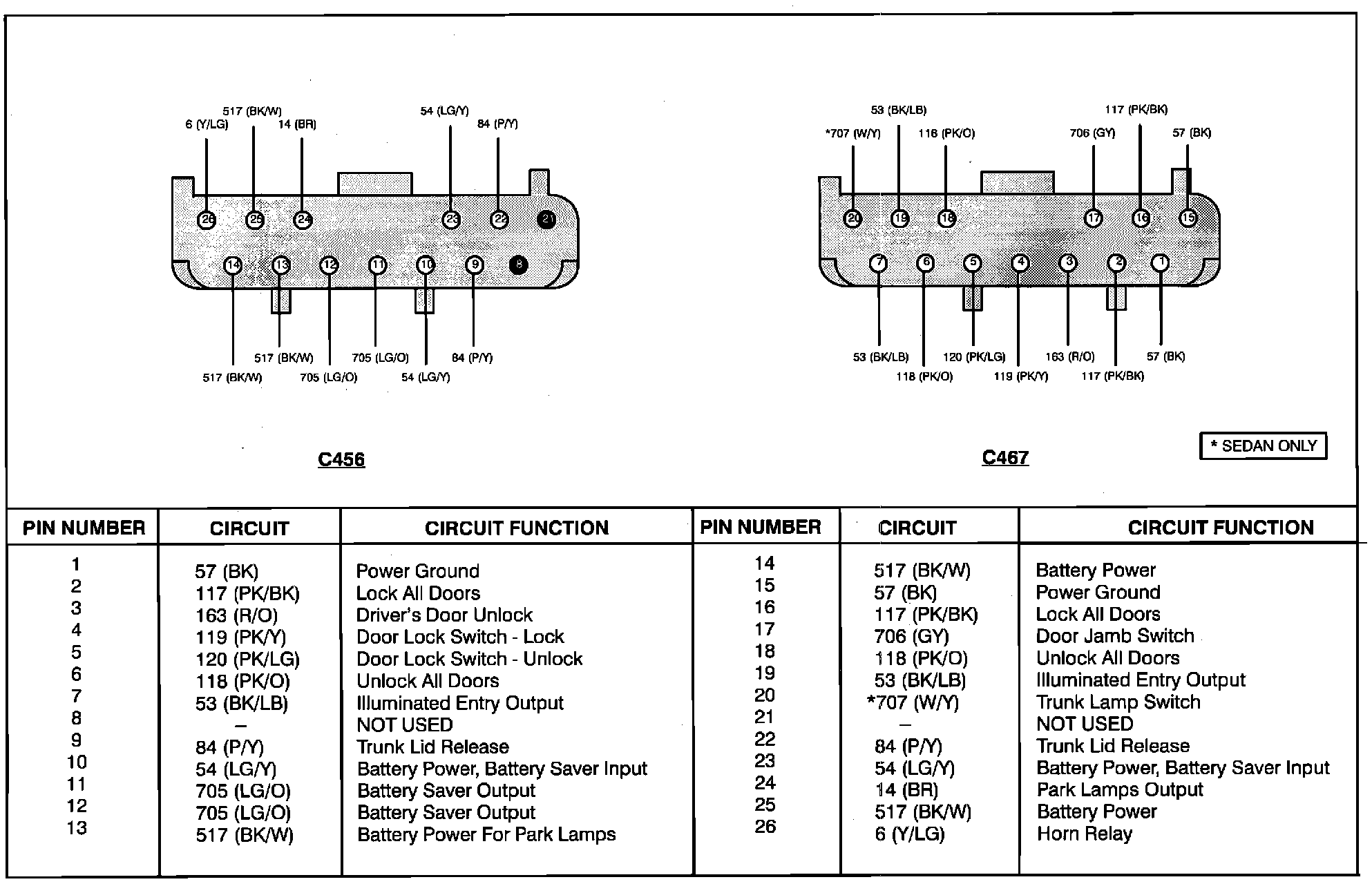

Remote/Keyless Entry Module:

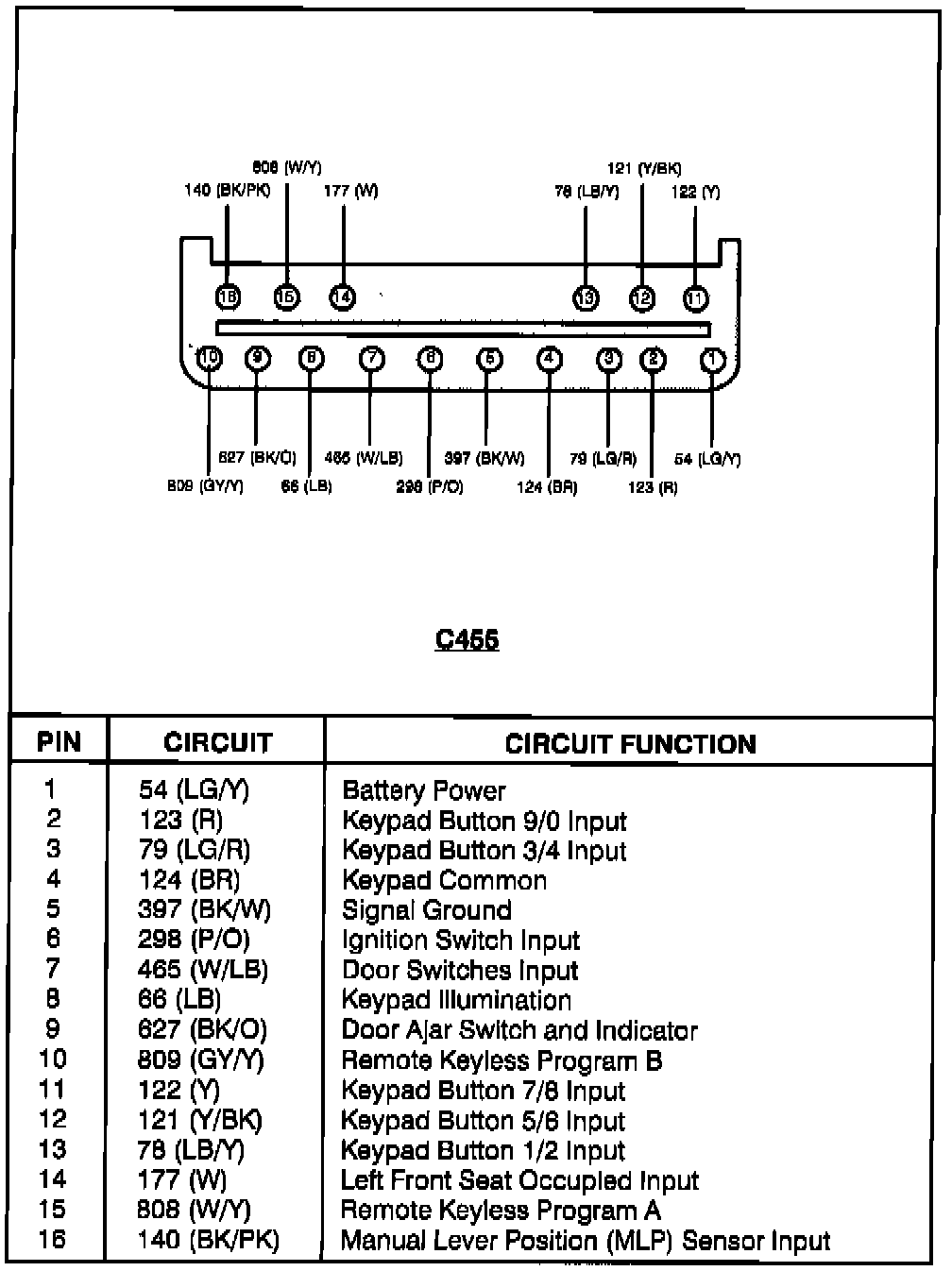

Remote/Keyless Entry Module:
