Ignition Control Module: Diagrams

GASOLINE

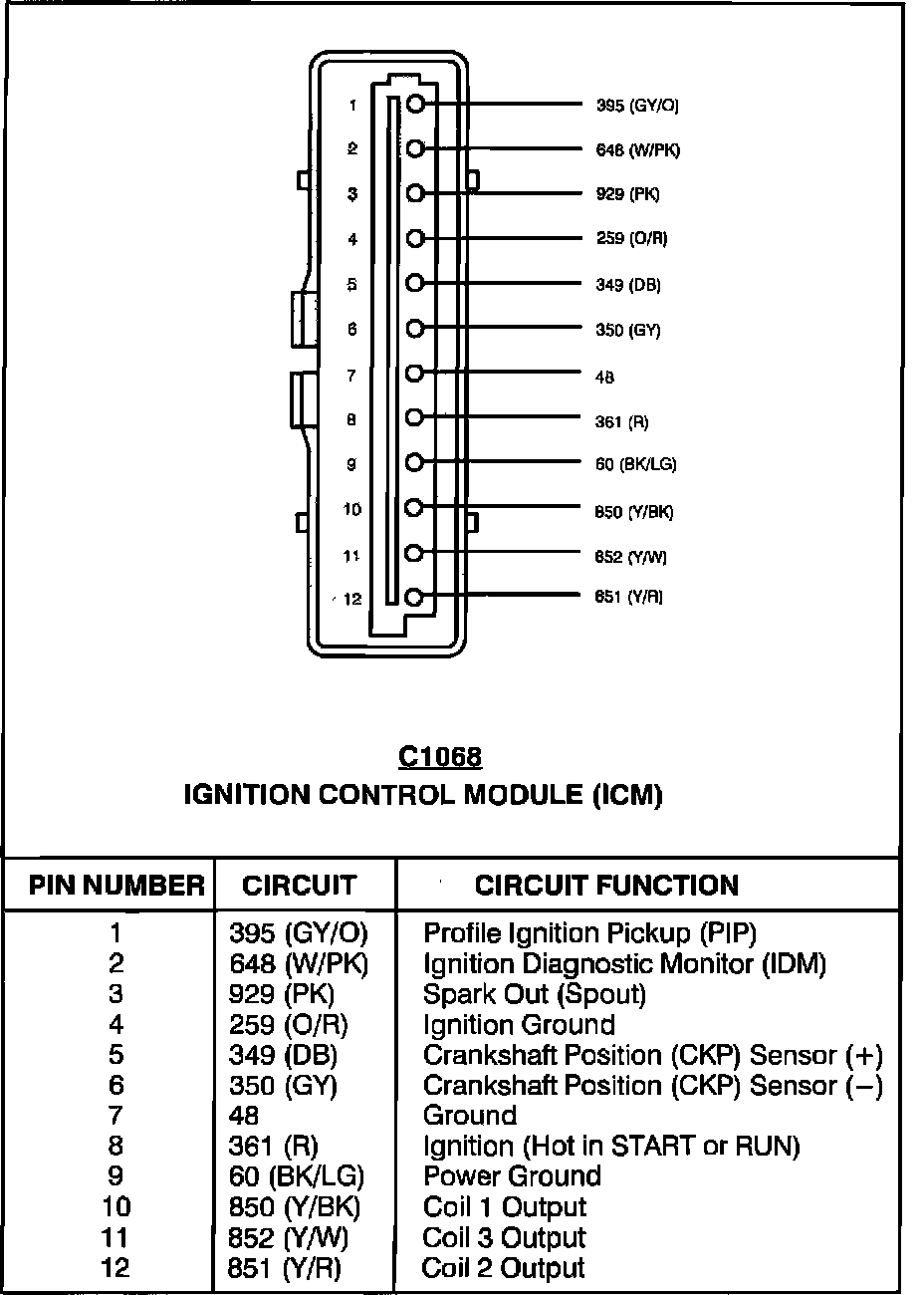

Ignition Control Module (ICM):

FLEXIBLE FUEL

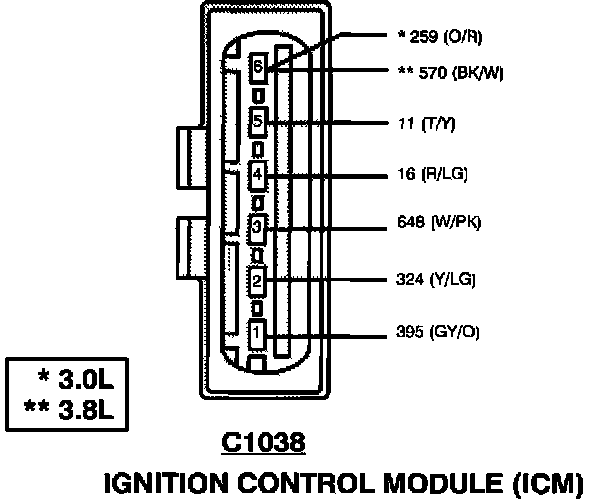

Ignition Control Module (ICM):
