Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

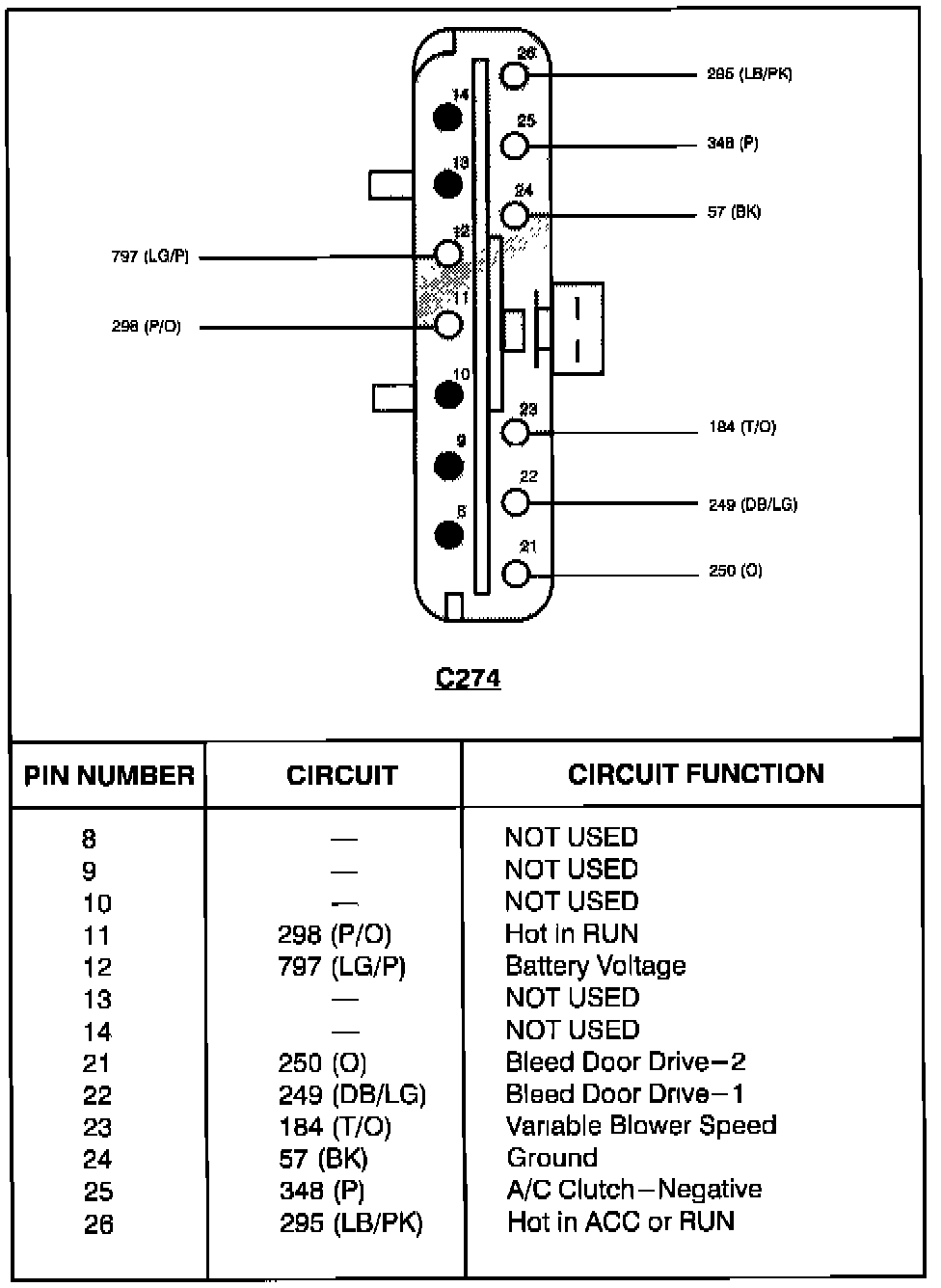

Wiring Harness Connector View (Part 1):

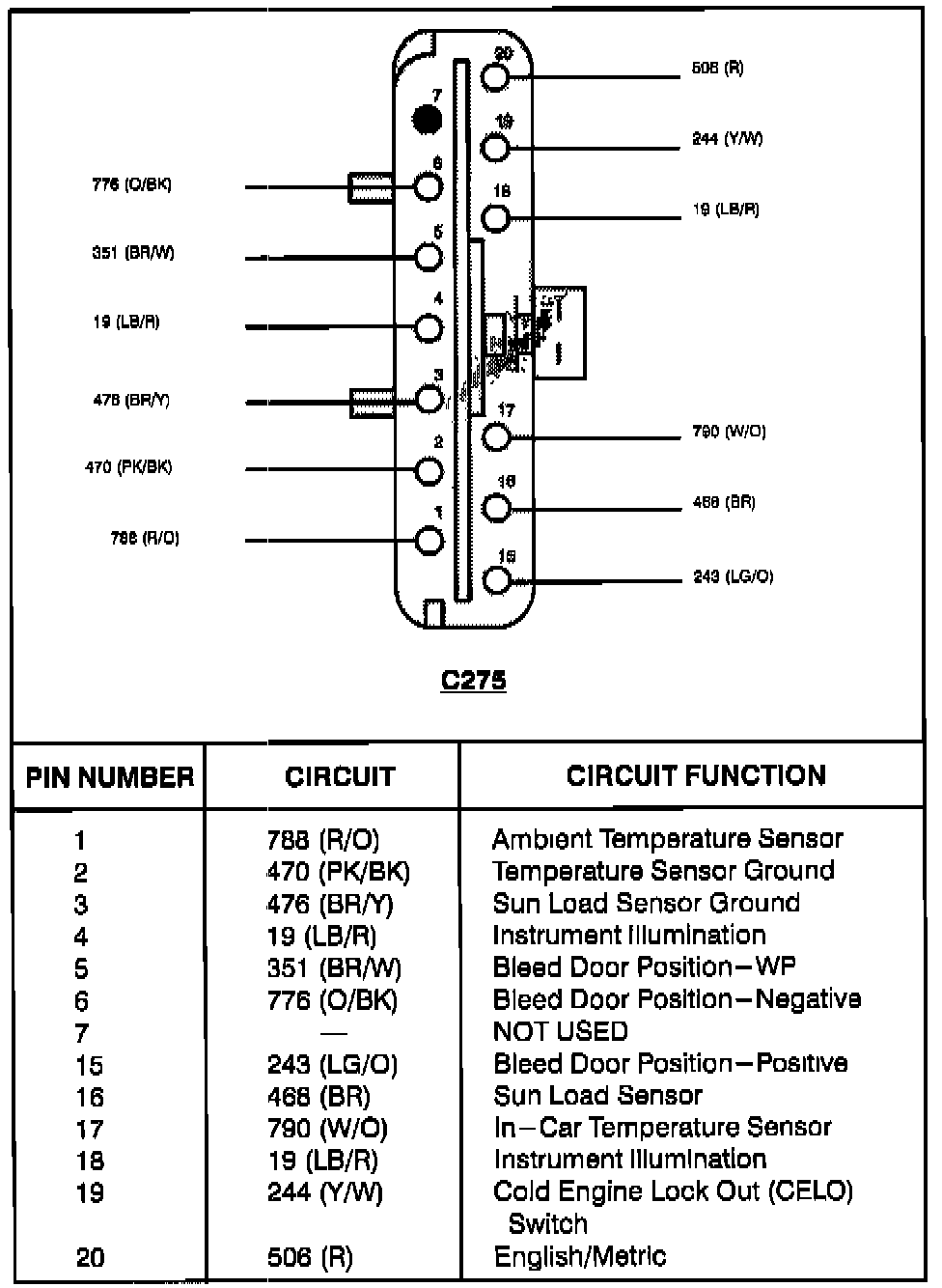

Wiring Harness Connector View (Part 2):

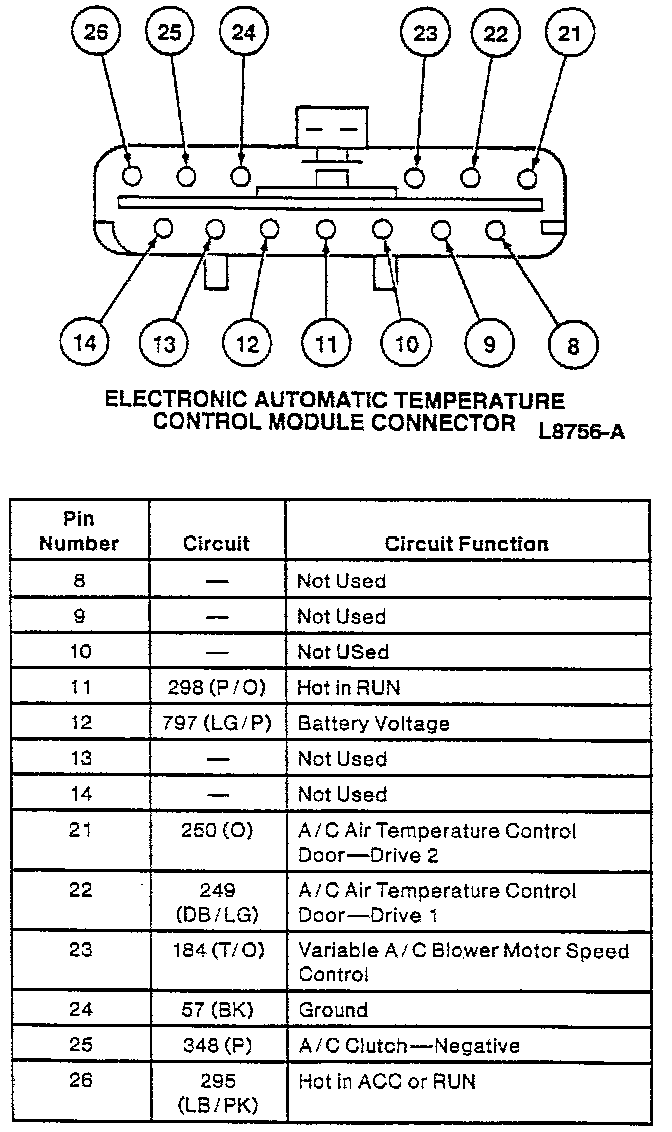

Electronic Automatic Temperature Control Module:

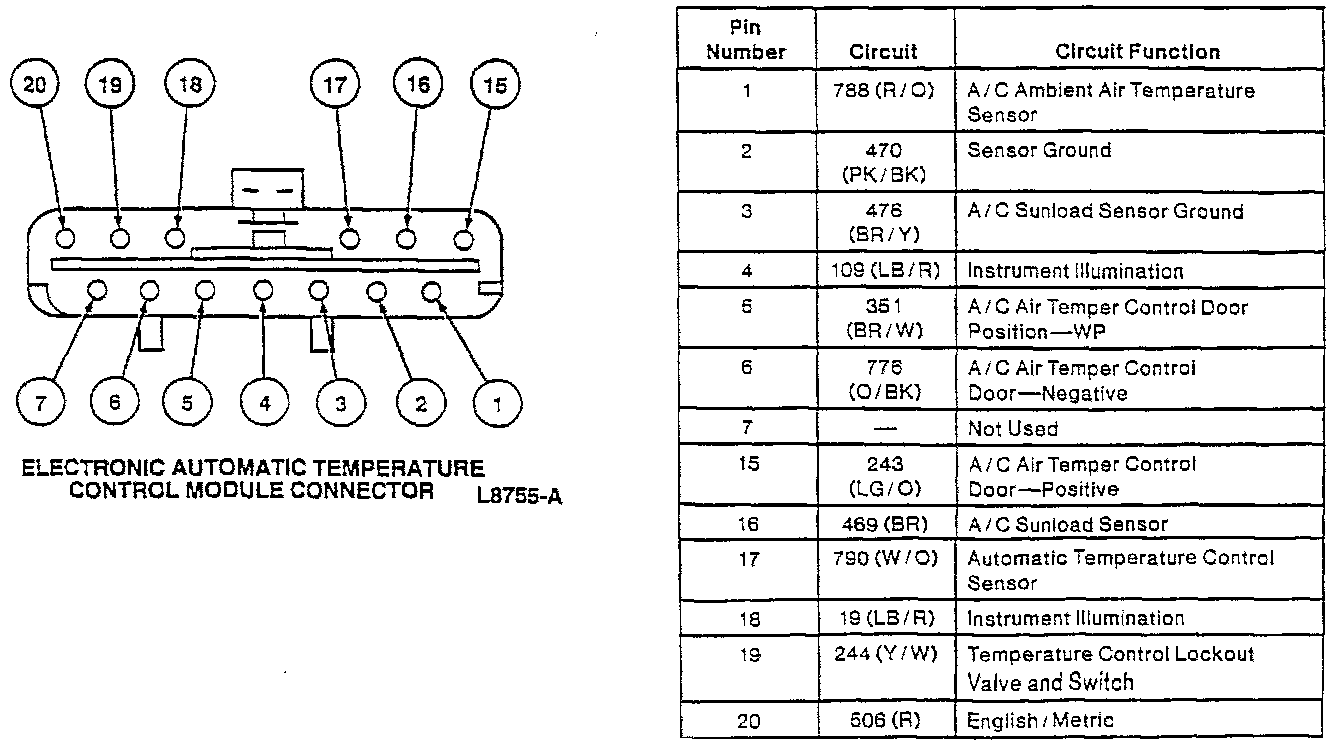

Electronic Automatic Temperature Control Module:
