Emission Control Systems: Locations





EMISSION SYSTEM LOCATION INDEX [MZI-3.7]

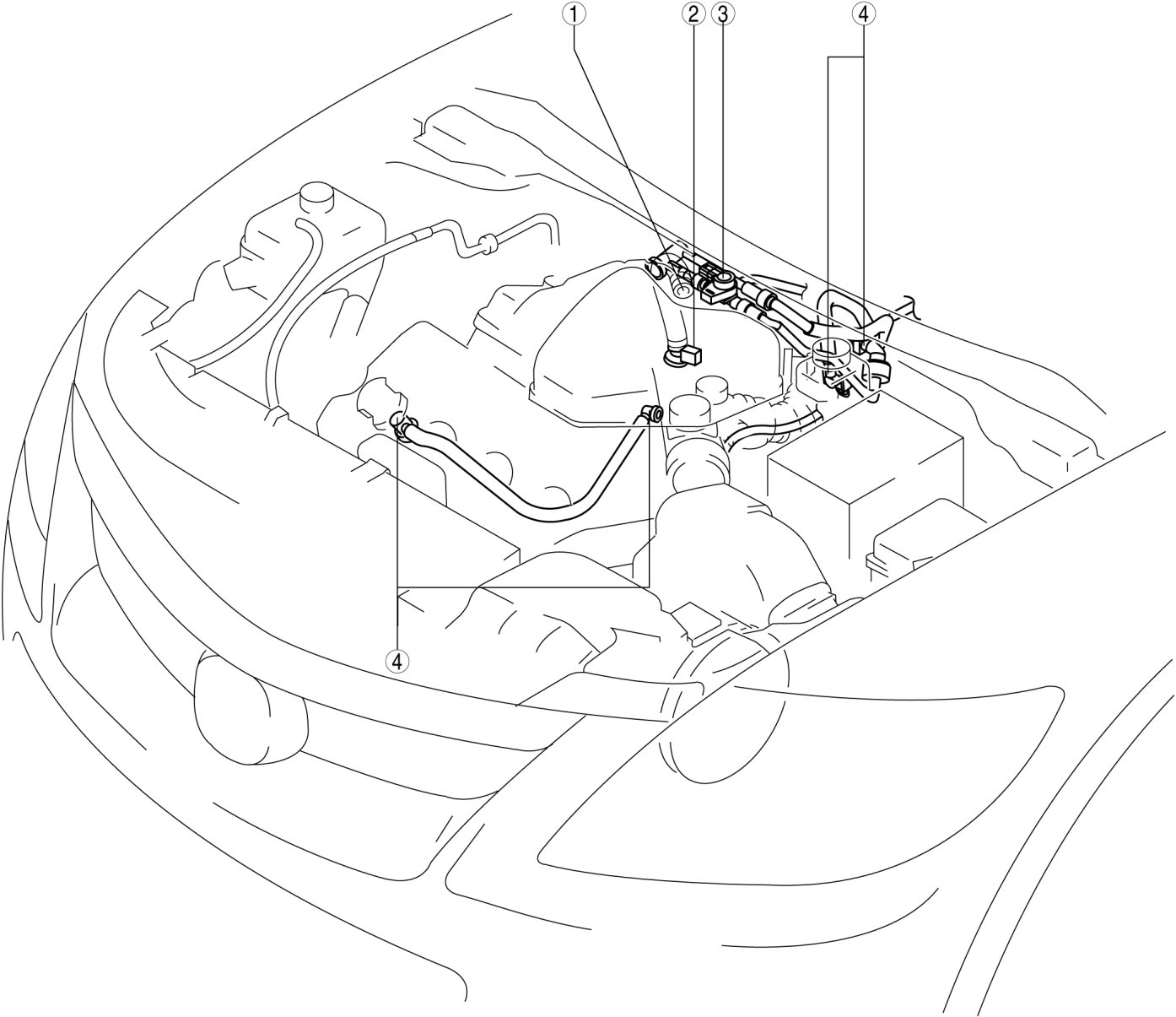

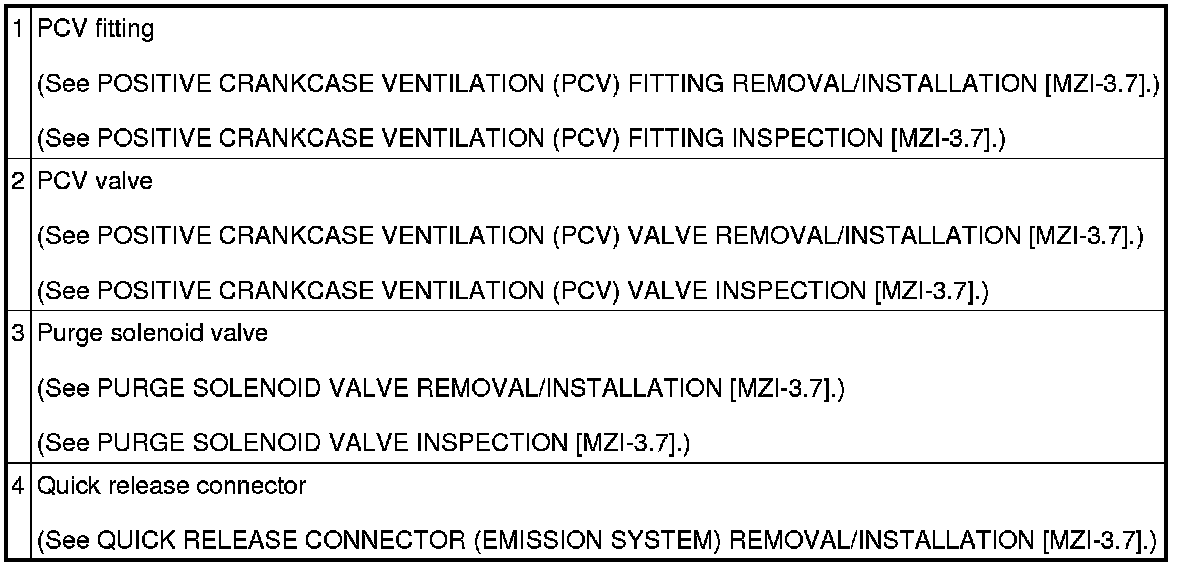

Engine Compartment Side

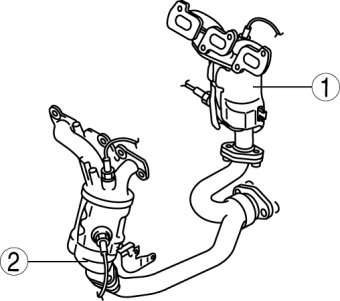

Exhaust System Side

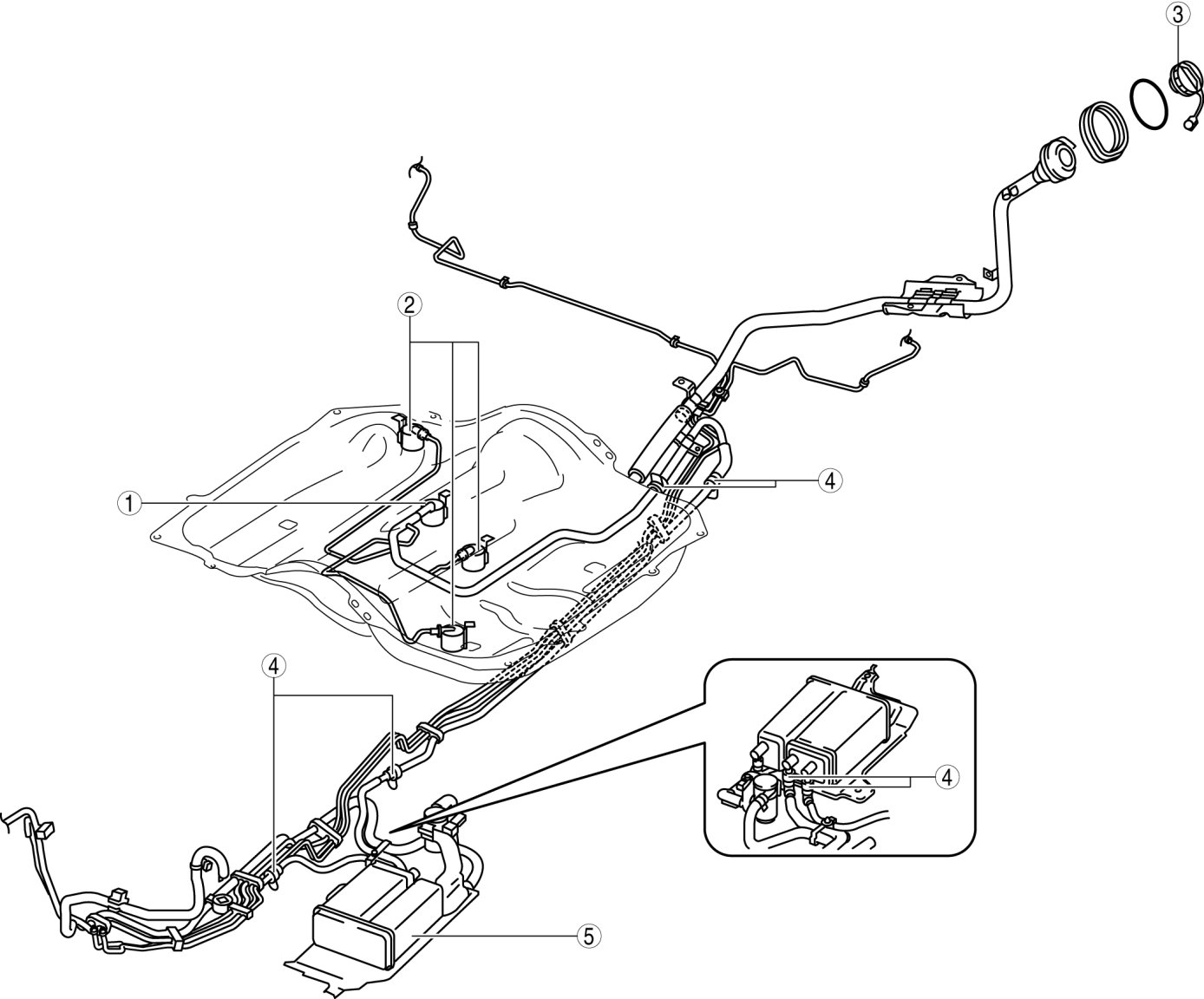

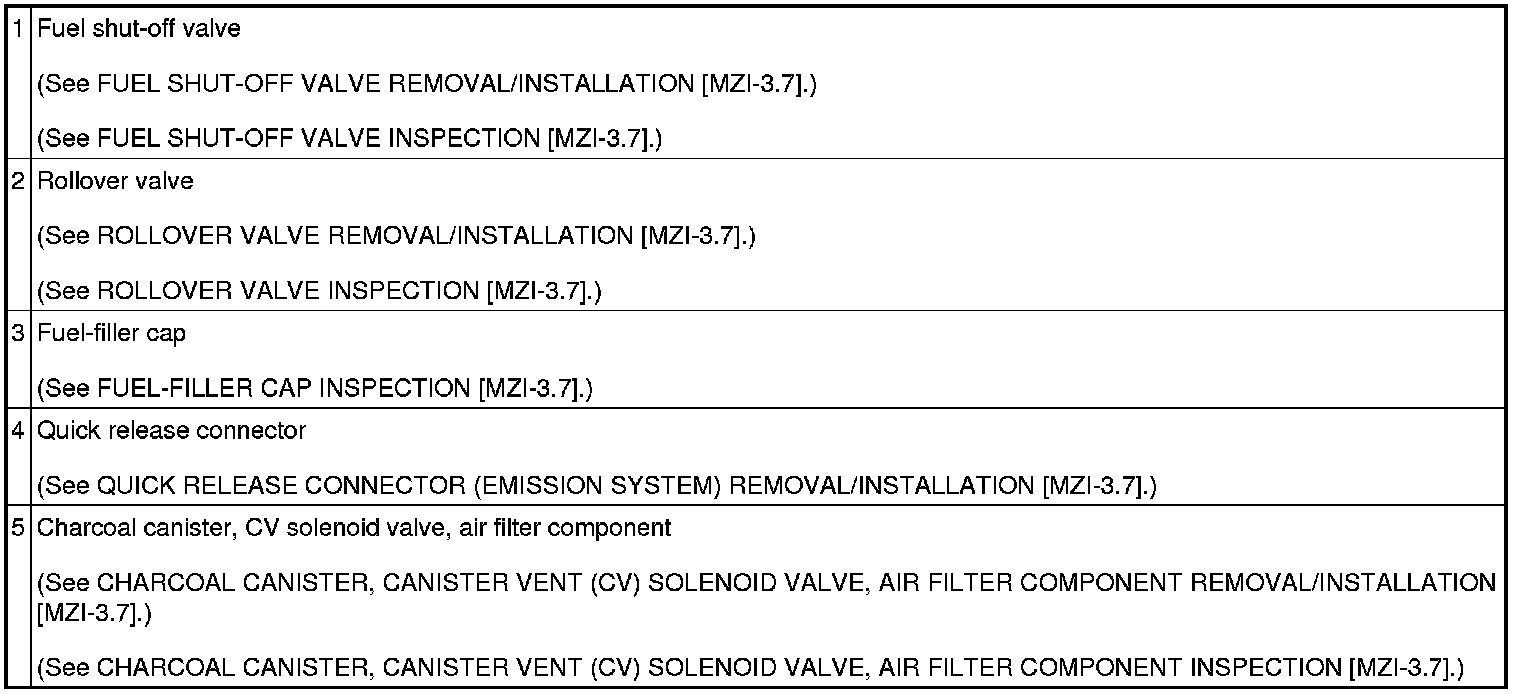

Fuel Tank Side

2WD





AWD
