Home >> Mazda >> 2012 >> CX-7 AWD L4-2.3L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Cover

Timing Cover

Engine Front Cover

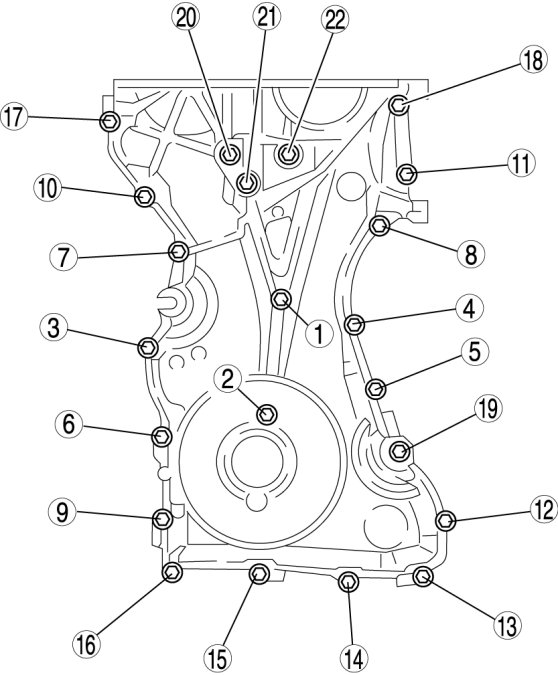

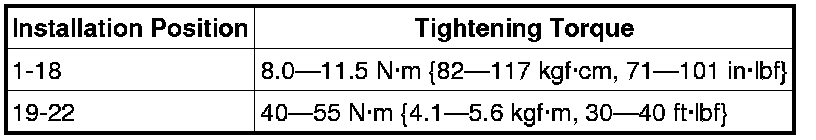

Tighten the engine front cover installation bolts in the order shown in the figure.
