Emission Control Systems: Locations
EMISSION SYSTEM LOCATION INDEX [L3 WITH TC]

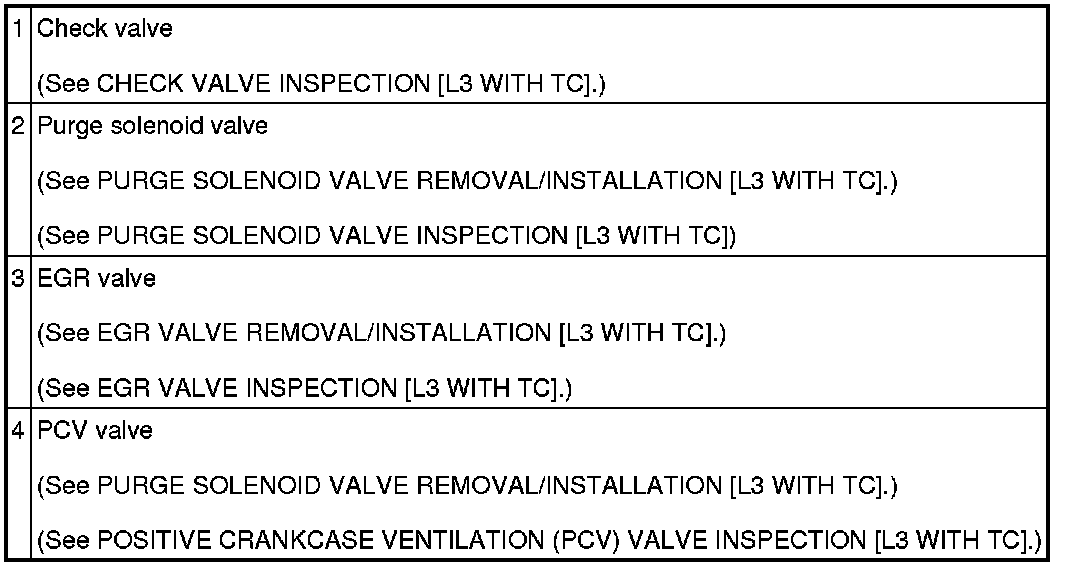

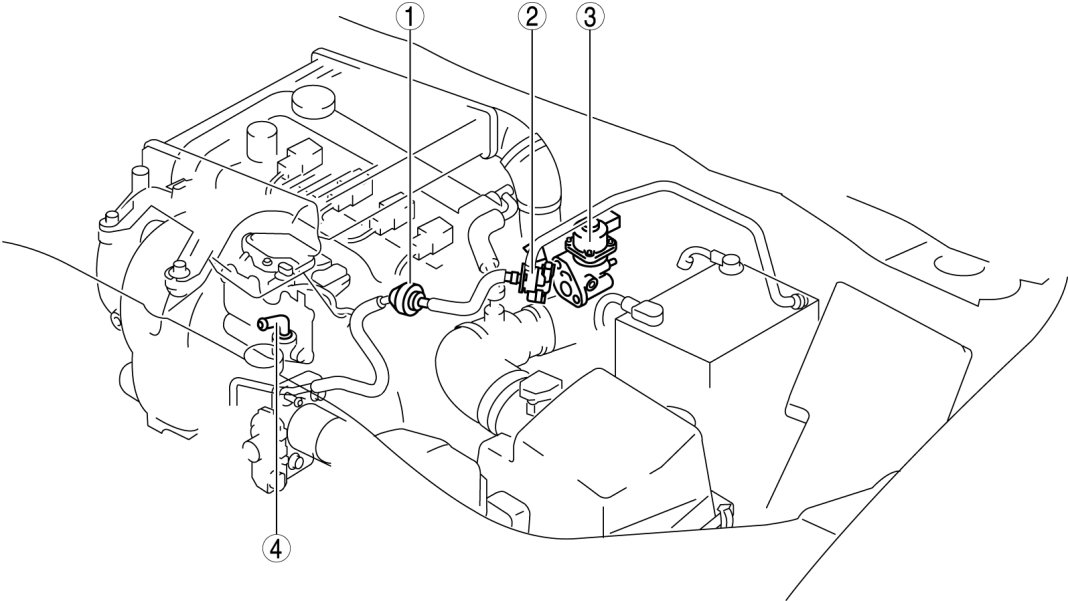

Engine Compartment Side
Exhaust system side

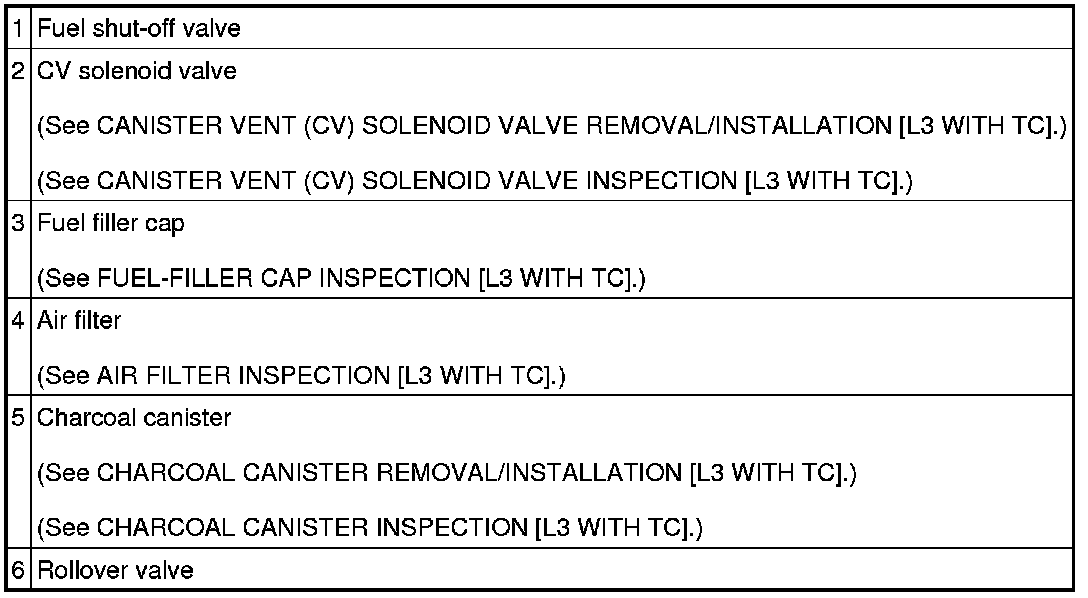

Fuel Tank Side
