Flex Plate

Drive Plate

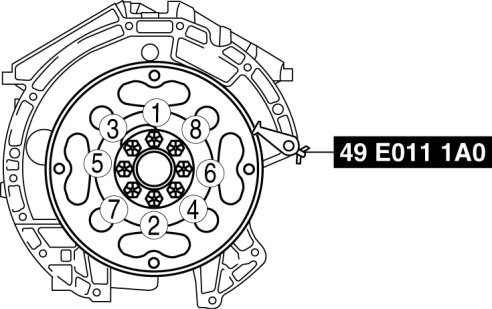

Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the figure.

Tightening torque 73-87 Nm {7.5-8.8 kgf-m, 54-64 ft-lbf}
