Emission Control Systems: Locations





EMISSION SYSTEM LOCATION INDEX [MZI 3.7 V6]

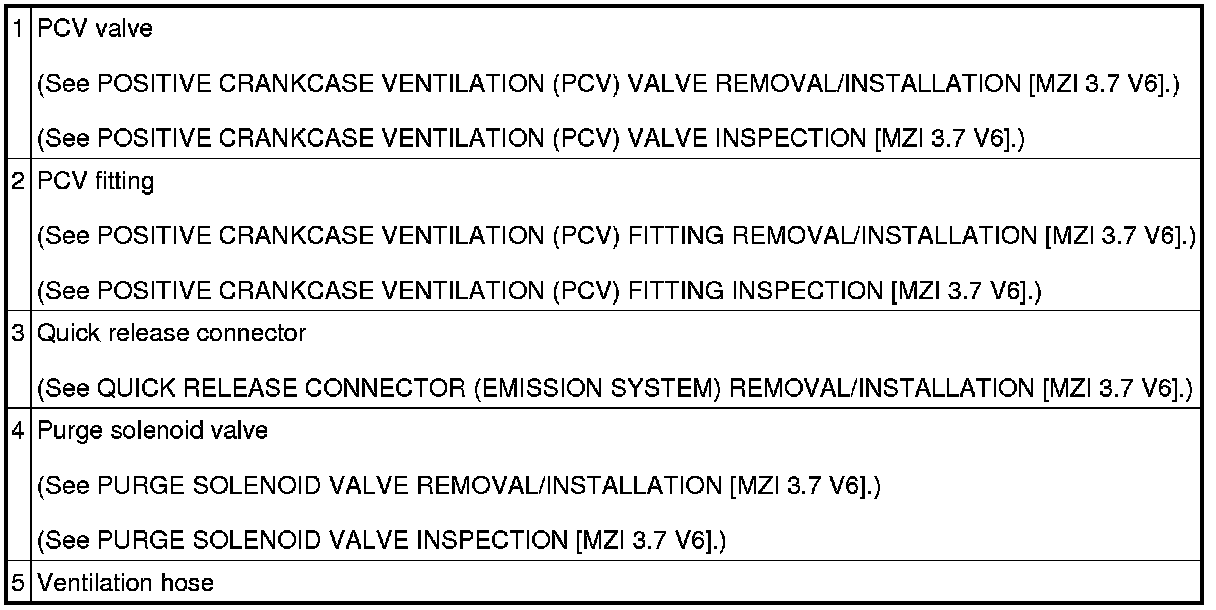

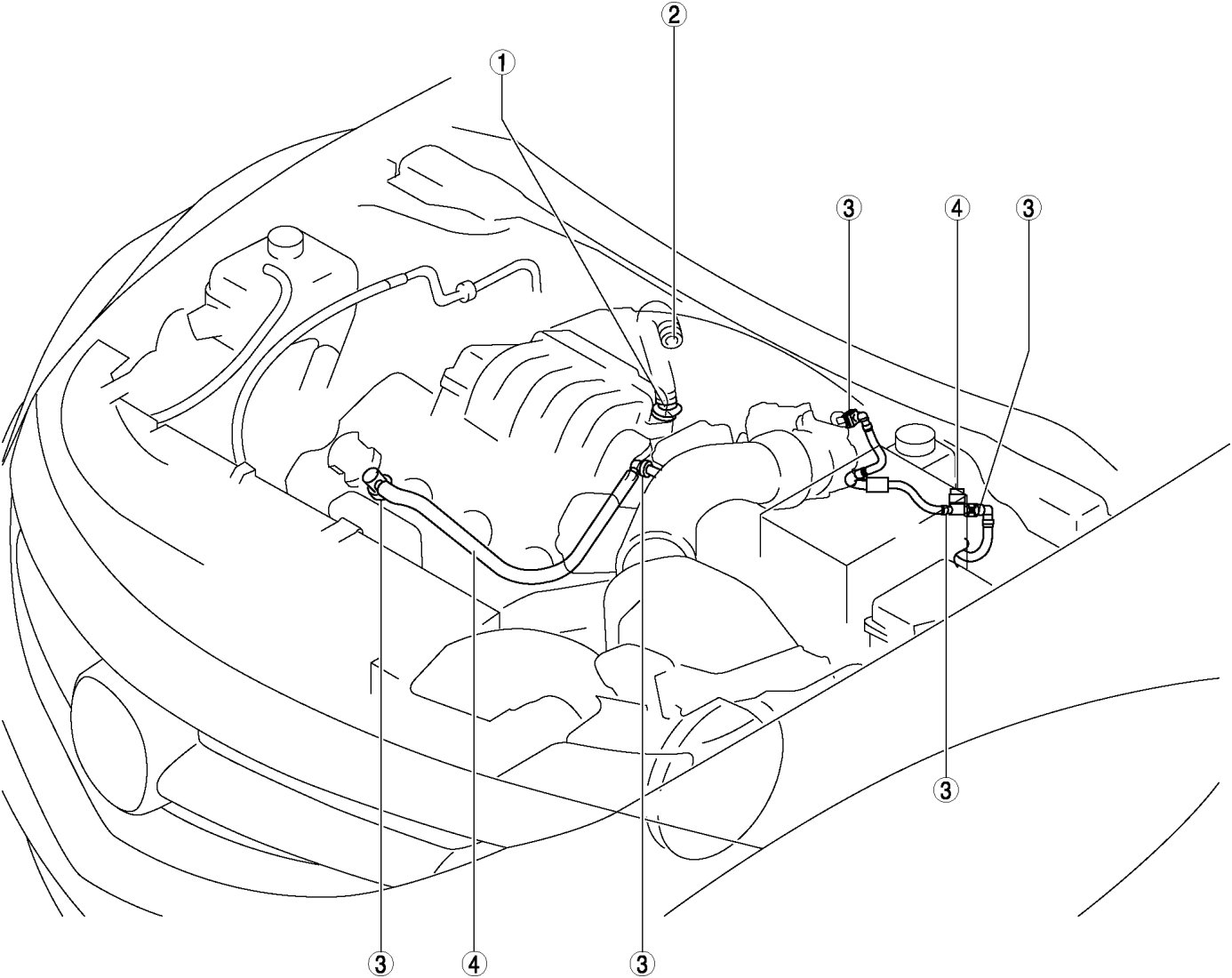

Engine Compartment Side

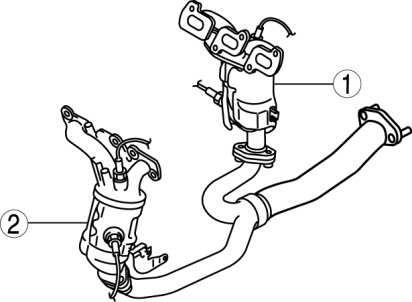

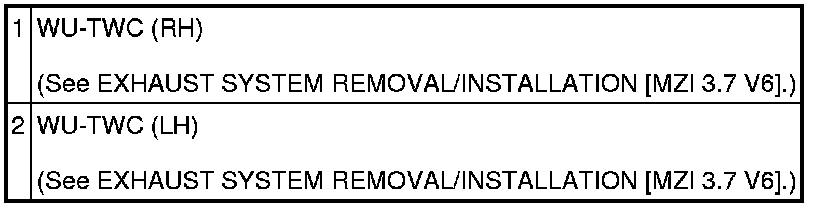

Exhaust System Side

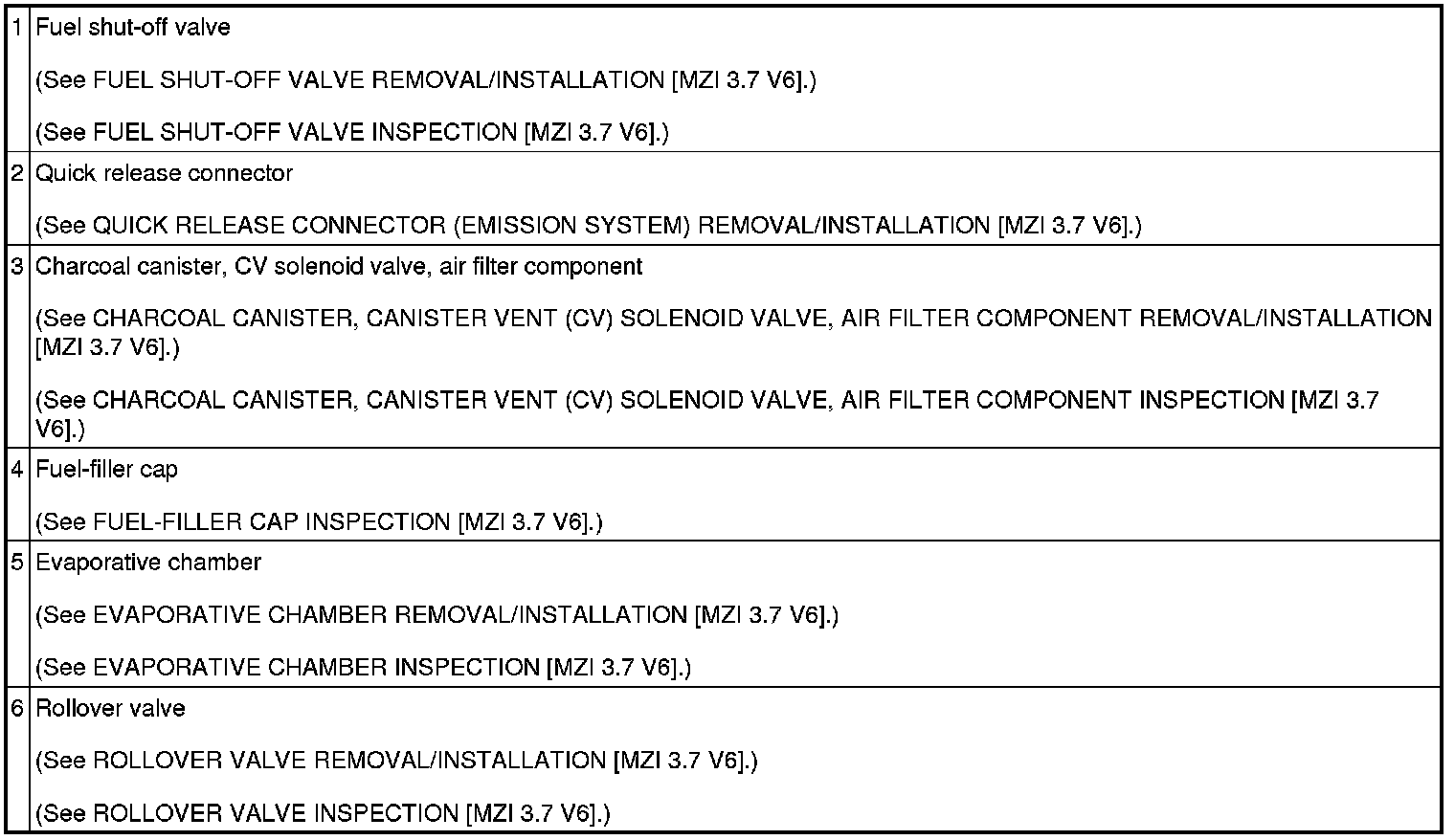

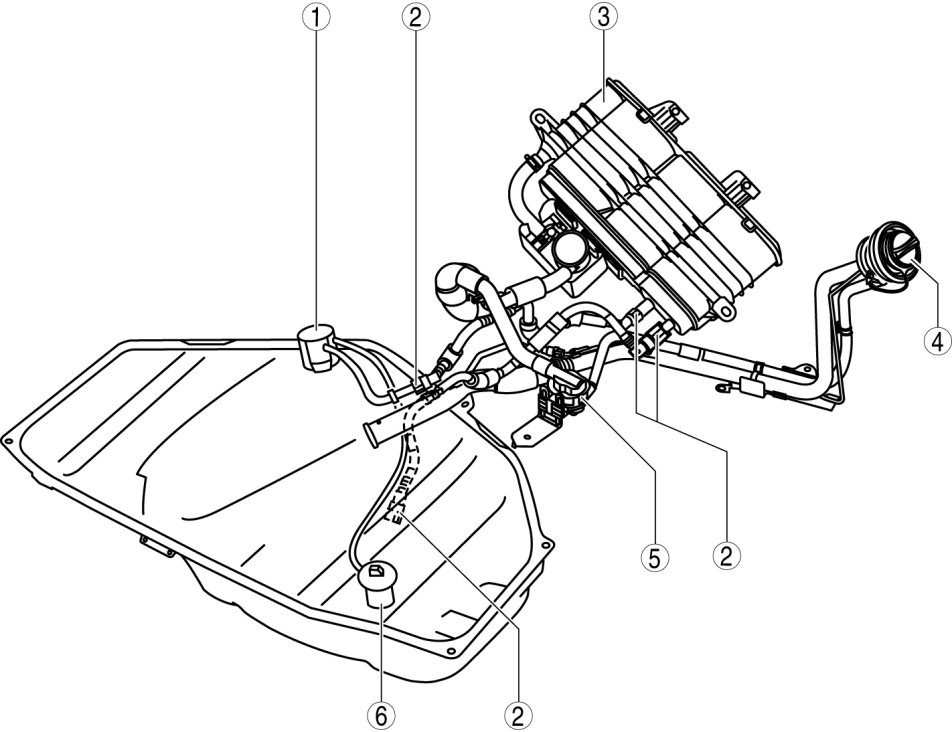

Fuel Tank Side
