Home >> Mazda >> 2012 >> 6 V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Description and Operation

Emission Control Systems: Description and Operation

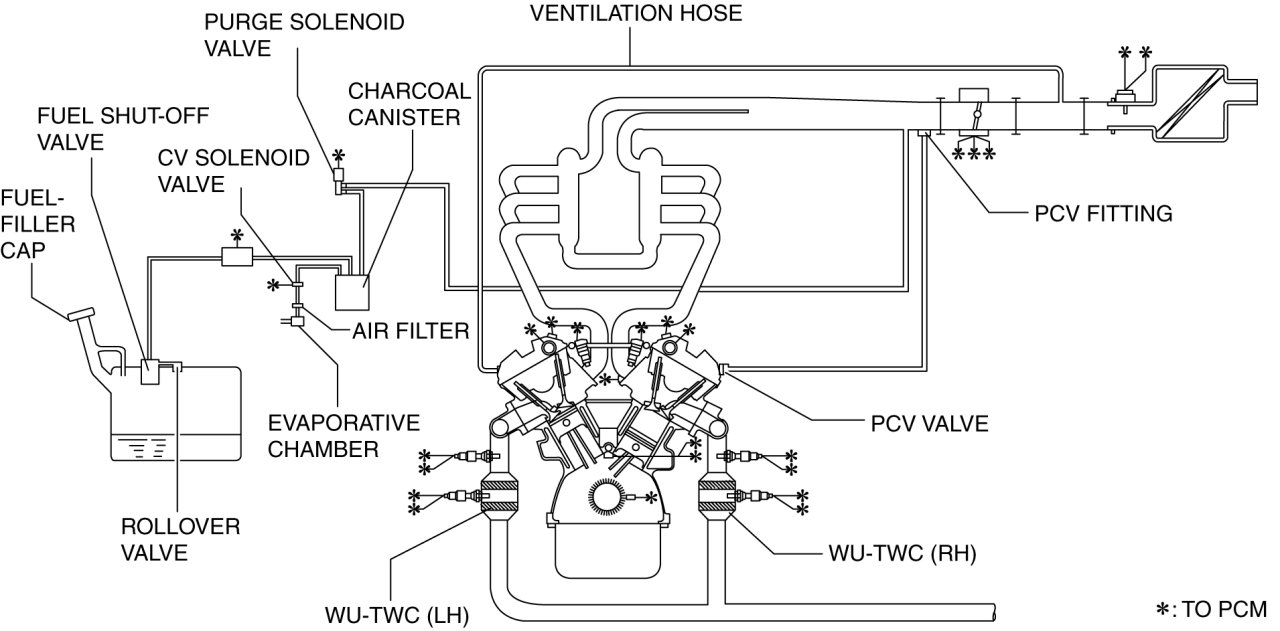

EMISSION SYSTEM DIAGRAM [MZI 3.7 V6]
