Home >> Mazda >> 2012 >> 6 V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Description and Operation

Powertrain Management: Description and Operation

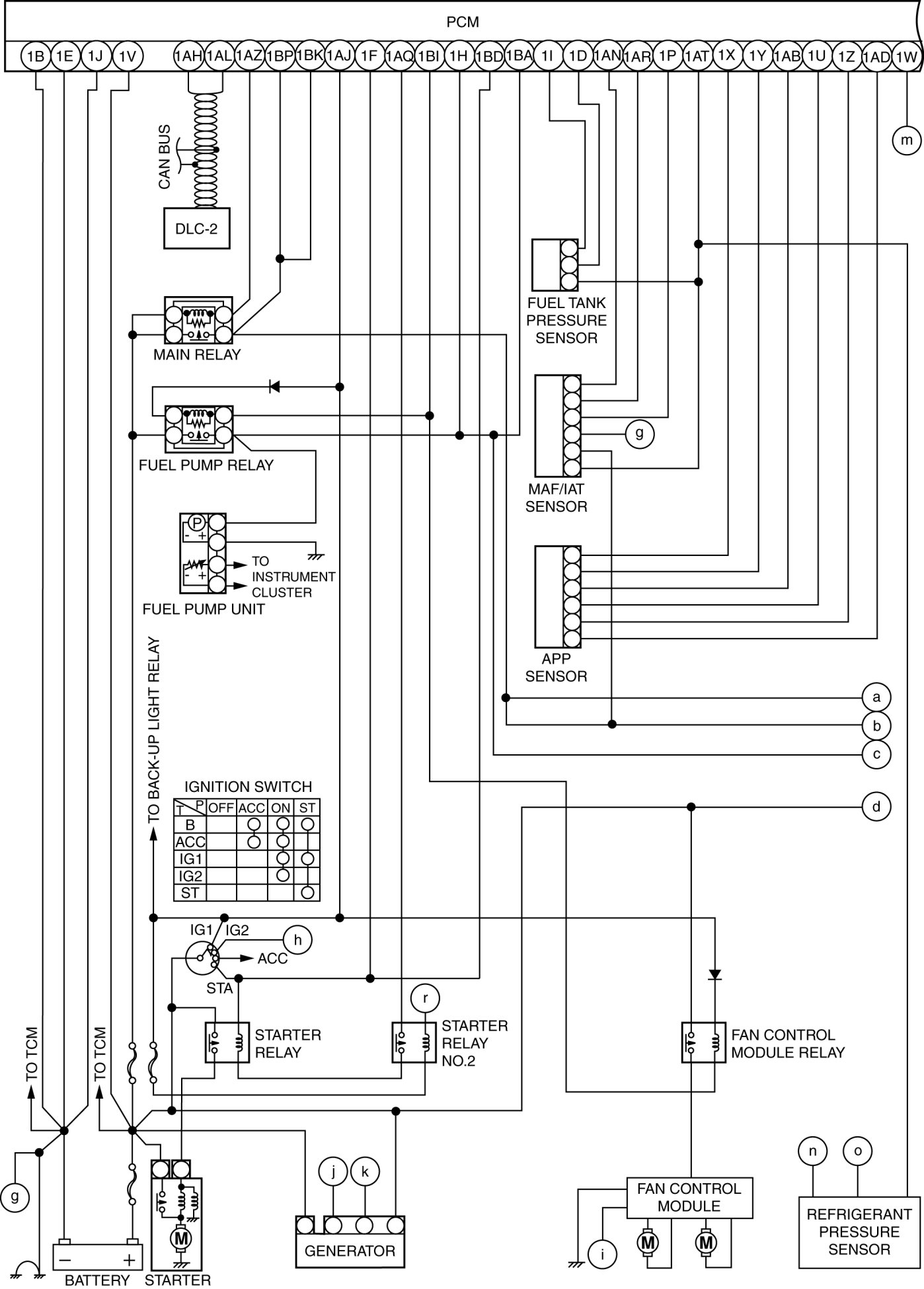

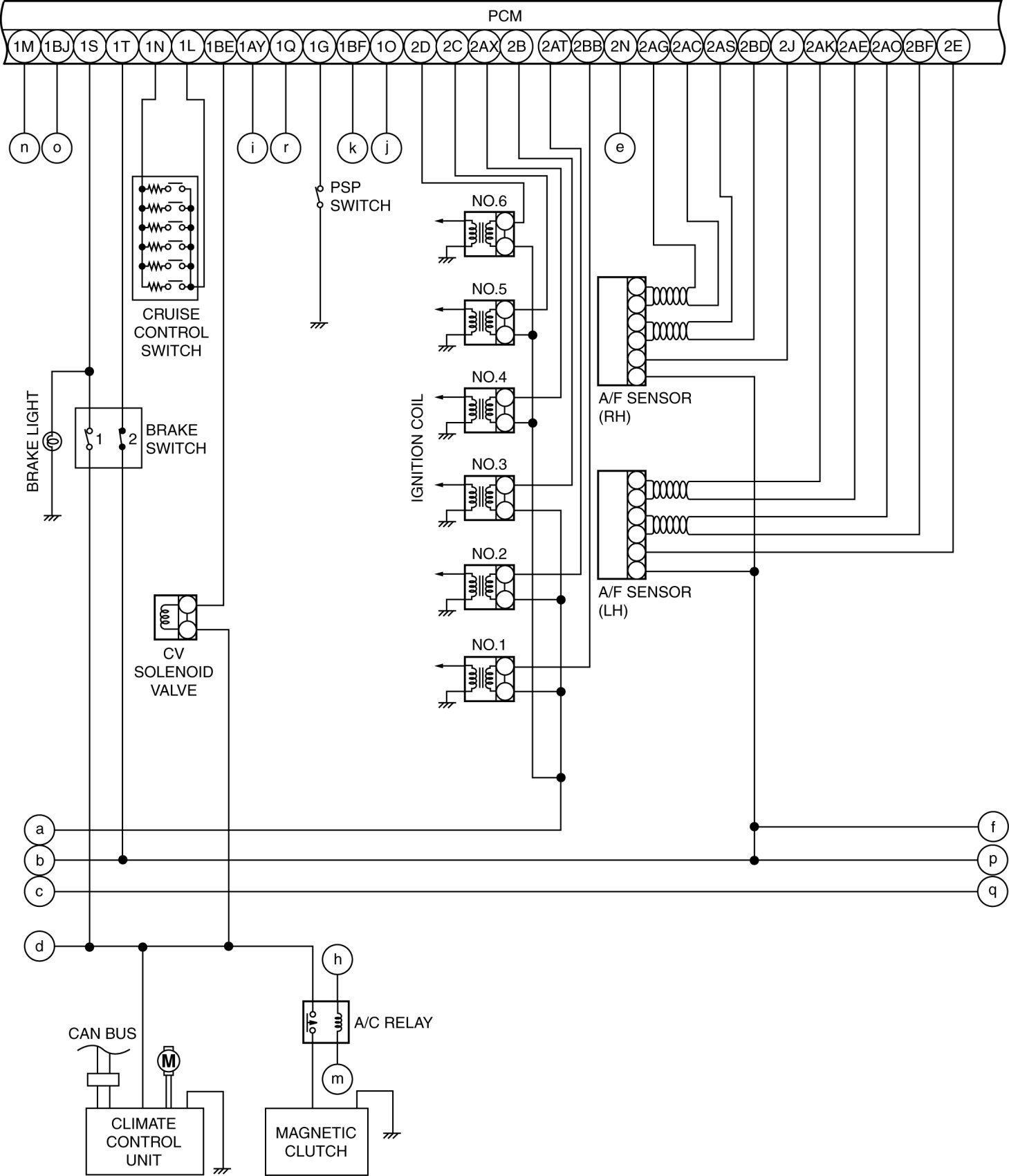

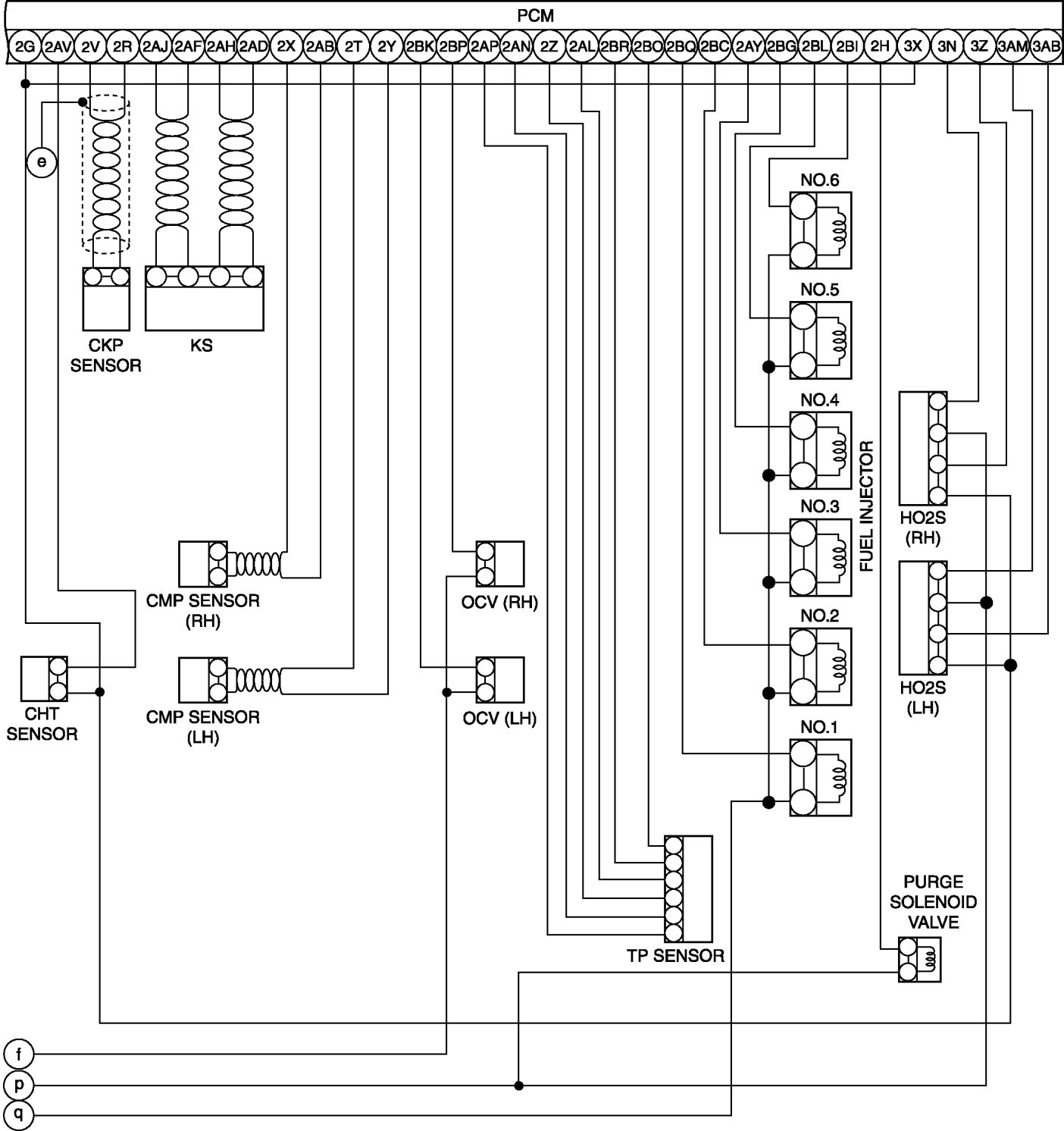

CONTROL SYSTEM WIRING DIAGRAM [MZI 3.7 V6]
