Home >> Mazda >> 2012 >> 3 L4-2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications

System Specifications





TRANSMISSION/TRANSAXLE TECHNICAL DATA

[FS5A-EL]

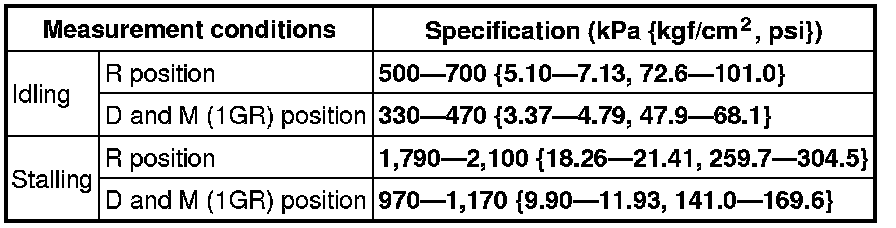

Line Pressure

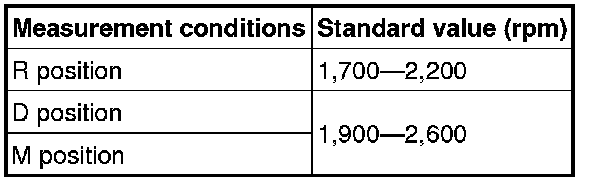

Stall Speed

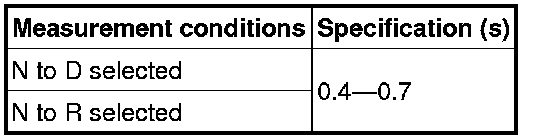

Time Lag






[FW6A-EL]

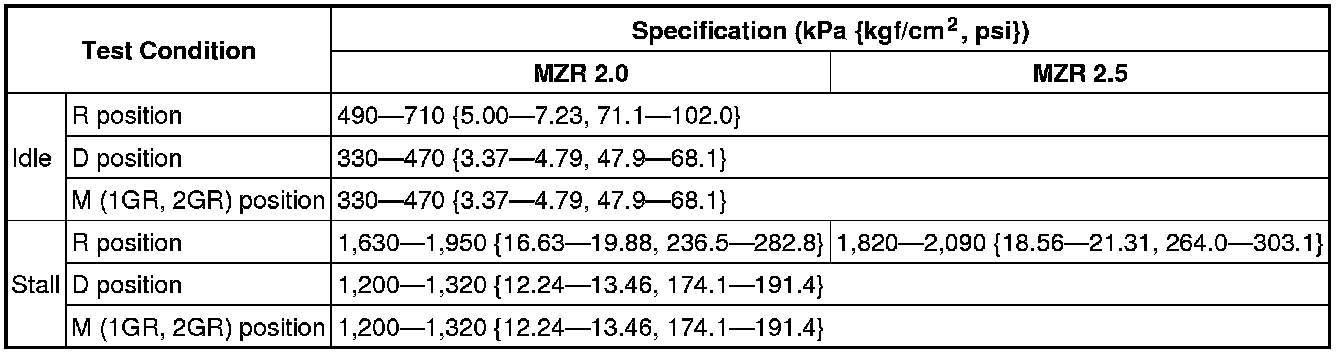

Line pressure

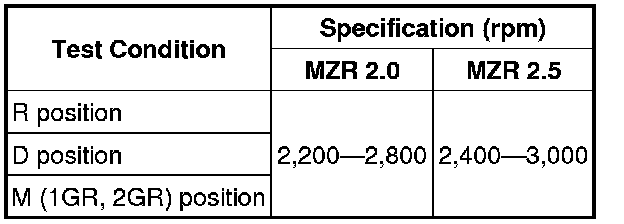

Stall speed

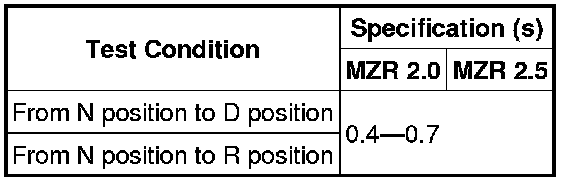

Time lag
