Emission Control Systems: Locations

EMISSION SYSTEM LOCATION INDEX [MZR 2.0, MZR 2.5]

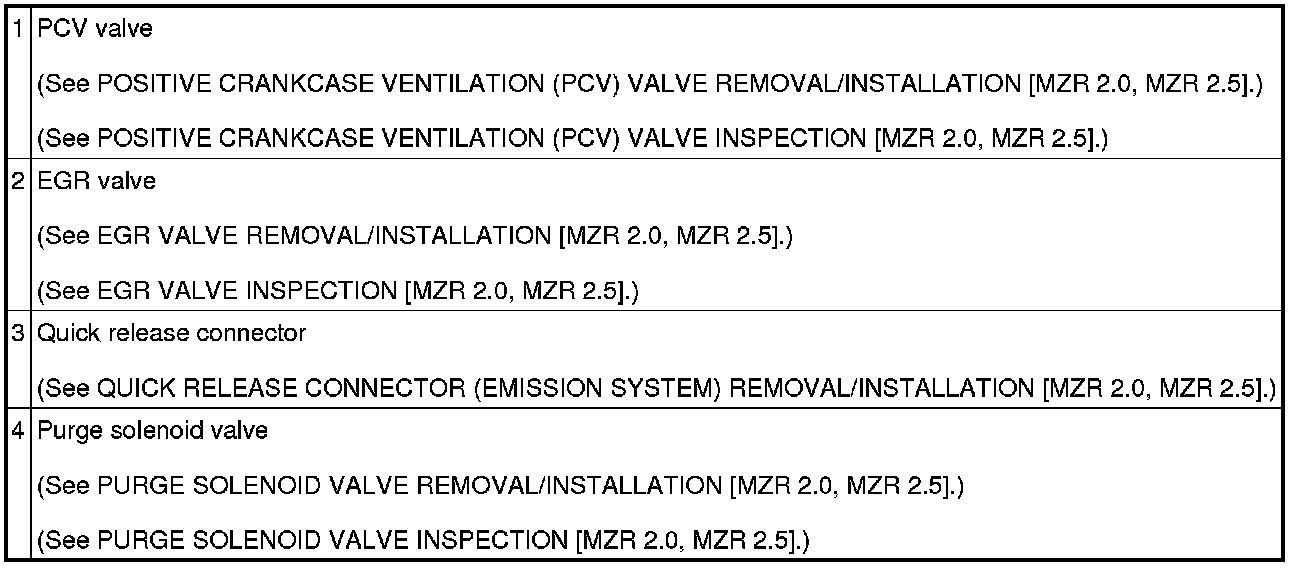

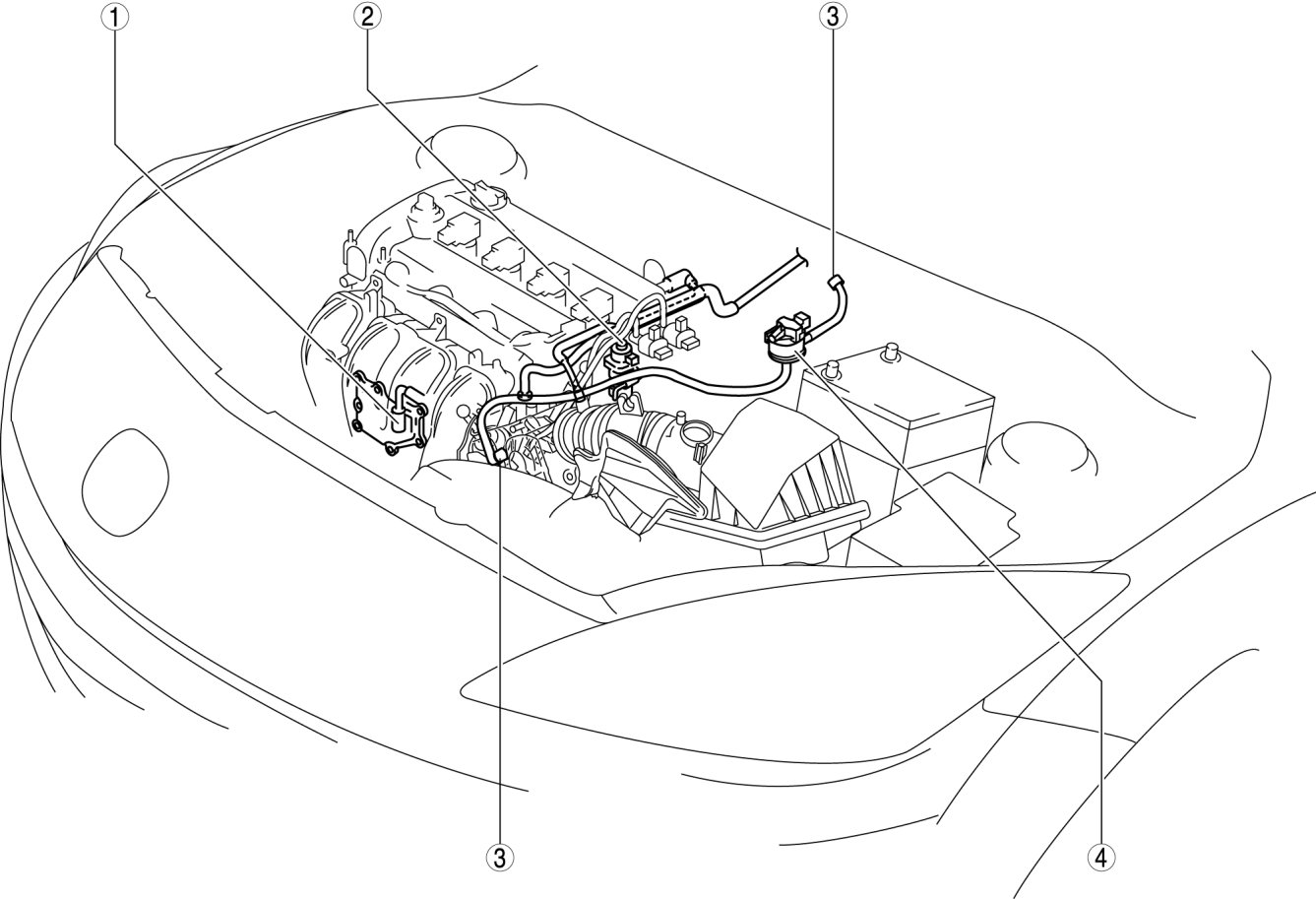

Engine Compartment Side

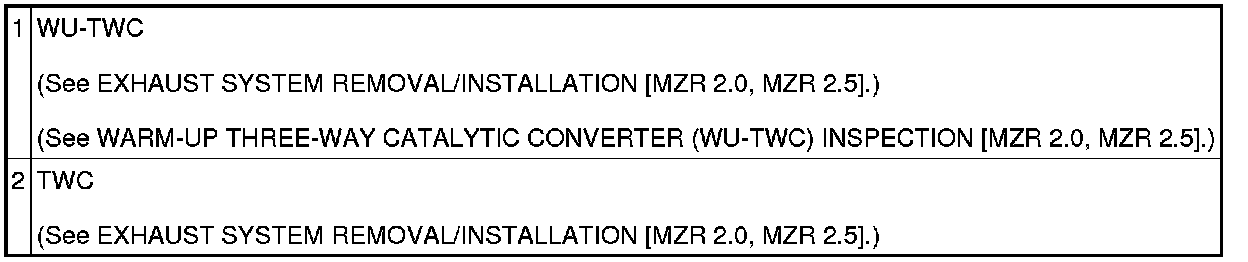

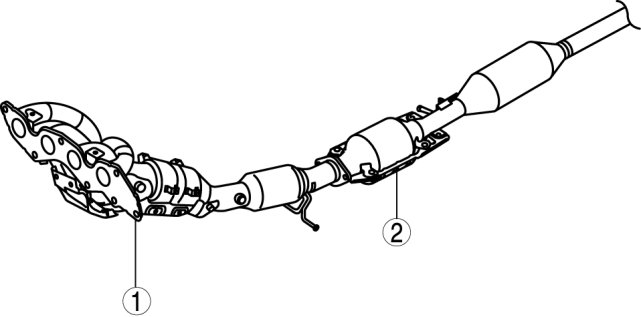

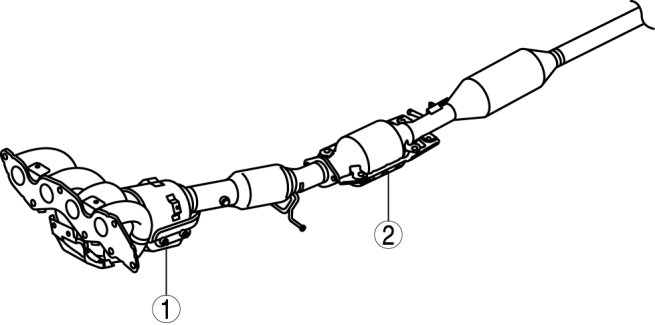

Exhaust System Side

MZR 2.0





MZR 2.5










Fuel Tank Side

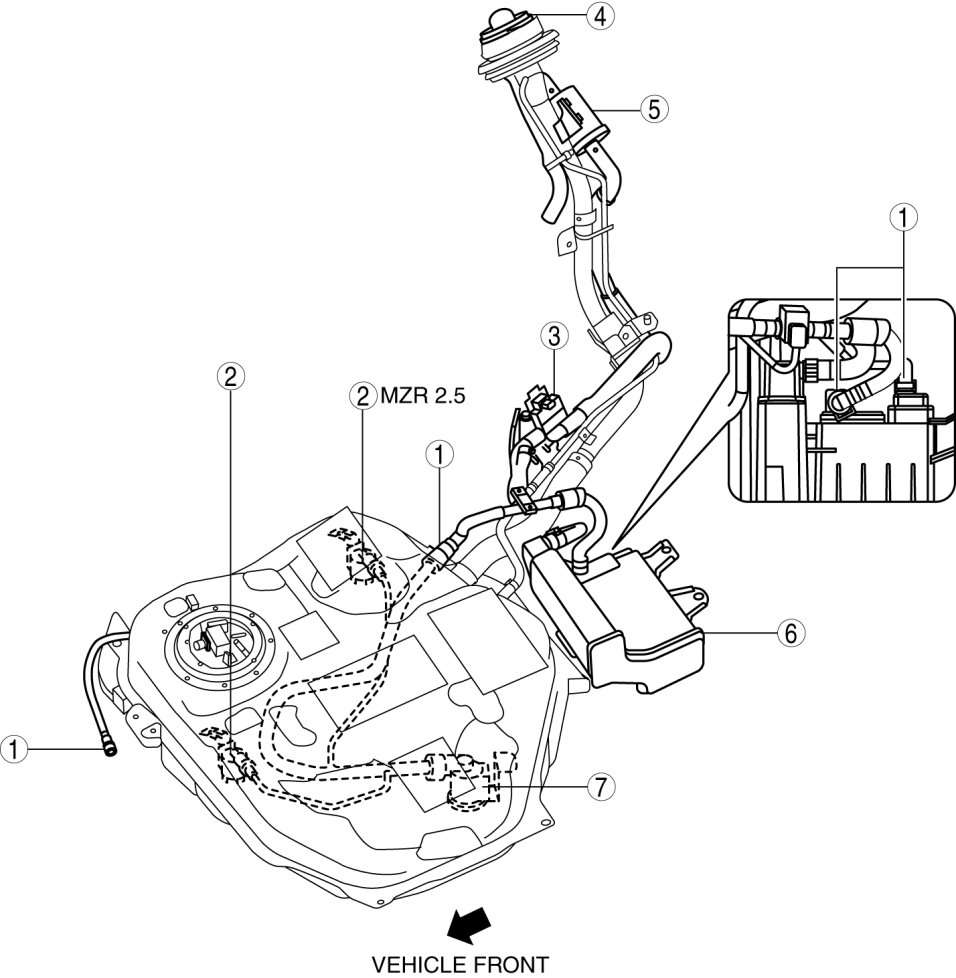

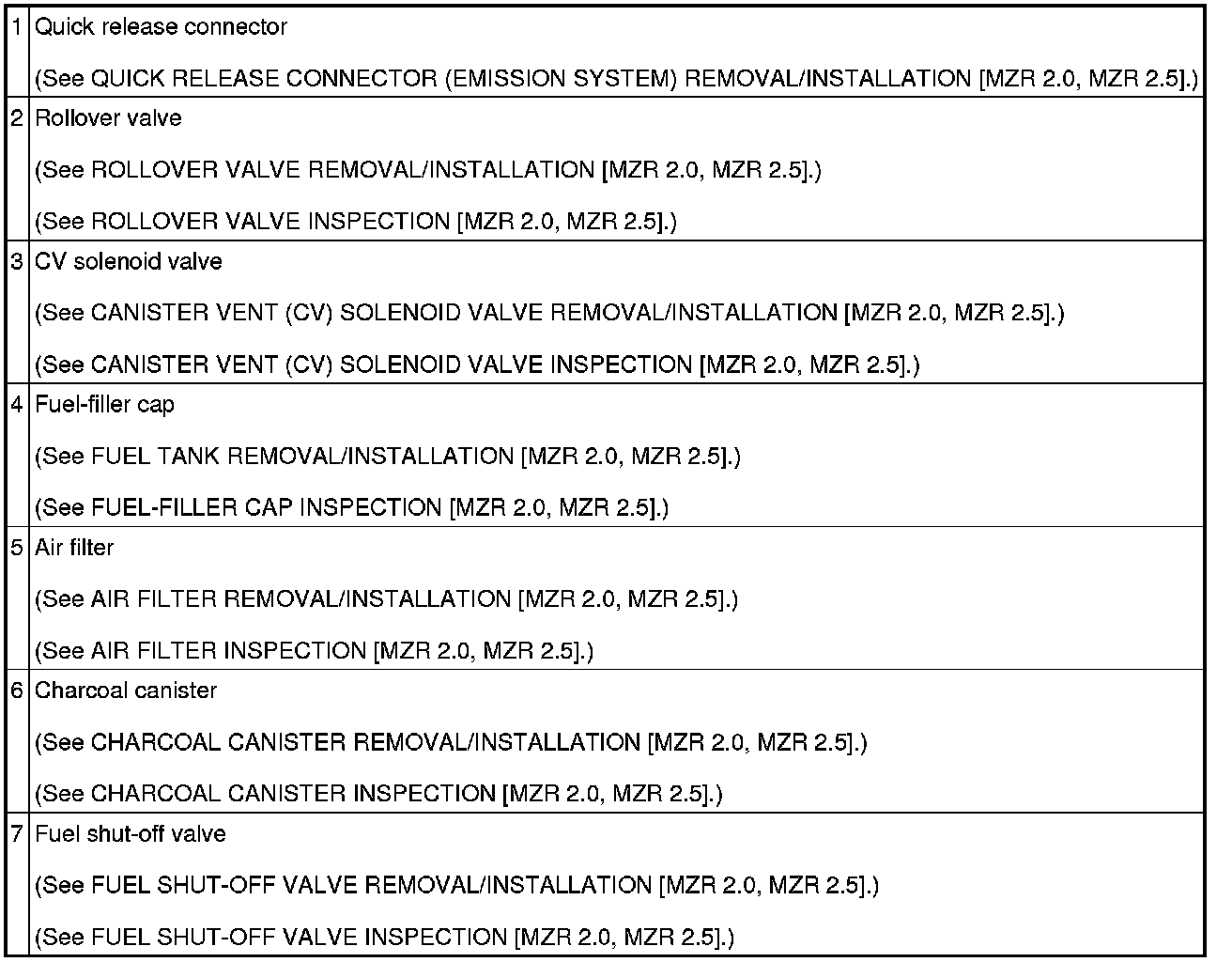

Except for Mexico

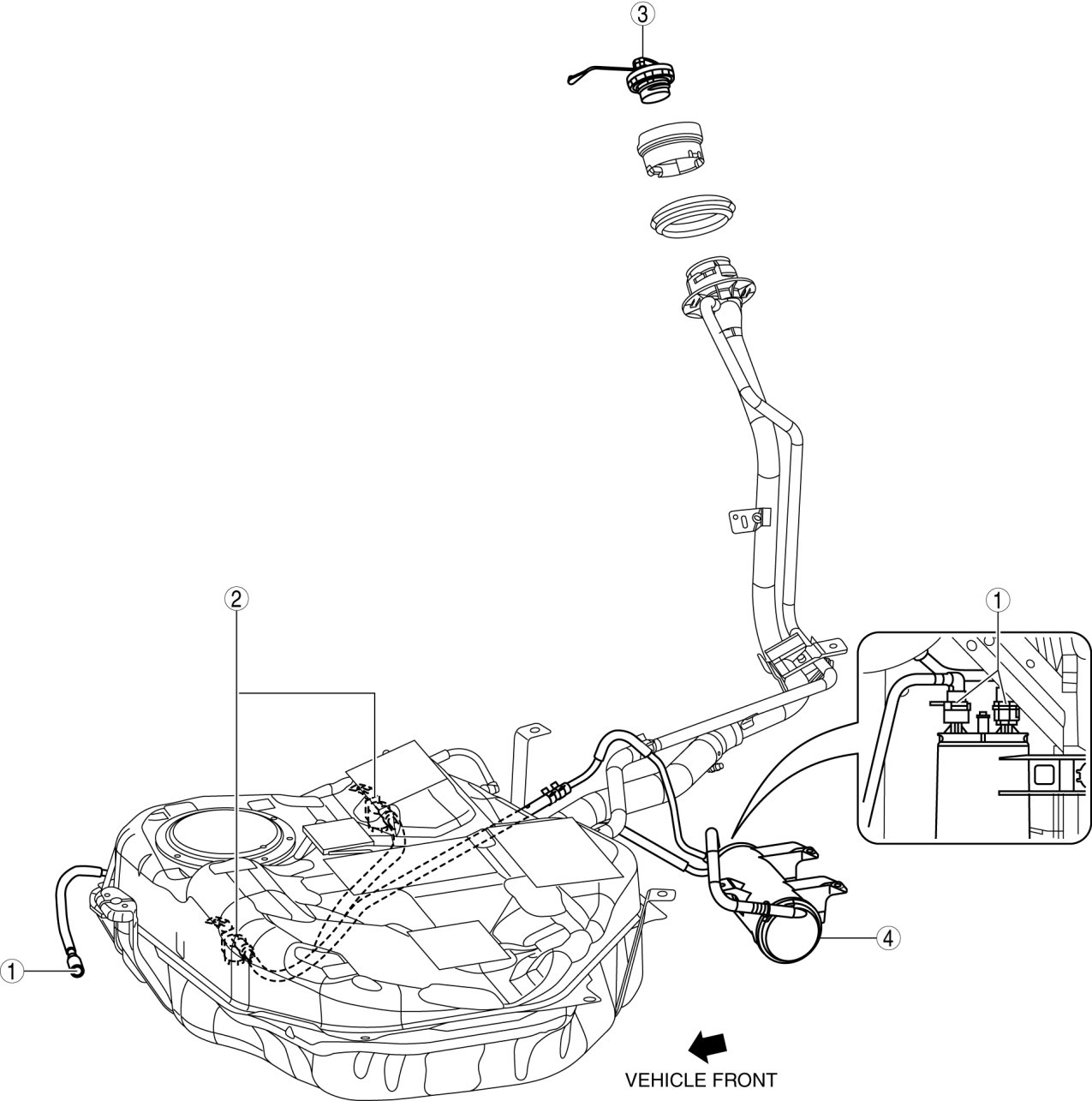

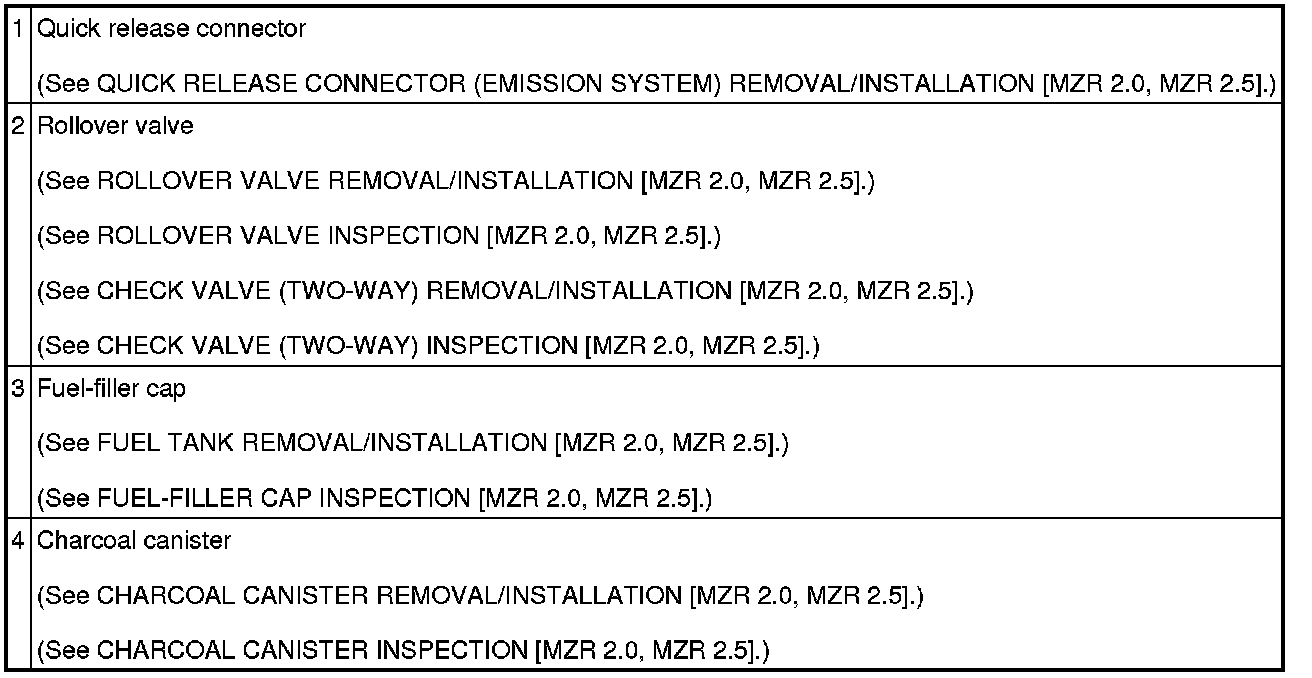

Mexico
