A/C Operation Check Mode Display

A/C OPERATION CHECK MODE DISPLAY

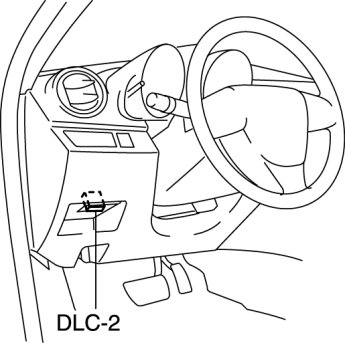

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select "Body", then "EATC Operation Check" from the initial screen of the IDS.

3. Verify the A/C operation check mode according to the directions on the screen.
