Emission Control Systems: Locations

EMISSION SYSTEM LOCATION INDEX [LF]

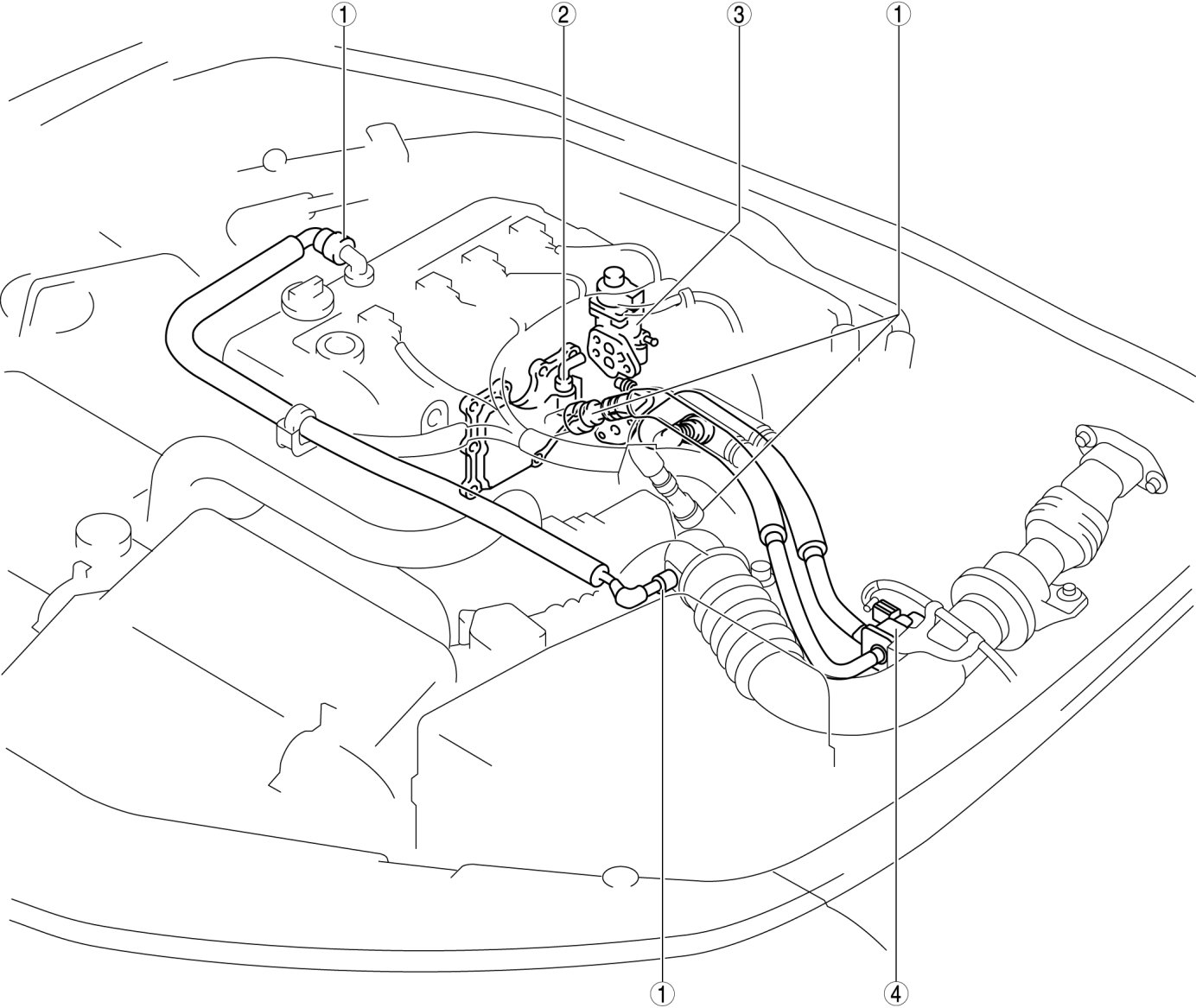

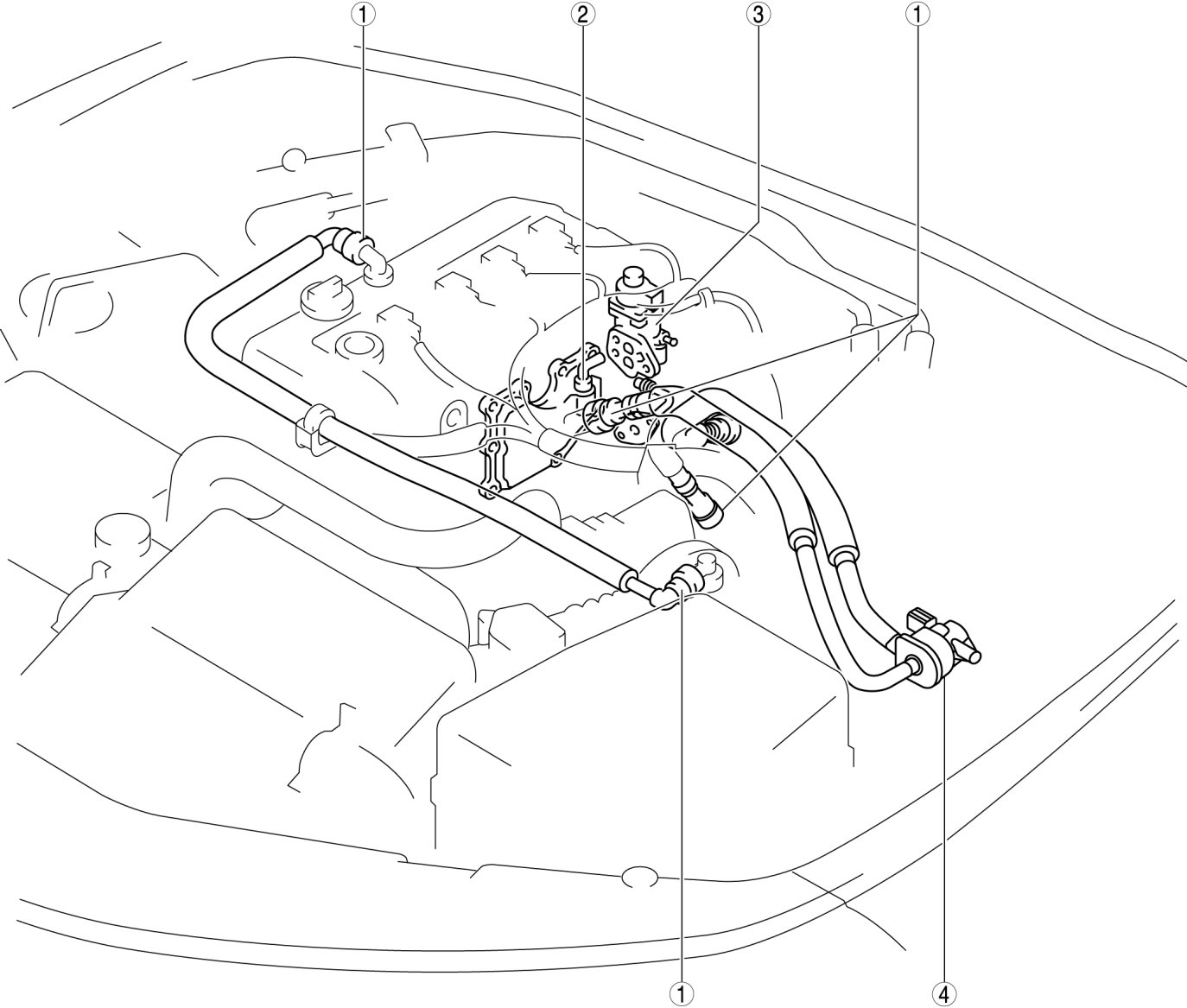

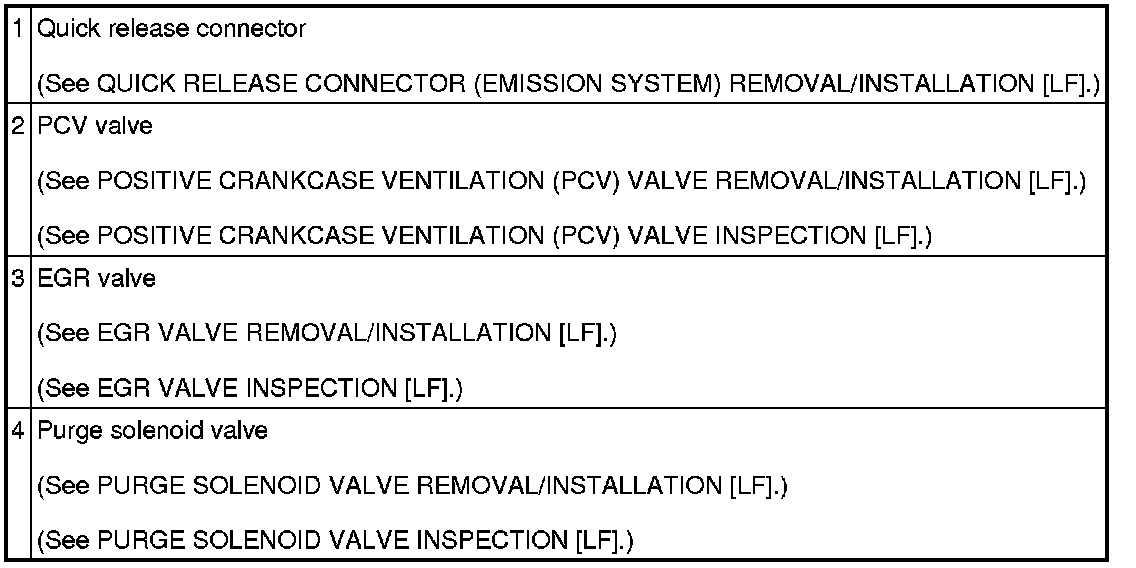

Engine Compartment Side

Except 6MT

6MT

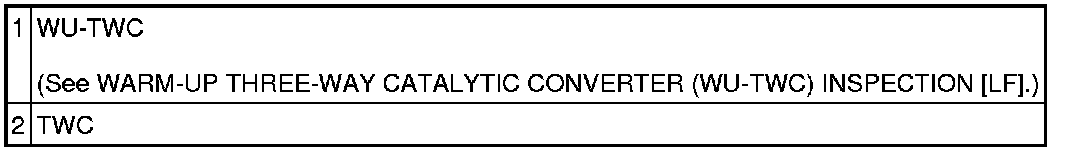

Exhaust System Side

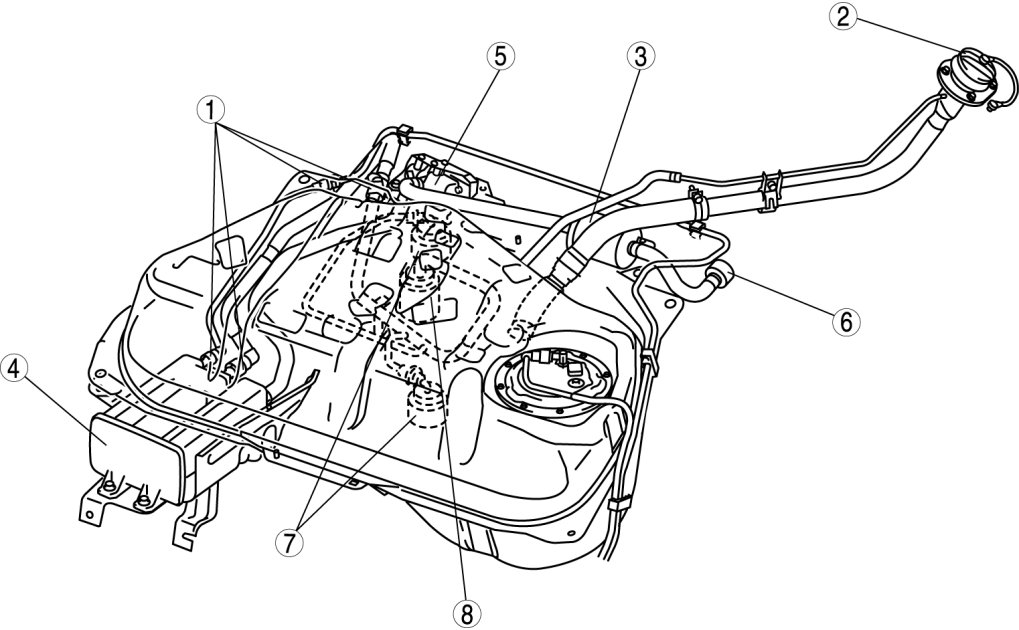

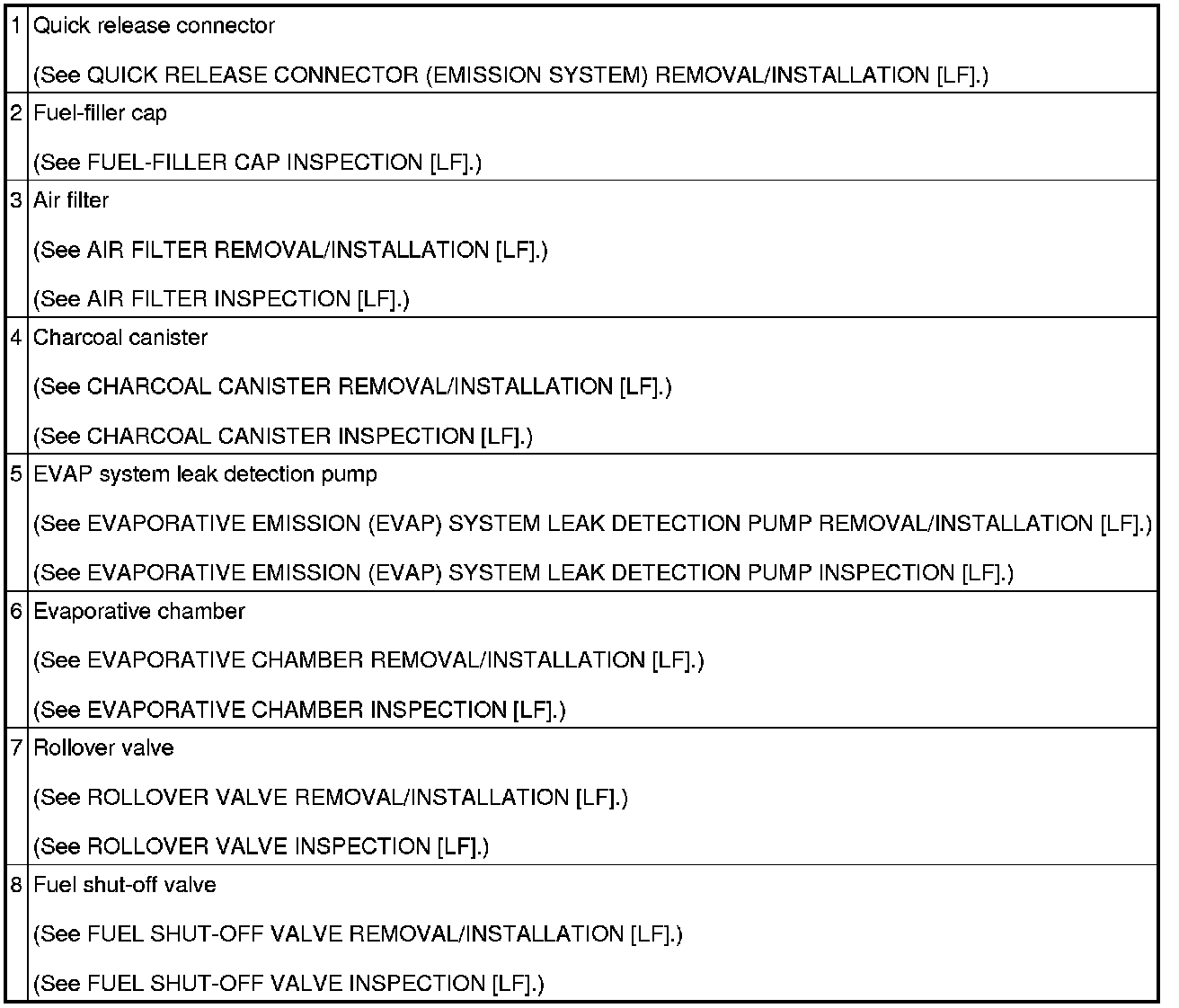

Fuel Tank Side
