Keyless Entry System

KEYLESS CONTROL MODULE INSPECTION [KEYLESS ENTRY SYSTEM]

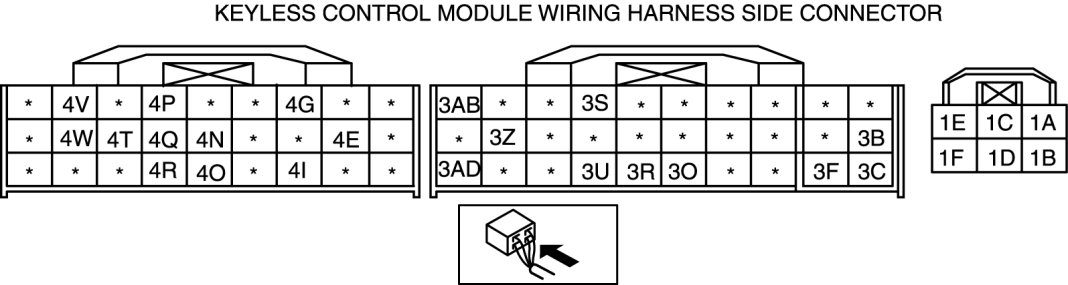

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).

- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.

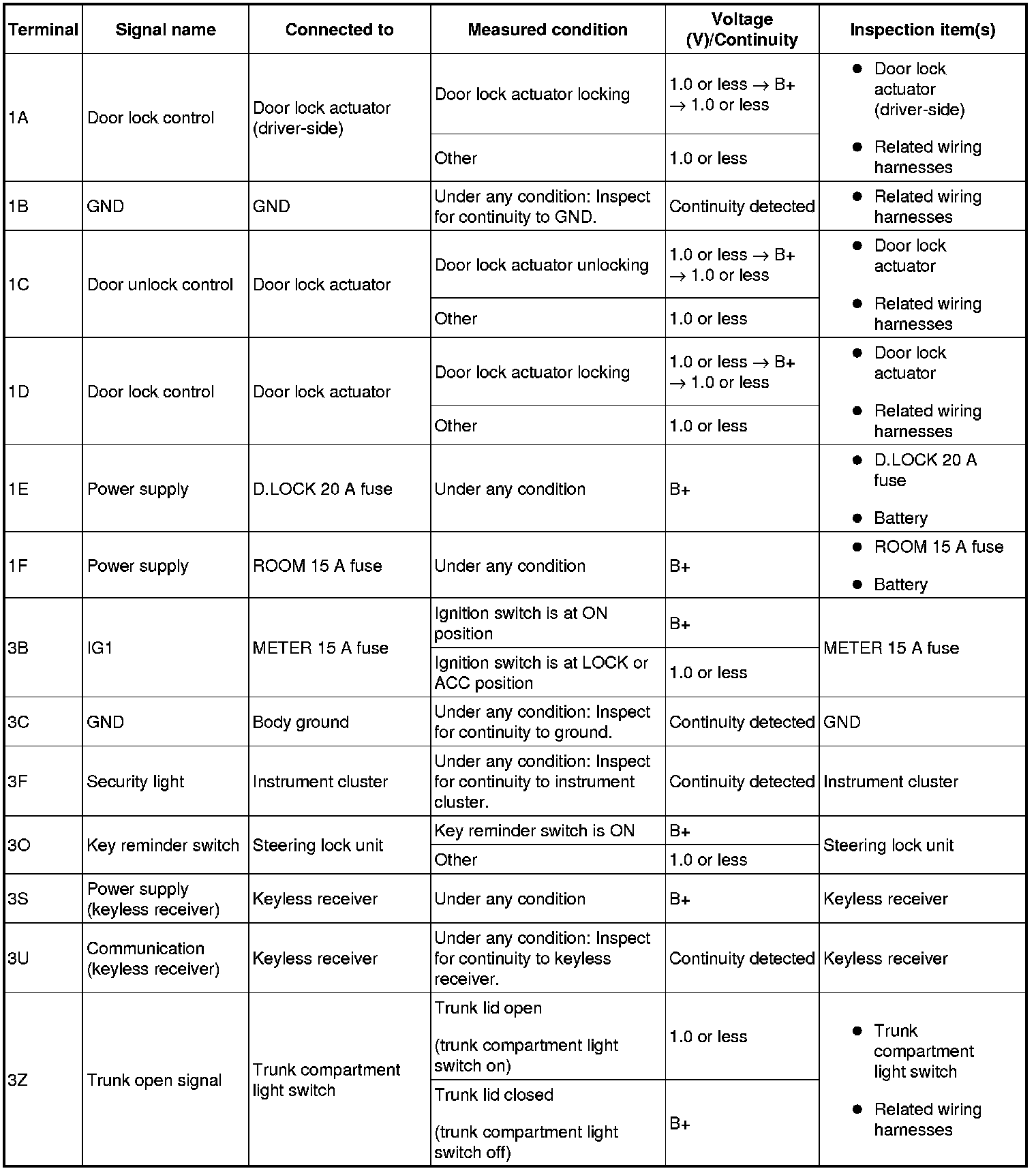

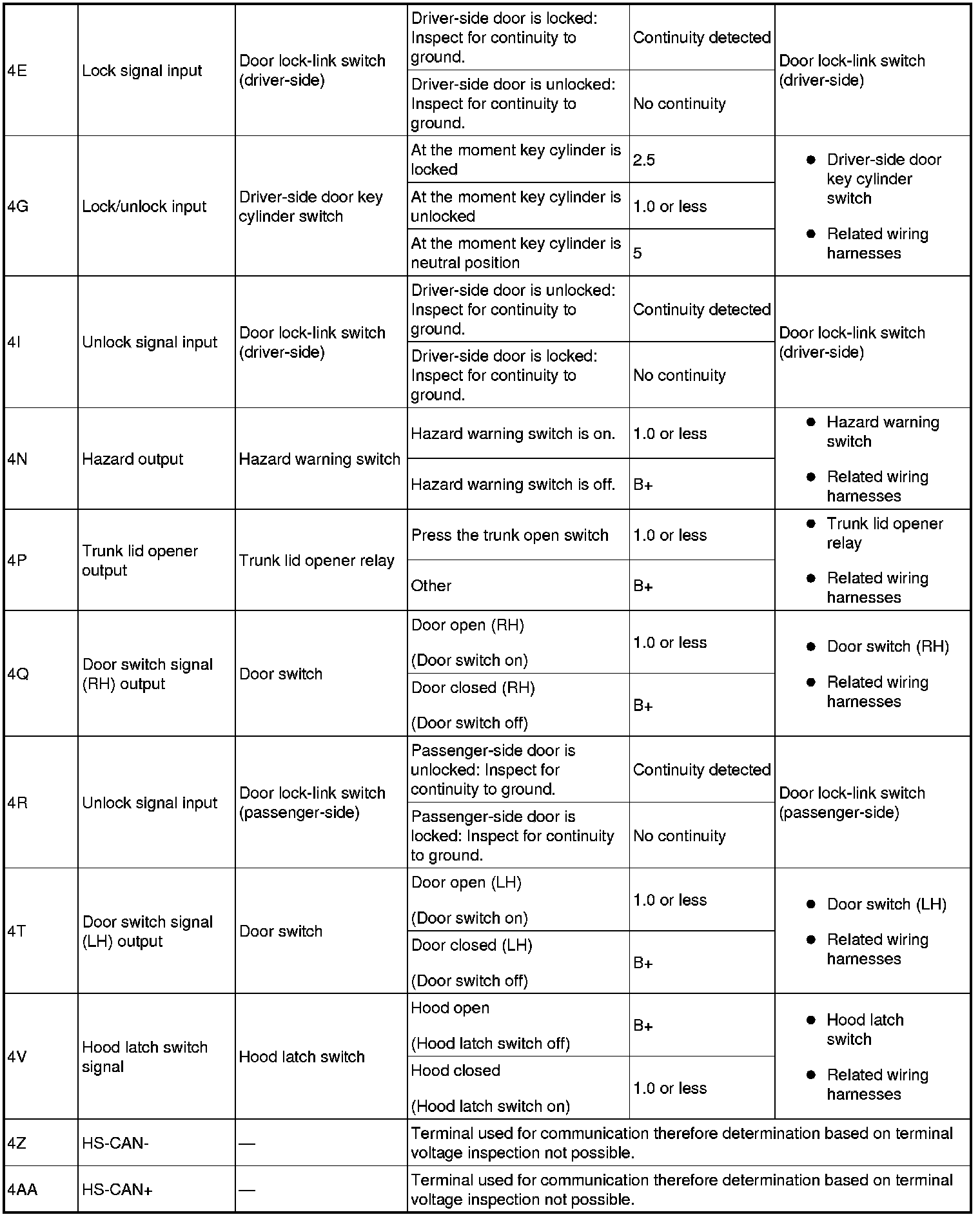

Terminal Voltage Table (Reference)













-*1
With TPMS
-*2
Without TPMS
