Home >> Mazda >> 2011 >> 6 V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> Auto Light-off Control Module - Without Auto Light/Wiper System, Auto Light/Wiper Control Module - With Auto Light/Wiper System

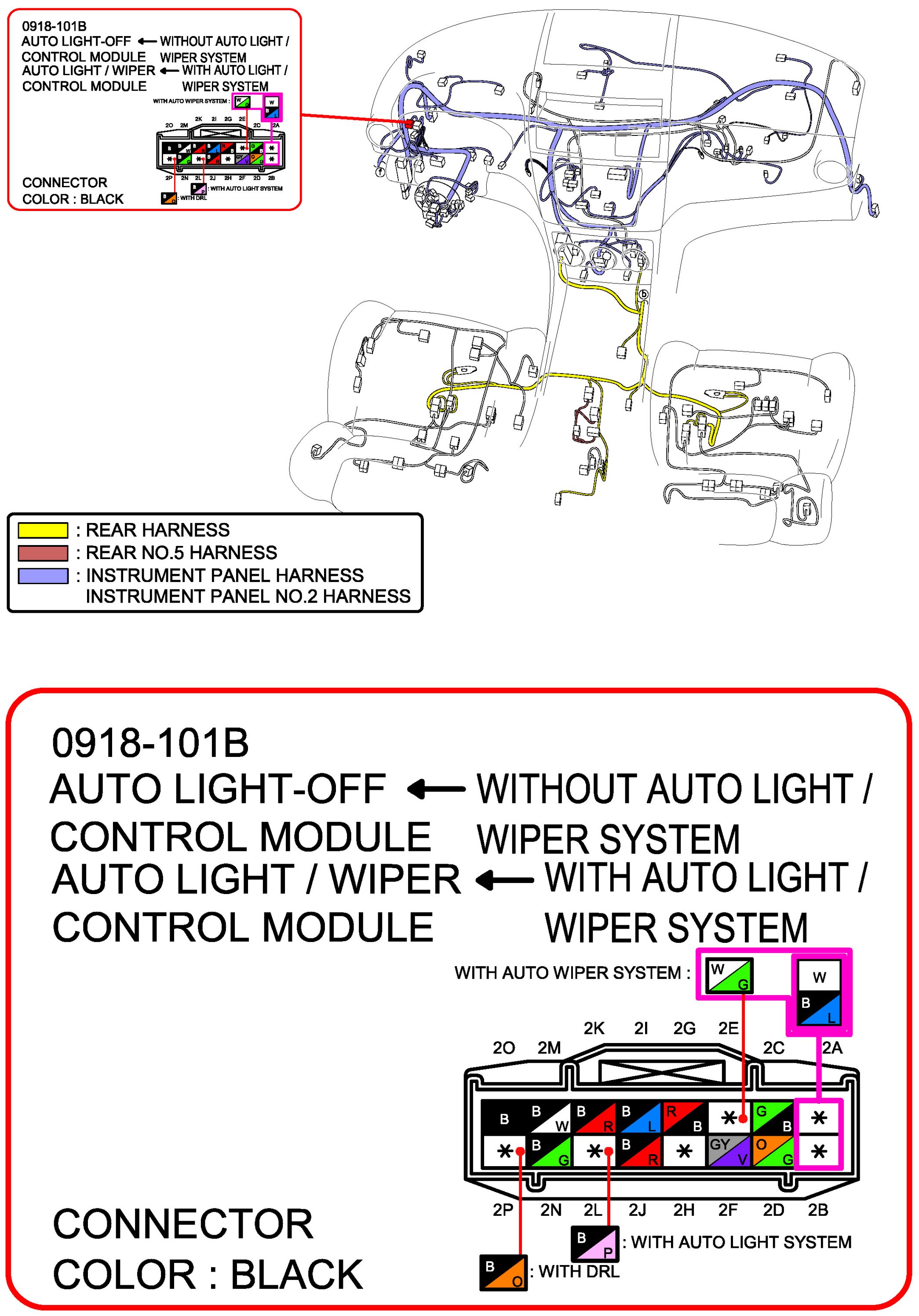

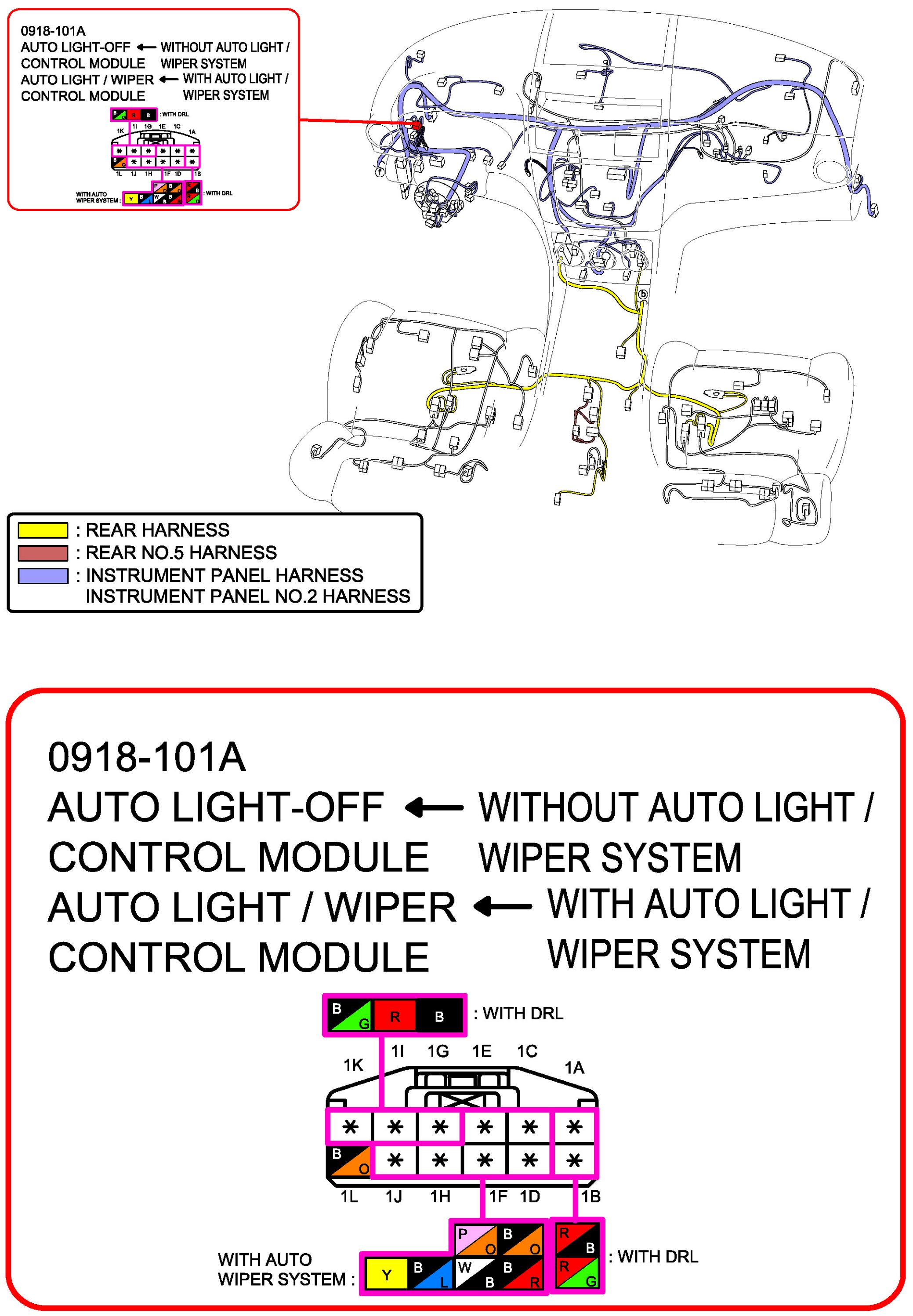

Auto Light-off Control Module - Without Auto Light/Wiper System, Auto Light/Wiper Control Module - With Auto Light/Wiper System

Auto Light-off Control Module <- Without Auto Light/Wiper System, Auto Light/Wiper Control Module <- With Auto Light/Wiper System
