Home >> Mazda >> 2011 >> 3 L4-2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle

Manual Transmission/Transaxle




TRANSMISSION/TRANSAXLE TECHNICAL DATA

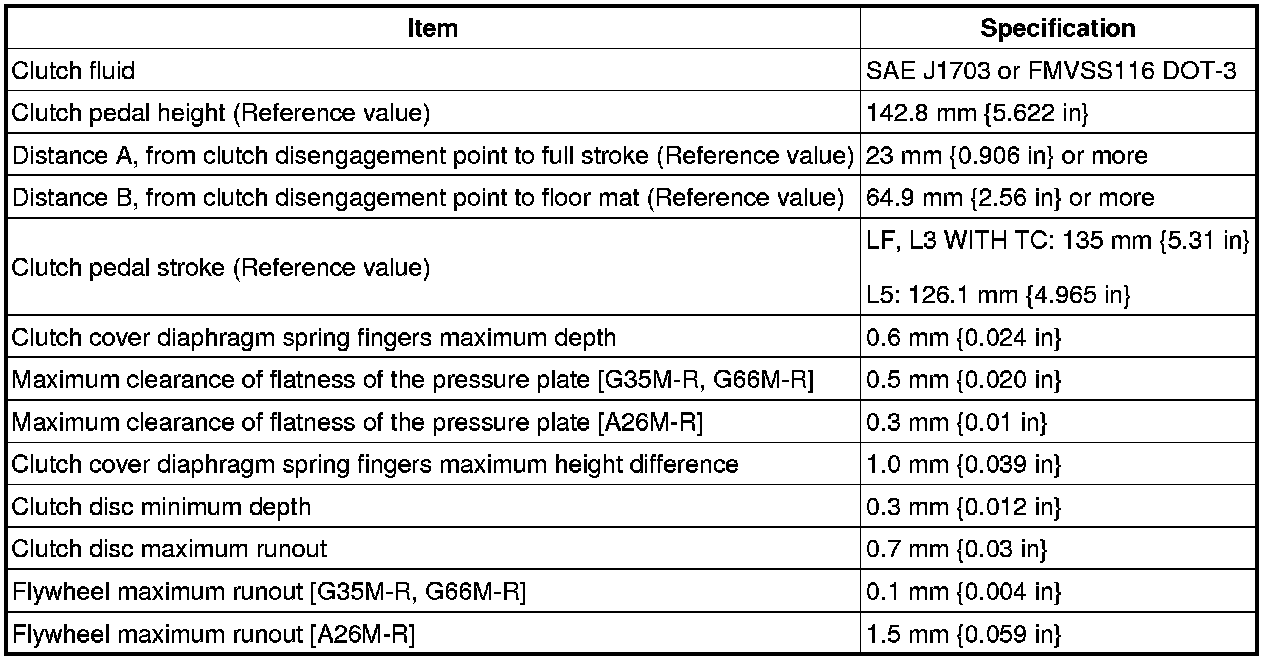

Clutch

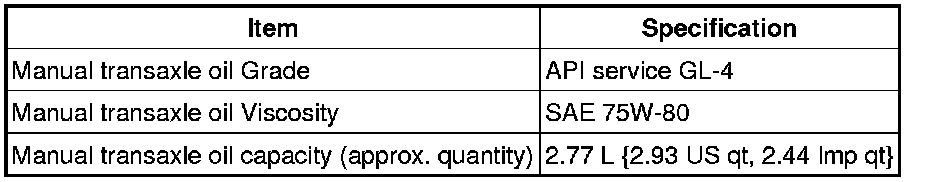

Manual Transaxle [G35M-R]

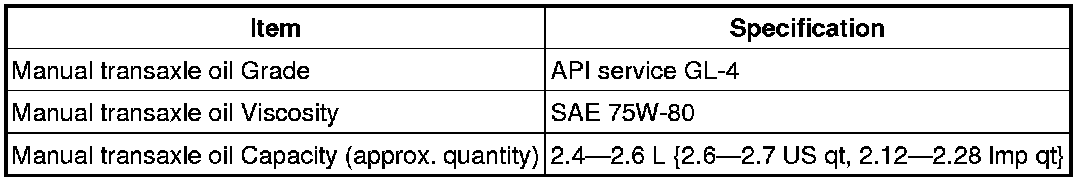

Manual Transaxle [G66M-R]





Manual Transaxle [A26M-R]
